Inta HTMSP2XX Thermostatic Cartridge for HTM64 Hospital Taps
SUMMARY
Inta HTMSP2XX Cartridge used in HTMDMCP and HTMDMRS Deck Mounted Lever Operated Sequential Thermostatic Hospital Tap

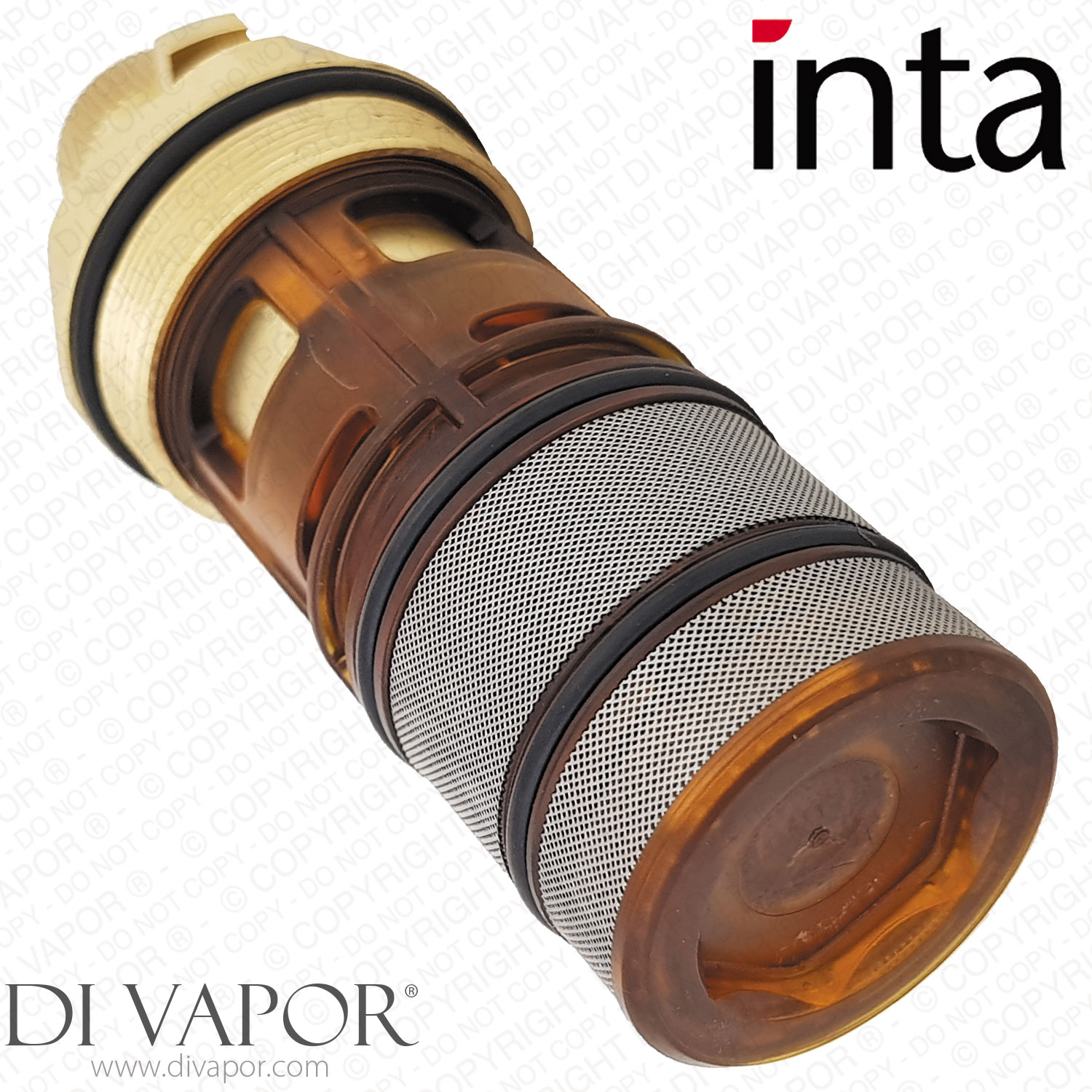

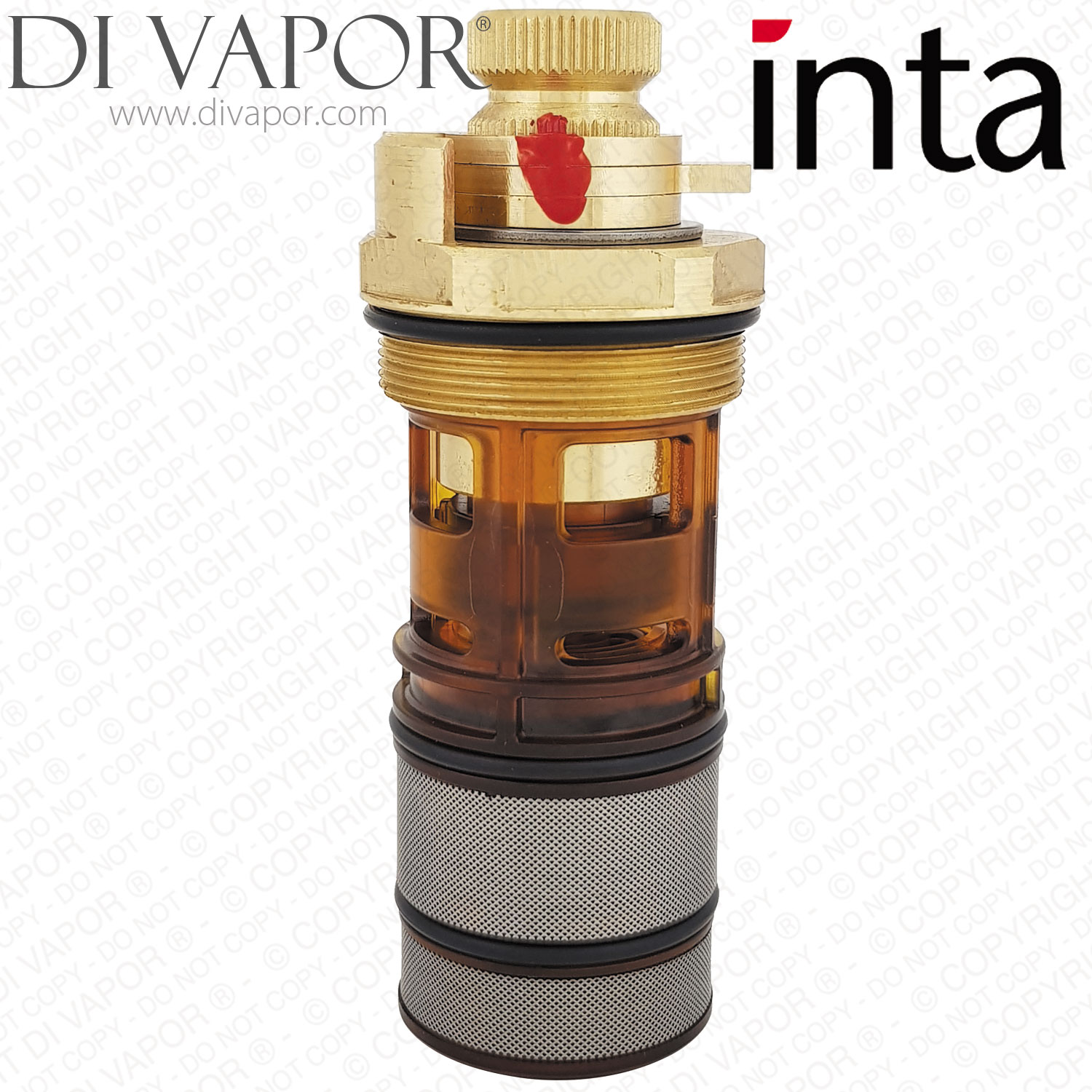

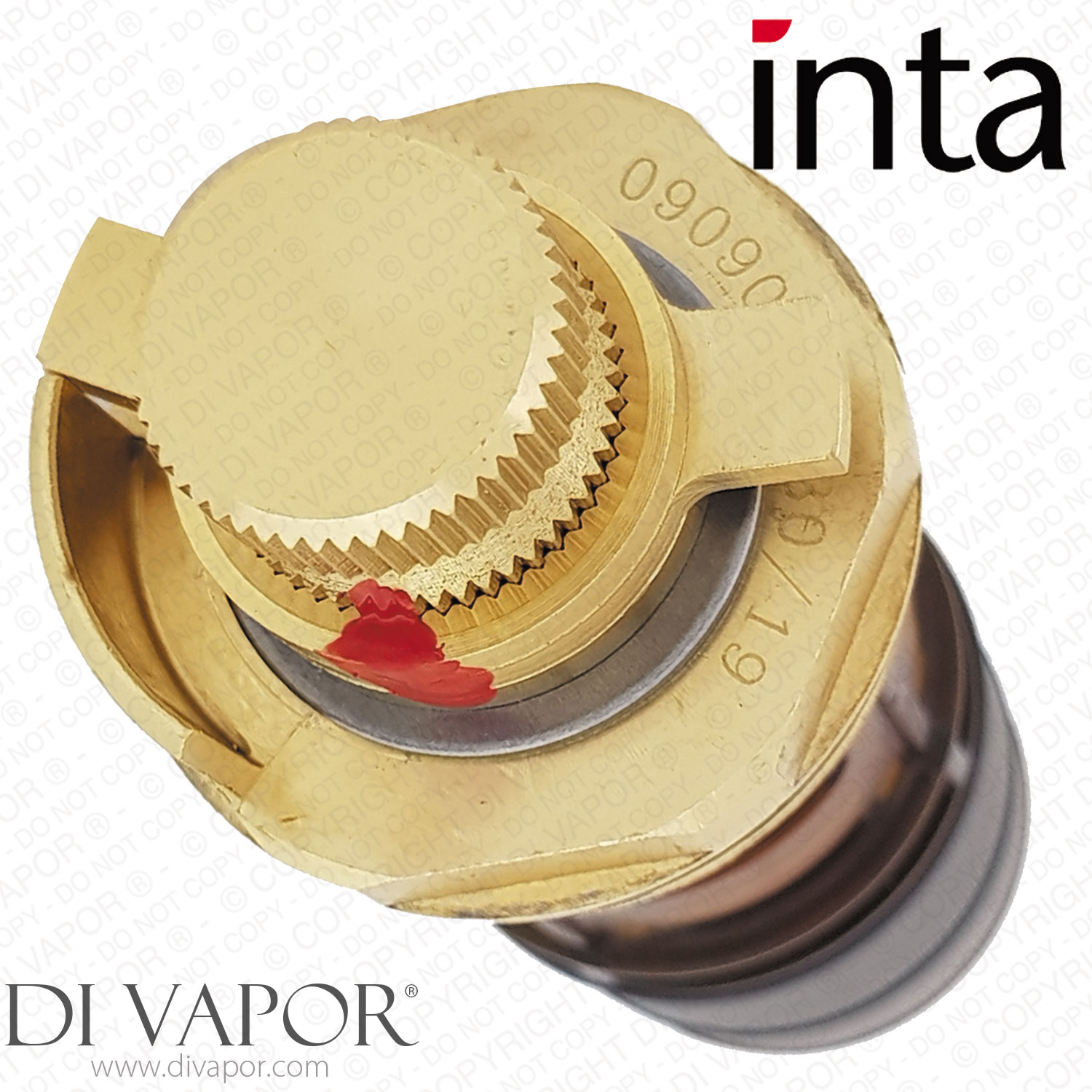

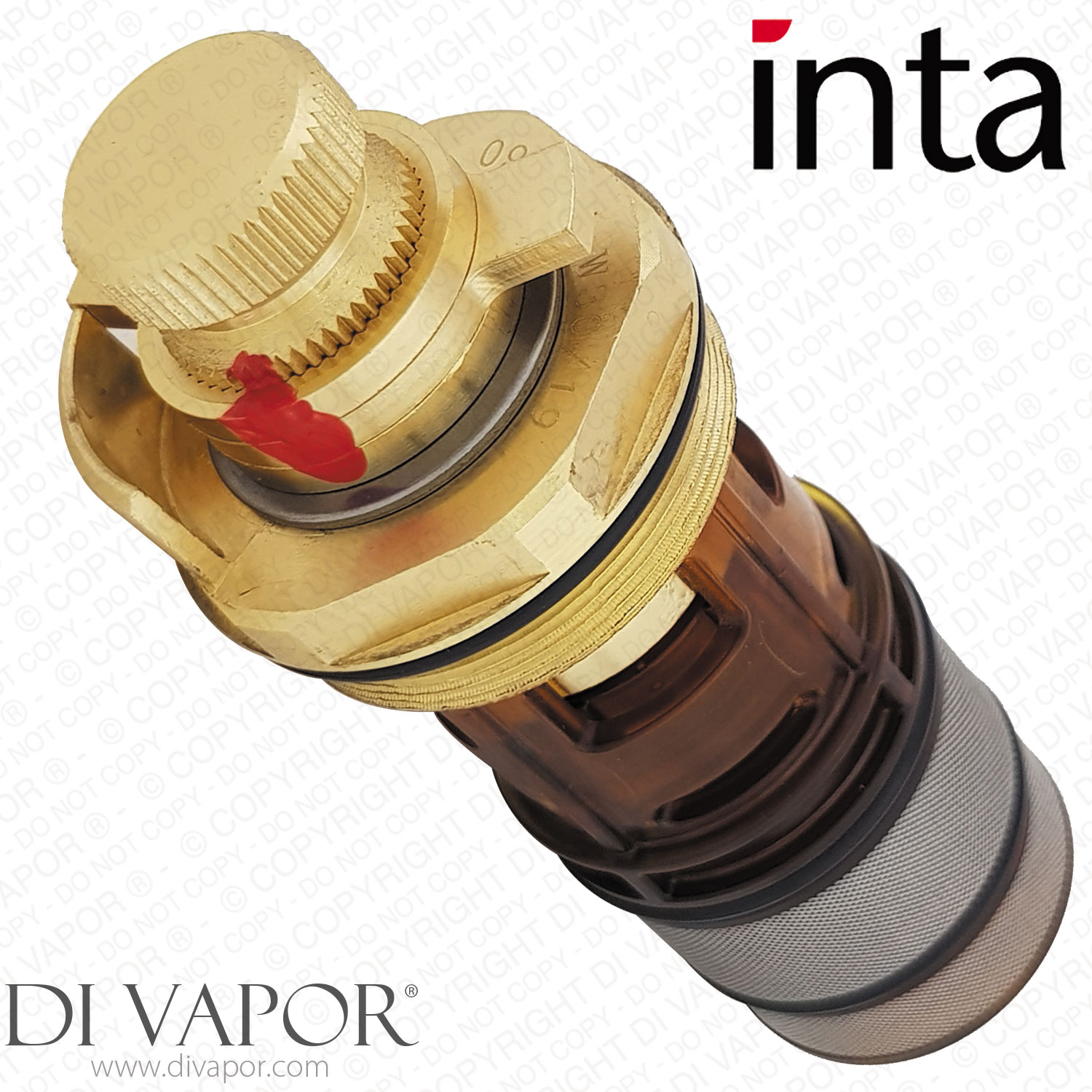

The Inta HTMSP2XX is a thermostatic cartridge used in Inta and Intatec HTM64 hospital tap systems. It is fitted inside the tap body to regulate the mixed water temperature on HTM64 deck mounted lever taps, wall mounted lever taps and selected wall mounted infrared thermostatic hospital taps.
The cartridge is a screw-fit assembly and should be matched by the exact part code HTMSP2XX and the exact tap model rather than by dimensions alone.
Technical Details
- - Part Number: HTMSP2XX
- - Part type: thermostatic cartridge
- - Total length: 97.8mm
- - Diameter at thread: 34.7mm
- - Diameter at bottom O-ring: 32.2mm
- - Fitting type: screw fit
- - Colour and material: brass, plastic, orange and yellow
Use and Fault Checking
The HTMSP2XX cartridge controls the hot and cold blend inside the HTM64 tap. A cartridge fault may be investigated where the tap no longer regulates outlet temperature correctly, gives unstable mixed temperature or cannot maintain the expected thermostatic performance after supply and inlet checks have been carried out.
Before ordering, confirm the full tap model code and check whether the fault is with the thermostatic cartridge, the filter and check valve assembly, the lever handle, the infrared sensor system or another HTM64 spare.
Confirmed Used In Models
- - Inta HTMDMCP HTM64 Deck Mounted Lever Operated Sequential Thermostatic Hospital Tap
- - Inta HTMWMCP HTM64 Wall Mounted Lever Operated Sequential Thermostatic Tap
- - Inta HTMWMRS HTM64 Wall Mounted Lever Operated Sequential Thermostatic Tap with Detachable Spout
- - Inta HTMWMBCP HTM64 Safe Touch Infrared Thermostatic Wall Mounted Battery Operated Tap
- - Inta HTMWMMCP HTM64 Wall Mounted Infra-Red Thermostatic Hospital Tap Mains Operated
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- - INTA HTMSP5XX Filter and Check Valve Assembly
- - Inta HTMSP6XX Lever Handle for HTMSP2XX Cartridge
- - INTA HTMSP29XX Replacement Lever Handle for HTM Tap 09125MANCR 09125/3MANCR G1
- - Inta HTMSP4XX Hot Water Inlet Leg
- - Inta HTMSP3XX Cold Water Inlet Leg
- - INTA HTMFLUSH Flushing Kit for HTM Taps Pairs
- - Inta HTMSP17XX Infrared Touchless Tap Sensor
- - Inta ID02812ELVK Solenoid for HTM64 Infra Red Thermostatic Hospital Taps
- - INTA HTMSP10XX Battery Case for HTM Tap
