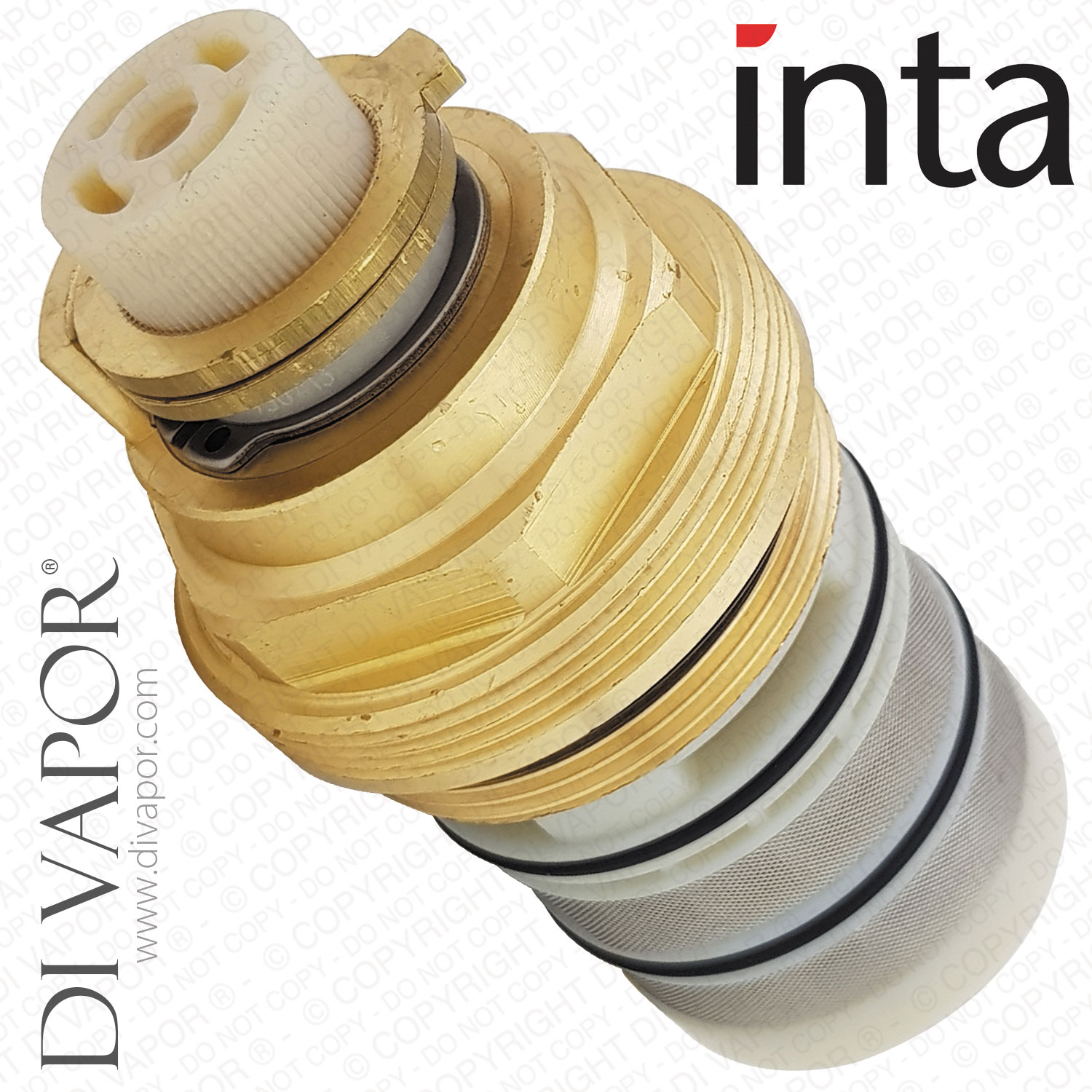

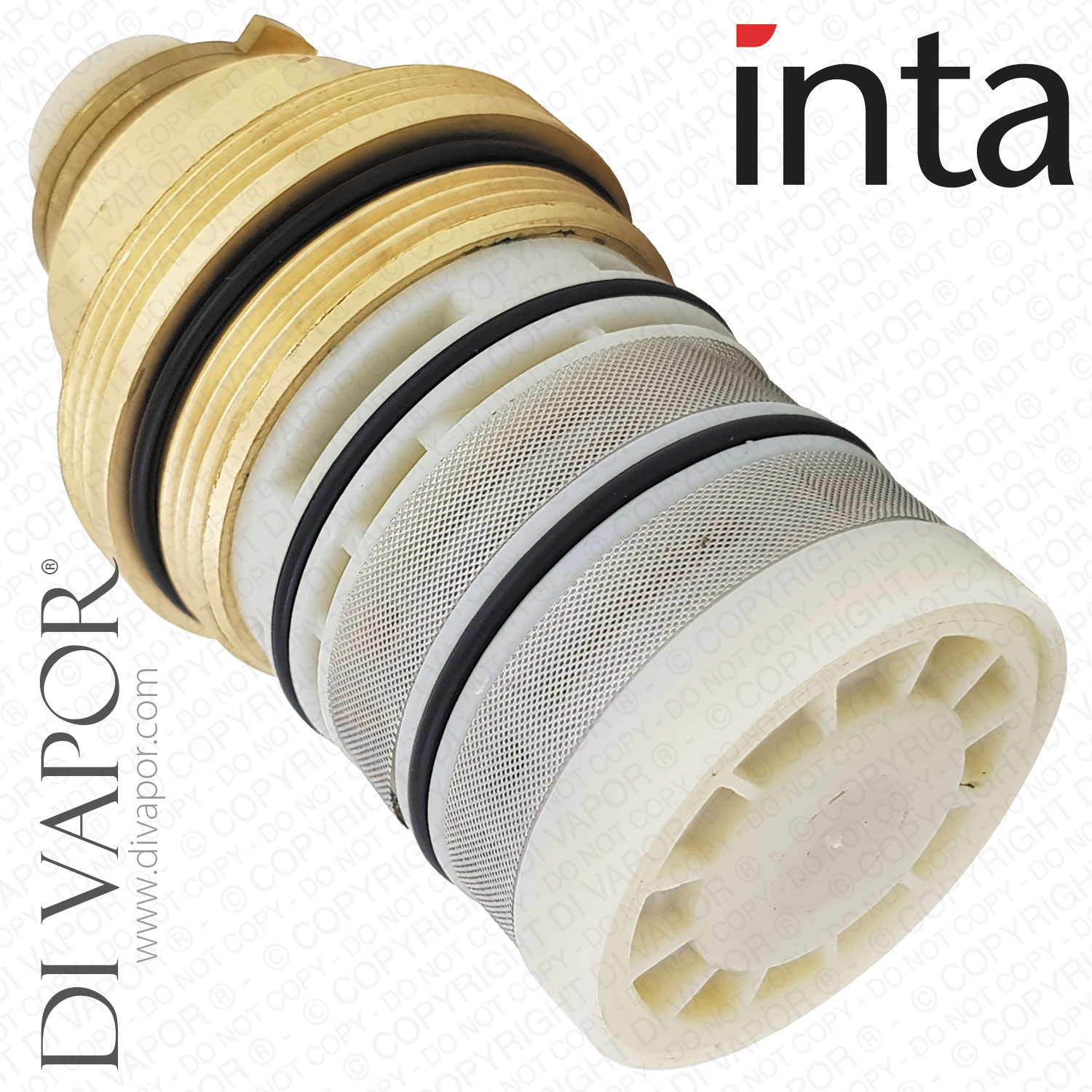

Inta 90032CP / 90033CP Thermostatic Cartridge for Acura Shower Mixing Valves - 90032CP-CART
SUMMARY
Inta 90032CP-CART is a thermostatic cartridge for selected Inta Acura and Vista sequential shower mixing valves. The cartridge code used for this spare is BO91169 and it is used to control the mixed water temperature inside the valve.
This thermostatic cartridge helps restore stable shower temperature where the original cartridge has become worn, scaled, stiff or unable to regulate the hot and cold water mix correctly.
Technical Details
- - Part Number: 90032CP-CART
- - Cartridge code: BO91169
- - Also shown as: BO-91169, B0-91169, B091169
- - Replacement for older code: BO90085
- - Part type: thermostatic cartridge
- - Valve type: Inta Acura and Vista sequential shower mixing valves with combined flow and temperature control
- - Supported valve data: 43C factory pre-set, fail-safe on hot and cold supplies, operating pressure 0.2 to 5 bar
- - Inlet arrangement on the supported Acura valves: hot supply on the left and cold supply on the right when facing the valve
Confirmed Compatible Models
- - Inta 90030CP Acura Exposed Thermostatic Sequential Control Shower Bottom Outlet
- - Inta 90032CP Acura Concealed Thermostatic Sequential Control Shower
- - Inta 90033CP Acura Exposed Thermostatic Sequential Control Shower
Before You Order
- - Match the valve code and the cartridge code on the existing part before ordering.
- - Check whether your valve is 90030CP, 90032CP or 90033CP and compare the cartridge marking where possible.
- - If the valve or cartridge marking is unclear, send clear photos and measurements to help identify the correct spare before purchase.
Troubleshooting
- - Symptom: unstable shower temperature, poor temperature control or difficulty holding the selected temperature.
- - Likely Cause: worn, scaled or sticking thermostatic cartridge.
- - Solution: replace the thermostatic cartridge and lubricate the O-rings during installation with suitable silicone grease.
Related Spares You May Need
- - INTA BO35012/C Acura Control Handle - R350A8/1C (R35012/C)
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
Inta BO91169 or BO-91169 is a thermostatic cartridge for selected Inta Acura and Vista sequential shower valves, including 90030CP, 90032CP and 90033CP.It regulates the hot and cold water mix inside the valve to help maintain a stable shower temperature and restore normal thermos...
