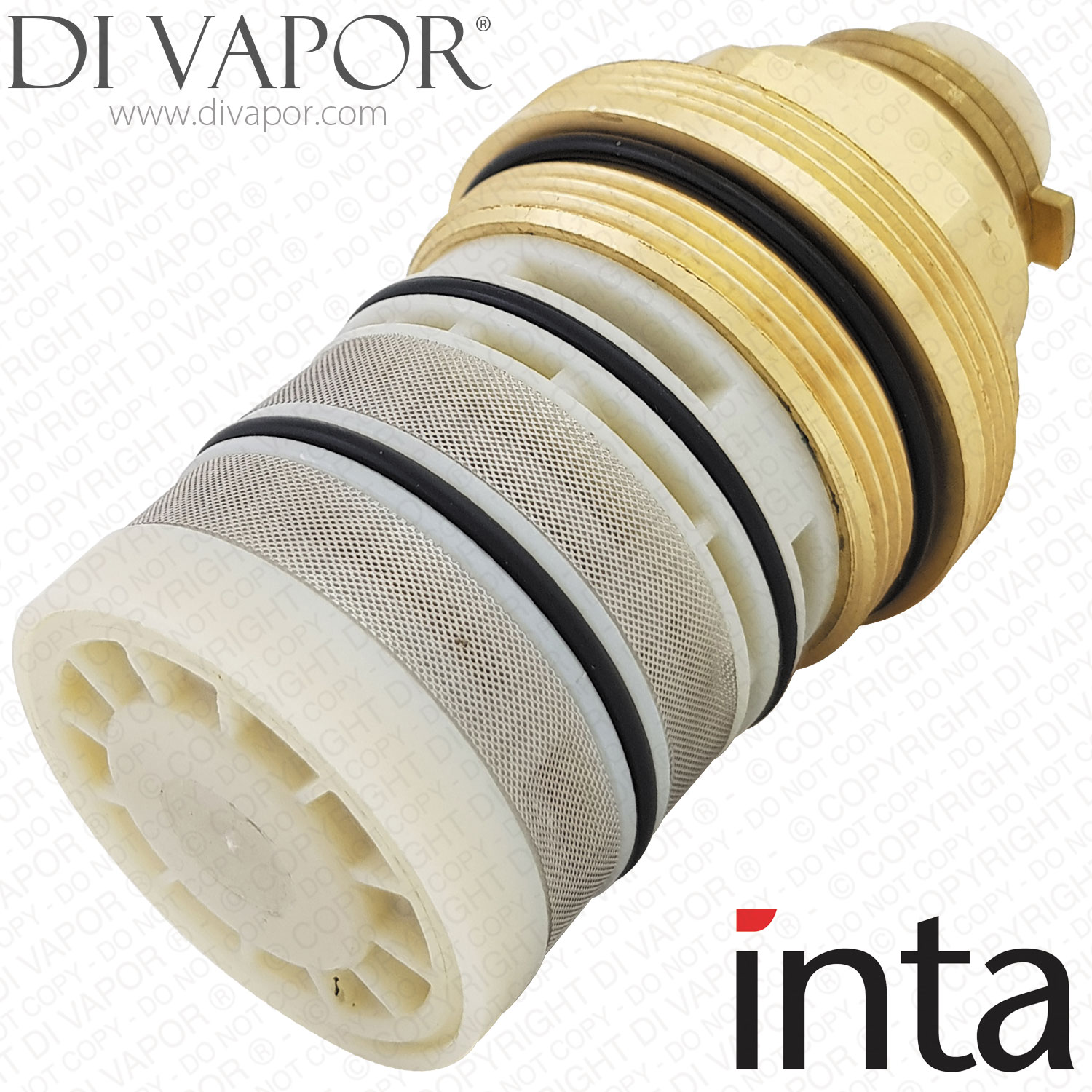

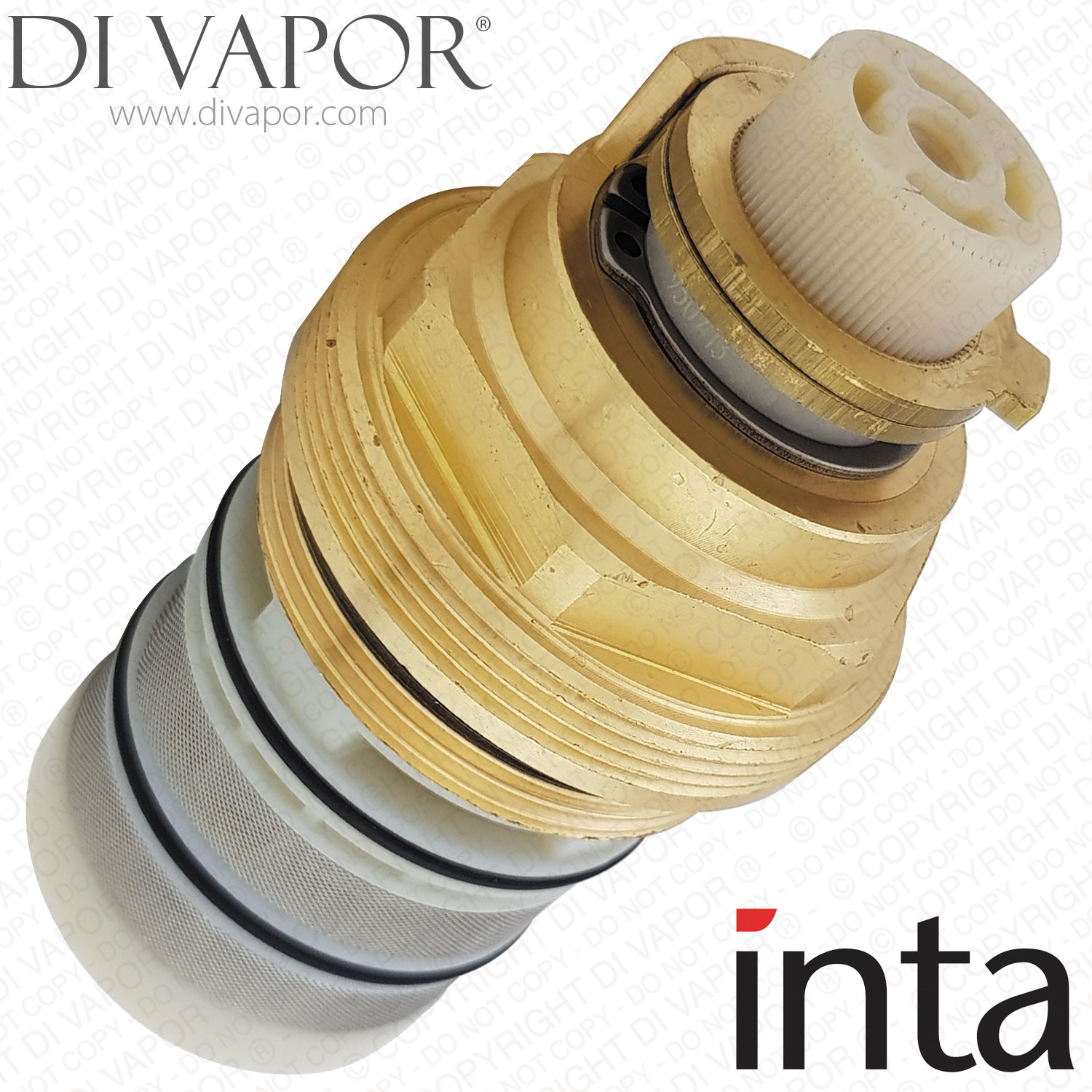

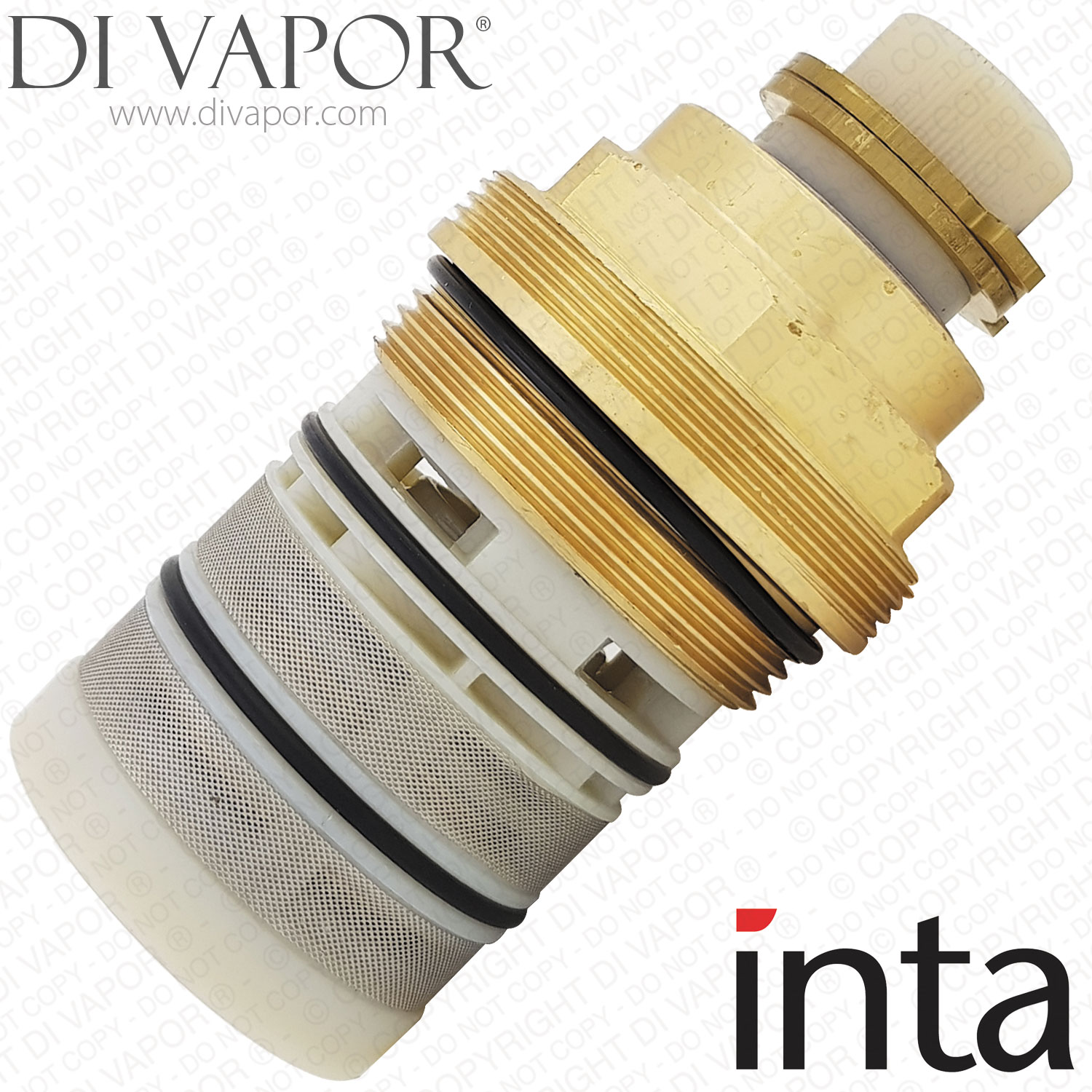

Inta BO91169 Thermostatic Cartridge (BO-91169)

SUMMARY

Inta BO91169 or BO-91169 is a thermostatic cartridge for selected Inta Acura and Vista sequential shower valves, including 90030CP, 90032CP and 90033CP.

It regulates the hot and cold water mix inside the valve to help maintain a stable shower temperature and restore normal thermostatic control when the original cartridge is scaled, stiff or no longer regulating correctly.

Technical Details

- - Part code: BO91169

- - Also shown as: BO-91169, B0-91169, B091169

- - Replacement for older code: BO90085

- - Part type: thermostatic cartridge

- - Used in: Inta Acura and Vista sequential shower valves

- - Valve data for the supported Acura range: combined flow and temperature control, 43C factory pre-set, fail-safe on hot and cold supplies, operating pressure 0.2 to 5 bar

Before You Order

- - Match the valve code and the cartridge code on the existing part before ordering.

- - Some Inta Acura and Vista GEN1 valves show BC900090CP, so check the exact valve spare-parts page and the cartridge marking on your valve before ordering.

Troubleshooting

- - Symptom: unstable temperature, poor temperature control, or difficulty setting the required mix.

- - Likely cause: a worn, scaled or sticking thermostatic cartridge.

- - Solution: replace the cartridge and lubricate the O-rings during installation with silicone grease.

Confirmed Compatible Models

- - Inta 90030CP Acura Exposed Thermostatic Sequential Control Shower Bottom Outlet

- - Inta 90032CP Acura Concealed Thermostatic Sequential Control Shower

- - Inta 90033CP Acura Exposed Thermostatic Sequential Control Shower

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

- - 150mm Universal Shower Hose - NXT734

- - INTA BO35012/C Acura Control Handle - R350A8/1C (R35012/C)
