Inta 2402PL Thermostatic Cartridge
Send a photo of your item and we'll help confirm it.
Summary

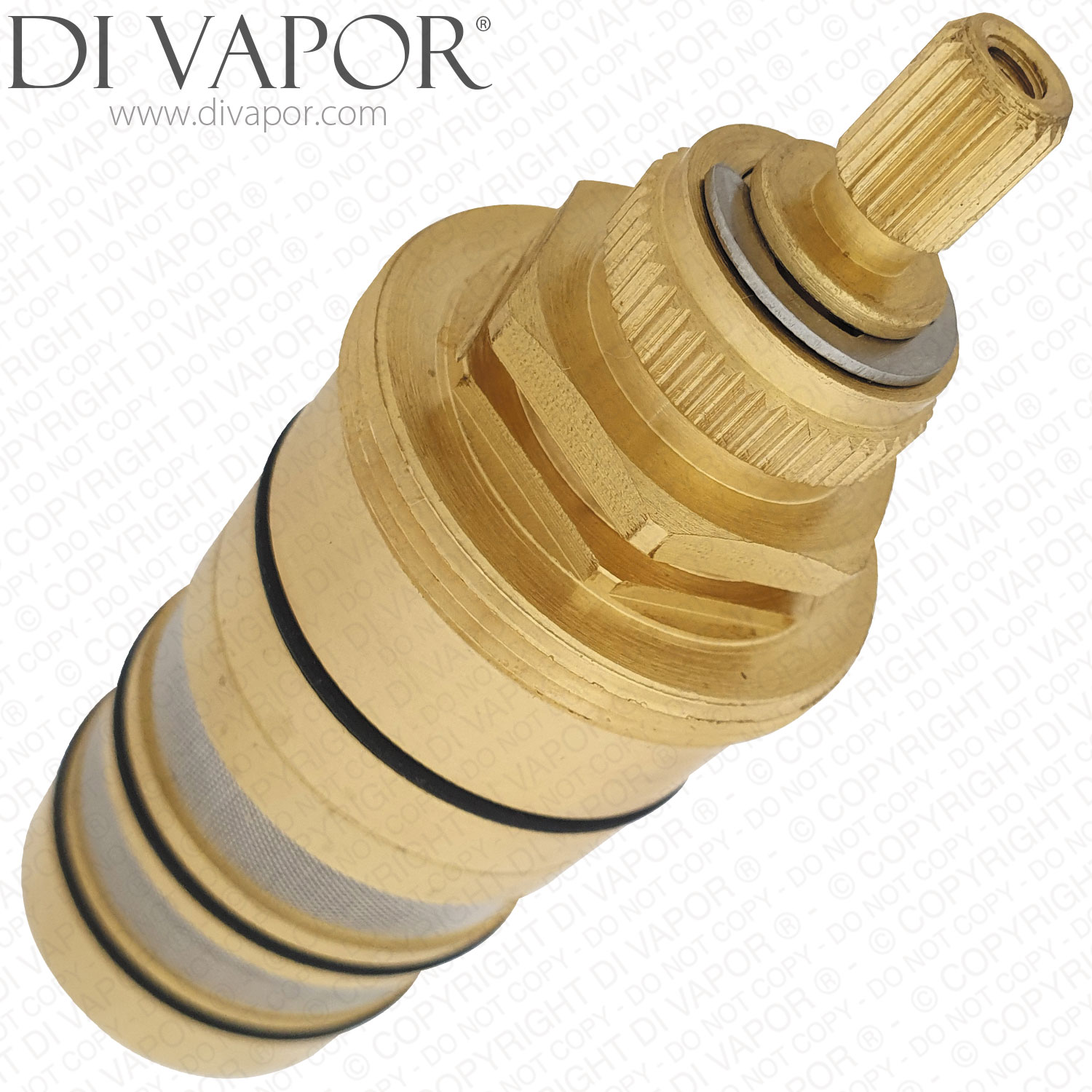

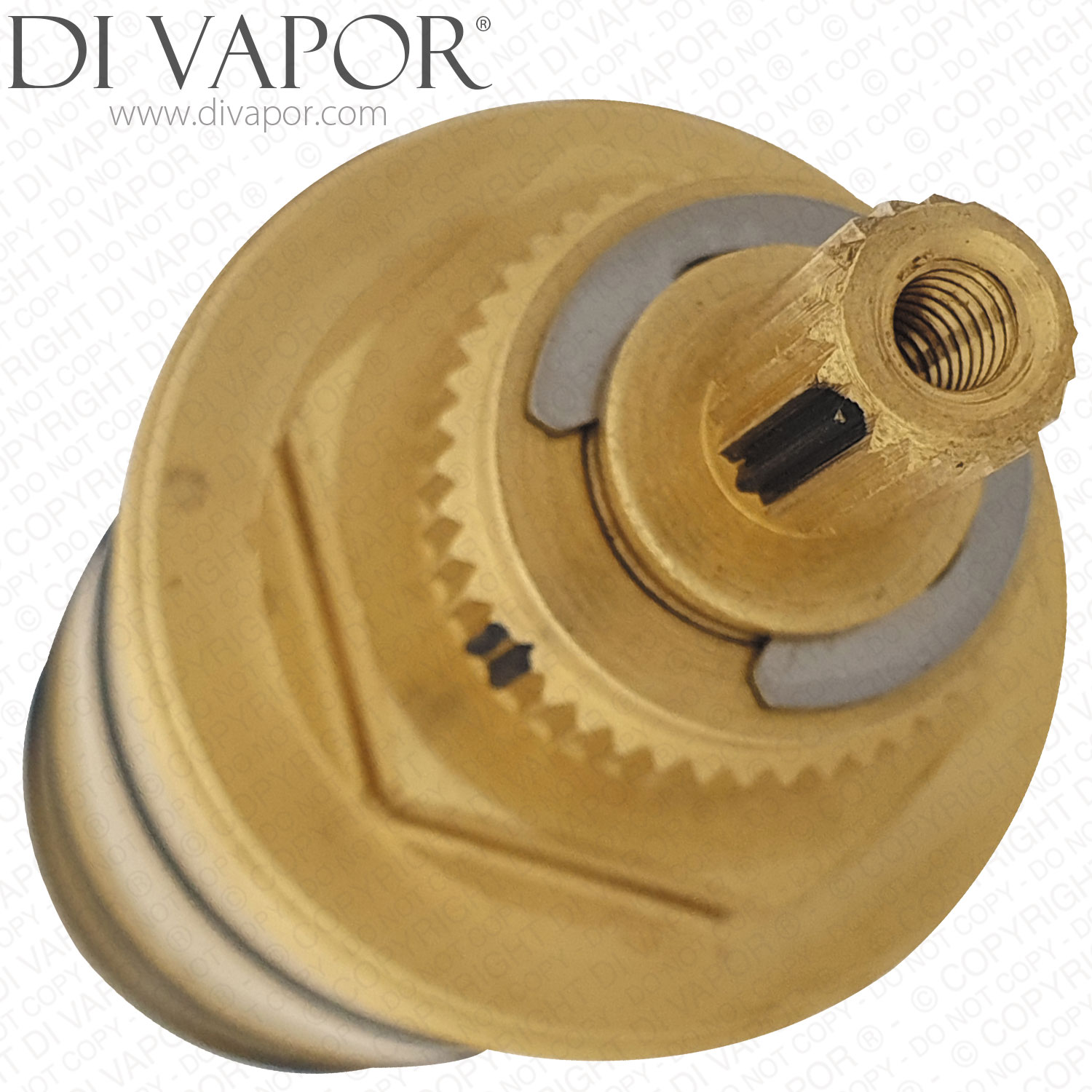

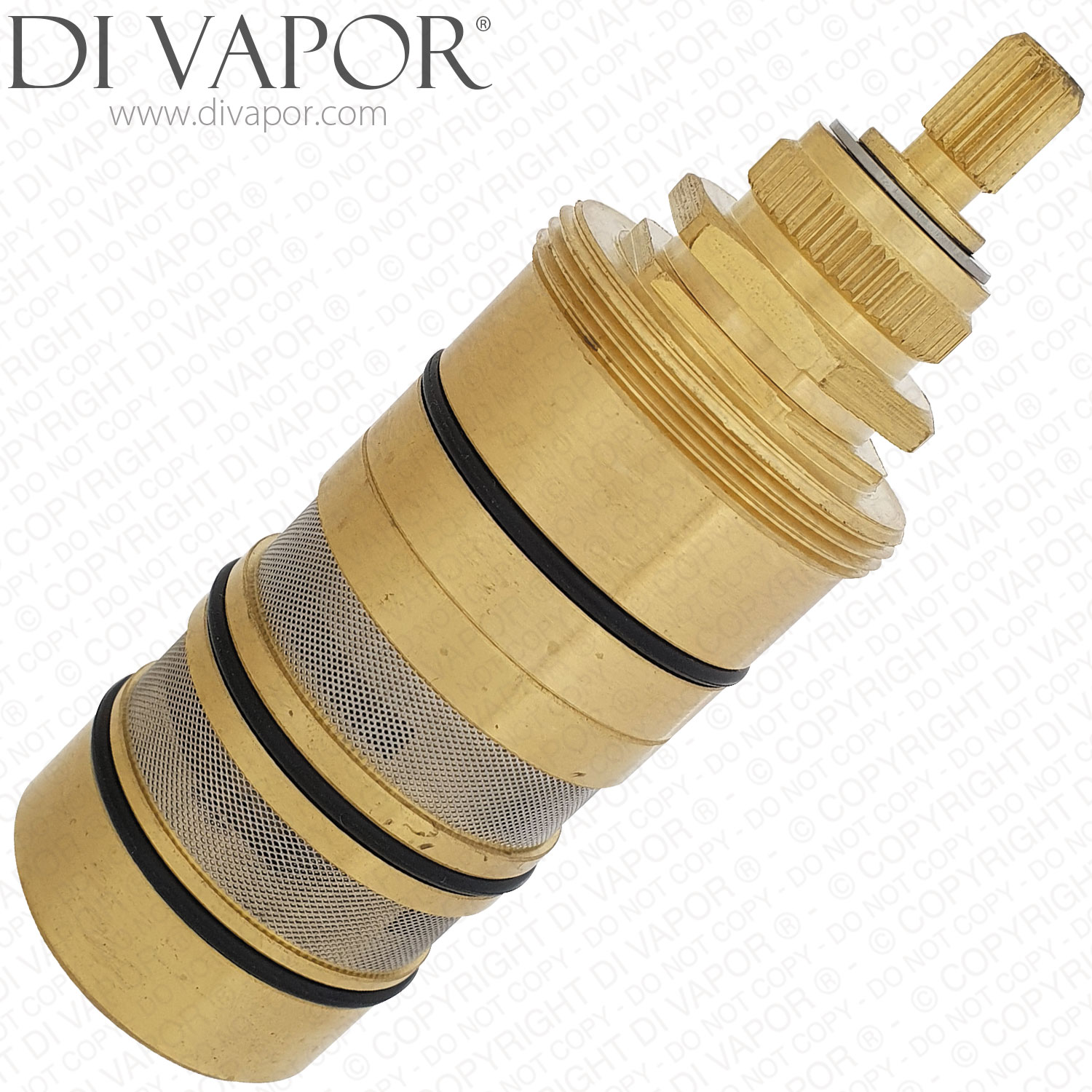

Inta 2402PL is a thermostatic cartridge for selected Inta concealed thermostatic shower valves and shower systems. The cartridge sits inside the valve body and controls the blended hot and cold water temperature delivered through the shower outlet.
This cartridge is the main temperature-control service part to check when the shower temperature becomes difficult to regulate, runs inconsistently hot or cold, or the temperature handle no longer gives smooth control. Confirm the cartridge code and valve model before ordering, as similar Inta thermostatic cartridges can look alike but use different fittings.
Technical Details
| Brand | Inta |
|---|---|
| Part Number | 2402PL |
| Product type | thermostatic shower cartridge |
| Application | Inta concealed thermostatic shower valves and shower systems where 2402PL is listed as a component spare |
| Function | regulates the mixed outlet temperature by controlling the hot and cold water blend inside the valve |
Before You Order
- Check that the removed cartridge is marked or identified as 2402PL where possible.
- Match the shower valve model to the confirmed model list before ordering.
- Do not order by appearance or cartridge diameter alone, as thermostatic cartridges can share similar external shapes while using different internal fittings.
- Isolate the hot and cold water supplies before removing the old cartridge and recalibrate the temperature control after fitting where required.
Confirmed Compatible Models
- Inta KK70010CP Kiko Concealed 3 Handle Thermostatic Shower Dual Outlet Spare Parts
- Inta CT80017CP City Thermostatic Concealed Shower with Overhead Soaker & Rinse Station Spare Parts
- Inta CT40014CP City Thermostatic Concealed Shower with Flexible Slide Rail Kit Spare Parts
- Inta DL40010CP Deluge Thermostatic Concealed Shower Valve Spare Parts
- Inta DL40013CP Deluge Thermostatic Concealed Shower with Overhead Arm & Soaker Spare Parts
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Inta PU188557XX Diverter Cartridge Assembly
- Inta 20071 Compatible Thermostatic Cartridge
- Inta DIV.2 Cartridge
- Inta VC.02 Flow Cartridge
- 150mm Universal Shower Hose - NXT734
If you are not sure whether 2402PL is the correct cartridge, compare the removed part with the valve spares page or send clear photographs of the cartridge and shower valve to Di Vapor for identification before ordering.
