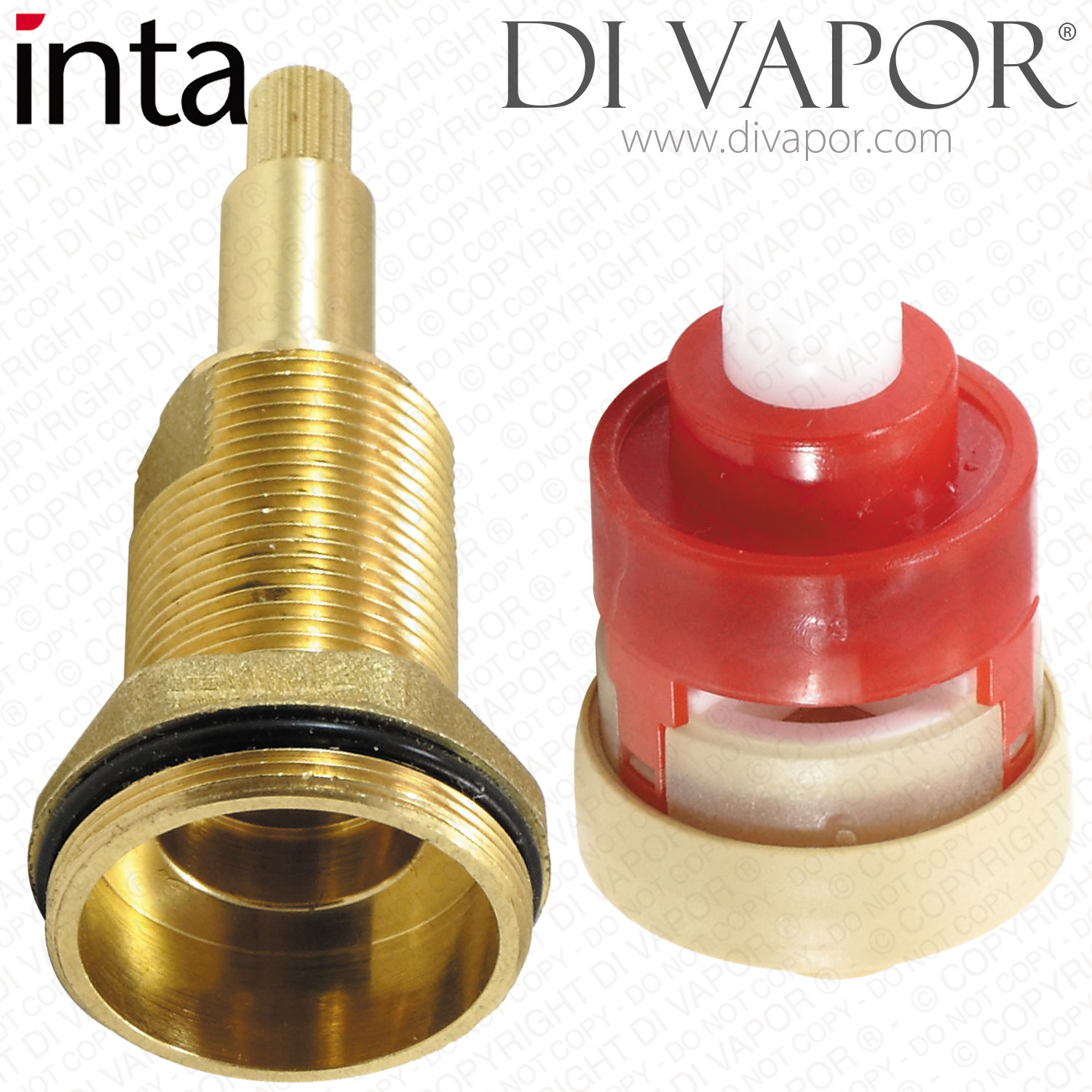

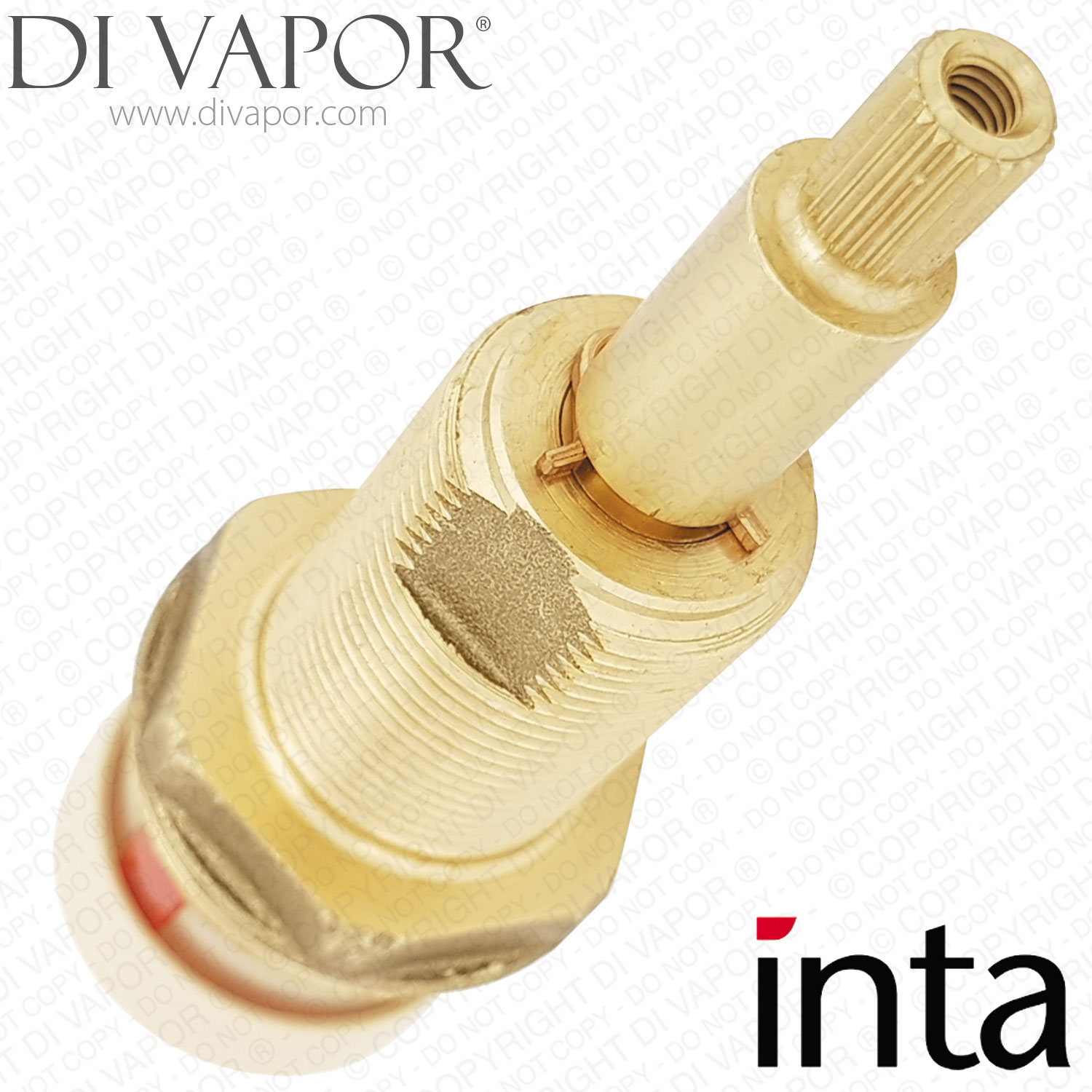

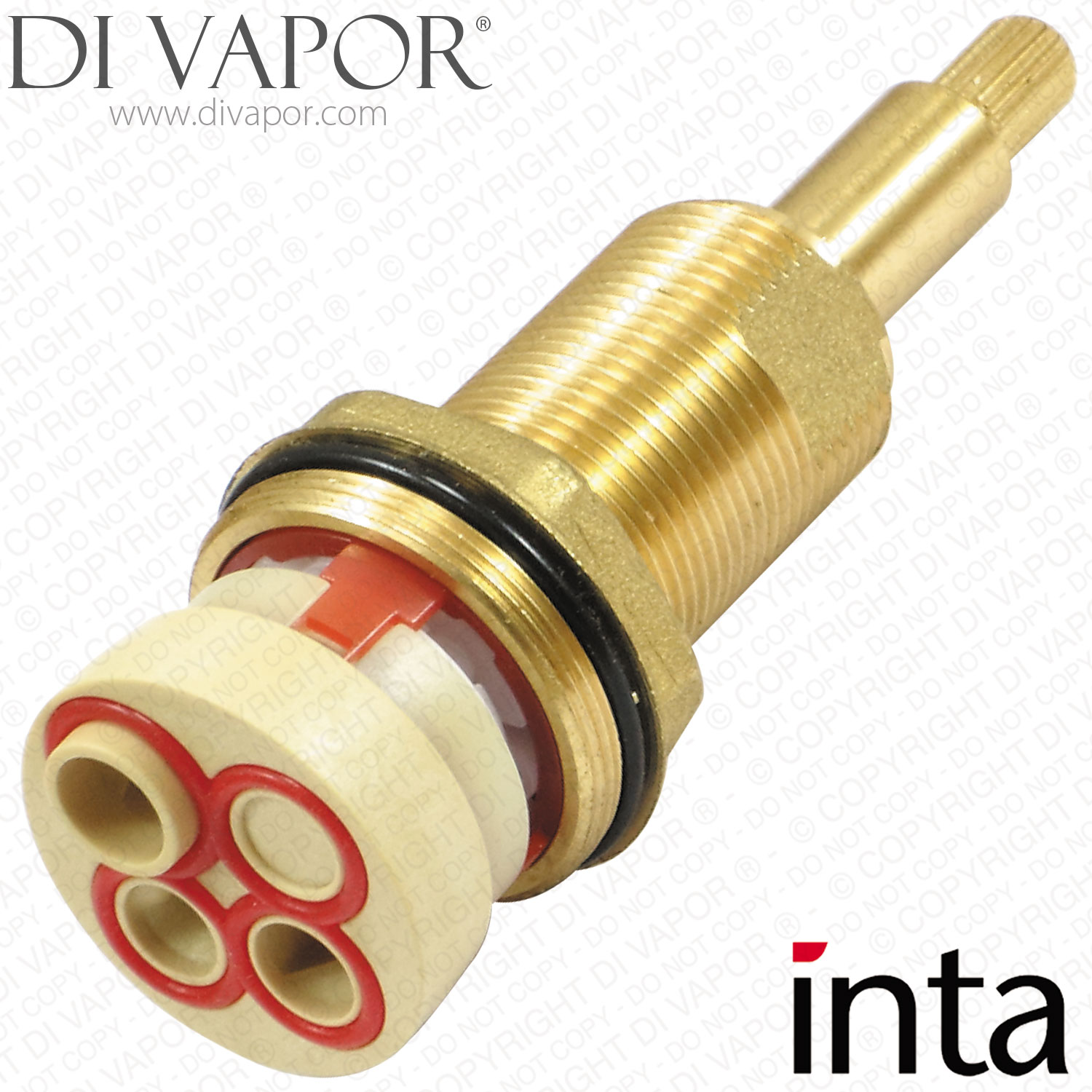

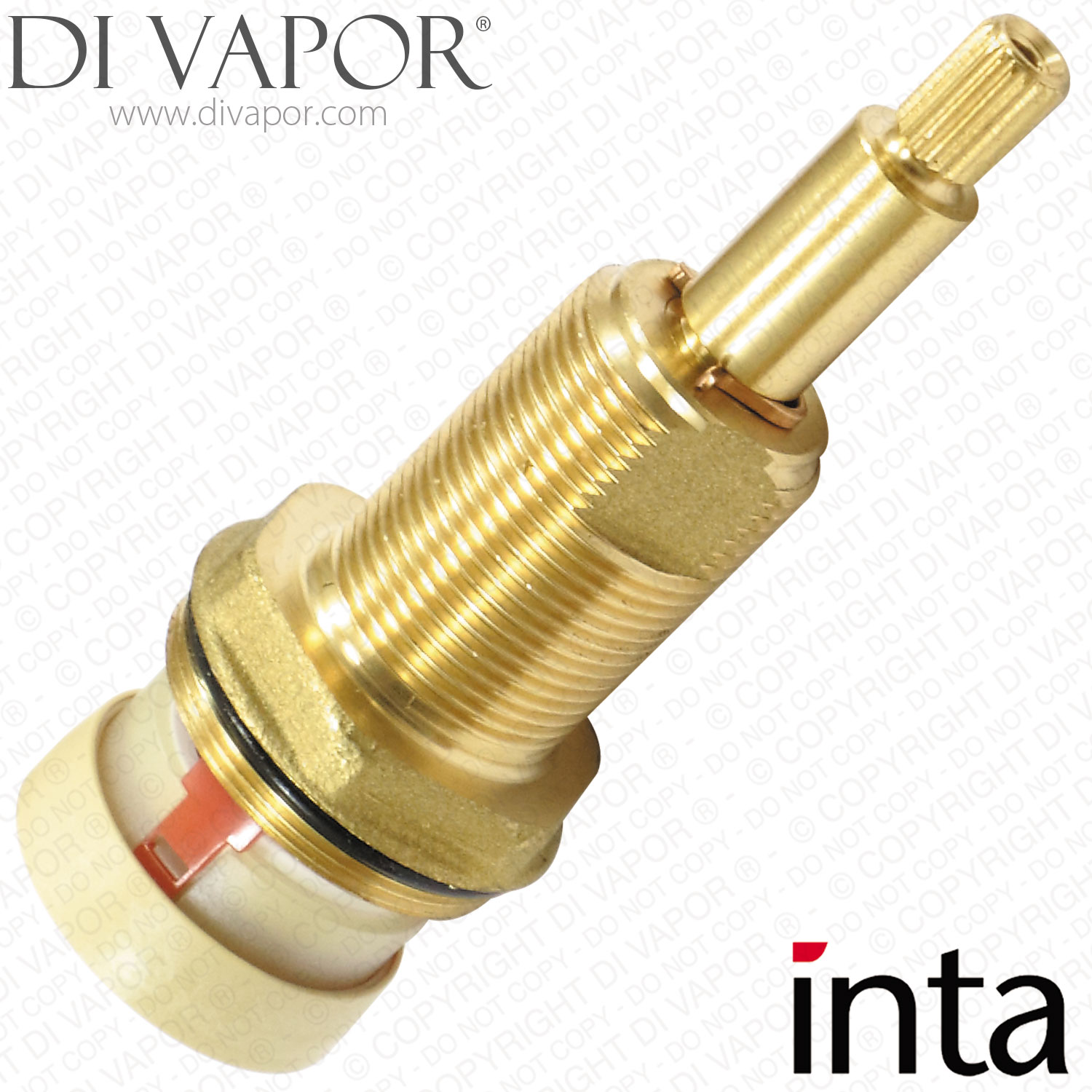

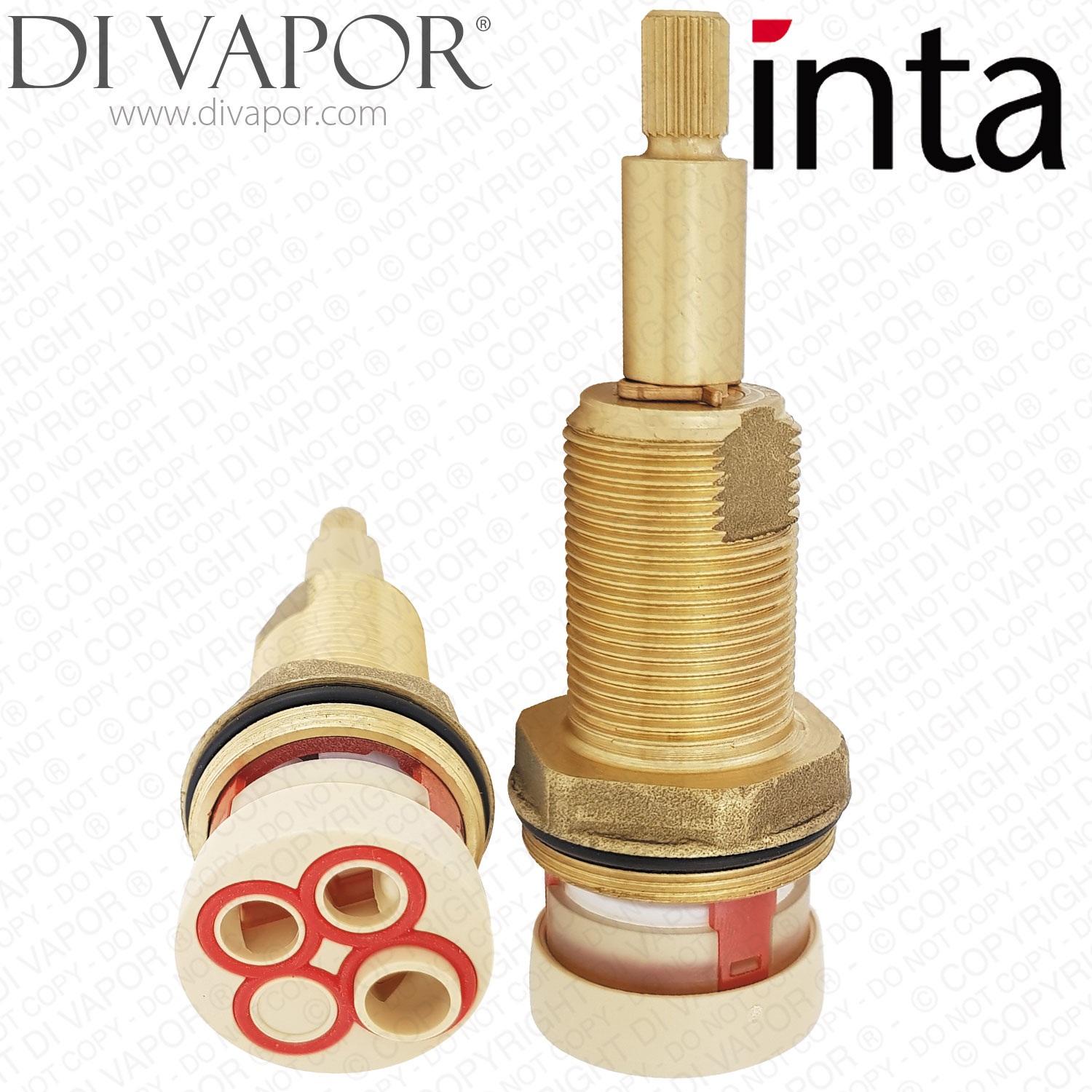

Inta PU188557XX Diverter Cartridge Assembly
SUMMARY
Inta PU188557XX is a diverter cartridge assembly for selected Inta Kiko concealed thermostatic shower valves. The diverter cartridge is the internal control part used to direct water to the selected shower outlet on the matching valve assembly.
This part is listed for Kiko concealed thermostatic shower applications including KK40010CP, KK80010CP and KK70010CP. Match the removed cartridge and valve code before ordering, especially where a Kiko shower system includes more than one serviceable internal cartridge.
Technical Details
- - Brand: Inta
- - Part Number: PU188557XX
- - Part type: diverter cartridge assembly
- - Product group: shower diverter cartridge
- - Application: selected Inta Kiko concealed thermostatic shower valves
- - Supersession: no verified replacement or superseded code found
Function and Fault Symptoms
The PU188557XX diverter cartridge assembly controls outlet selection within the shower valve. A worn or failed diverter cartridge can cause poor outlet changeover, water passing to the wrong outlet or difficulty selecting between outlets. For shower valves, water dripping from the shower head or spout when the shower is turned off can also indicate a worn cartridge or seal within the valve assembly.
Confirmed Compatible Models
- - Inta KK40010CP Kiko Concealed Thermostatic Shower Single Outlet
- - Inta KK80010CP Kiko Concealed Thermostatic Shower Dual Outlet Spare Parts
- - Inta KK70010CP Kiko Concealed 3 Handle Thermostatic Shower Dual Outlet Spare Parts
Before You Order Check
Turn off the hot and cold water supplies before removing the valve trim or cartridge. Check the valve model code and compare the old diverter cartridge with PU188557XX before ordering. Do not order from diameter or visual similarity alone, as Kiko valves can have separate thermostatic and diverter cartridge components.
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- - Inta 2402PL Thermostatic Cartridge
- - Inta 20071 Compatible Thermostatic Cartridge
