Grohe 47010000 Thermostatic Cartridge Thermal Element for Grohmix 1/2 Inch AP/UP
Send a photo of your item and we'll help confirm it.
Summary
Grohe 47010000 thermostatic cartridge Thermal Element for Grohmix 1/2-Inch AP/UP (up to 1979 Year of Manufacture).

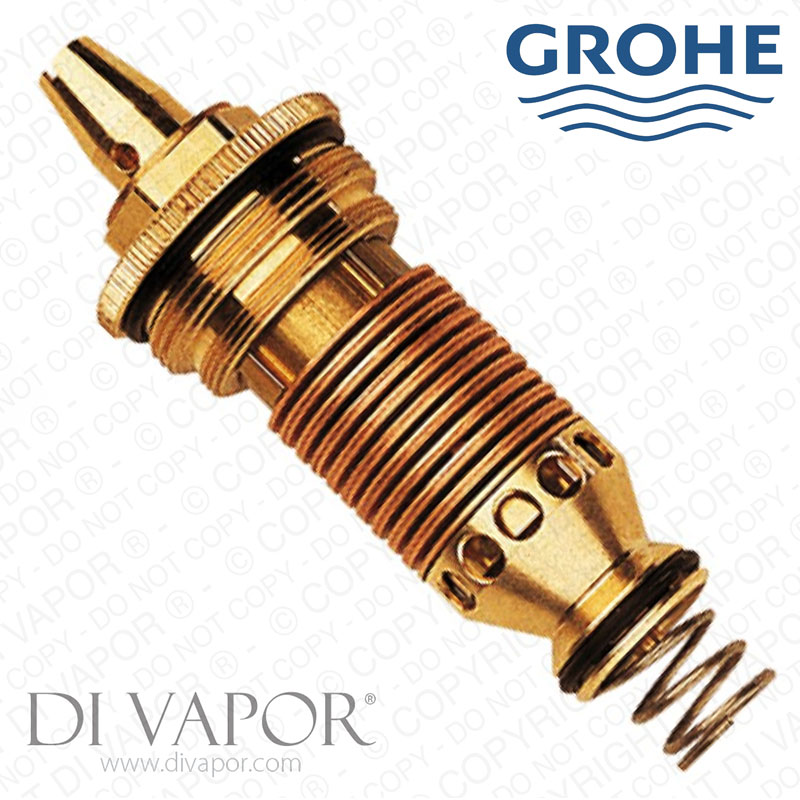

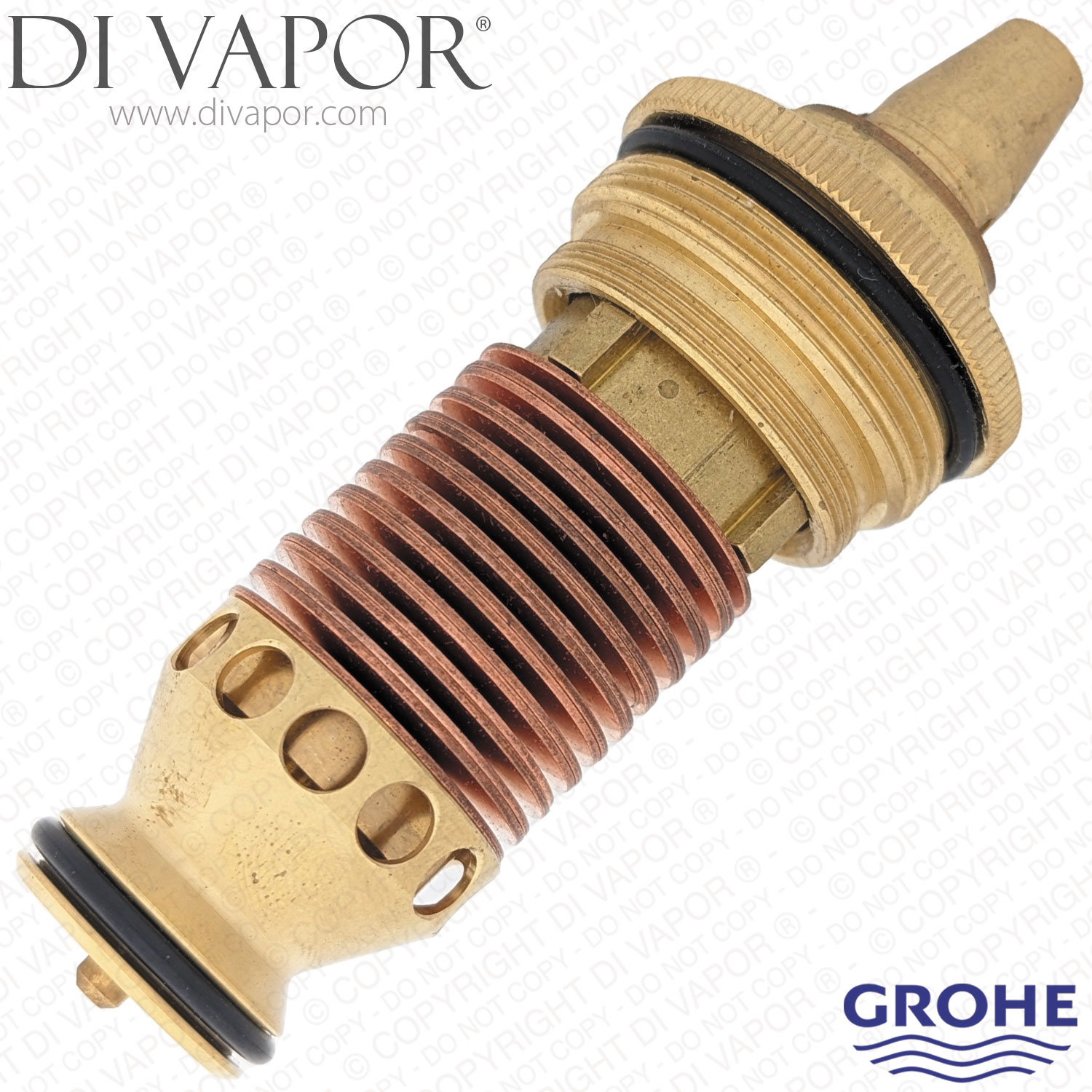

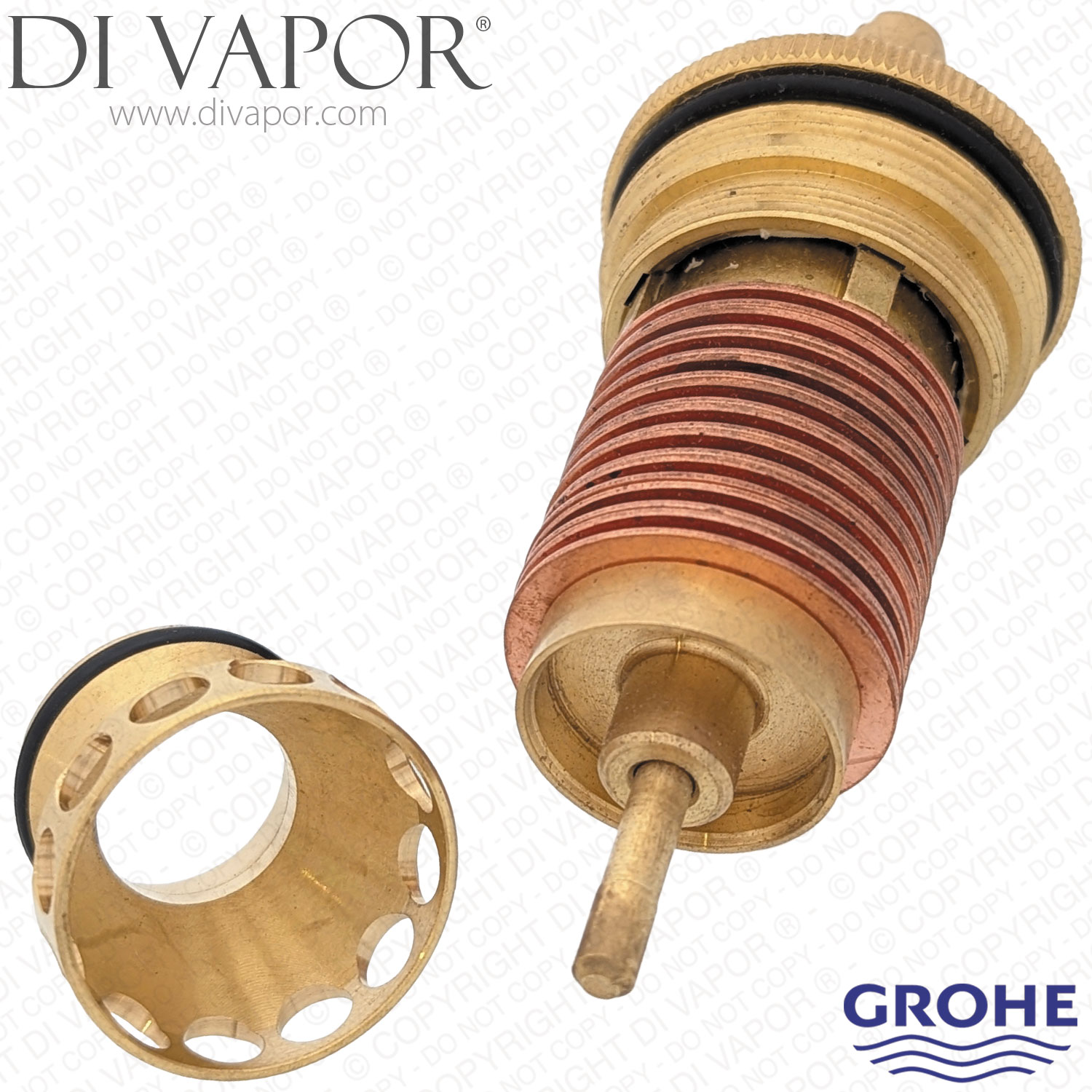

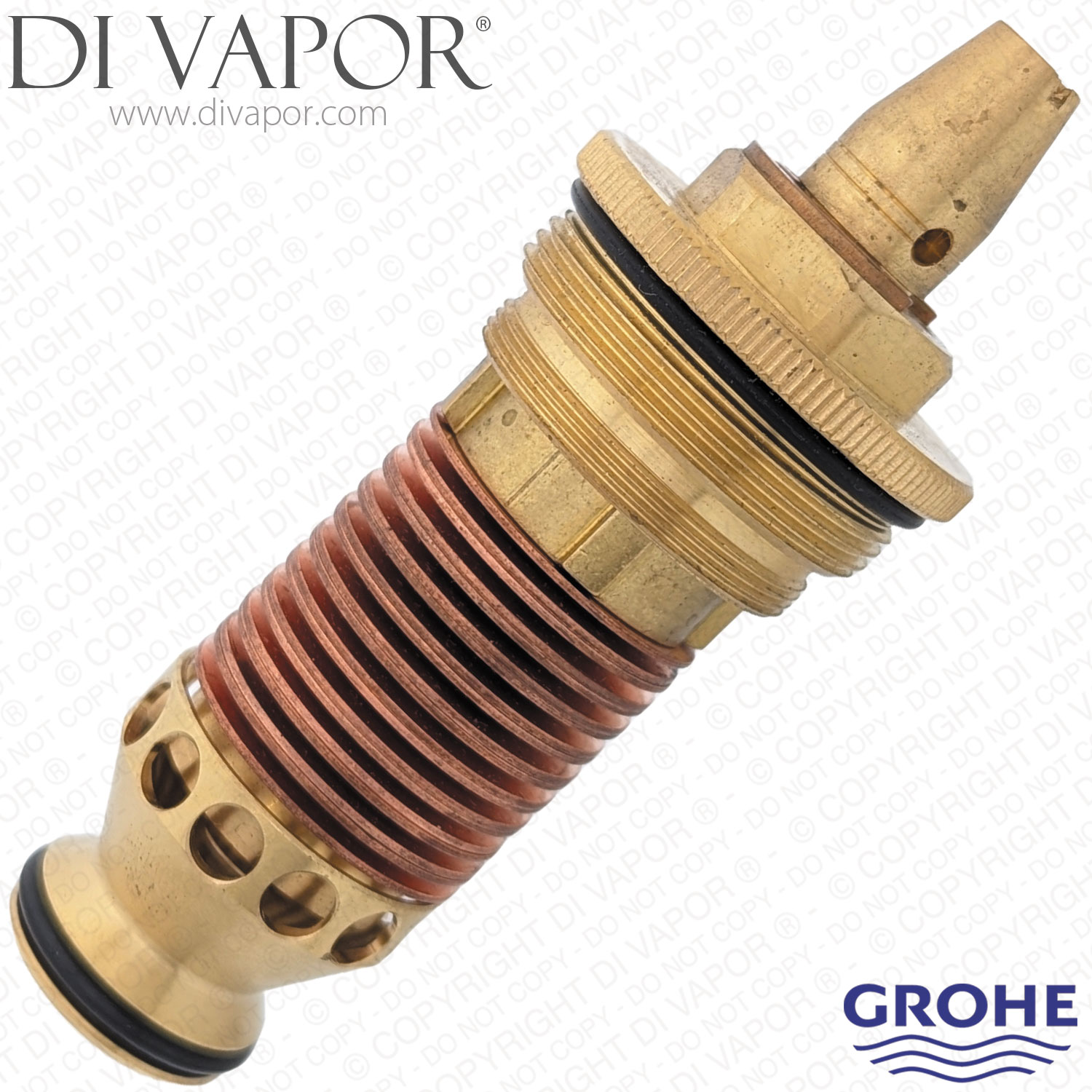

Grohe 47010000 is a 1/2 inch thermostatic cartridge thermal element for older Grohmix AP and UP thermostatic mixer valves. It is the bimetal thermo-element used to control and stabilise mixed water temperature inside the valve body.
This part is for Grohmix 1/2 Inch AP/UP installations up to 1979 year of manufacture. It should be checked against the existing cartridge code, valve age and installation layout before ordering, especially on older Grohmix valves where similar-looking thermal elements and reverse-waterway versions may be present.
Technical Details
| Grohe product code | 47010000 |
|---|---|
| Di Vapor Part Number | GROHE-47010000 |
| Part type | 1/2 inch thermostatic cartridge thermal element |
| Operating type | bimetal thermo-element |
| Application | Grohmix 1/2 Inch AP/UP thermostatic mixers up to 1979 |
| GTIN / EAN | 4005176009419 |
Function and Fault Symptoms
The thermal element reacts to water temperature changes inside the Grohmix thermostat and adjusts the mixed water output to help maintain a stable selected temperature. A worn, scaled or seized thermo-element can cause poor temperature regulation, temperature fluctuation, failure to reach the correct temperature or stiff temperature adjustment.
Check Before You Order

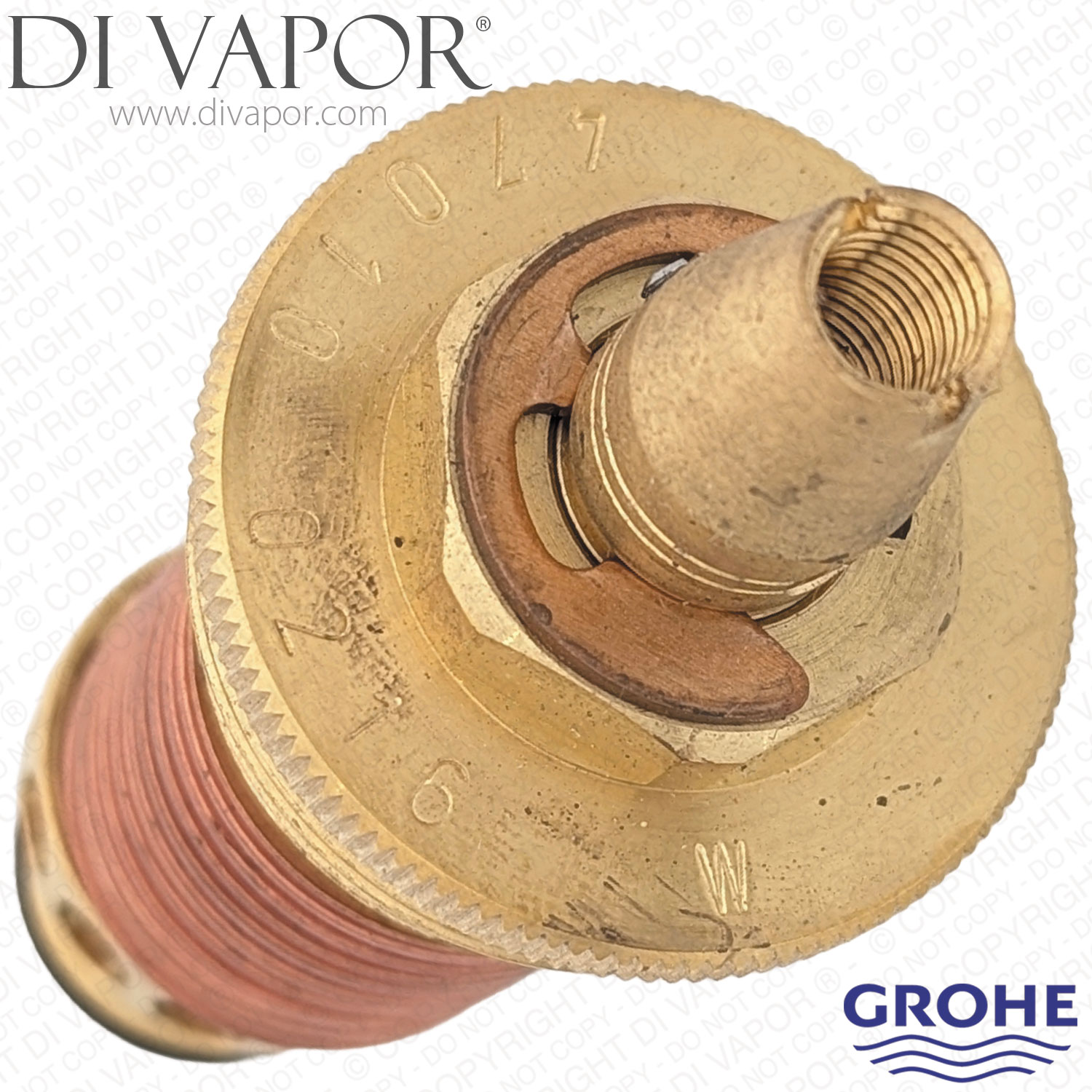

- Confirm the existing part code is 47010000 or the older formatted code 47 010.
- Confirm the valve is a Grohmix 1/2 Inch AP/UP model from the correct production period.
- Do not order this part for reversed hot and cold supplies unless the installed valve specifically uses the standard 47010000 arrangement.
- If the hot and cold waterways are reversed, check the related reverse cartridge before ordering.
Confirmed Use
- Grohe Grohmix 34 400 / 34400 1/2 Inch AP/UP thermostatic mixers up to 1979
- Grohmix thermostats using the 1/2 inch bimetal thermo-element 47010000
Fitting Notes
Before refitting the thermal element, clean the valve body seating area and remove limescale or debris that may stop the regulating cone from moving correctly. Recalibration is normally required after installation so the temperature control aligns correctly with the marked temperature on the handle.
Related Spares You May Need
- Grohe 47011000 Grohmix Reverse Cartridge - reverse-waterway version for Grohmix installations where the hot and cold supplies are reversed.
