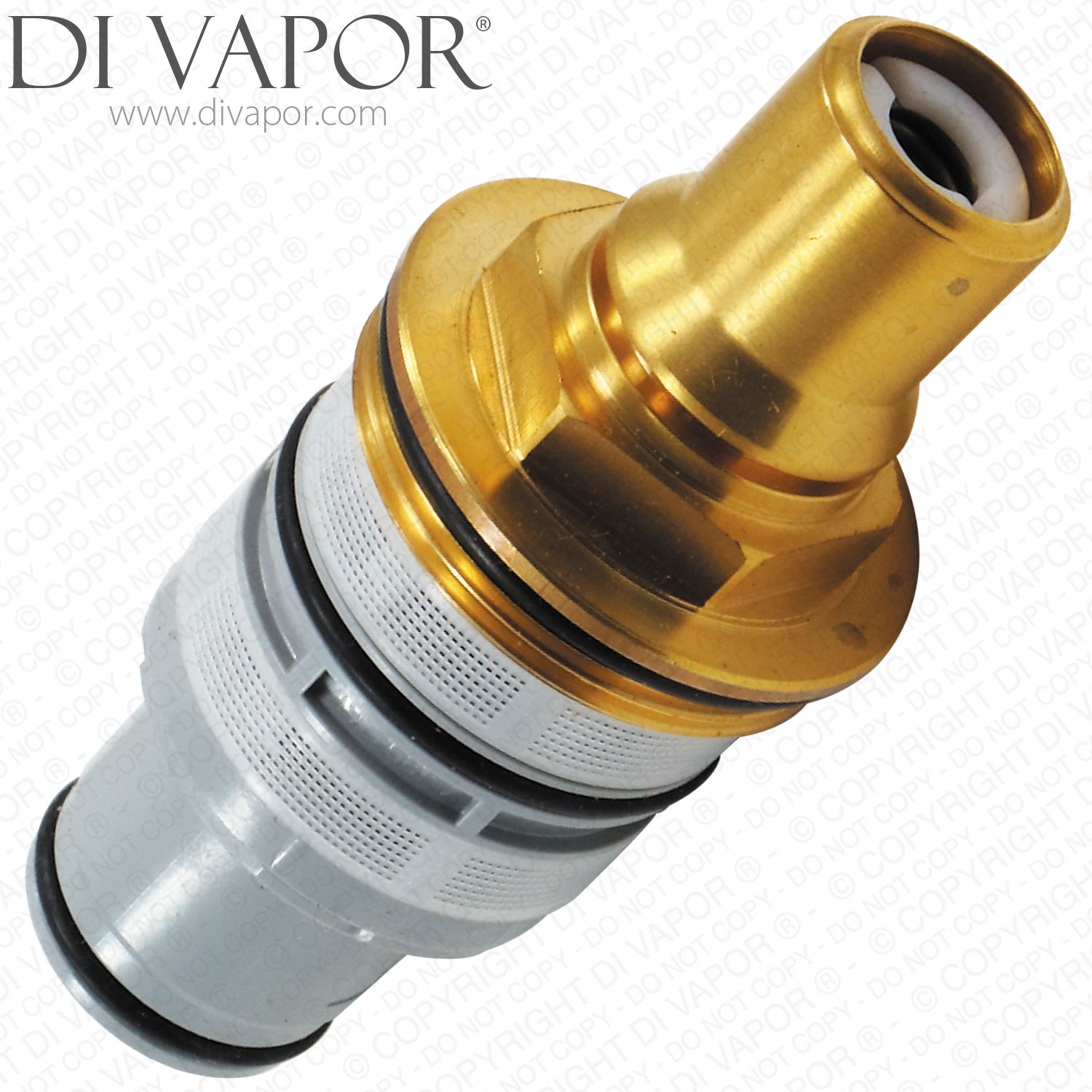

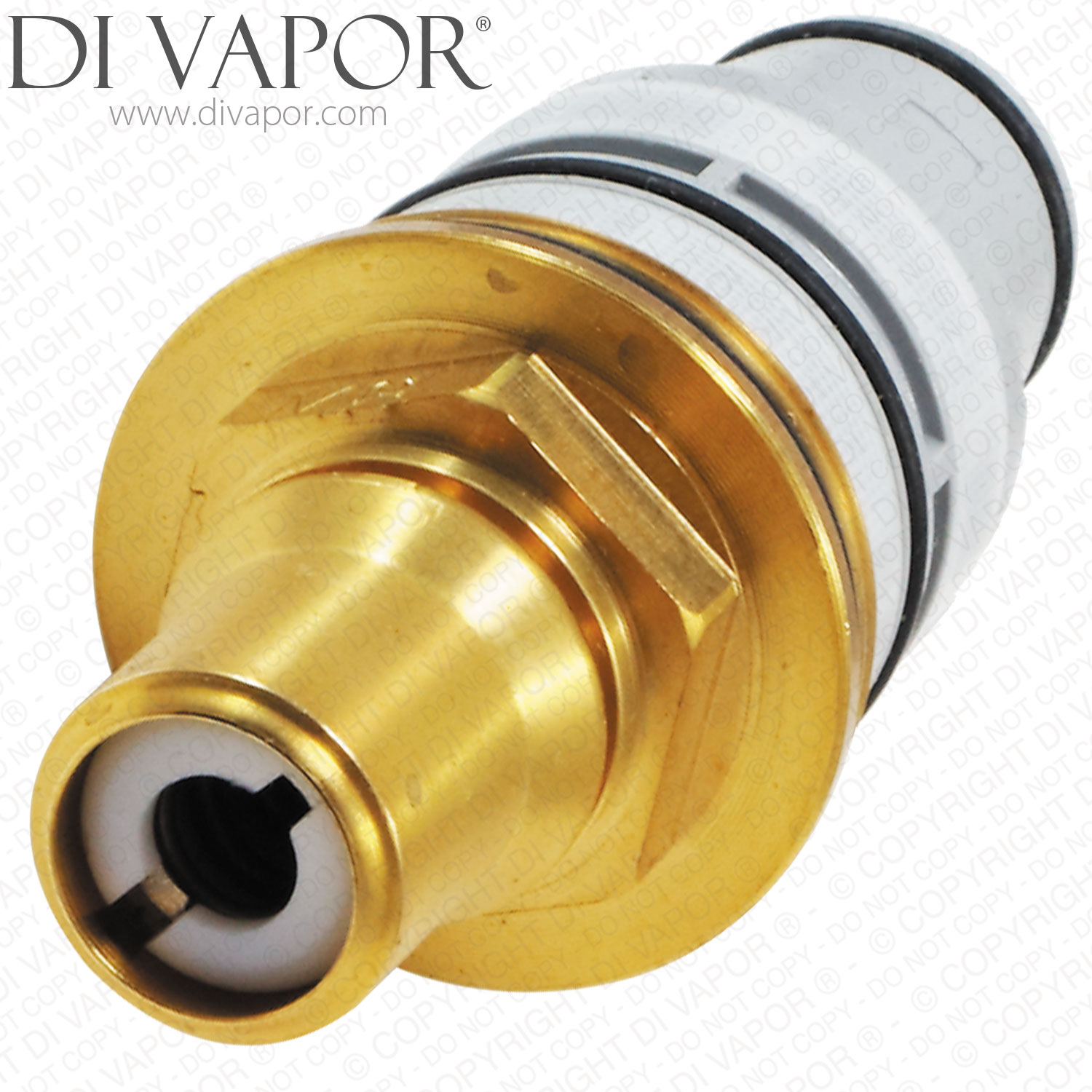

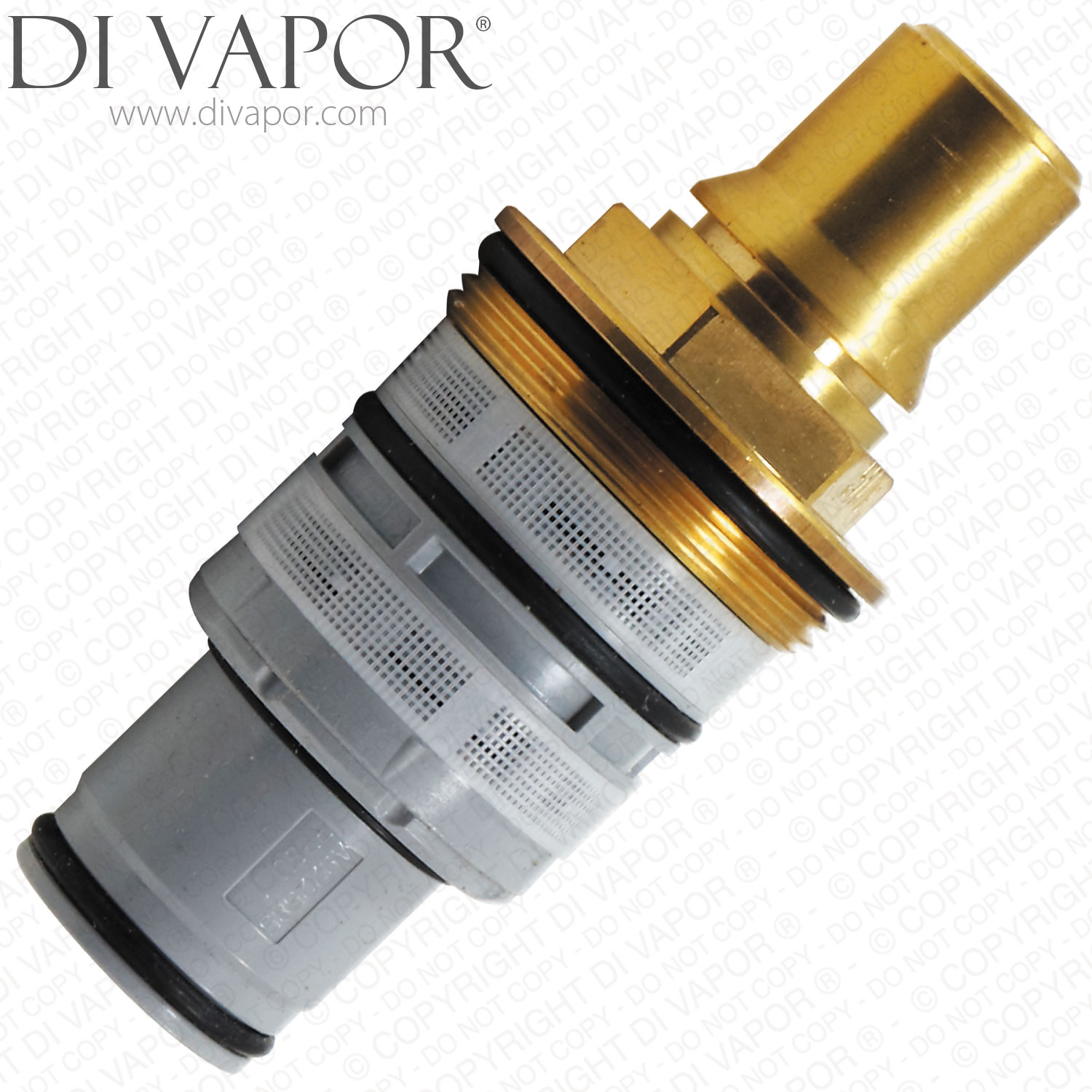

Dornbracht 09150207090 Thermostatic Cartridge
Send a photo of your item and we'll help confirm it.
Summary
Dornbracht 09150207090 thermostatic cartridge for selected 1/2 inch wall-mounted bath and shower thermostat installations.
This cartridge regulates the mixed water temperature inside the thermostat body. Dornbracht spare parts documentation lists it as a separate service part from 0415020700090 and from the temperature handle carrier and regulator parts used in the same assemblies.
If the thermostat no longer regulates temperature correctly, runs too hot or too cold, or becomes unstable in use, the thermostatic cartridge may need replacement.
Technical Details
| Exact part code | 09150207090 |
|---|---|
| Part type | thermostatic cartridge |
| Nominal size | 1/2 inch |
- Used in selected wall-mounted bath and shower thermostats
- Listed separately from 0415020700090 thermostatic cartridge with temperature handle carrier
- Associated in later Dornbracht service documentation with cartridge code 9015020700090
Before you order check
- Check the full part code on the removed cartridge or the original spares diagram
- Check that your valve uses this separate thermostatic cartridge and not the 0415020700090 cartridge with temperature handle carrier
- Check the thermostat model and article number carefully, especially on older exposed bath and shower thermostat sets
Confirmed Compatible Models
For Shower/Bath Thermostats
- 34 200 / 233 / 440 / 456 979-FF
- 1/2" wall-mounted shower thermostat - 34440935
- Modern 1/2" wall-mounted shower thermostat - 34457969ff0010
- Modern 1/2" wall-mounted shower thermostat - 34457969
- Modern 1/2" wall-mounted shower thermostat - 34456979
- Modern 1/2" wall-mounted bath thermostat with handshower set - 34233969
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Dornbracht 1070038 Temperature Handle Carrier
- Dornbracht 09304001090 Temperature Handle Carrier
- Dornbracht 0415020700090 Thermostatic Cartridge with Temperature Handle Carrier
- Dornbracht 04173300401-00 Temperature Control Handle Knob
- Dornbracht 04173300801-00 Temperature Control Handle
