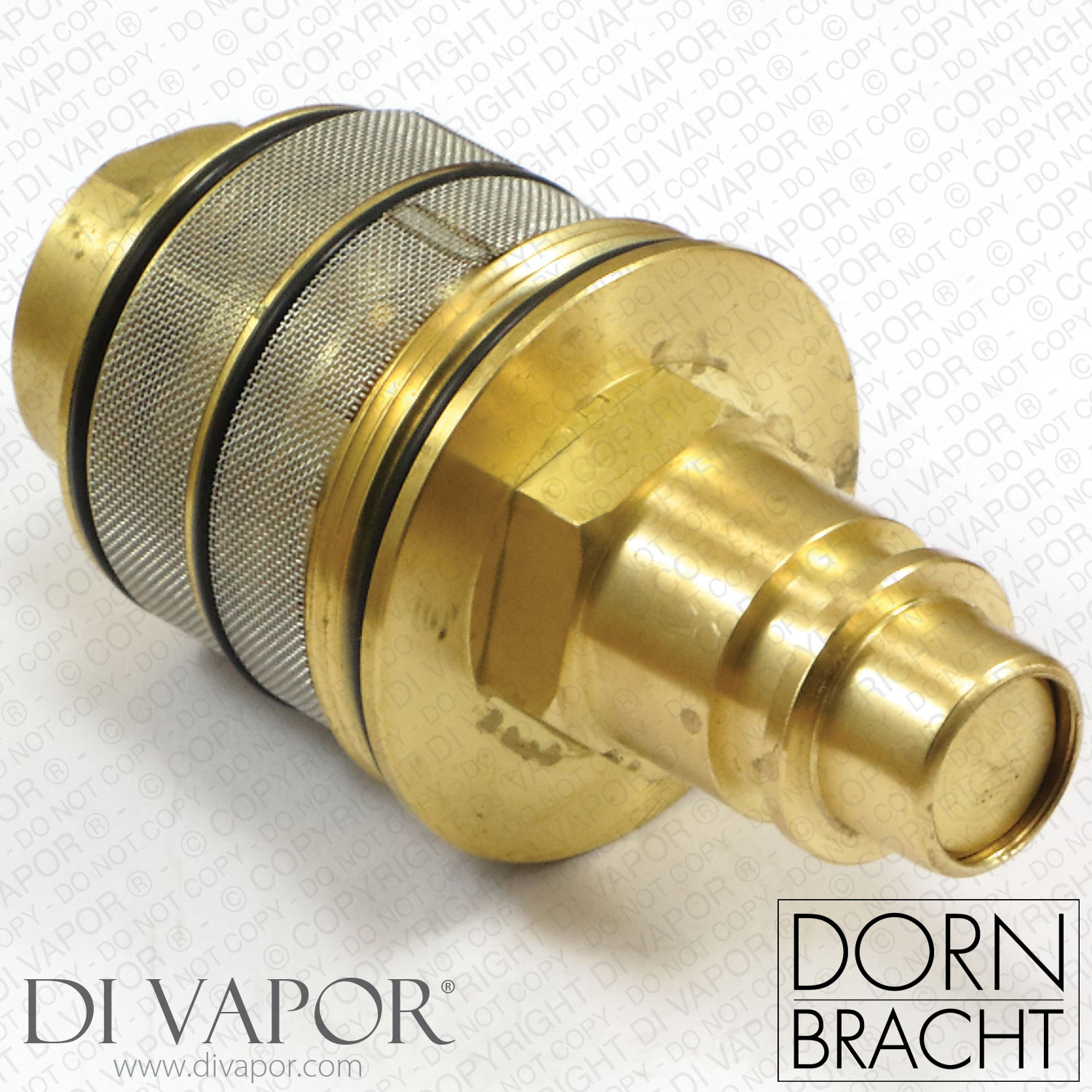

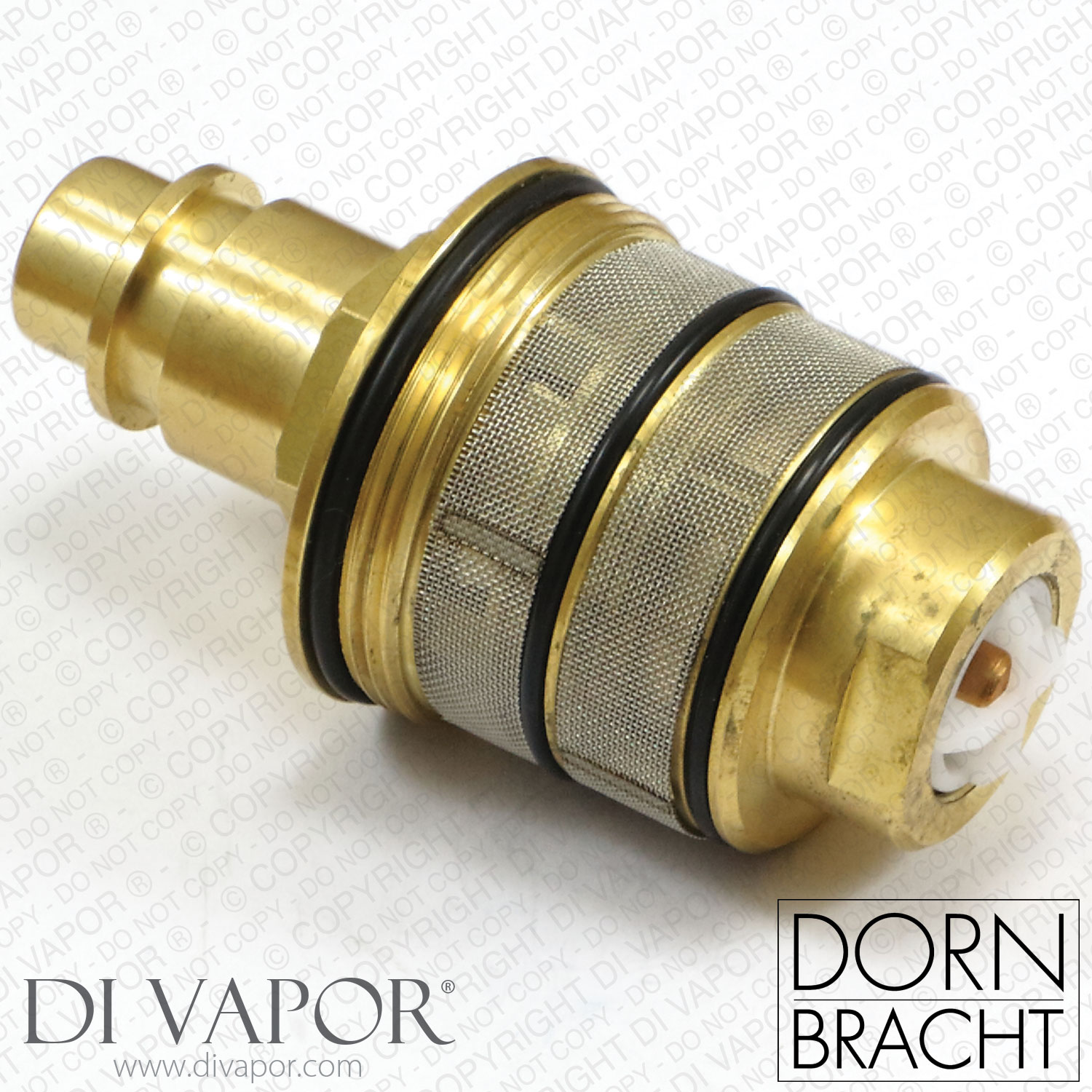

Dornbracht 09150205090 1/​2 Inch Thermostatic Cartridge (Villeroy and Boch)

SUMMARY

Dornbracht 09150205090 is a 1/2 inch thermostatic cartridge used in older concealed shower thermostat valves and xTool thermostat modules. It is the temperature-regulating cartridge that controls the hot and cold mix inside the valve body.

When this cartridge wears or scales up, common symptoms can include unstable water temperature, poor temperature adjustment, a stiff temperature control, or failure to regulate mixed water correctly.

Technical Details

- - Nominal size: 1/2 inch DN 15

- - Installation: screw-in thermostatic cartridge

- - Construction: brass body with 3 O-rings

- - Approx cartridge diameter: 42mm

- - Approx overall length: 81.4mm

- - Approx spline diameter: 15.8mm

Before you order check

- - Check the old cartridge is marked 09150205090 or that your valve parts diagram lists this exact code

- - Check your valve is from the older 1/2 inch concealed thermostat family and not a 3/4 inch thermostat that uses a different cartridge

- - Check the spline and body dimensions against your original part before ordering

Confirmed Used In

- - UP thermostat xTOOL kit pre-assembled 1/2" - 3541297090

- - UP thermostat xTOOL with 1 outlet, pre-assembled kit 1/2" - 3543597090

- - Flush-mounted thermostat 1/2" with flow control - 36405220

- - Flush-mounted thermostat 1/2" without flow control - 36410220

Tara

- - Flush-mounted thermostat 1/2" with flow control - 36405890

- - Flush-mounted thermostat 1/2" without flow control - 36410890

Obina

- - Flush-mounted thermostat 1/2" without flow control - 36410540

- - Flush-mounted thermostat 1/2" with flow control - 36405540

Meta Tec

- - Flush-mounted thermostat 1/2" with flow control - 36405650

- - Flush-mounted thermostat 1/2" without flow control - 36410650

Madison

- - Flush-mounted thermostat 1/2" without flow control - 36410360

- - Flush-mounted thermostat 1/2" with flow control - 36405360

- - UP thermostat 3/4" without flow control - 36510360

Giorno

- - Flush-mounted thermostat 1/2" with flow control - 36405750

- - Flush-mounted thermostat 1/2" without flow control - 36410750

Dreamworks + Dreamscape

- - Flush-mounted thermostat 1/2" without flow control - 36410470

- - Flush-mounted thermostat 1/2" with flow control - 36405470

Bellevue

- - Flush-mounted thermostat 1/2" with flow control - 36405310

- - Flush-mounted thermostat 1/2" without flow control - 36410310

Belle de Jour

- - UP thermostat 1/2" with flow control - 36405335

- - UP thermostat 1/2" without flow control - 36410335

- - Villeroy & Boch

SQUARE

- - Flush-mounted thermostat 1/2" with flow control - 36405910

- - Flush-mounted thermostat 1/2" without flow control - 36410910

CIRCLE

- - Flush-mounted thermostat 1/2" without flow control - 36410920

- - Flush-mounted thermostat 1/2" with flow control - 36405920

Related Spares You May Need

- - Dornbracht 09304001090 Temperature Handle Carrier

- - Dornbracht 9030400060090 Temperature Control Extension For Thermostatic Cartridge

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
