Cascade CR-104 Thermostatic Cartridge Cascade CR-104 Thermostatic CartridgeCR-104 CartridgeCR-104John Sydney Cascade Thermostatic Mixer Cartridge

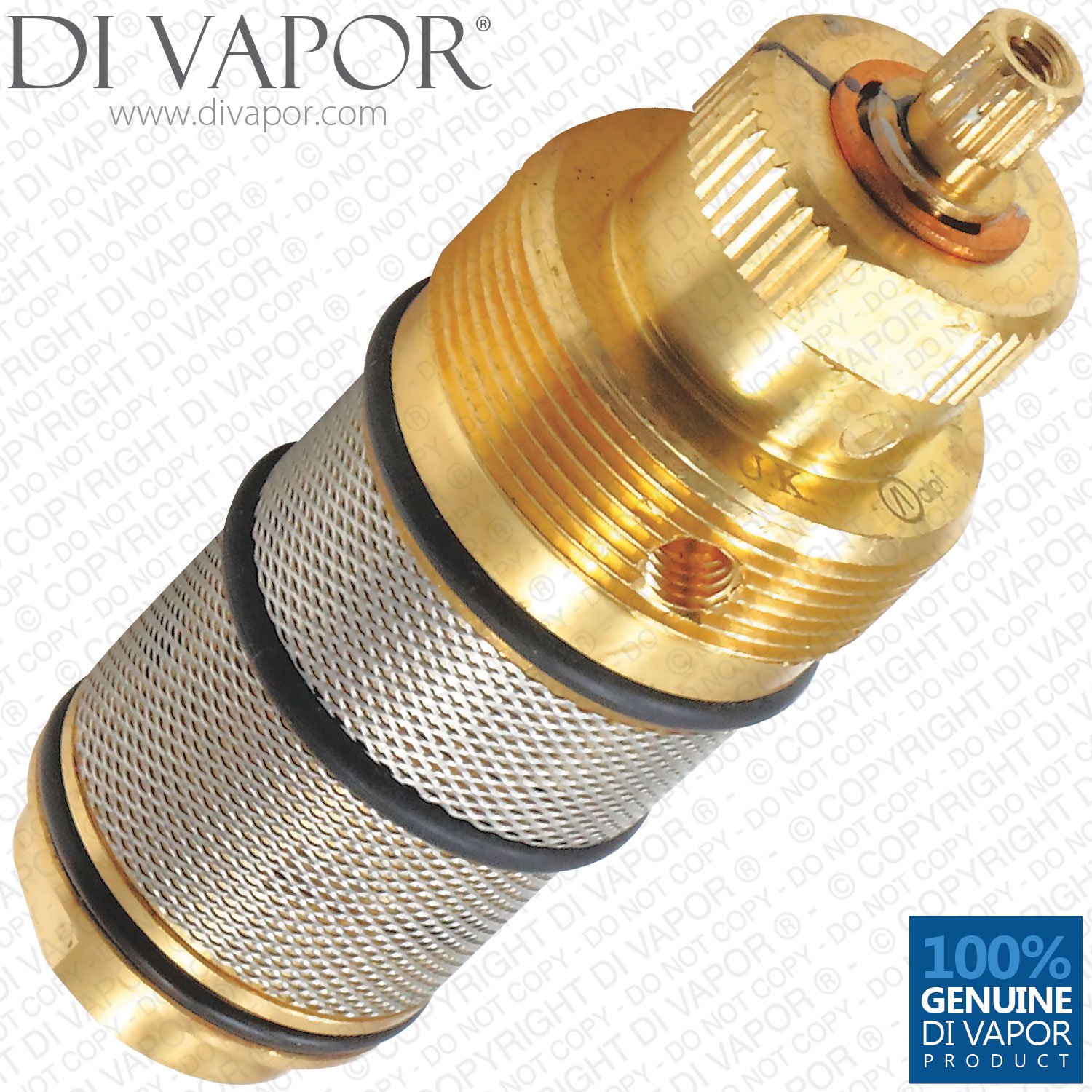

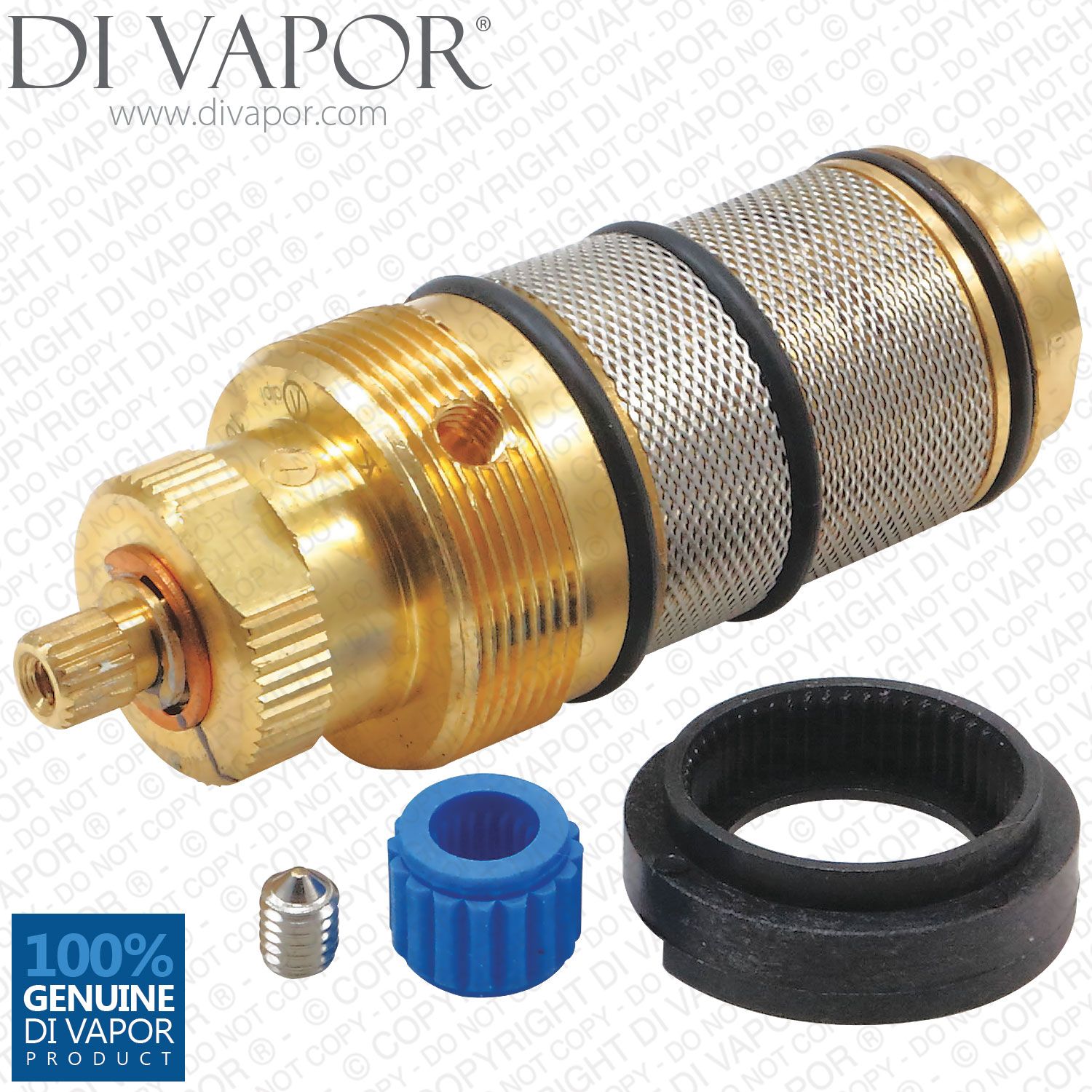

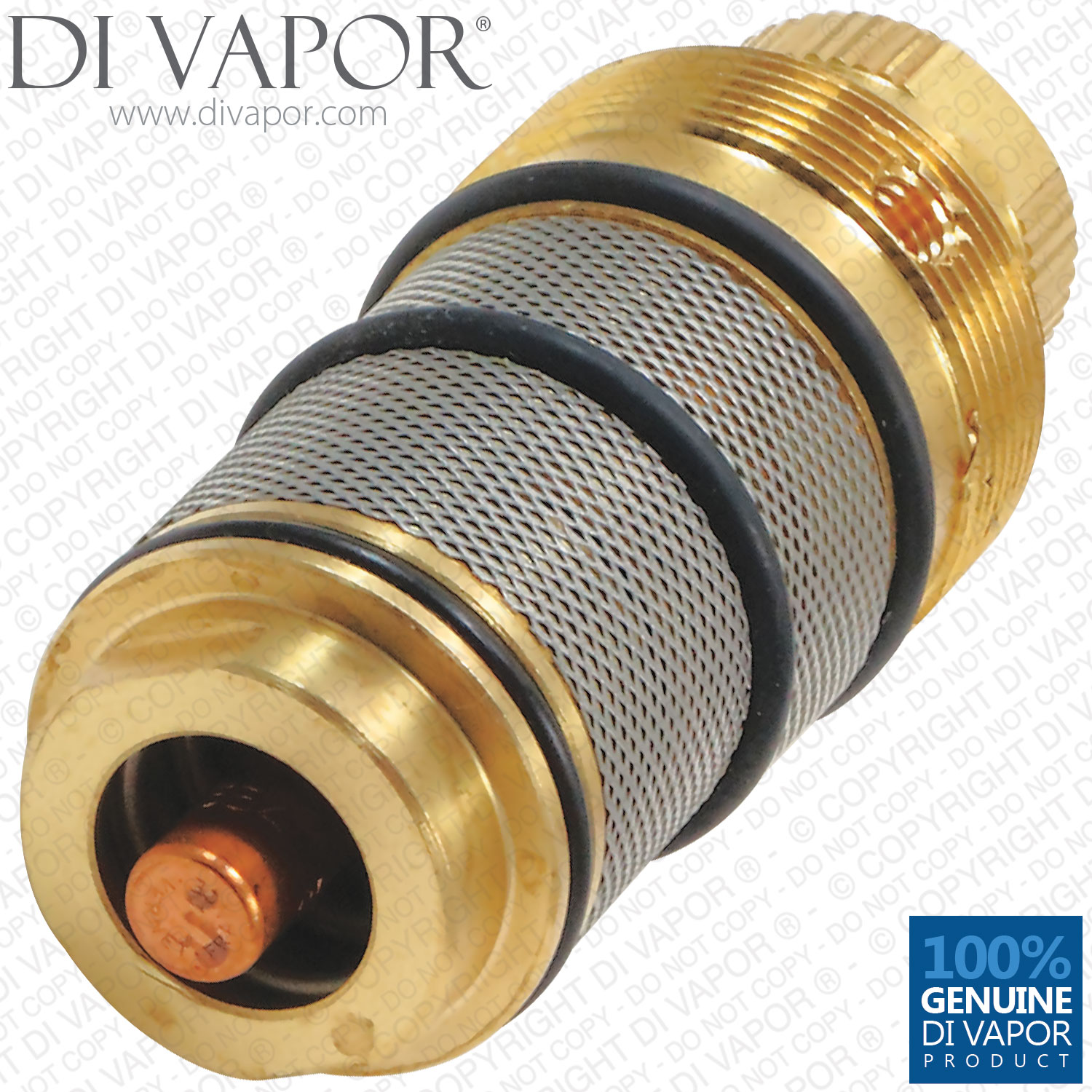

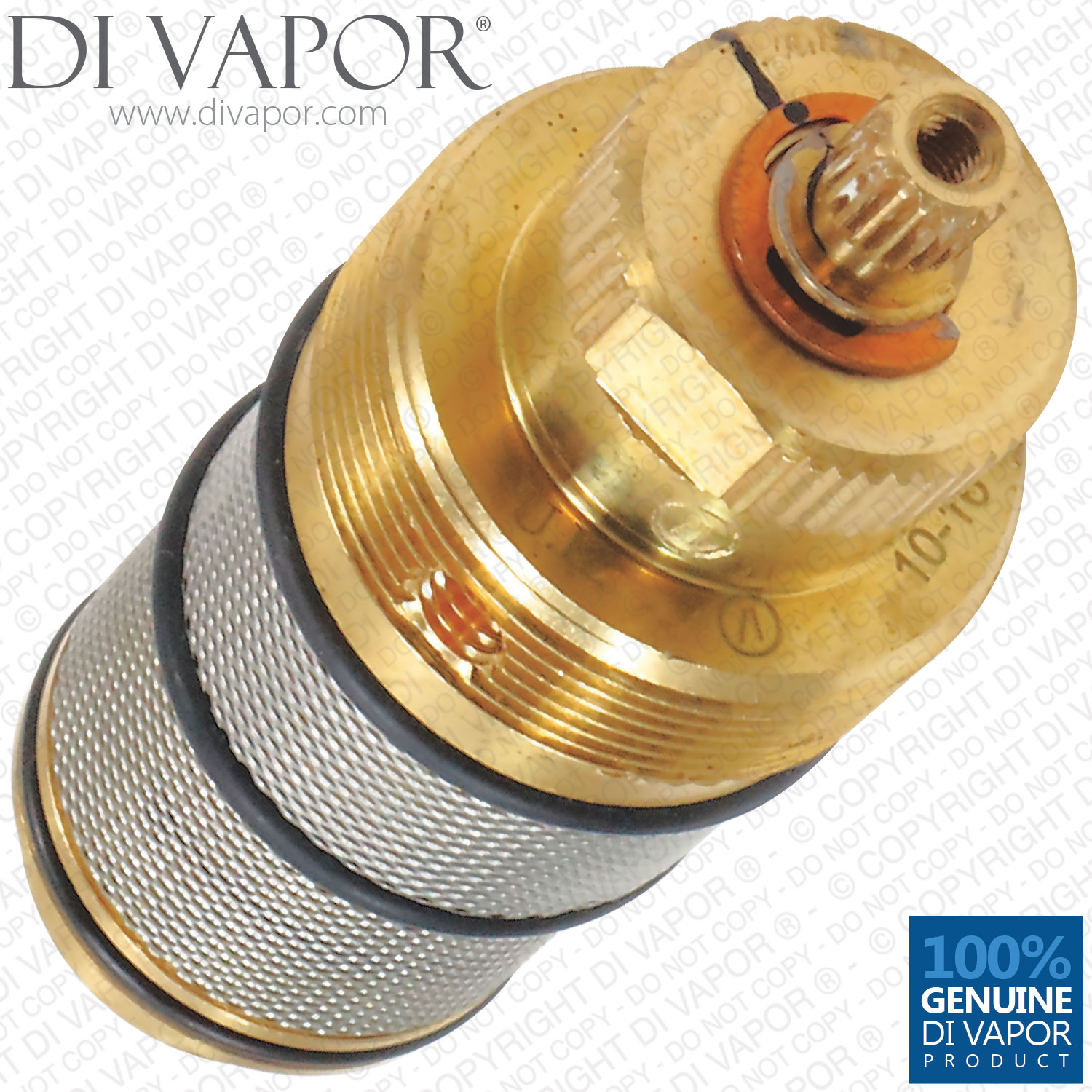

CR-104 Thermostatic Cartridge for John Sydney Cascade Shower Mixer Valves

Part Number: CASCADE-CR-104

SALE: £129.95

You save: £24.05 (16%)
Price includes VAT
Quantity:
ADD TO BASKET
IN STOCK
Wrong Item? Click to see More
UK Lowest Price Guaranteed
Next Day Delivery Available
Product description

SUMMARY

Replacement John Sydney Cascade CR-104 thermostatic cartridge.

Cartridge Measurements and Information

Installation Type: Screw Fit (turn anti clockwise to remove from your valve)
  • Total Cartridge Length (including thermostat element and blue tap head carrier): 96.1mm

  • Number of teeth on top spindle spline (without blue tap head carrier) (which the temperature handle connects onto): 20

  • Number of teeth on top spindle spline, with blue tap head carrier (which the temperature handle connects onto): 16

  • Width of top spindle spline (which the temperature handle connects onto): 7.5mm

  • Number of teeth of spindle without blue tap head carrier (which the temperature stop ring connects onto): 7.5

  • Width of blue toothed spline: 13.8mm

  • Diameter of top O ring: 33.4mm

  • Diameter of middle O ring: 32mm

  • Diameter of bottom O ring: 29.8mm

  • Number of ORings: 3

  • Material: Brass

  • Type: Screw fit installation

  • Gauze Filters: 2

  • Colour: Brass

  • Wax Element: Vernet (France) 5701 (at the bottom of the cartridge on the wax thermostat element, it will read . Vernet . France . ).
