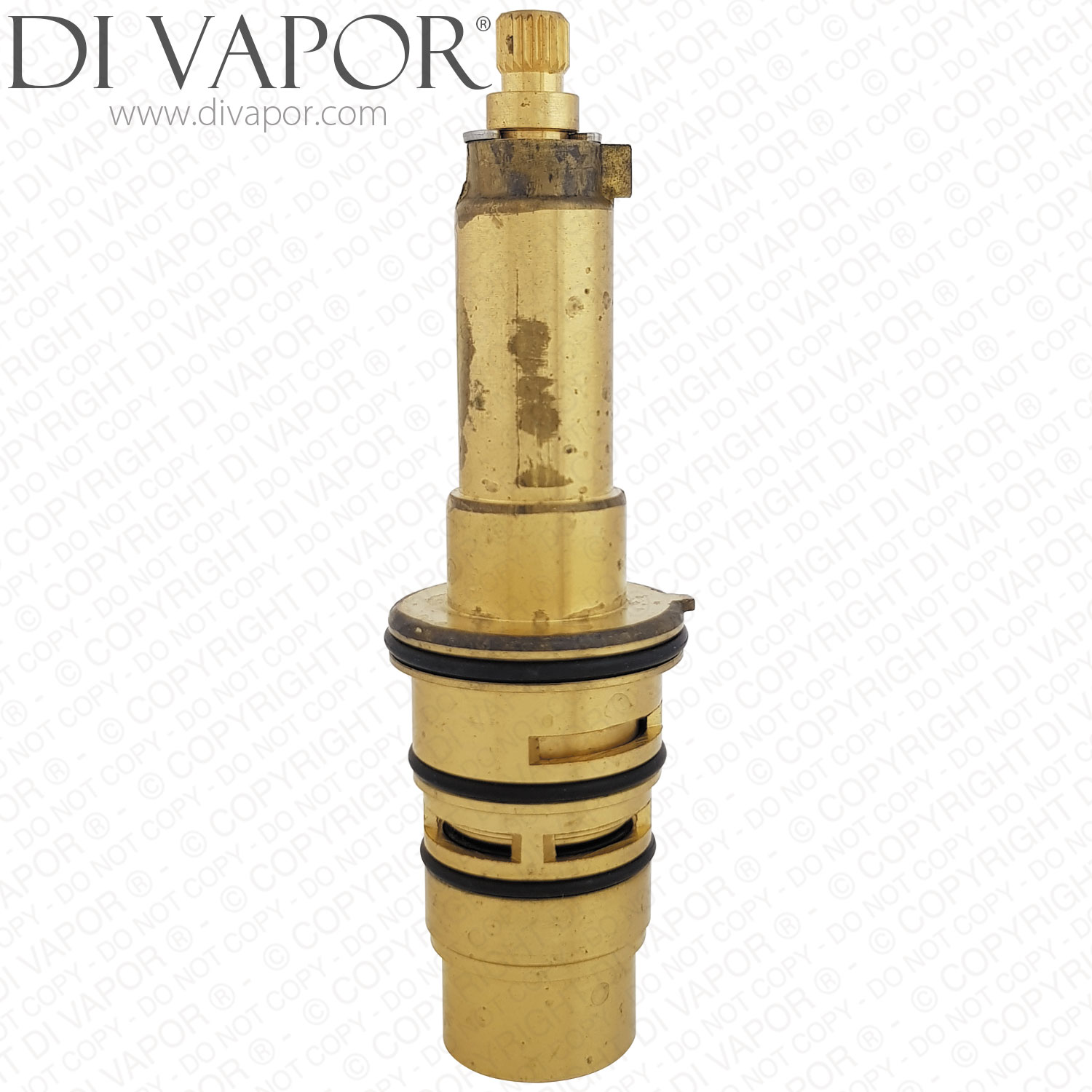

Burlington SP314 Shower Valve Thermostatic Cartridge
SUMMARY
Burlington SP314 Shower Valve Thermostatic Cartridge.
The SP314 cartridge is used in the following Burlington valve models:
- V34
- V36
- SF1S
- SF3S
- TF1H
- TF3S
- VF1S
- VF3S

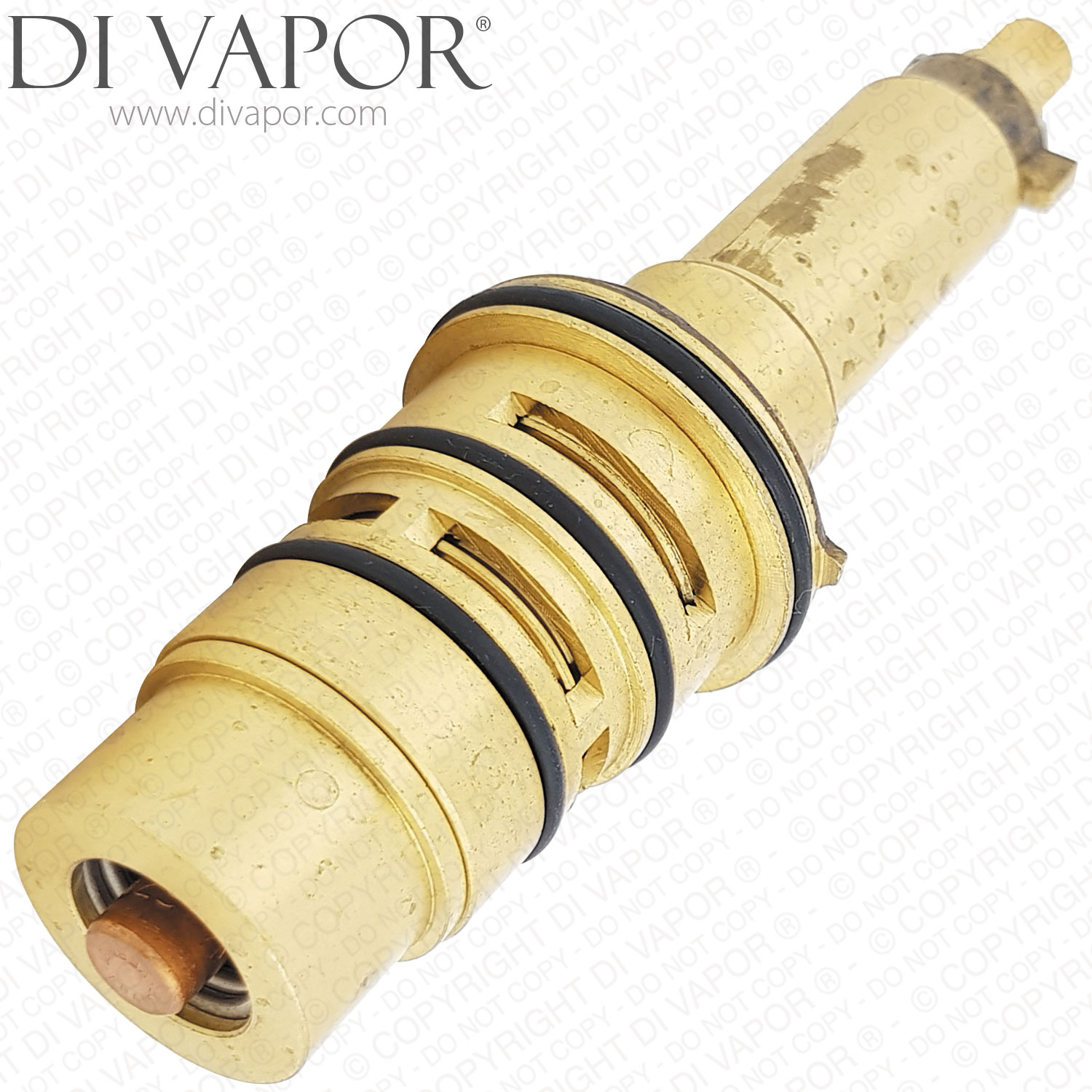

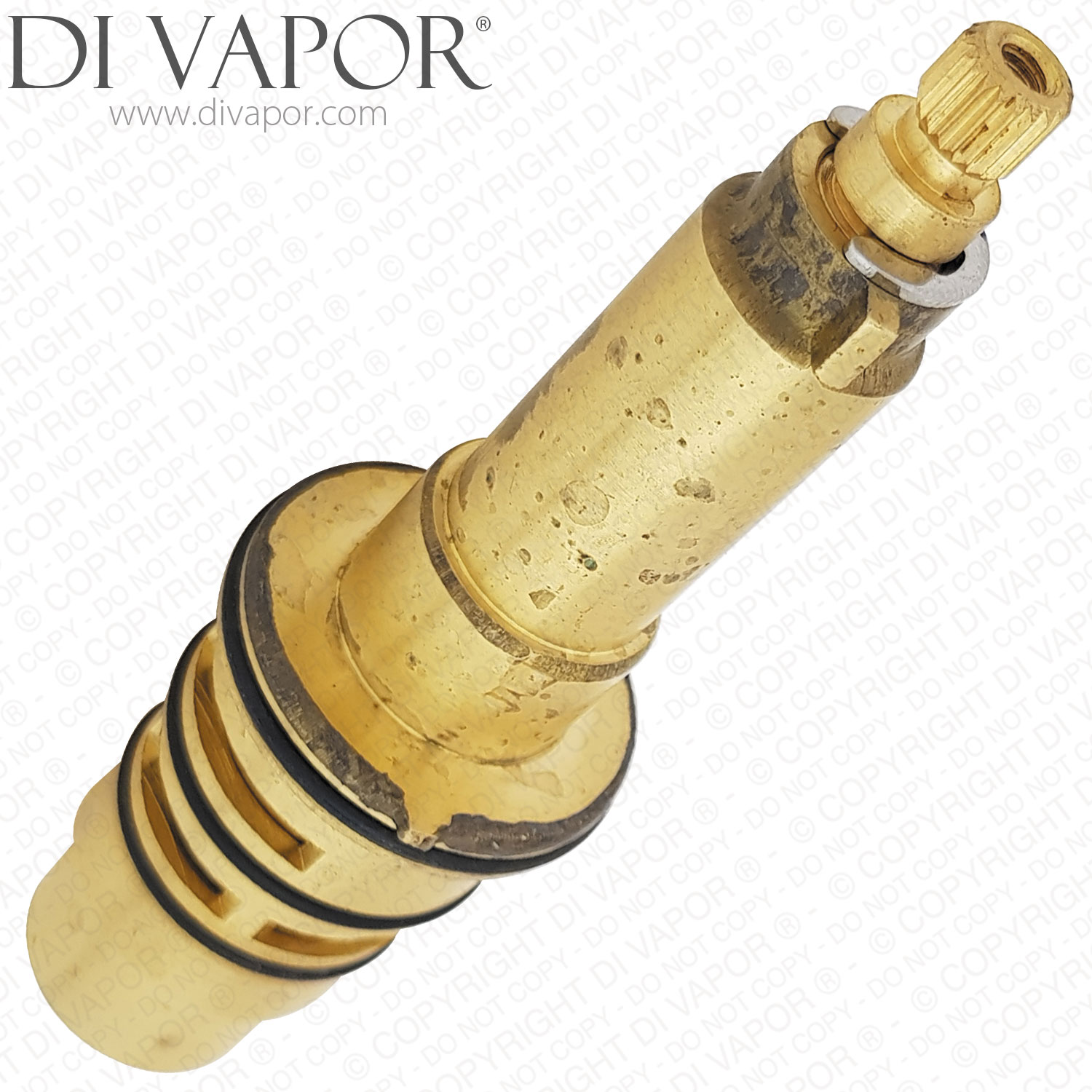

Burlington SP314 is a thermostatic shower valve cartridge used to control and stabilise the mixed water temperature in selected Burlington shower valves. This listing is for Di Vapor Part Number BL-SP314.
The cartridge sits inside the thermostatic control section of the valve and is used when the shower is no longer regulating temperature correctly, the handle becomes difficult to set, or the valve cannot maintain a stable mixed outlet temperature. Always isolate the water supplies before removal and compare the removed cartridge with the details below before ordering.
Technical Details
- - Part code: SP314
- - Cartridge type: thermostatic temperature control cartridge
- - Burlington cartridge family: VQT1 temperature control cartridge
- - Material: brass
- - Diameter: 33.36mm
- - Length: 116.65mm
- - Overall length: 120mm
- - Width: 34.5mm
- - Spindle width: 7.8mm
- - Spline teeth: 20
- - Spline type: long spline
- - O-rings: 3
- - Grub screw hole: no
- - Spline tiers: 1
Confirmed Compatible Models
- - Burlington V34
- - Burlington V36
- - Burlington BSF1S EXT-V16 Spey Thermostatic Exposed Shower Valve Single Outlet 6 Rose Spare Parts
- - Burlington BSF3S EXT-V17 Spey Thermostatic Exposed Shower Valve Two Outlet 9 Rose Spare Parts
- - Burlington TF3S Trent Thermostatic Shower Valve Spare Parts
- - Burlington TF3S-V16 TF3S V16 Trent Thermostatic Dual Outlet Concealed Shower Valve Spare Parts
- - Burlington TF3S-V17 TF3S V17 Trent Thermostatic Dual Outlet Concealed Shower Valve Spare Parts
- - Burlington TF3S-V60 TF3S V60 Trent Thermostatic Dual Outlet Concealed Shower Valve Spare Parts
- - Burlington TF3S MED V16 Trent Thermostatic Dual Outlet Concealed Shower Valve Spare Parts
- - Burlington TF3S MED V17 Trent Thermostatic Dual Outlet Concealed Shower Valve Spare Parts
- - Burlington TF3S MED V60 Trent Thermostatic Dual Outlet Concealed Shower Valve Spare Parts
- - Burlington VF1S-V16 VF1S V16 Severn Thermostatic Single Outlet Concealed Shower Valve Spare Parts
- - Burlington VF1S-V17 VF1S V17 Severn Thermostatic Single Outlet Concealed Shower Valve Spare Parts
- - Burlington VF1S MED V60 Severn Thermostatic Single Outlet Concealed Shower Valve Spare Parts
- - Burlington VF3S-V16 VF3S V16 Severn Thermostatic Two Outlet Concealed Shower Valve Spare Parts
- - Burlington VF3S-V17 VF3S V17 Severn Thermostatic Two Outlet Concealed Shower Valve Spare Parts
- - Burlington VF3S-V60 VF3S V60 Severn Thermostatic Two Outlet Concealed Shower Valve Spare Parts
- - Burlington VF3S MED V17 Severn Thermostatic Two Outlet Concealed Shower Valve Spare Parts
- - Burlington VF3S MED V60 Severn Thermostatic Two Outlet Concealed Shower Valve Spare Parts
Check Before Ordering
- - Confirm the existing cartridge is marked or specified as SP314 or BL-SP314 where possible.
- - Check that the valve model matches one of the Burlington models listed above.
- - Compare the cartridge body length, diameter, 20-tooth spline and o-ring positions with the cartridge removed from the valve.
- - Apply suitable silicone grease to the o-rings during installation to help the cartridge seat correctly and reduce the risk of seal damage.
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- - Burlington SP726 Thermostatic Control Metal Block for Trent & Severn & Eden & Spey Shower Valves
- - Burlington SP702 Cover Plate for V4 & SF1S & SF3S & BF1S & BF2S & BF3S
- - Burlington SP164 Spline Adapter
- - GROHE Premium Plumbers Silicone Grease - 2g - SYNTHESO LM 220 (18007031)

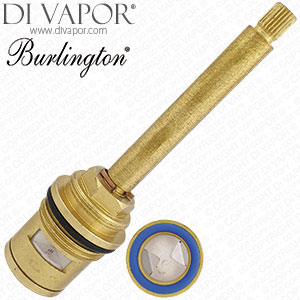

- - Burlington SP315 Shower Valve On/Off Flow Bottom Cartridge - BL-SP315

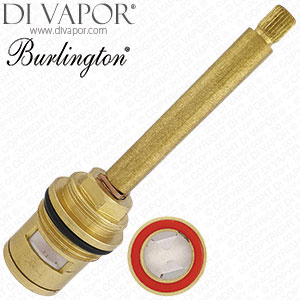

- - Burlington SP313 On/Off Shower Flow Cartridge (Top Cartridge) - BL-SP313
