Burlington SP33 V36 Bottom On/Off Cartridge - 3/4 Inch
Part number: SP33
Price: £20.00
Sale: £16.67
You save: £3.33 (17%)
Price includes UK VAT (Region: UKâ–¼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

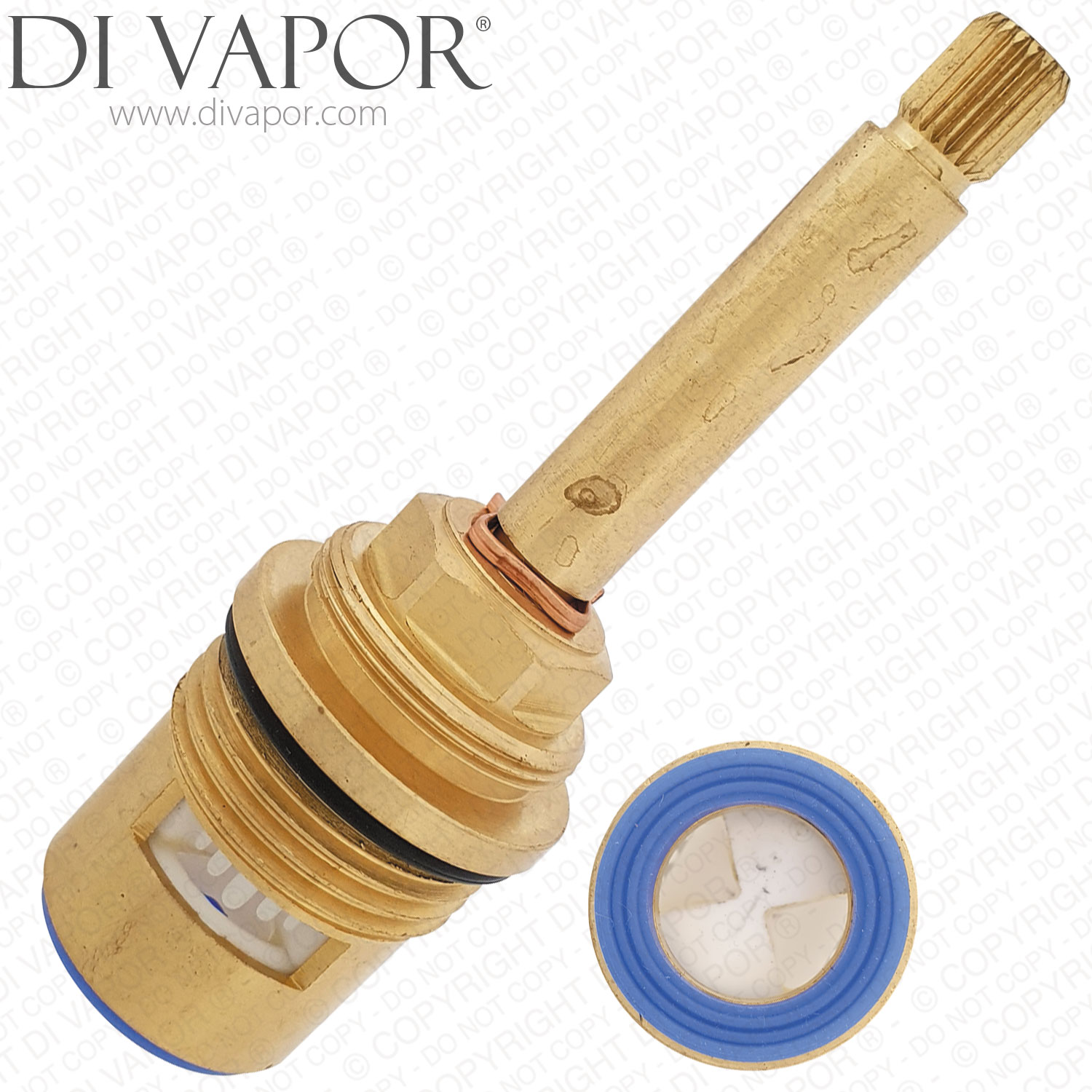

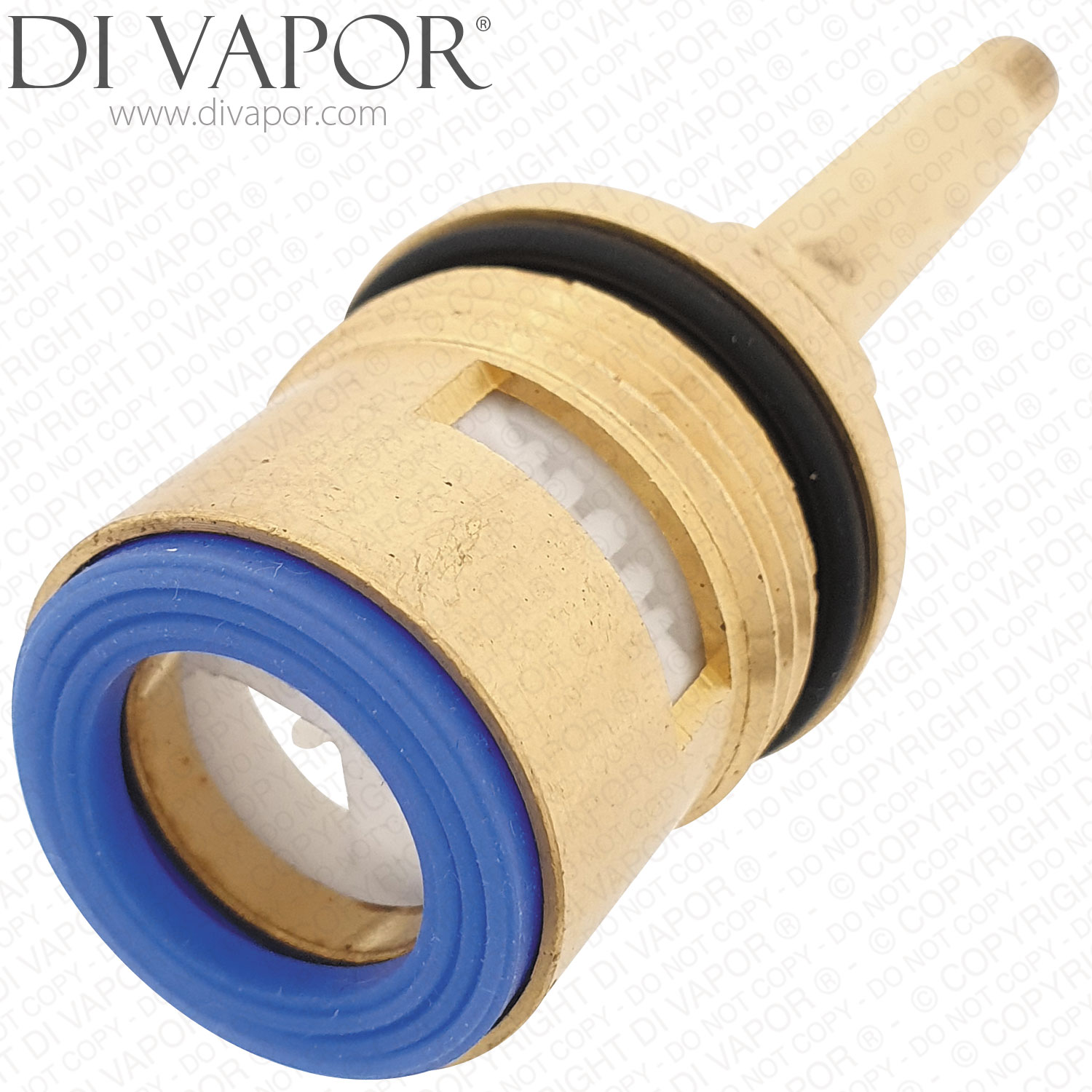

Burlington SP33 V36 Bottom On/Off Cartridge - 3/4 Inch
The Burlington SP33 is a V36 bottom on/off flow cartridge for Burlington TF3S Trent thermostatic dual outlet concealed shower valves. This 3/4 inch flow cartridge is used as the lower on/off control cartridge in the valve assembly.
The cartridge controls water flow through the shower valve. A common symptom of a worn on/off cartridge is water continuing to drip from the shower head or handset when the shower is turned off.
Technical Details
| Brand | Burlington |
|---|---|
| Part code | SP33 |
| Part type | bottom on/off flow cartridge |
| Cartridge family | V36 |
| Connection size | 3/4 inch |
| Used in | Burlington Trent thermostatic dual outlet concealed shower valve assemblies |
- Check the existing cartridge position before ordering because SP33 is the bottom on/off cartridge and must not be confused with the top flow cartridge
Confirmed Valve Models
- Burlington TF3S Trent Thermostatic Shower Valve Spare Parts
- Burlington TF3S-V16 | TF3S+V16 Trent Thermostatic Dual Outlet Concealed Shower Valve Spare Parts
- Burlington TF3S-V17 | TF3S+V17 Trent Thermostatic Dual Outlet Concealed Shower Valve Spare Parts
- Burlington TF3S-V60 | TF3S+V60 Trent Thermostatic Dual Outlet Concealed Shower Valve Spare Parts
- Burlington TF3S BLA V16 Trent Thermostatic Dual Outlet Concealed Shower Valve with Black accent and 6 Inch Rose
- Burlington TF3S BLA V17 Trent Thermostatic Dual Outlet Concealed Shower Valve with Black accent and 9 Inch Rose
- Burlington TF3S BLA V60 Trent Thermostatic Dual Outlet Concealed Shower Valve Spare Parts
- Burlington TF3S MED_V16 Trent Thermostatic Dual Outlet Concealed Shower Valve Spare Parts
- Burlington TF3S MED_V17 Trent Thermostatic Dual Outlet Concealed Shower Valve Spare Parts
- Burlington TF3S MED_V60 Trent Thermostatic Dual Outlet Concealed Shower Valve Spare Parts
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Burlington SP313 On/Off Shower Flow Cartridge (Top Cartridge) - BL-SP313
- Burlington SP315 Shower Valve On/Off Flow Bottom Cartridge - BL-SP315
- Burlington SP314 Shower Valve Thermostatic Cartridge
- Burlington SP593: Bottom Lever (Including Thread) for Two Outlets Valves (On/Off Indices)
- Burlington SP592 On/Off Handle
- Burlington SP596 Hot Cold Handle - Chrome
- Burlington SP610: Face Plate for TF3S
- Burlington SP723: Cartridge Chrome Domed Cover for TF1S & TF2S & TF3S & TF1H & VF1S & VF3S
- Burlington SP815: Retaining Sleeve of Thermostatic Cartridge for Recessed Shower Valves
- Burlington SP726: Thermostatic Control Metal Block for Trent & Severn & Eden & Spey Shower Valves
- Burlington SP751: Lever Connection for Thermostatic Shower Valves (Without Indicie)
- Burlington SP842: Inlet Filter Washer for Recessed Shower Valves 3/4
- Burlington SP873: Indicie Cover for Shower Valve Handles (Without Ceramic Indicie)
- Burlington Handle Spline Adapter - KU72644
- Burlington SP164 Spline Adapter
- Burlington SP163: B Logo Indice and Cap Complete for Shower Valve
- Burlington SP106 Ceramic B Logo Indicie for Shower Valve Handle
| Burlington SP44 | Hot/Cold Ceramic Indicie for Shower Valves |
|---|---|
| Burlington SP52 | Plain Ceramic Part Only for Burlington Shower Levers |
| Burlington V10-2 | Ceramic Levers for Avon & Clyde Dual Control Valves (Pair) |
- Burlington V30 Outlet Elbow 1/2
- Burlington V26 Hose
- Burlington V18 Shower Hook (for Wall Mounting of Telephone Shower Head)
| Burlington SP478 | 1/2 Washers Including Filter for Shower Rose |
|---|---|
| Burlington SP599 | Grub Screw (M4x4) |
| Burlington SP93 | Fixing Screw and Washer for Tap and Valve Handles (T1 & T2 & T3 & V1 & V2 & V3) |
- Burlington SP614 Ceramic Ring for Trent & Severn & Spey
- Burlington Lever for Spey Stour Trent Avon & Severn Shower Valves
| Burlington V29 | Ceramic Telephone Handset |
|---|---|
| Burlington BX19 | Matt Black B Logo Ceramic Indice (Single Indice) |
| Burlington BX4 | Matt Black Hot/Cold Valve Handle Ceramic Indice (Single Indice) |
| Burlington BX6 | Matt Black Shower/Handset Valve Lever Ceramic |
Before ordering compare the removed cartridge and valve layout with the product images and check whether the failed control is the bottom on/off position. Isolate hot and cold supplies before servicing and use silicone grease only on seals where required.
