Brass Thermostatic Screw Fit Cartridge - 3 O-Ring Fitting - Multi Thread
Send a photo of your item and we'll help confirm it.
Summary

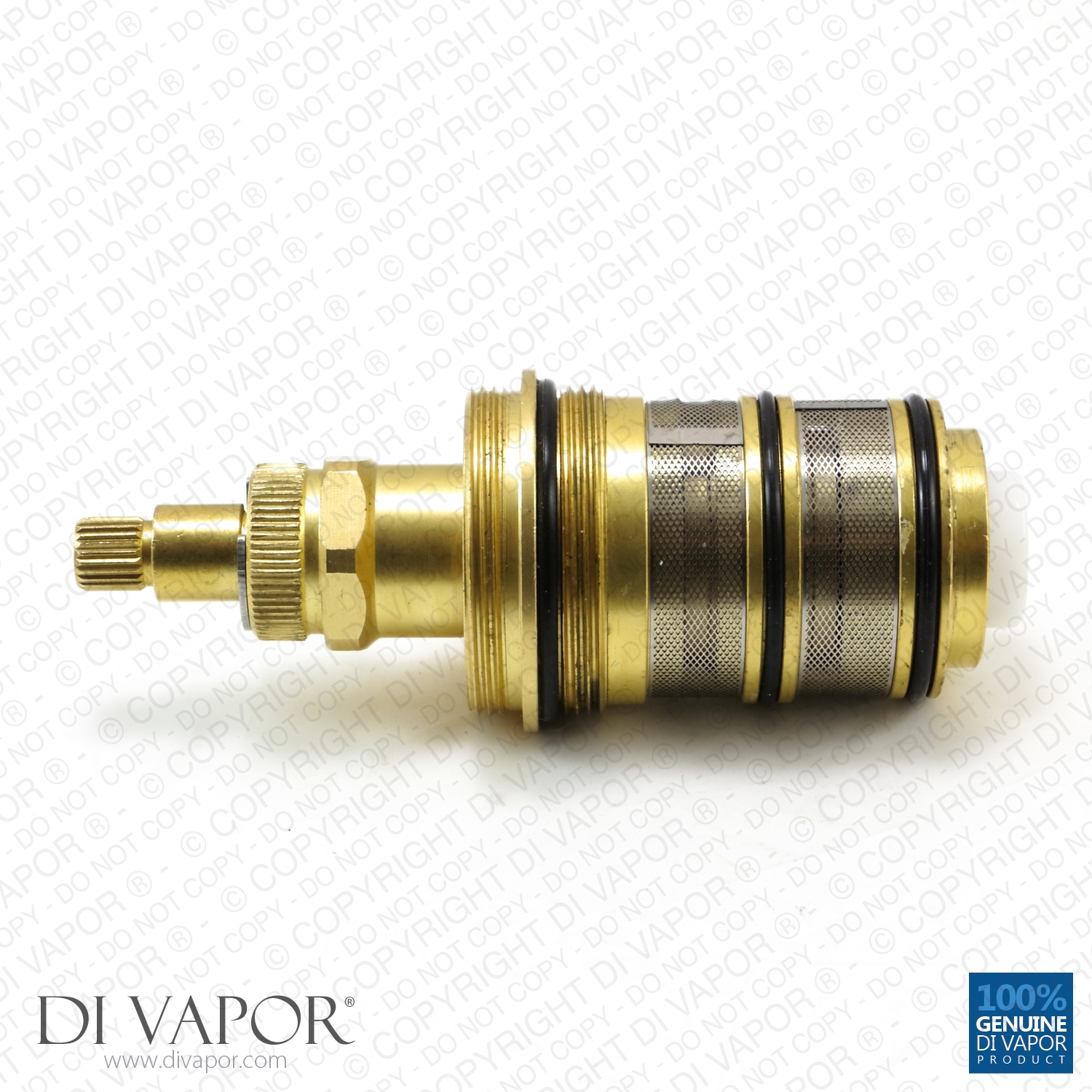

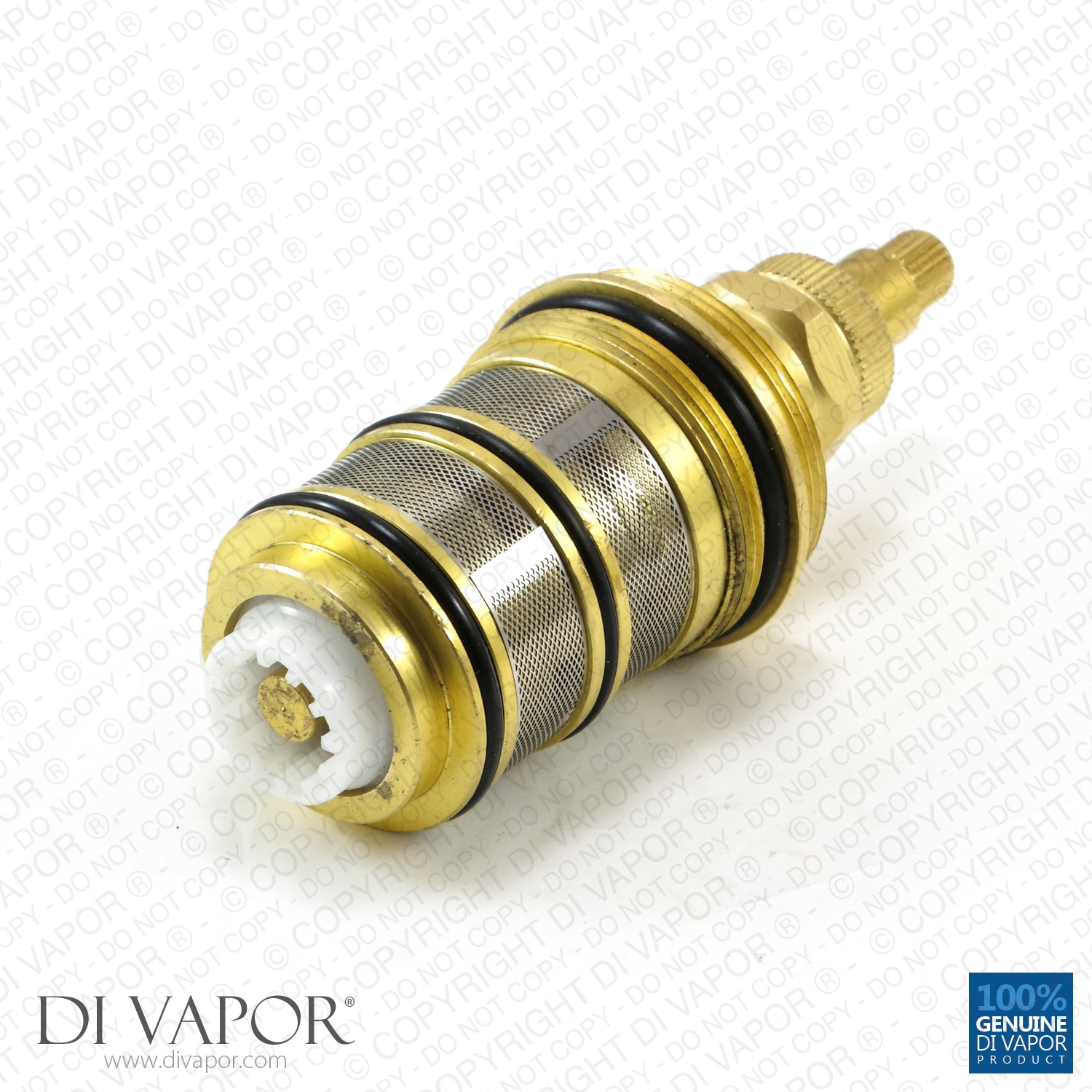

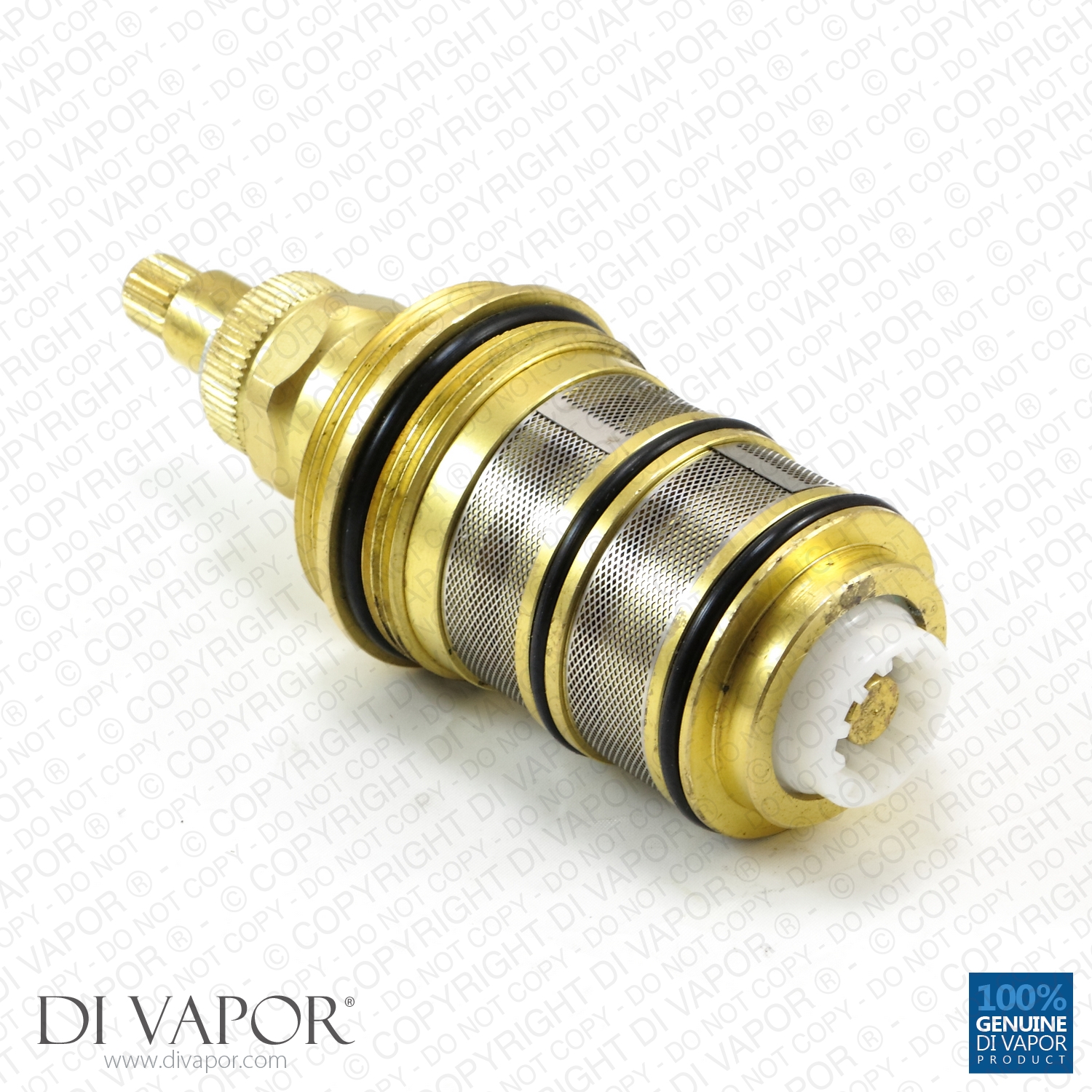

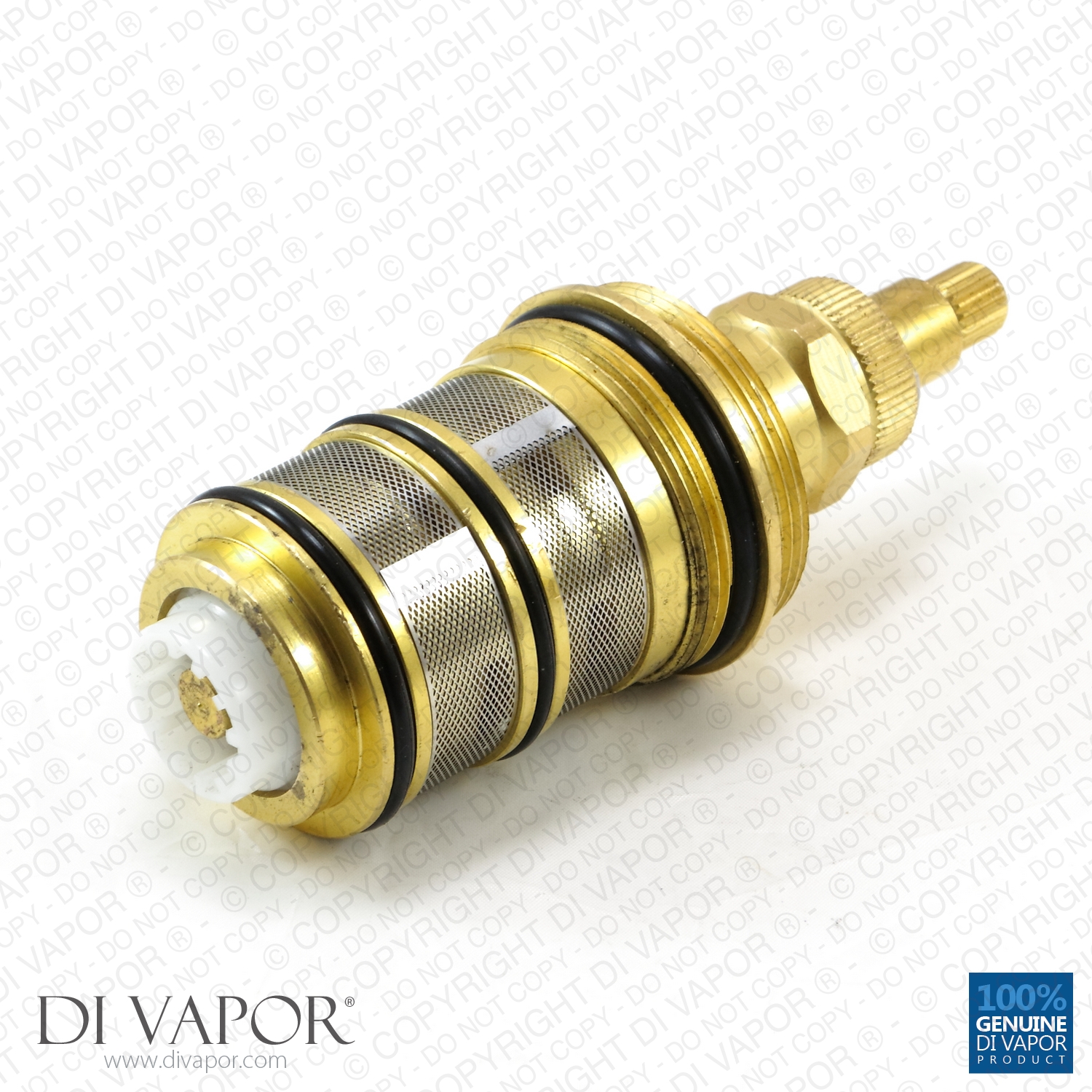

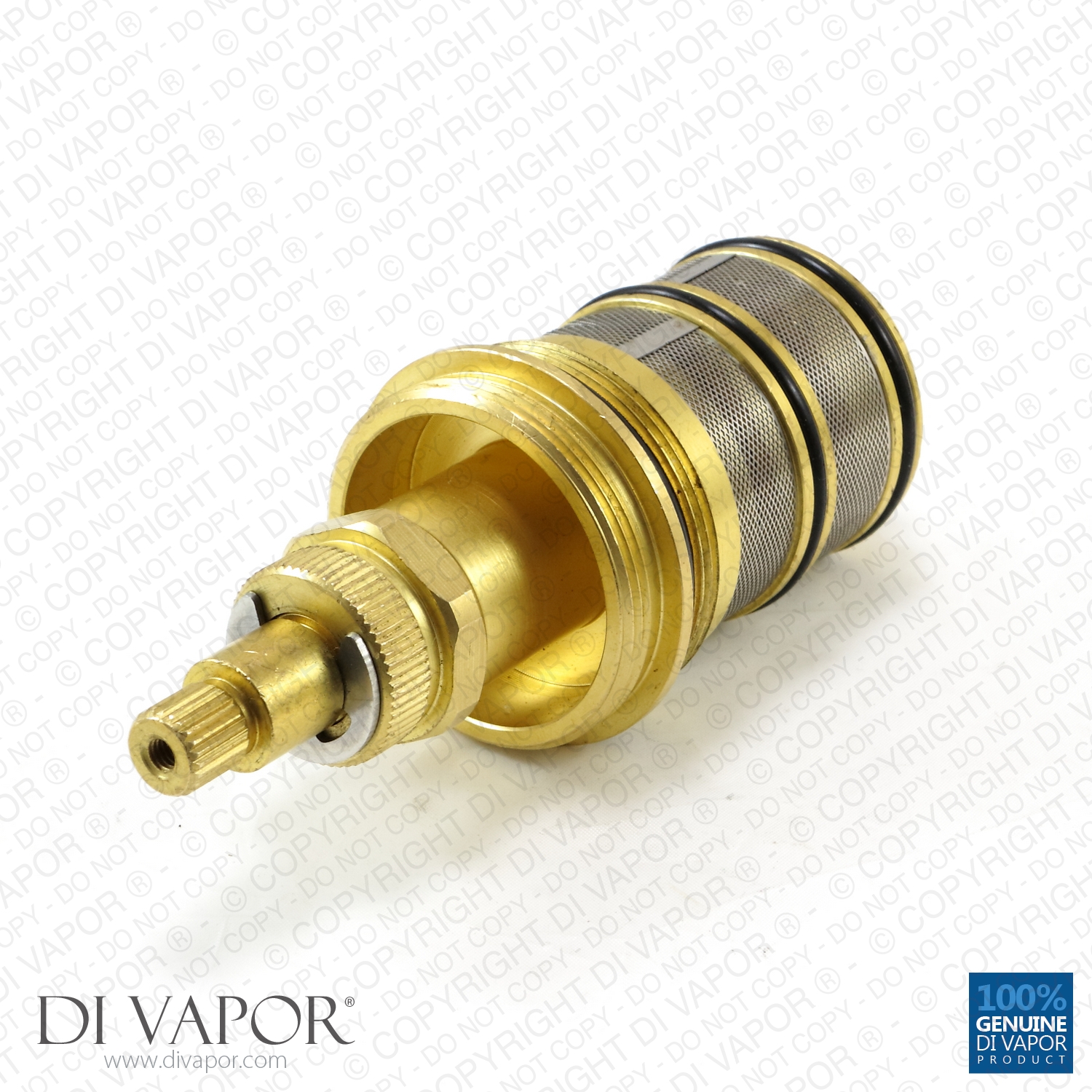

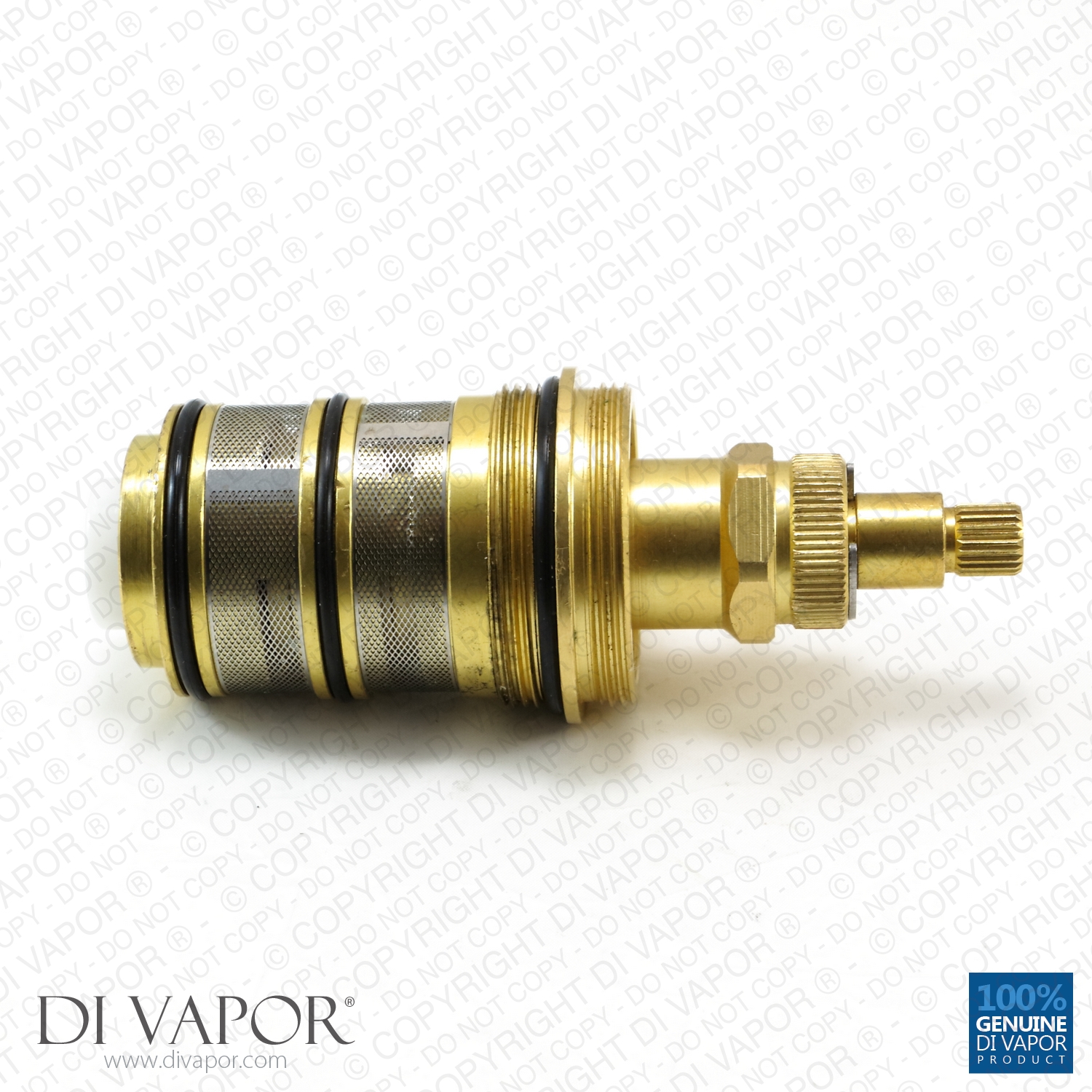

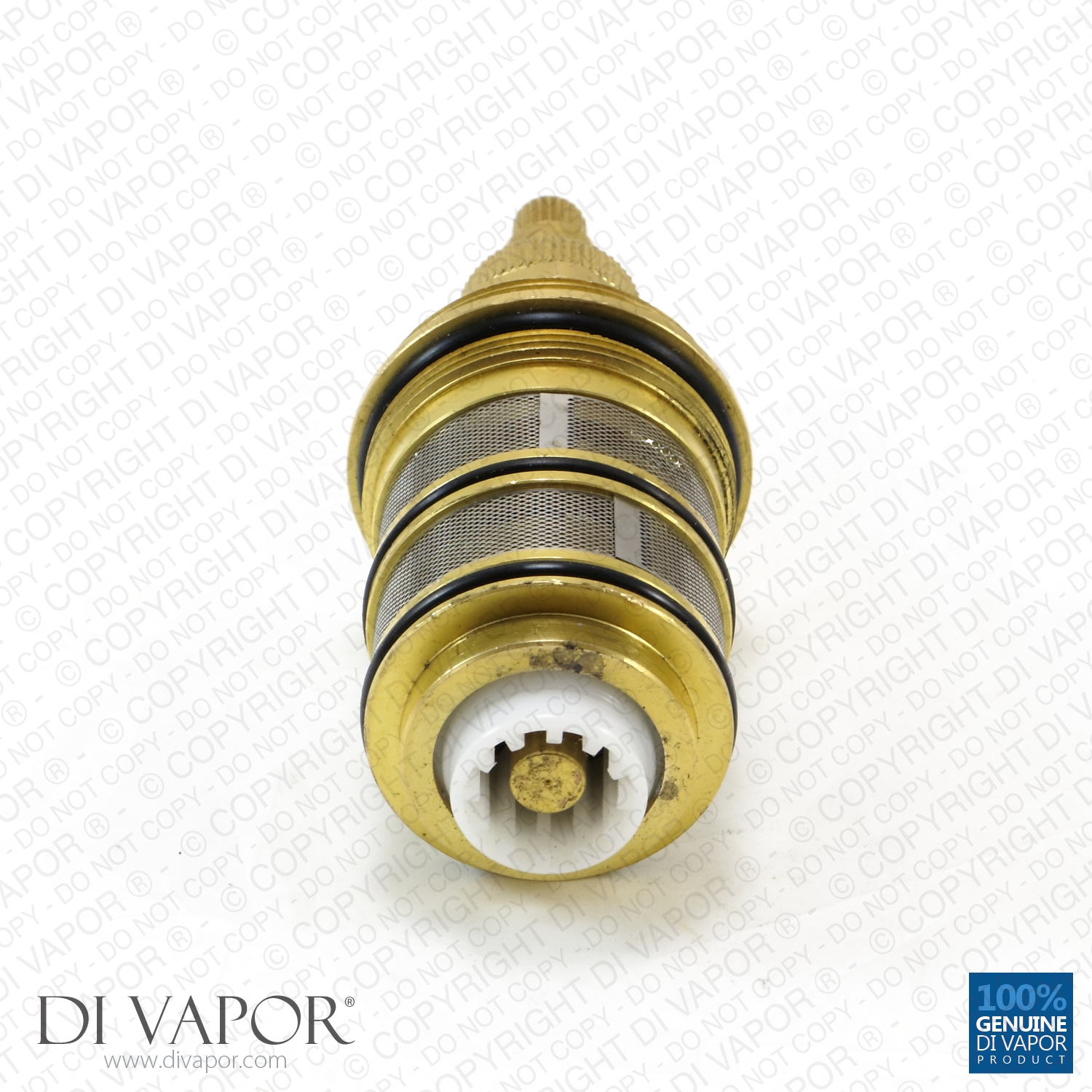

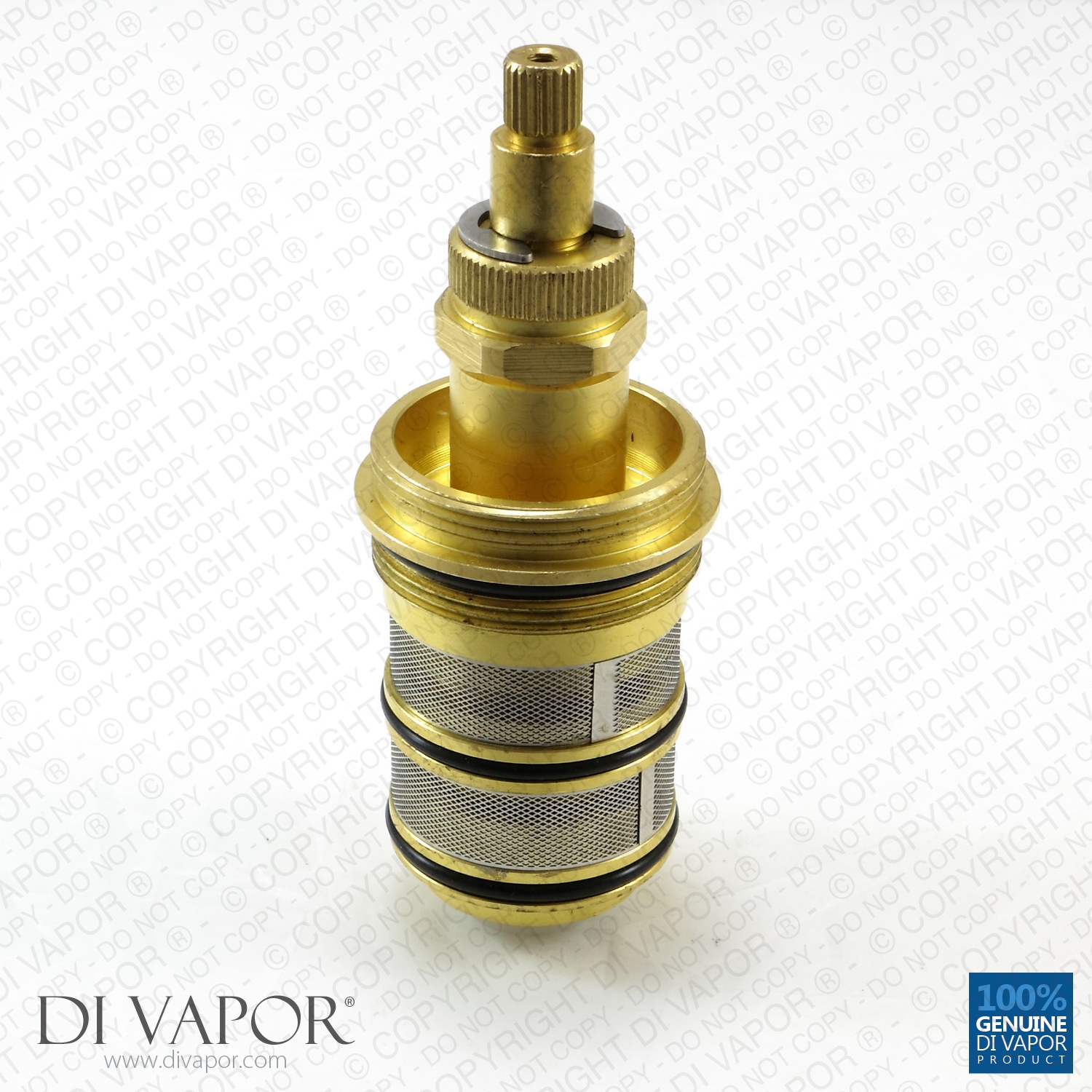

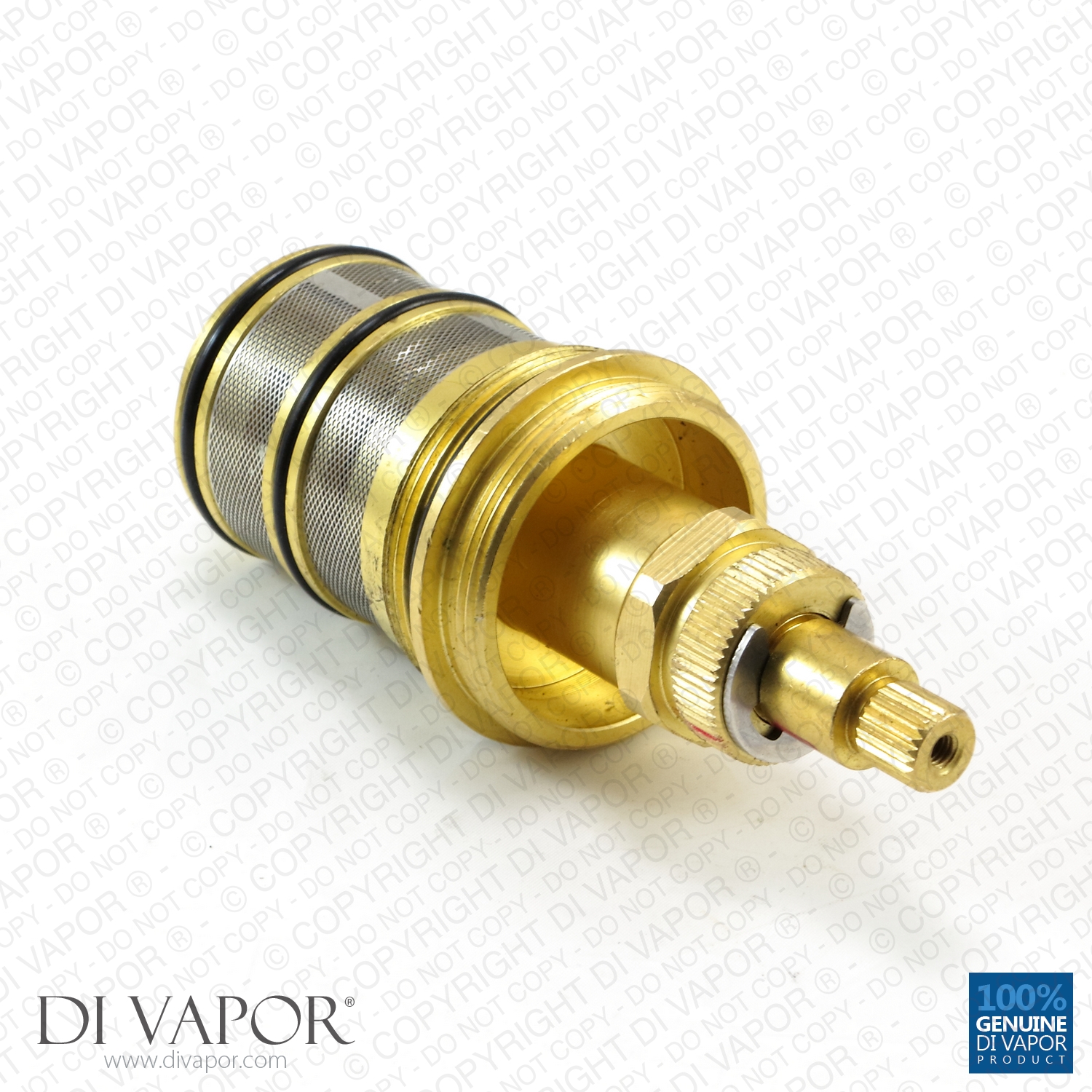

This brass bodied thermostatic cartridge is designed for a front fitting screw housing. If your shower mixer is no longer producing a constant mix of temperature set water, the cartridge may require replacing. Common mixer issues are usually solved when the thermostatic cartridge is replaced.

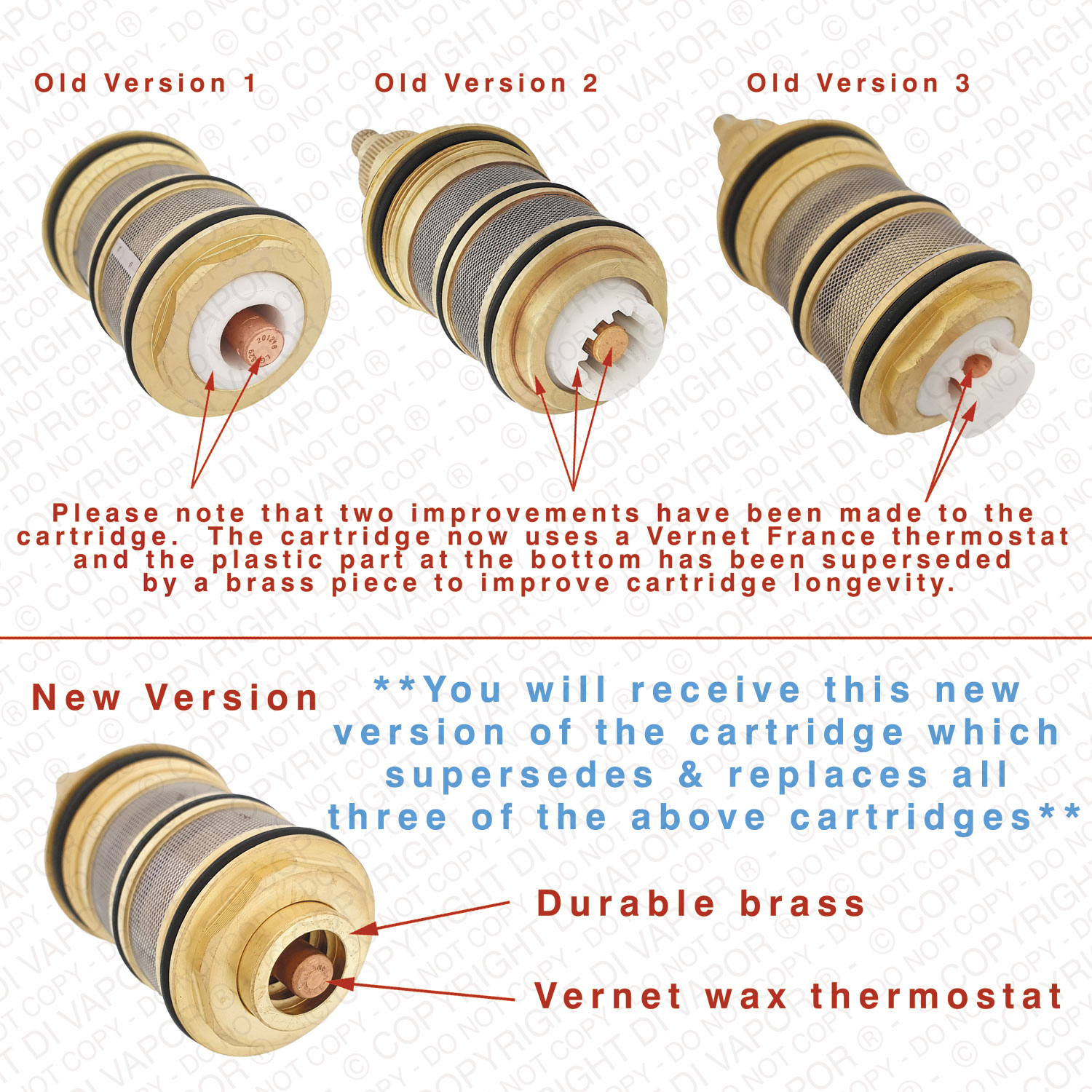

Please note that two improvements have been made to the cartridge. The cartridge now uses a Vernet France thermostat and the plastic part at the bottom has been superseded by a brass piece to improve cartridge longevity.
| Cartridge Length | 115mm (excluding wax thermostat) |
|---|---|
| Cartridge Length | 116.5mm (including wax thermostat) |
| Handle Splines Diameter | 9.4mm |
| Number of Handle Splines | 24 |
| Screw Thread Fitting | 41.6mm |
| Upper Thread | 41.6mm |
| Bottom O-ring Diameter | 38.8mm |
| Middle O-ring Diameter | 39.7mm |
| Type | Screw type fitting |
| Cartridge Material | Brass body and spindle with polymer shuttle |
| Number of O-rings | 3 |
| Tiers of Splines | 1 |
| Number of Gauze Filters | 2 |
Note: This cartridge may differ slightly to your shower cartridge. If you unsure of any measurements or a particular part of the cartridge, please do not hesitate to contact us. We will be happy to assist with any enquiries you may have.
If you're still unsure, send us a photo of what cartridge you need HERE and we'll do our best to source the cartridge you need.
