Aqualisa 910537 Thermostatic Cartridge for Midas 110 Valves (Cartridge Only)
Part number: AQ-910537
Price: £78.62
Sale: £66.70
You save: £11.92 (15%)
Price includes UK VAT (Region: UK▼)
In stock
Is this the right part?
Send a photo of your item and we'll help confirm it.
Product description
Summary

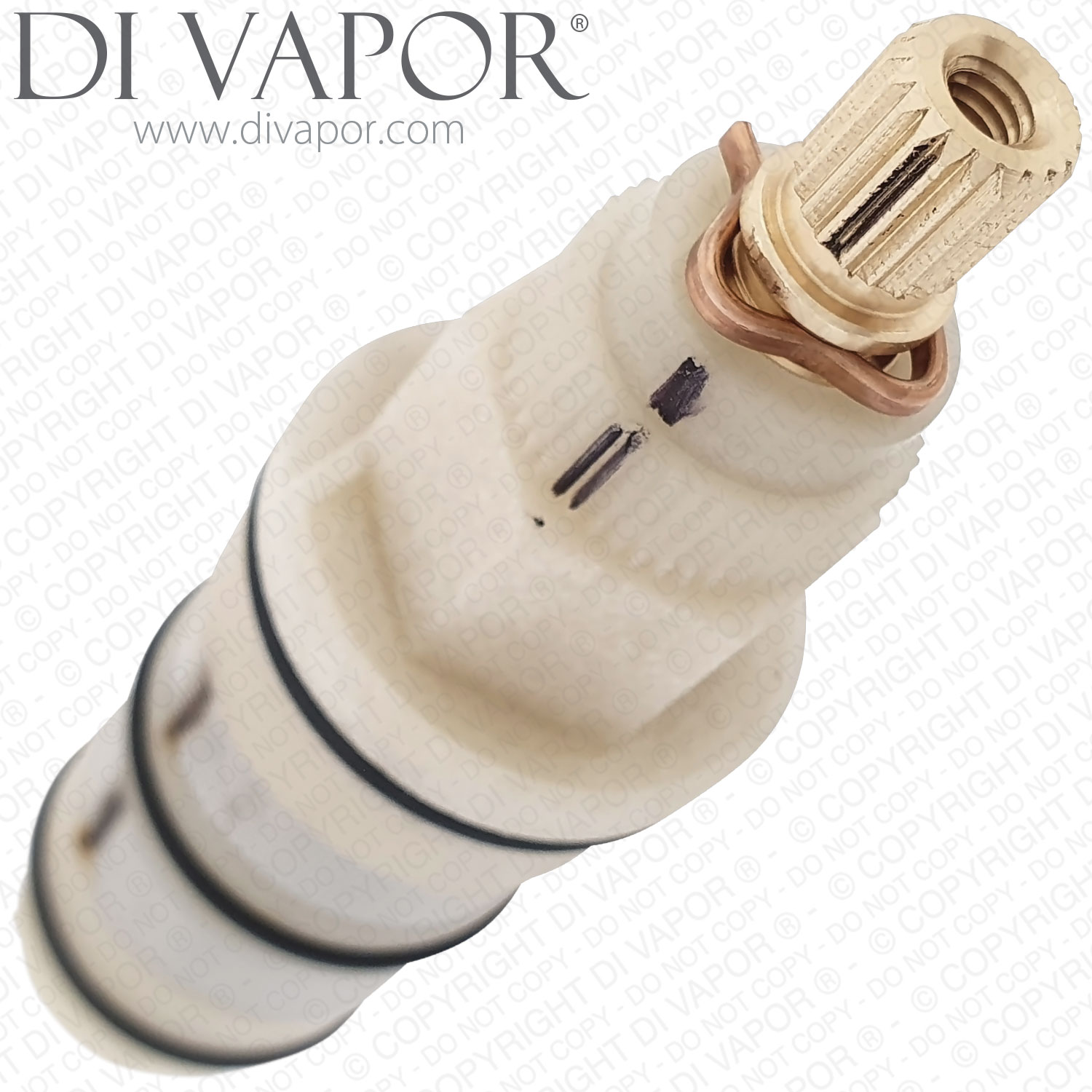

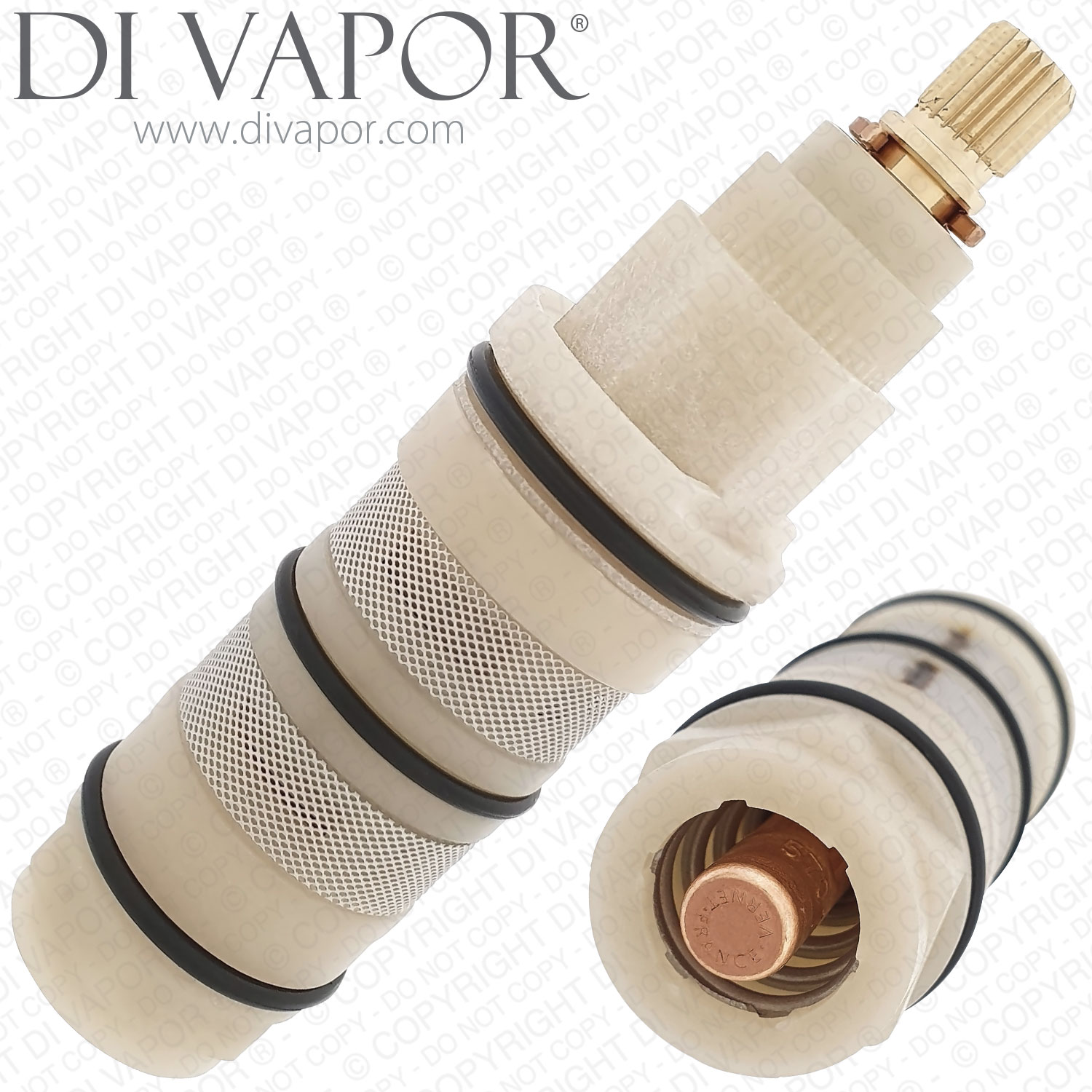

Aqualisa 910537 Thermostatic Cartridge for Midas 110 Valves (Cartridge Only). No Control knob included, only the cartridge is included as per the photos).
This Aqualisa 910537 thermostatic cartridge for Midas 110 shower valves. This is the cartridge-only version and is supplied without the temperature control knob.
The thermostatic cartridge regulates the mixed outlet temperature in the shower or bath shower mixer valve. It is used when the temperature control cartridge no longer regulates correctly or when the outlet temperature becomes difficult to control.
Technical Details
| Aqualisa cartridge code | 910537 |
|---|---|
| Di Vapor Part Number | AQ-910537 |
| Part type | thermostatic temperature cartridge |
| Supplied as | cartridge only |
| Control knob | not included |
| Approximate cartridge diameter | 47.99mm |
| Approximate cartridge length | 128.99mm |
| Material | brass and plastic |
| O-rings | 3 |
| Grub screw hole | No |
| Long spline | No |
Before You Order
- Check the valve is an Aqualisa Midas 110 model before ordering.
- Check whether you need the cartridge-only version or the cartridge with temperature control knob.
- Retain the existing control knob and any locking or stop components if they are being reused.
- Confirm the hot supply is on the left and the cold supply is on the right when viewed from the front of the valve.
Common Fault Symptoms
- Symptom: shower runs too hot or too cold. Likely Cause: thermostatic cartridge is not regulating correctly. Solution: replace the temperature cartridge and recommission the valve.
- Symptom: outlet temperature fluctuates during use. Likely Cause: worn cartridge or debris affecting cartridge movement or inlet filters. Solution: check the inlet filters and cartridge condition before fitting the replacement.
- Symptom: temperature knob turns but outlet temperature does not respond correctly. Likely Cause: failed cartridge or control engagement issue. Solution: inspect the control knob and cartridge interface and replace the cartridge where required.
Confirmed Compatible Models
- Aqualisa MD110BSM Midas 110 Bath Shower Mixer Spare Parts
- Aqualisa MD110S Midas 110 Bar Mixer Shower Spare Parts
- Aqualisa MD110SC Midas 110 Mixer Shower Column Spare Parts
