SUMMARY

Aqualisa 665002 Dual Replacement Thermostatic Cartridge (651906)

Included
- Thermostatic Cartridge
- Temperature Stop Ring

Cartridge Measurements:
Total Length (excluding wax thermostat): 96mm
Diameter at Thread: 41.7mm
Top Spline Diameter: 7.6mm
Top Spline Teeth / Notches: 20
Stop Ring Spline Diameter: 20mm
Diameter at Top O'ring: 40.5mm
Diameter at Middle O'ring: 40mm
Diameter at Bottom O'ring: 39.6mm

Shower Valve Spare Part: Aqualisa 665002 Thermostatic Cartridge (651906)

The Aqualisa 665002 – otherwise known as 651906 – is the thermostatic cartridge replacement for the Aqualisa exposed bar mixer Dual (DUAL001). Got questions about shower spares? Please contact us. We will gladly respond to you personally. Di Vapor is at your service!

Aqualisa 665002 is armed with four rubber seals and two gauze filters. The seals keep water from seeping out while the gauze filters sift out dirt and minerals from entering the cartridge. This is a screw-fit temperature cartridge where threads hold the cartridge in place inside the shower bar valve. A spanner can remove the Aqualisa cartridge from the valve.

Aside from the 665002 thermostatic cartridge, the Aqualisa DUAL001 shower bar is accompanied by two other types of cartridges which are the flow cartridge and the diverter cartridge.

Other Aqualisa spares for this particular model are:
– 665003;

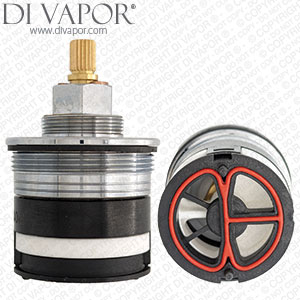

– and 910055.

Common Questions for the 665002 / 651906 Aqualisa Thermostatic Cartridge

Aqualisa 665002 thermostatic cartridge can fix Dual (DUAL001) shower valves that have difficulty moderating water temperature, leaks and inadequate water flow. Below are some questions and answers regarding this shower spare part.

Question: Why is the Dual shower giving hot water even if the setting is at the coldest? Is it because of the Aqualisa 665002?
Answer: It can be because of a faulty Aqualisa thermostatic cartridge 665002 / 651906 or the hot and cold supplies are installed in reverse. This cartridge will not work properly if the feeds are reversed.

Question: Water is coming out of the temperature handle. Should I replace the 665002?
Answer: Yes, the 665002 Aqualisa thermostatic cartridge must be replaced. The seals of the cartridge might have deteriorated or the cartridge itself has suffered cracks.


Shower Repair Must-Have:
Silicone grease. This is a must-have to achieve a good shower valve repair. The grease serves as a layer of protection protecting the rubber seals of the cartridge from early deterioration so you can enjoy temperature regulated showers for a much longer time.

Please move to the bottom section of the page to purchase the fast-selling, heat-resistant plumbing grease we carry.


Di Vapor has numerous Aqualisa shower spares in-stock and ready to make its way to you.
