Vado WSB-1/TEMP-C/P Temperature Control Handle for Concealed WSB Valve (Chrome)
SUMMARY
Vado WSB-1/TEMP-C/P Temperature Control Handle for Concealed WSB Shower Valve Chrome

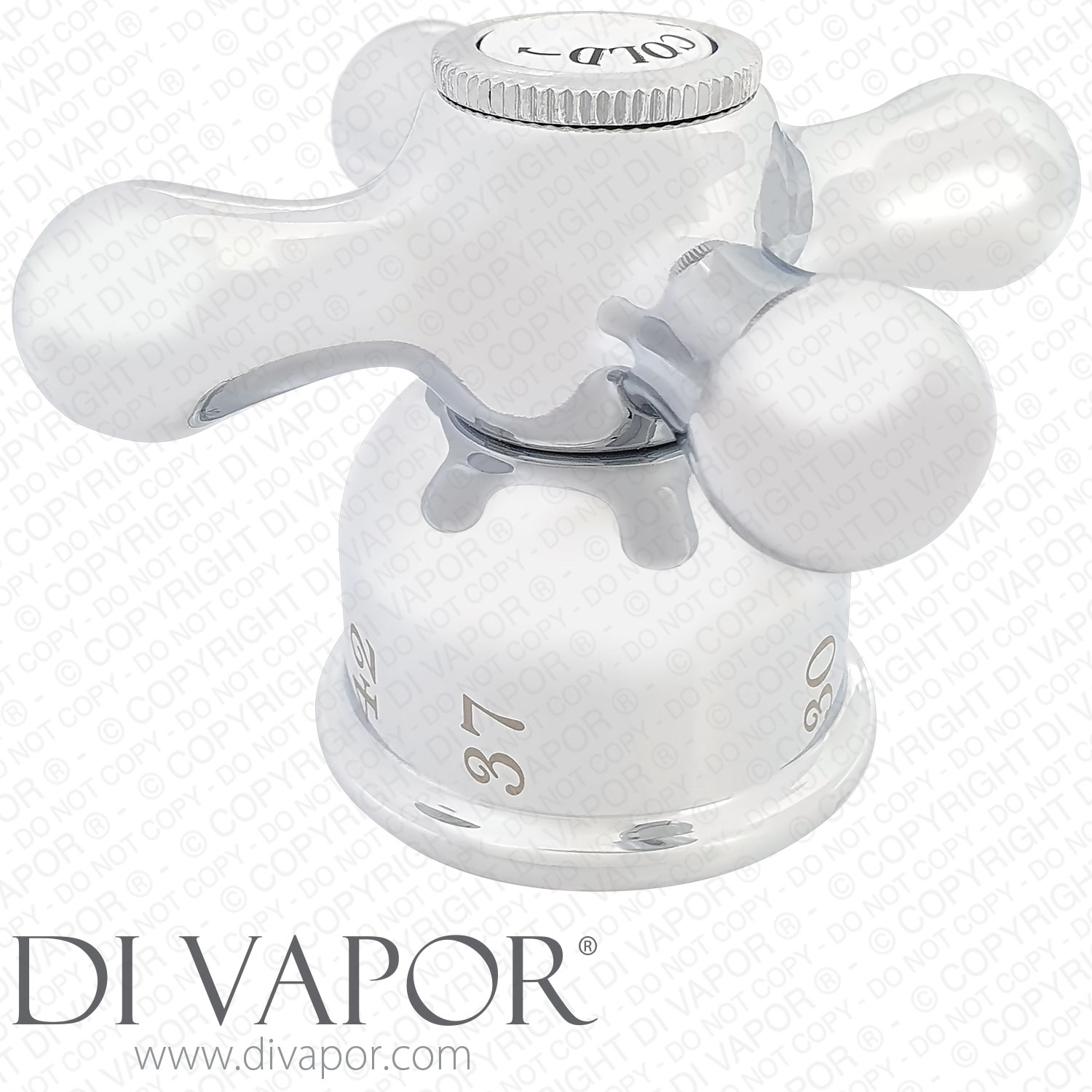

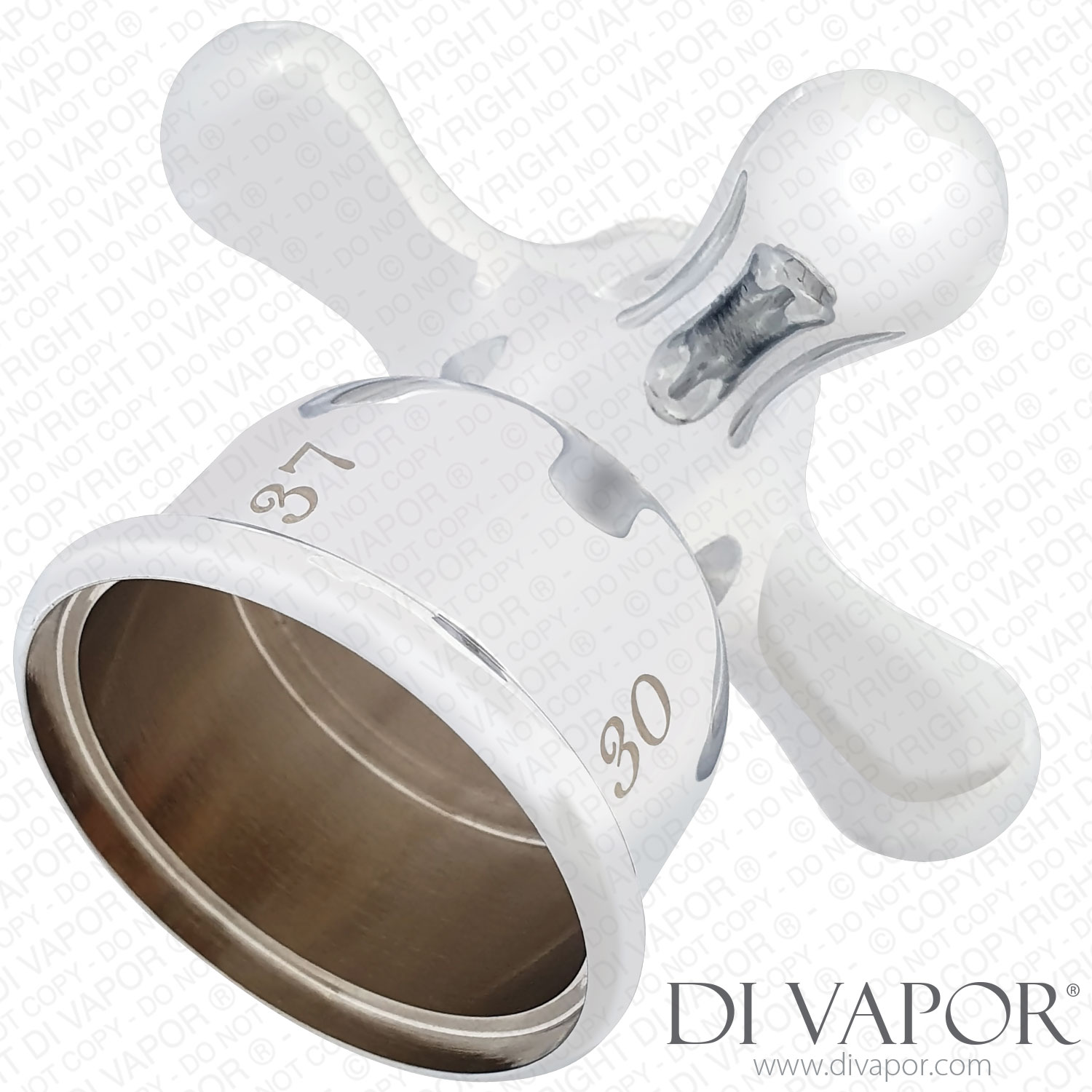

The Vado WSB-1/TEMP-C/P is a chrome temperature control handle for a concealed WSB thermostatic shower valve. It is the external control handle used on the temperature side of the valve to adjust the mixed water temperature.
This handle is used with the VADO WSB-148-3/4-C/P Westbury 1 outlet 2 handle concealed thermostatic shower valve wall mounted chrome / white. Check the existing handle code, valve model and finish before ordering, especially where the valve has a different WSB variant or handle colour.
Technical Details
- - Brand: Vado
- - Part Number: WSB-1/TEMP-C/P
- - Part type: temperature control handle
- - Finish: chrome
- - Valve application: concealed WSB thermostatic shower valve
- - Control position: temperature side
- - Matching WSB-148-3/4-C/P valve type: concealed thermostatic shower valve wall mounted
- - Matching WSB-148-3/4-C/P valve connections: 2 x 3/4 inch inlets and 1 x 3/4 inch outlet with 1 x 3/4 inch outlet blanked off
- - Matching WSB-148-3/4-C/P valve wall depth: 52mm to 64mm with 58mm optimum installation depth
- - Matching WSB-148-3/4-C/P minimum operating pressure: 0.2 bar LP
Confirmed Compatible Models
Before Ordering
- - Confirm the handle being replaced is the temperature control handle rather than the flow control handle.
- - Match the valve model and finish to WSB-148-3/4-C/P where possible.
- - If the original handle is damaged, seized, missing or cosmetically worn, compare the remaining valve trim before ordering.
Related Spares You May Need
- - Vado WSB-1/CONCFLOW-C/P Flow Control Handle for Concealed WSB Valve Chrome
- - Vado WSB-148-3/4-PLATE-CP Back Plate for WSB-148-3/4-C/P Shower Valve
- - Thermostatic Cartridge for VADO HUB-001A-WAX WG-15951 WSB-148 Shower Mixers
- - Vado HUB-002B-3/4 3/4 Inch Ceramic Cold Flow Cartridge On Off Quarter Turn Clockwise Close
