Ultra SA3091FHH Shower Mixer Flow Control Handle Including Circlips for SNINASF, SASF2 Cartridges
SUMMARY

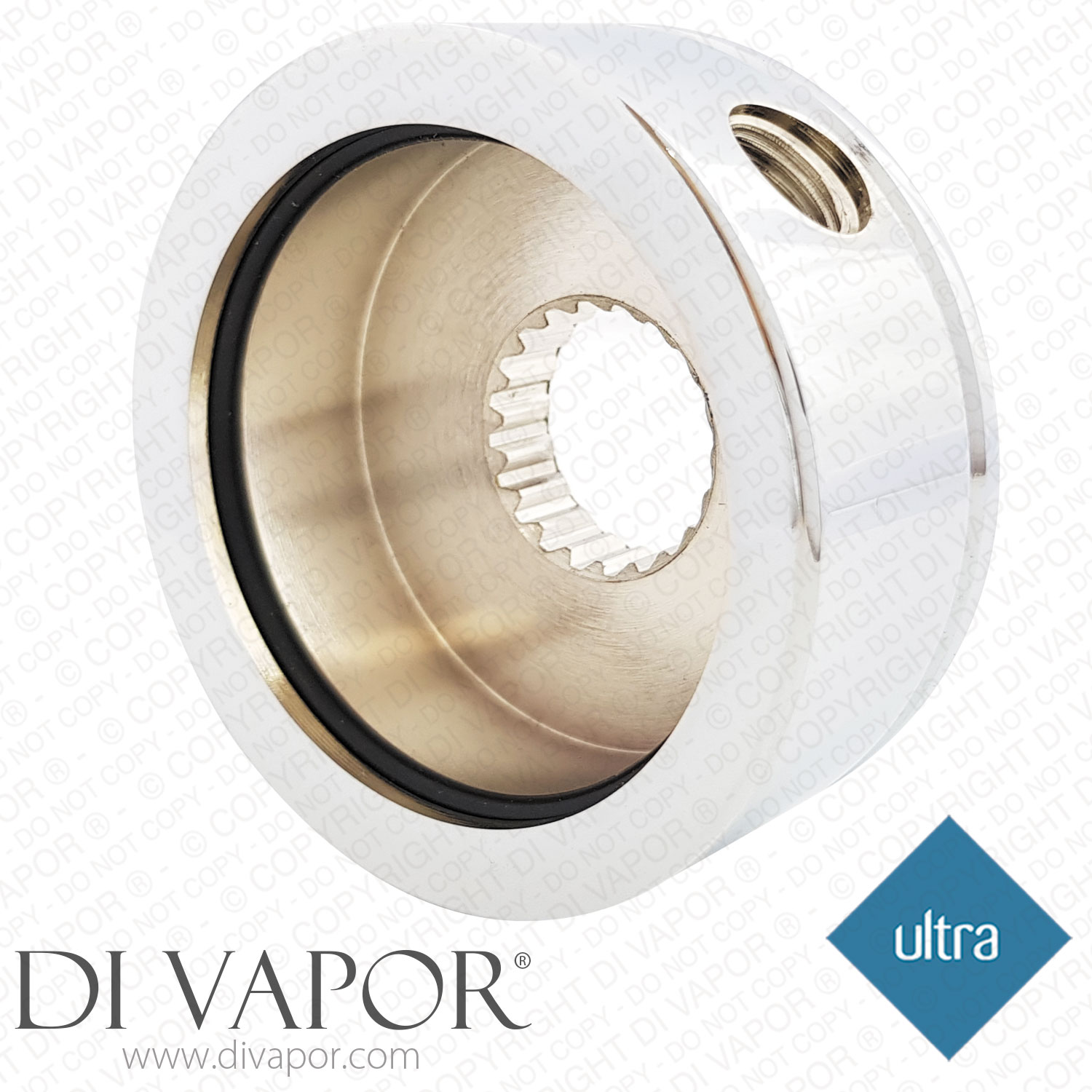

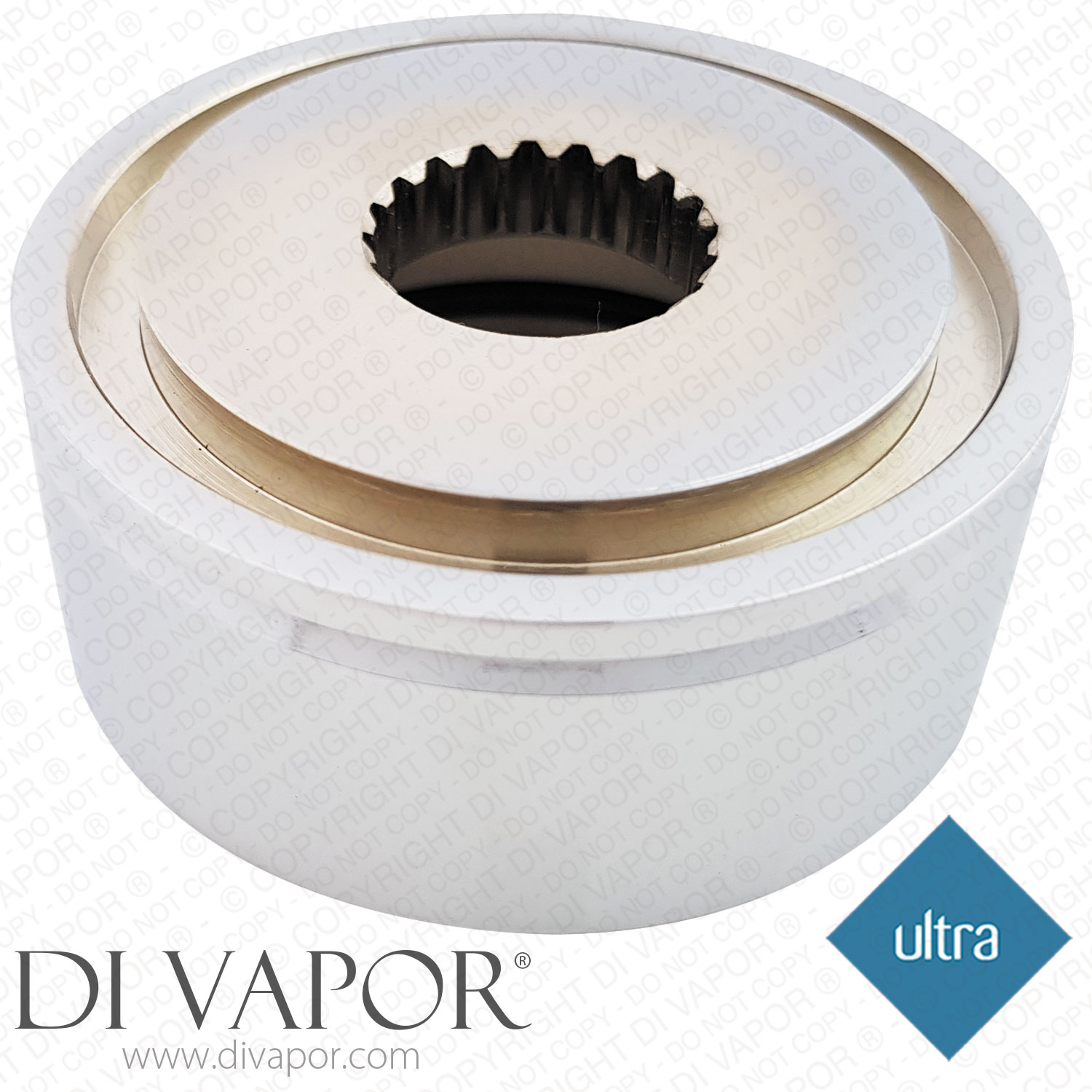

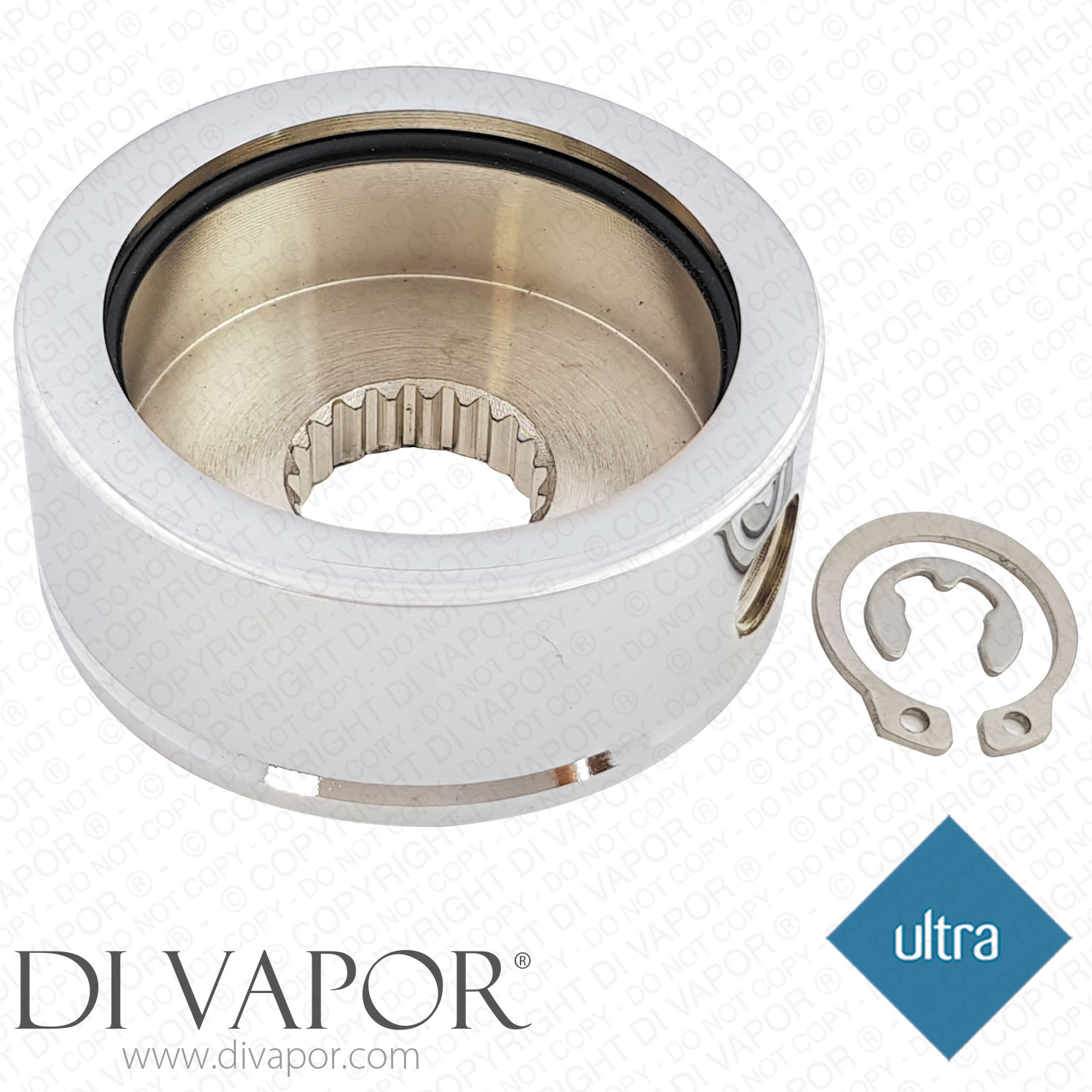

Ultra SA3091FHH Shower Flow Control Handle Housing with Circlips for SNINASF and SASF2
The Ultra SA3091FHH is a chrome shower mixer flow-control handle housing supplied with circlips for SNINASF and SASF2 cartridge assemblies. It forms part of the external flow-control mechanism used to operate the water flow through the shower valve.
The flow control is separate from the temperature-control handle and thermostatic components. When identifying this part, compare the existing housing, cartridge arrangement and spline connection rather than relying on diameter alone.
Technical Details
- - Part Number: SA3091FHH
- - External diameter: 60mm
- - Internal diameter at the rubber seal: 45mm
- - Toothed spline opening diameter: 19mm
- - Number of splines: 20
- - Finish: Chrome
- - Supplied with circlips
Confirmed Compatible Models
- - Crosswater CW DV 165 3/4 Dual Control Shower
- - Hudson Reed A3091-A3603 Traditional Concealed Thermostatic Shower Valve with 8-inch Apron Fixed Head
- - Ultra 3/4 Dual Control Shower Valve
- - Vado Celsius CEL-179 Exposed Thermostatic Single Axis Valve with Round Backplate
- - Vado Celsius CEL-179 Concealed Thermostatic Single Axis Valve with Round Backplate
Before Ordering
Check the full shower valve model, cartridge reference and existing housing against the measurements of the SA3091FHH above. Handle designs used with these valve assemblies have changed over time, so the existing spline and retaining arrangement should also be checked before ordering.
Related Spares You May Need
- - 45mm x 2.5mm O-Ring for Ultra / Hudson Reed SNINASF and SASF2 assemblies
- - Ultra SPDIV602 Chrome Diverter Valve
- - SNINASF-H Cartridge Housing for Ultra / Hudson Reed SNINASF assemblies
- - Ultra / Hudson Reed / Vado / Crosswater SNINASF Front Housing and Thermostatic Cartridge Assembly
- - Ultra / Hudson Reed SASF2-MH Thermostatic Cartridge and Handle Assembly
- - Ultra SASF2-MF Temperature Control Handle
- - Ultra / Hudson Reed SASF2-M Thermostatic Cartridge with CEL-001A-WAX Piston and Wax Thermostat
- - Ultra SA3093HK Shower Valve Temperature Control Handle
- - Ultra / Hudson Reed SA3091HK Edwardian Temperature Control Handle
- - Vado CEL-001A-WAX Thermostatic Cartridge Shuttle
- - Vernet SK740012 Wax Thermostat Element for Sirrus Cartridges
- - Ultra SASFOR O-Ring and Circlip Kit for SASF2 Thermostatic Cartridge
- - Bristan / Sirrus SK360121 Return Spring and Body O-Ring Kit
- - Ultra SASF2-AH Handle for SASF2 Cartridge
- - SNINASF366 Non-Return Valve for Ultra / Hudson Reed SNINASF Valves
- - SASF243 Non-Return Valve for Ultra SASF2 Valves
- - 7NP4B4U O-Ring No.1 for Ultra SASF2 / SNINASF Valves
- - TACSIL TAC86 3g Premium Cartridge Silicone Grease
- - Ultra SA3211B Shower Riser Height Adjusting Bracket
- - Ultra SVQ01 3/4 Tapered Conical Nut and Washer
- - Ultra / Hudson Reed SNINASF-HANDLE Temperature Control Handle: Discontinued
If you need help finding the right part, use the Di Vapor part identification service.
