Grohe 46757DC0 Extractable Tap Nozzle

SUMMARY

GROHE 46757DC0 Concetto Pull-Out Kitchen Tap Outlet in SuperSteel

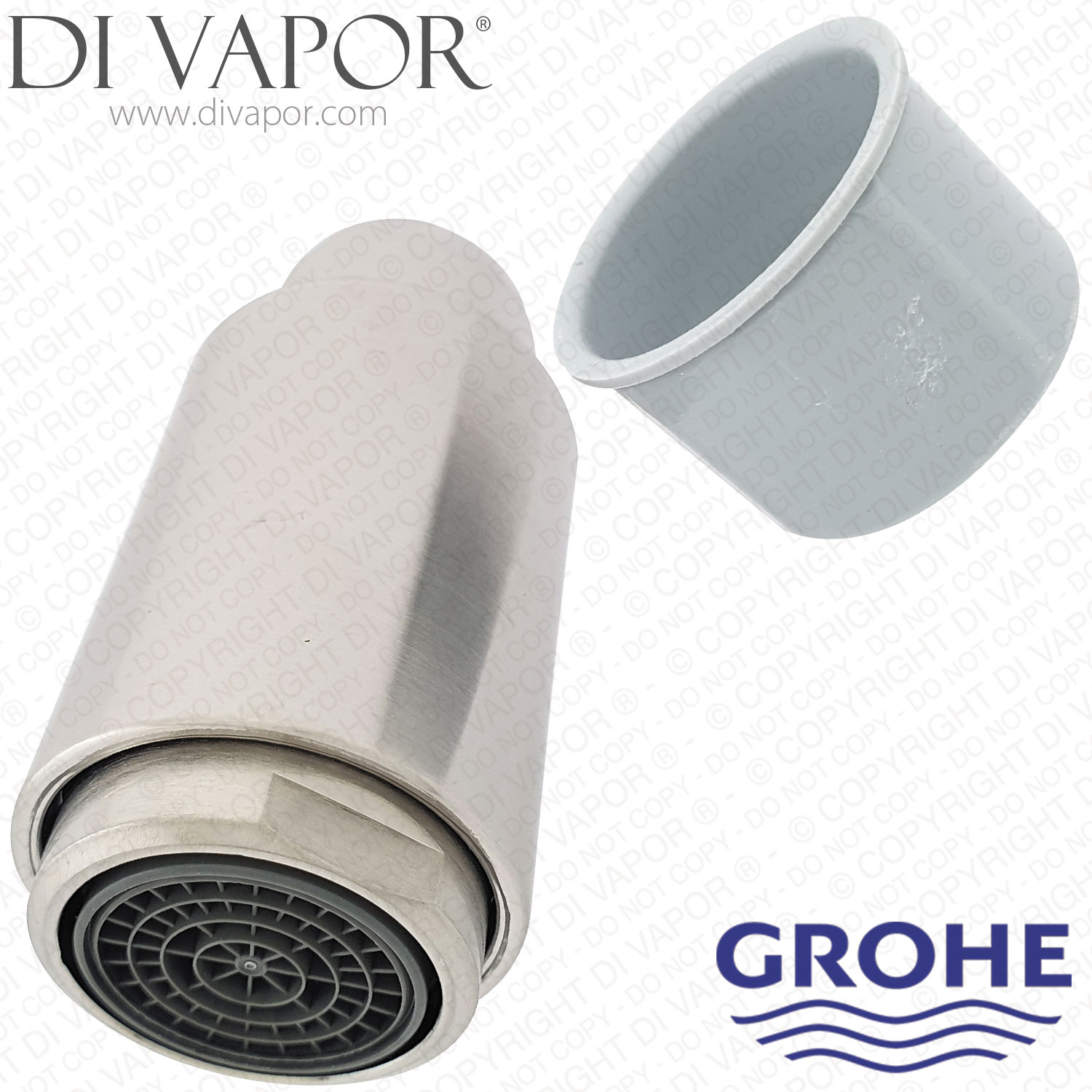

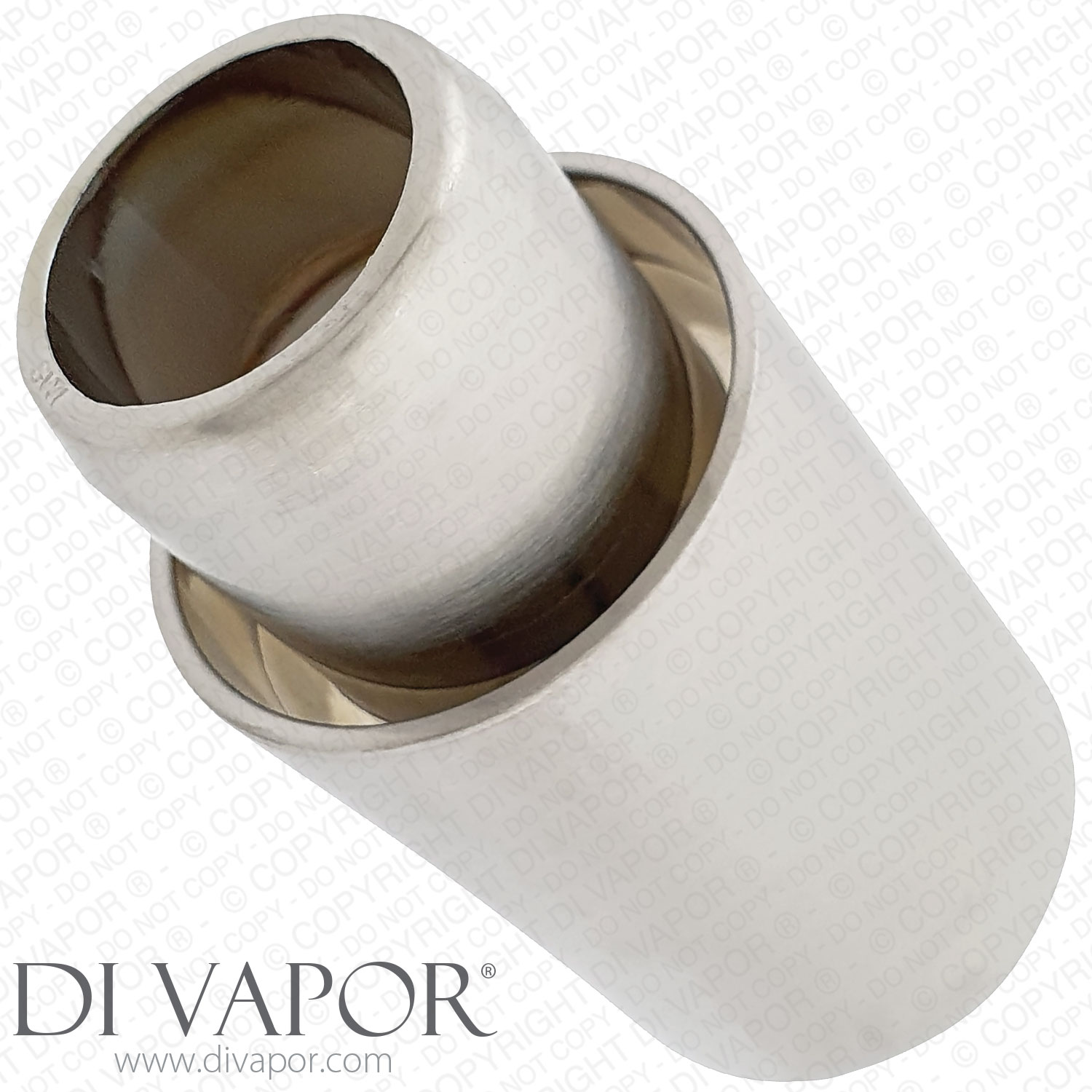

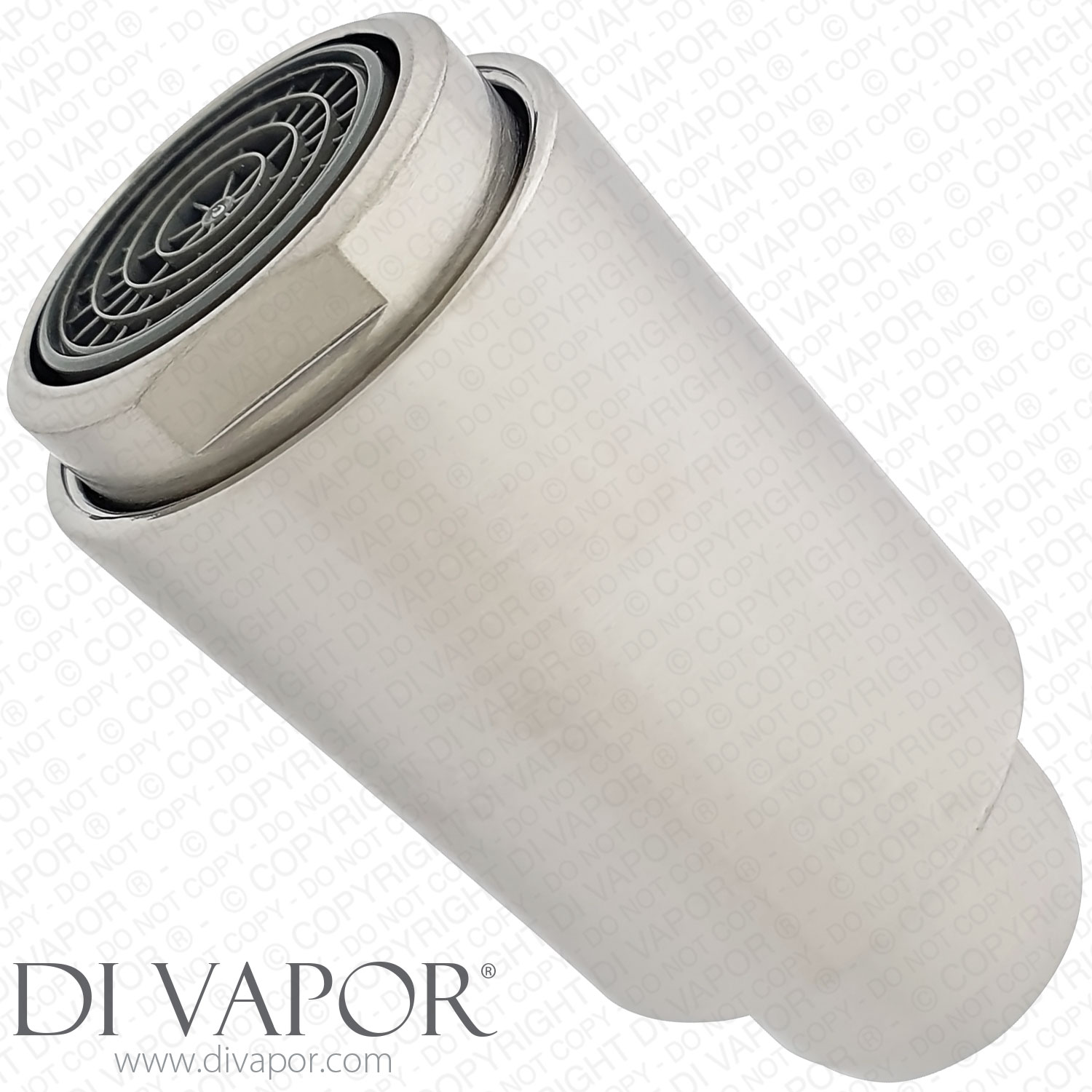

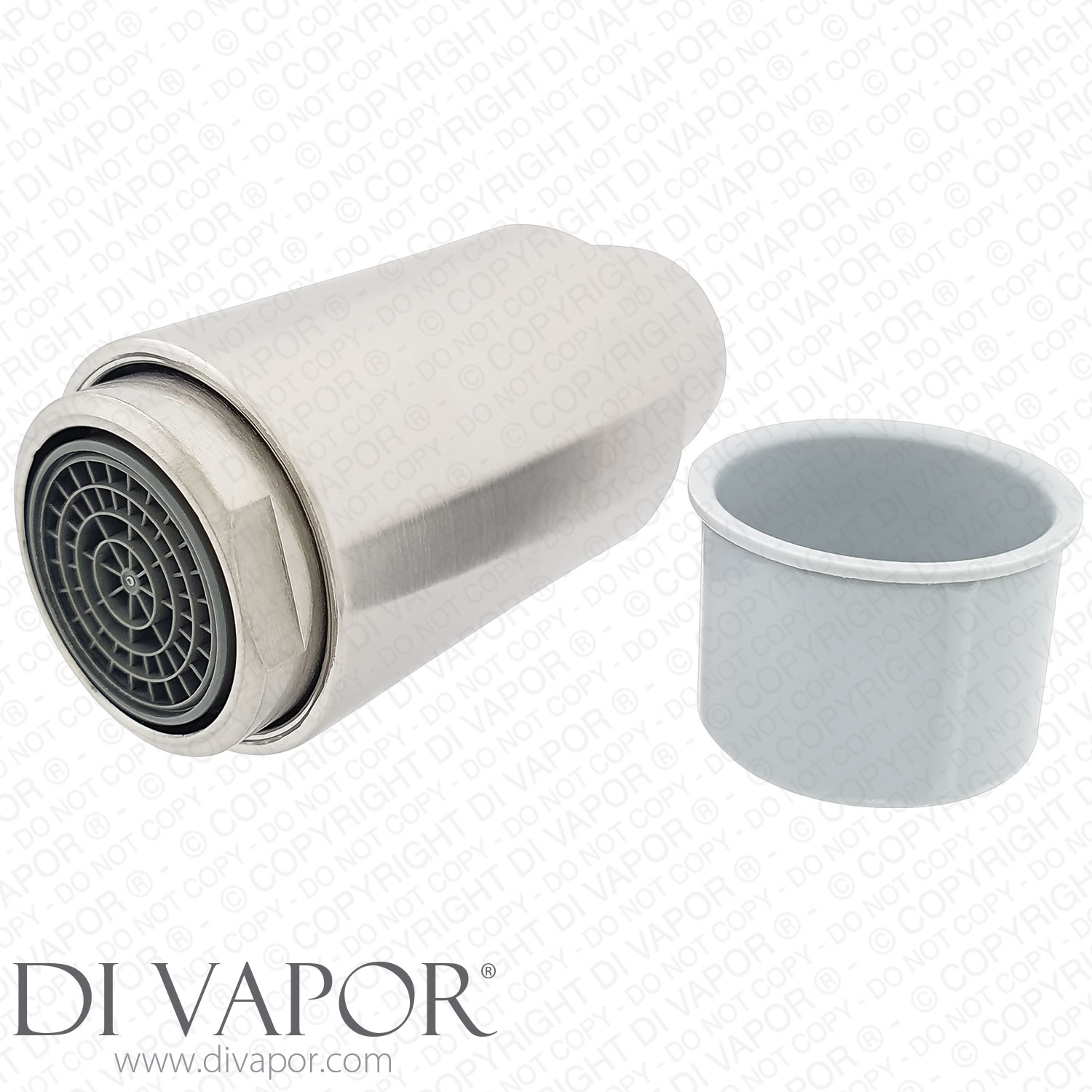

The GROHE 46757DC0 is a pull-out mousseur outlet in SuperSteel for selected GROHE Concetto kitchen sink mixers. It attaches to the end of the pull-out hose and forms the detachable outlet used to direct the water stream around the sink.

This is a kitchen tap component, not a bathroom shower handset. GROHE identifies the 13929DC0 mousseur and 08565000 non-return valve as service subparts of the outlet, while 48293000 is the separate connected pull-out hose.

Technical Details

- - Part code: 46757DC0

- - Part type: Pull-out mousseur outlet

- - Application: Pull-out kitchen sink mixer outlet assembly

- - Finish: SuperSteel Infinity Finish

- - Service mousseur: 13929DC0

- - Service non-return valve: 08565000

- - Connected pull-out hose: 48293000

Confirmed Compatible Models

- - GROHE 32663DC1 Concetto single-lever sink mixer

- - GROHE 32663DC3 Concetto single-lever sink mixer 1/2 inch

Before You Order

- - Check that the existing outlet is marked 46757DC0 and has the SuperSteel finish

- - The 46757000 outlet is the chrome finish version, not a superseding code for 46757DC0

- - Check whether the complete outlet is required, or whether only the 13929DC0 mousseur or 08565000 non-return valve needs servicing

- - Other mounting components vary between mixer production periods, so use the exact tap code when selecting additional GROHE spare parts

Related Spares You May Need

- - GROHE 48293000 pull-out tap hose, the connected hose used with the outlet

- - GROHE 08565000 non-return valve, a service subpart within the outlet

- - GROHE 46374000 35mm ceramic lever cartridge, used in both confirmed Concetto mixers

- - GROHE 46460000 red screw coupling, used in the 32663DC1 service arrangement

- - GROHE 48384000 Concetto mounting set, used in the current 32663DC3 service arrangement from March 2023 onwards

- - GROHE 19332000 34mm hex socket box spanner, listed as an optional service tool for 32663DC3
