Grohe 1411700M Non Return Valves

SUMMARY

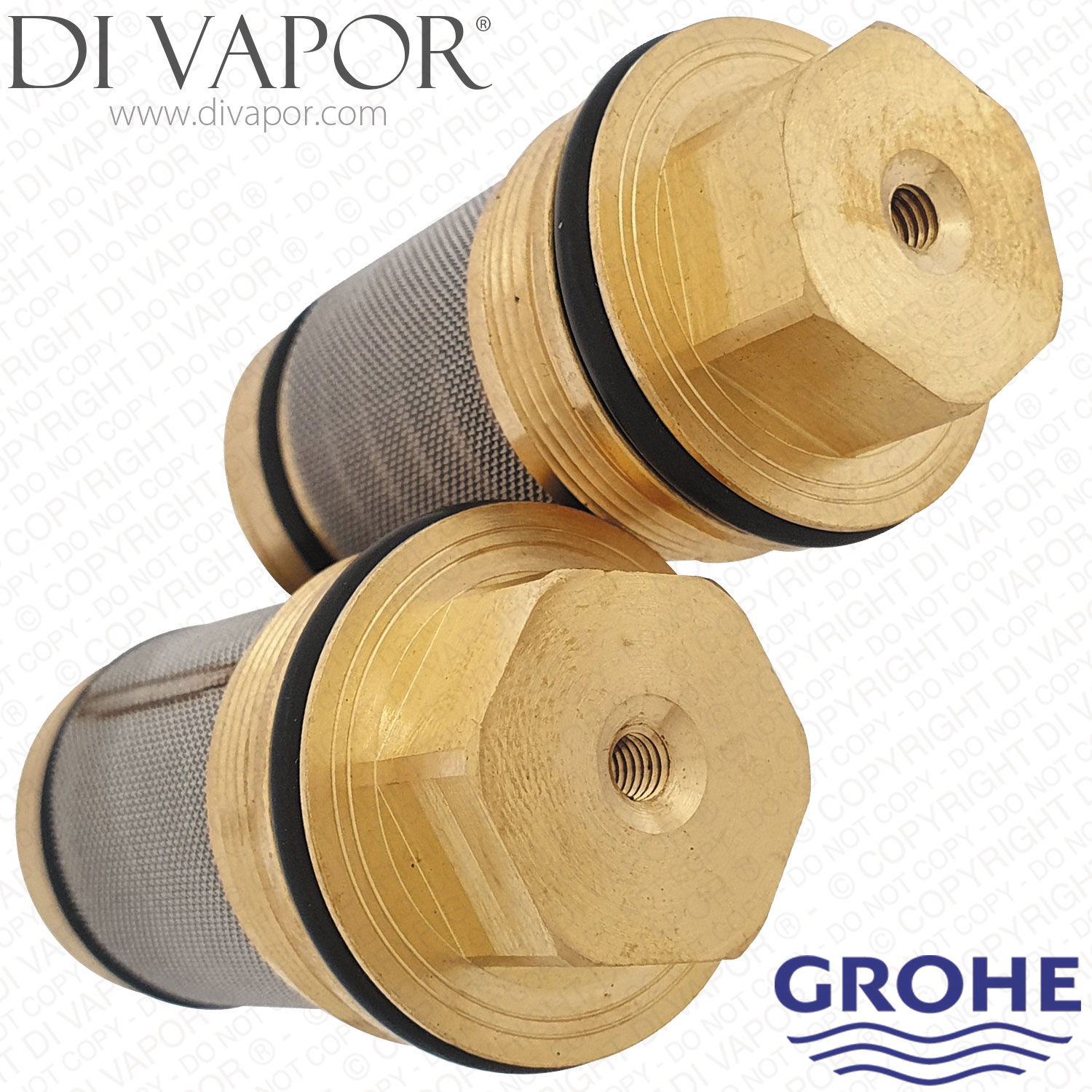

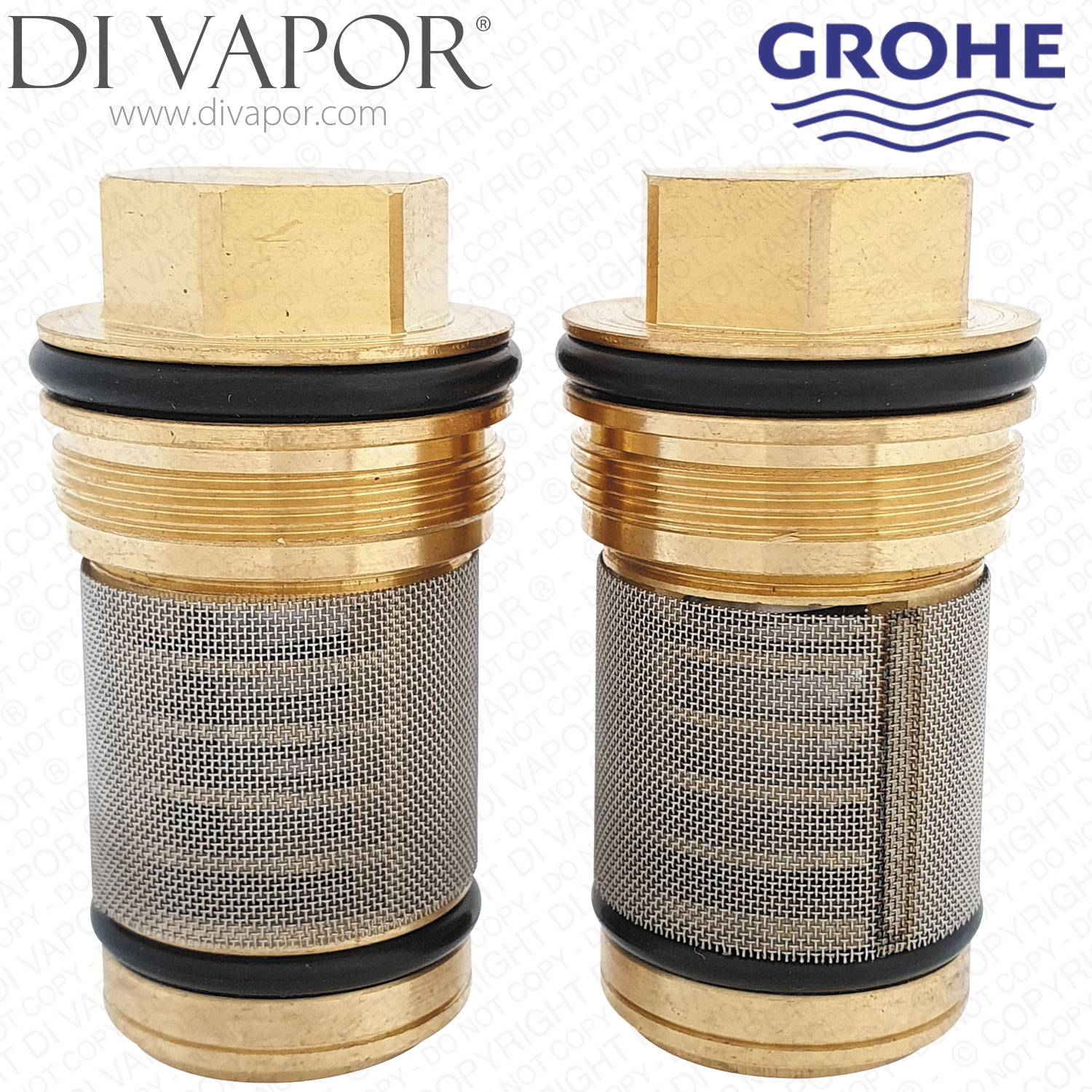

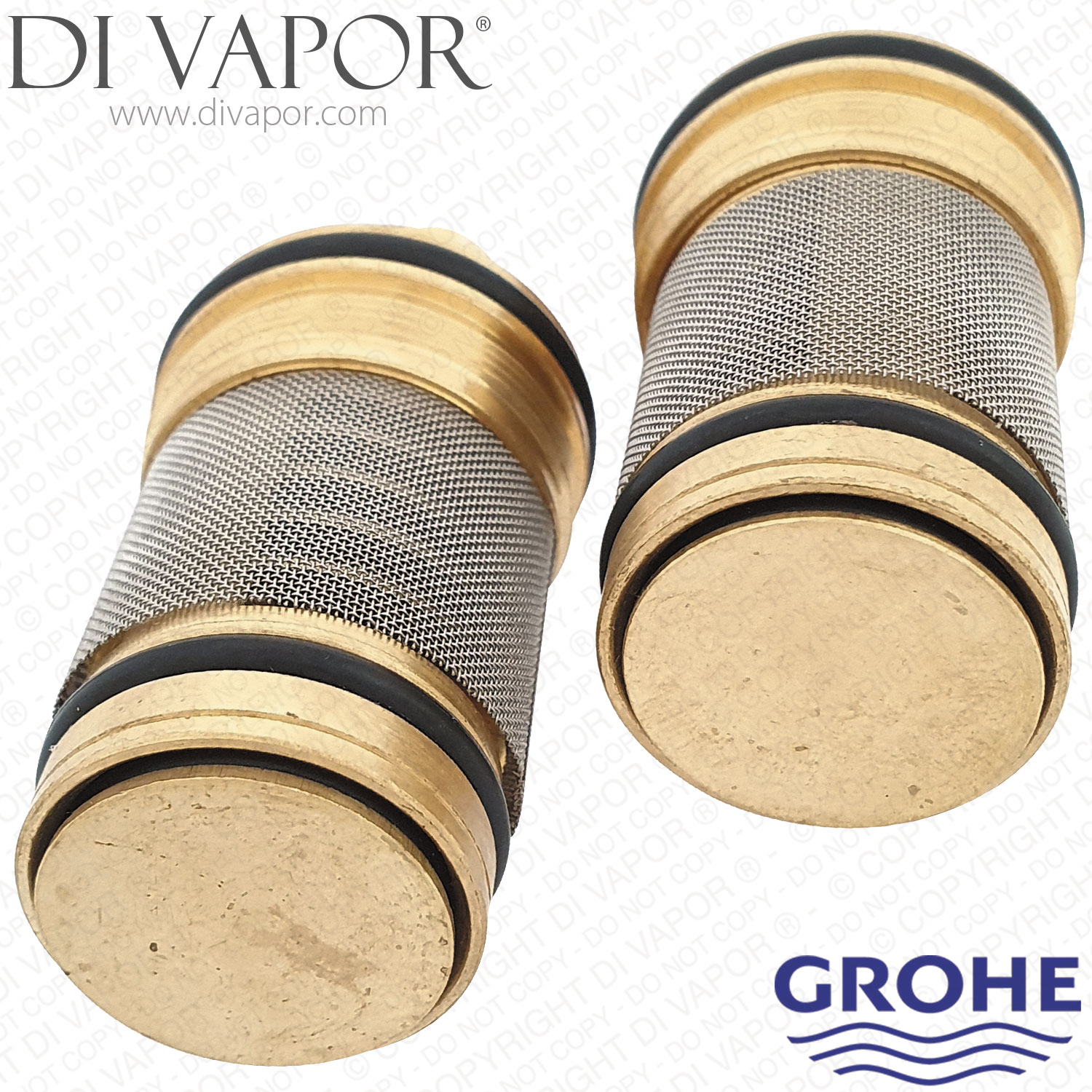

GROHE 1411700M 3/4 Inch Non-Return Valve Pair for Grohmix and THM Thermostatic Valves

GROHE 1411700M is a pair of 3/4 inch non-return valves used in selected older GROHE Grohmix and THM thermostatic valve installations. The set contains two non-return valve inserts and is intended for the specific documented valve applications below rather than as a universal 3/4 inch check valve.

The non-return valves allow water to pass in the intended direction while helping to prevent reverse flow through the valve inlet arrangement. Worn, sticking or obstructed non-return valves can affect correct one-way flow through the thermostatic valve and should be replaced only after confirming the exact GROHE valve model and production generation.

Technical Details

- - Part code: 1411700M

- - Part type: non-return valve / check valve set

- - Manufacturer size designation: 3/4 inch

- - Supplied quantity: 2 non-return valves

- - Historical manufacturer code formatting: 14 117 00M

- - Function: one-way water flow control to help prevent reverse flow through the thermostatic valve inlet arrangement

Confirmed Compatible Models

- - GROHE 34411000 Grohmix Shower - from build year 1981 onward

- - GROHE 34952 Concealed Body for THM Thermostat Mixer 3/4 Inch - from build year 1981 onward

- - GROHE 34419000 / 34 419 000

Before You Order

Confirm the valve model and production generation before ordering. GROHE documentation restricts 34411 and 34952 applications to installations from build year 1981 onward. Do not identify the required non-return valve from the 3/4 inch size alone.

Related Spares You May Need

- - GROHE 47025000 Grohmix 3/4 Inch Thermostatic Cartridge for 34411 and 34952

- - GROHE 47032000 Grohmix Thermostatic Cartridge for Reverse Supply Inlets

- - GROHE 47024000 Grohmix Thermostatic Cartridge with Splines
