Grohe 0654400M Pair of Non-Return Check Valves - 06544 00M
Send a photo of your item and we'll help confirm it.
Summary
Grohe 0654400M Pair of Non-Return Check Valves - 06544 00M
The Grohe 0654400M is a pair of non-return check valves for selected Grohe Avensys shower mixer and thermostatic shower valve assemblies. The valves sit within the waterway to help prevent reverse flow through the shower valve and to reduce the risk of hot and cold supplies feeding back into one another.
Use these check valves when servicing a matching Grohe Avensys valve where the existing non-return valves are worn, blocked, scaled or no longer sealing correctly. Failed or restricted non-return valves can contribute to temperature instability, cross-flow between supplies or poor shower valve performance, so the valve model should be checked before ordering.
Technical Details
| Brand | Grohe |
|---|---|
| Product code | 0654400M |
| Code variant | 06544 00M |
| Grohe spares diagram code | 06 544 |
| Di Vapor Part Number | GR-0654400M |
| Part type | non-return check valve |
| Pack contents | pair of non-return valves |
| Colour / finish | chrome |
| Diameter | 15mm dia |
| EAN / GTIN | 4005176229060 |
Confirmed Compatible Models
- Grohe Avensys Classic Dual concealed 34032IP0
- Grohe Avensys Classic Dual exposed 34029IP0
- Grohe Avensys Dual Built-in 34083IP0
- Grohe Avensys Dual Exposed 34084IP0
- Grohe Avensys Modern Dual recessed 34224000
- Grohe Avensys Modern Exposed 34222000
- Grohe Avensys Single concealed 34041IL0
- Grohe Avensys Single Control Exposed Valve Only 34034000
- Grohe Avensys Single Control Thermostatic 34036000
- Grohe Avensys Single exposed 34038IL0
- Grohe Avensys Traditional concealed 34114IL0
- Grohe Avensys Traditional exposed shower valve 34042IL0
- Grohe Avensys Traditional single control exposed 34044000
Before Ordering
Check the shower valve model code and compare the removed non-return valves with the product images before ordering. The 15mm diameter should not be used on its own to confirm suitability, as correct fitment depends on the Grohe valve assembly and waterway design.
Related Spares You May Need
- Grohe 47597IP0 Avensys Control Handle
- Grohe Avensys 46455000 Concealing Faceplate
- Grohe 47598000 Thermostatic Cartridge with Piston and Wax Element Control Unit for Avensys and Grohmaster Valves
- Wax Thermostat Element for Grohe 00798000 Avensys Grohmaster
- Grohe Avensys 00798000 and 07587000 Piston Shuttle Slider and Wax Thermostat
- Grohe 07587000 Avensys Piston Shuttle Slider
- Grohe 47766000 Control Handle for Avensys Shower Valve
- Grohe 47767000 Avensys Thermostatic Cartridge WITH Wax Thermostat and Slider Piston for Avensys Flow Control Union

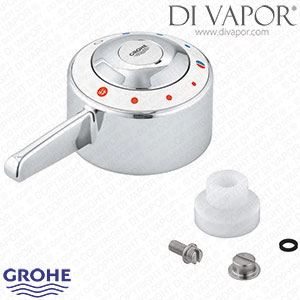

- Grohe Avensys 47595IL0 Lever Handle
- Grohe 47600000 Thermostatic Cartridge with Shuttle Piston and Wax Thermostat Element for Avensys and Grohmaster Valves
