VADO NUA-148B-3/4 Nuance Wall Mounted Concealed Thermostatic Shower Valve Spare Parts
Send a photo of your item and we'll help confirm it.
Summary

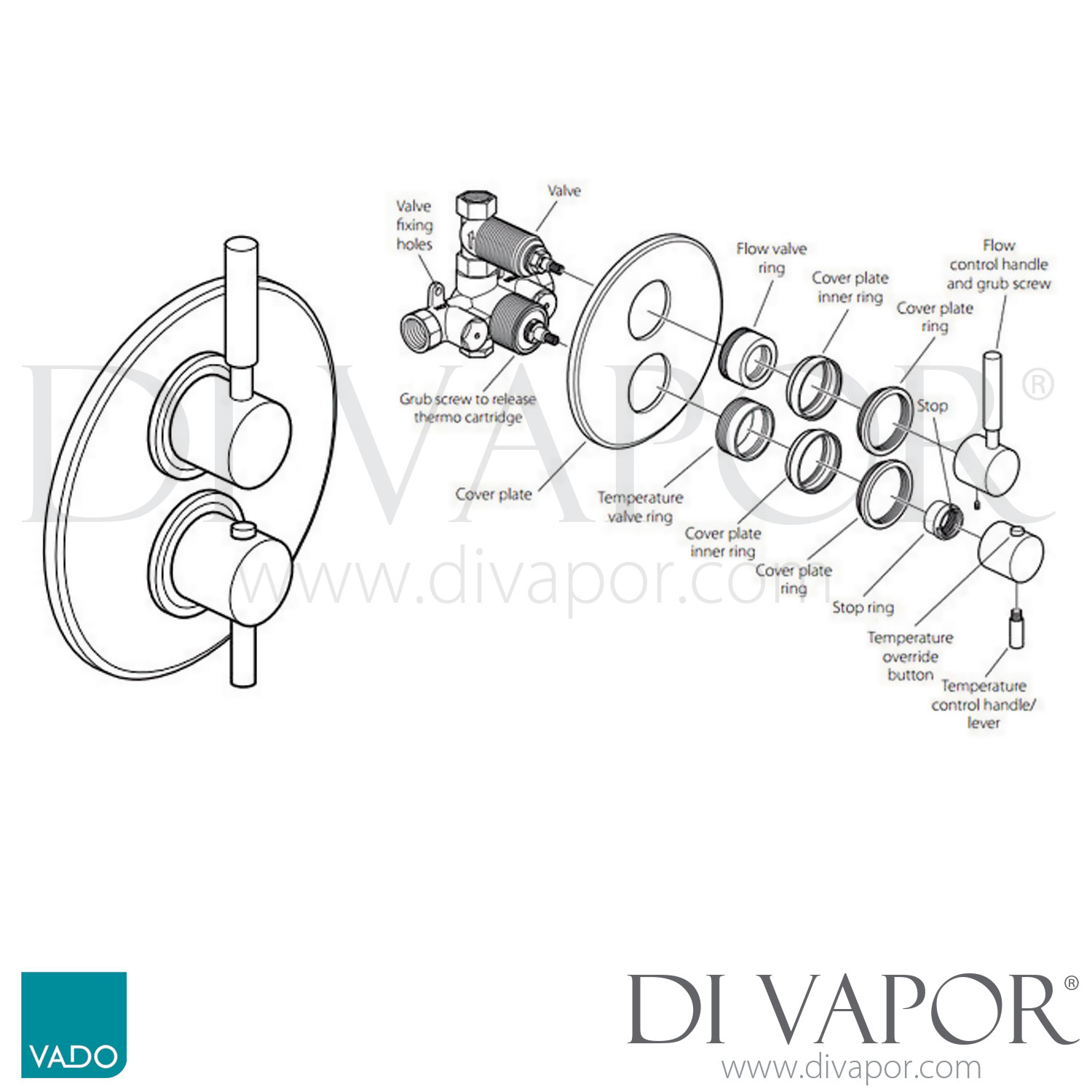

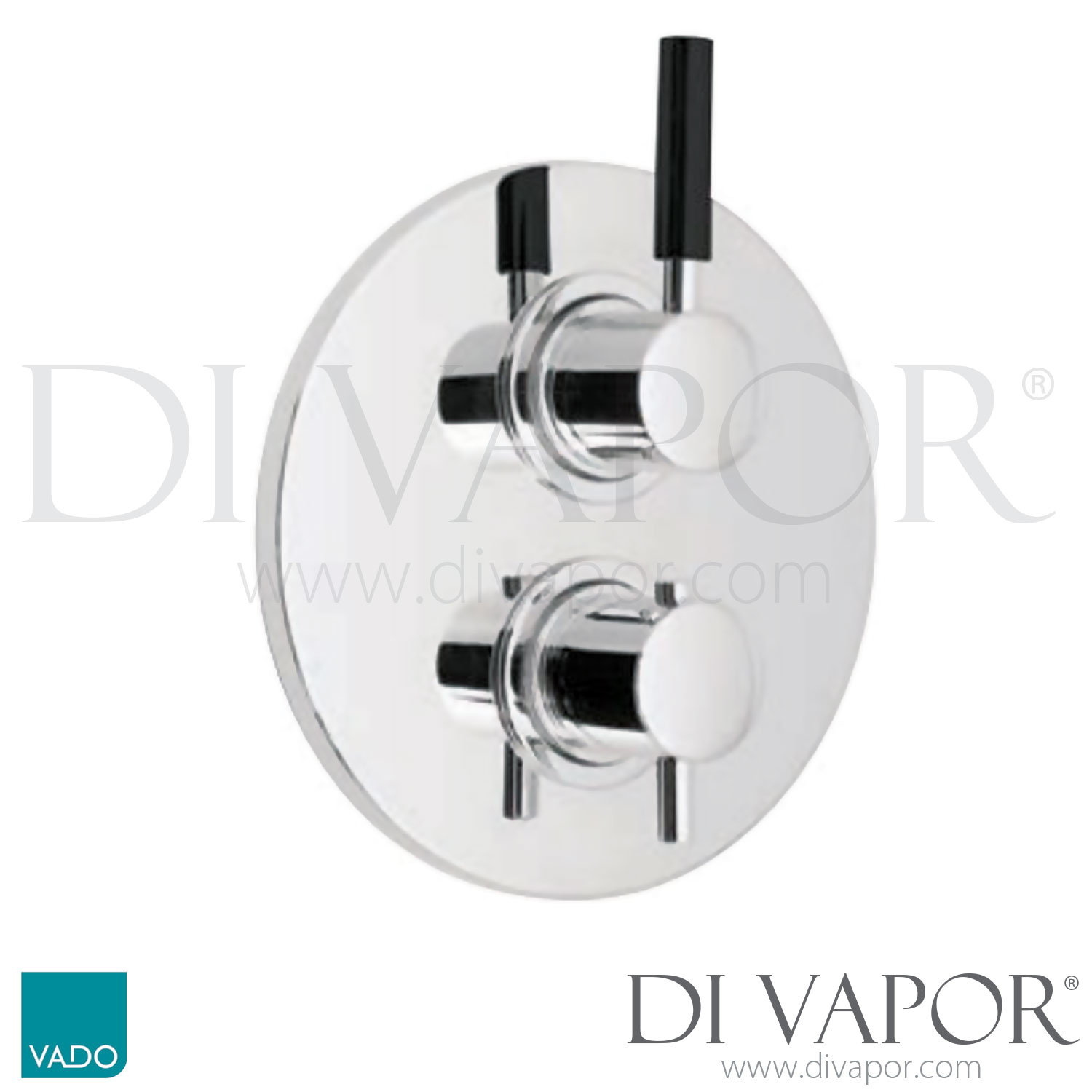

Spares for VADO NUA-148B-3/4 Nuance Wall Mounted Concealed Thermostatic Shower Valve
NUA-148B-3/4-C/P - Chrome
Codes for Other Coloured Handles
- NUA-148B-3/4-C/BLK
- NUA-148B-3/4-C/RED
- NUA-148B-3/4-C/WHT
- 2 x 3/4 Inch Female Inlets
- 1 x 3/4 Inch Female Outlet
| Min-Max Wall Mount | 58-68mm (standard) |
|---|---|
| Optimum Installation Depth | 63mm (standard) |
| Min-Max Wall Mount | 68-96mm (extension option) |
| Optimum Installation Depth | 82mm (extension option) |
| Minimum Operating Pressure | 0.2 bar LP |
VADO CEL-002A/B-3/4 On/Off ceramic disc flow cartridge. The cartridge closes / stops water flow by turning the handle clockwise (8:20 broach 3/4" ceramic disc valve). This CEL-002A/B-3/4 cartridge will fit the following Vado shower valves: - Vado Celsius CEL-148C - Vado N...
This is a Vado CEL-RETROFIT/B thermostatic cartridge. If your Vado shower is experiencing fluctuations in water temperature or poor water flow, there could be a problem with your thermostatic cartridge, especially in hard water areas with a lot of lime-scale. The original br...
Vado HUB-002B-3/4 3/4 Inch Ceramic Cold Flow Cartridge (On / Off) - Quarter Turn Clockwise Close Vado HUB-002B-3/4 Flow Cartridge Information Measurements: Turn orientation: Clockwise Close Turn: Quarter Turn Total length: 56.5mm Diameter at widest point: 28.9mm Diamete...
This is a replacement thermostatic cartridge for VADO CEL-001B/B-WAX. The cartridge is a screw in type installation. You will receive the exact same cartridge that's in the photos. We are the only company who still has stock of this cartridge, and there are not many left. ...
VADO Celsius CEL-148/FLOW-EXT Flow Extension ION Kit Used in all 148C Valves, all 128C ValvesThis flow extension is used in the following Vado valves: - all 148C valves - all 128C valves - except for Notion ION valve use Notion NOT-148/FLOW-EXT...
