Grohe 34333000 Precision Joy Thermostatic Shower Mixer Spare Parts

SUMMARY

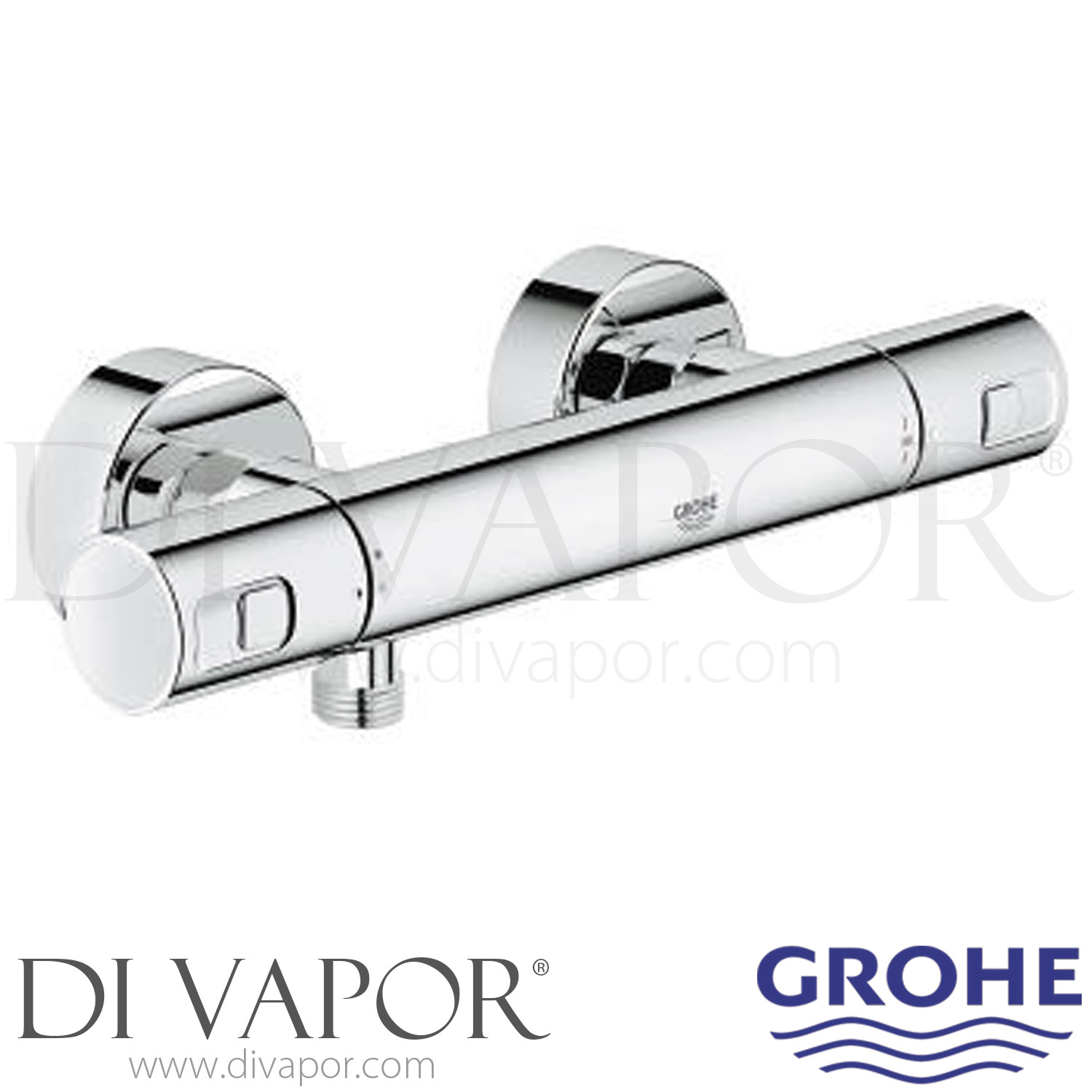

Spare parts for the Grohe 34333000 Precision Joy exposed thermostatic shower mixer. This wall-mounted 1/2 inch shower valve provides separate temperature and water-flow control and has a bottom outlet for connection to the shower hose.

The mixer uses a compact thermostatic cartridge to stabilise the mixed-water temperature. Its safety features include the Grohe SafeStop override at 38 degrees C and an EcoButton that restricts the flow until full flow is selected.

Technical Details

- - Brand: Grohe

- - Product code: 34333000

- - Range: Precision Joy

- - Category: Shower mixer

- - Valve type: exposed wall-mounted thermostatic shower mixer

- - Connection size: 1/2 inch

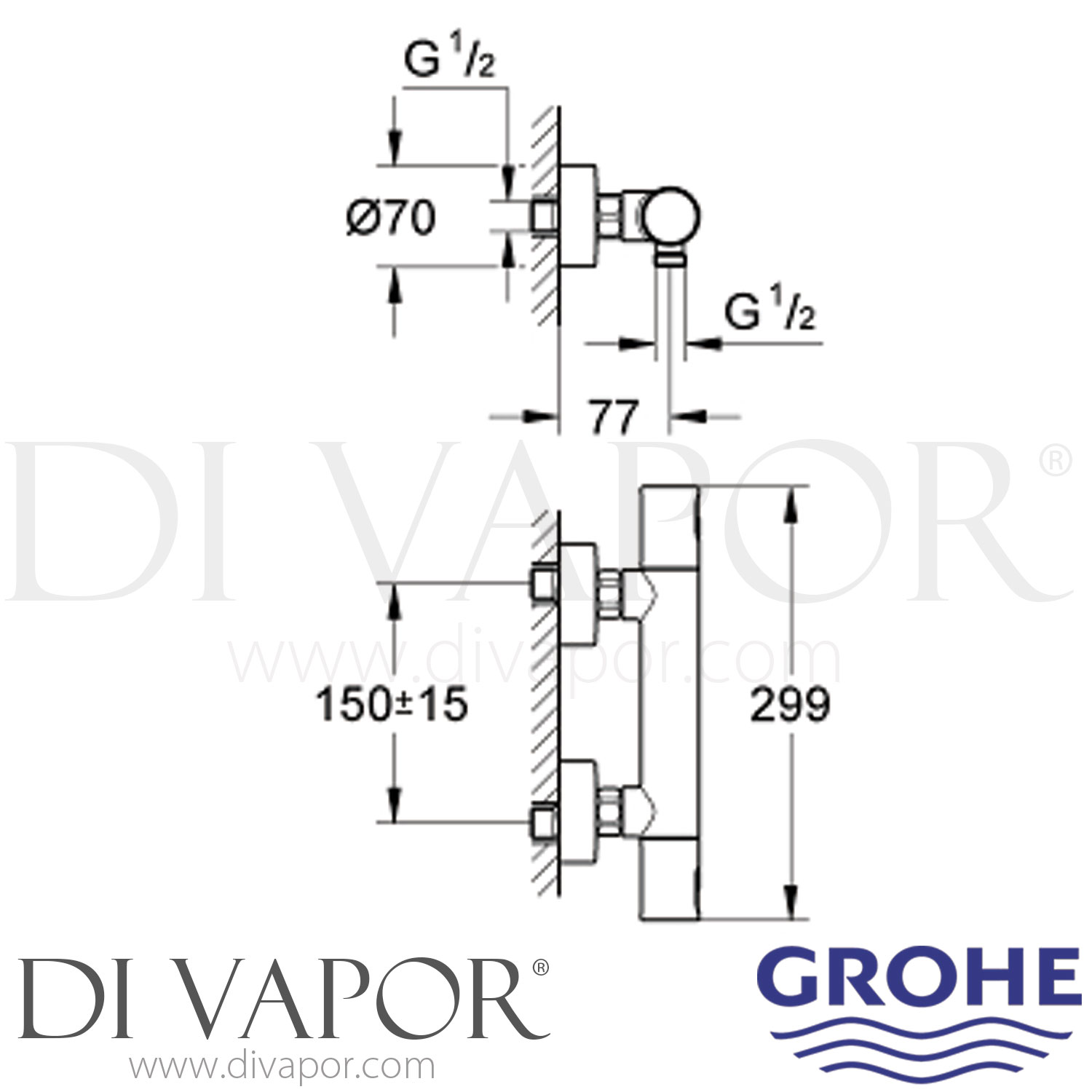

- - Nominal inlet centre distance: 150mm

- - Shower connection: bottom 1/2 inch outlet

- - Finish: chrome

- - Temperature control: Grohe TurboStat compact thermostatic cartridge with wax thermoelement

- - Safety control: Grohe SafeStop override set at 38 degrees C

- - Flow control: ceramic half-turn shut-off cartridge with EcoButton flow restriction

- - Internal protection: non-return valves and dirt strainers

Confirmed Models and Systems

- - Grohe 34339000 Precision Joy Thermostatic Shower Set containing thermostat shower mixer 34 333 000 and Vitalio Joy shower set 27 333 000

Troubleshooting

- - Symptom: the shower temperature fluctuates or cannot be regulated correctly

- - Likely cause: worn thermostatic cartridge or restricted inlet strainers

- - Solution: clean the supply strainers and inspect the 47439000 thermostatic cartridge

- - Symptom: water continues dripping from the shower head when the mixer is turned off

- - Likely cause: the 45346000 flow on/off cartridge is no longer closing fully

- - Solution: inspect the flow cartridge and its sealing surfaces for wear or debris

Before You Order Check

Confirm that the mixer is marked 34333000 and determine whether the fault affects temperature regulation, flow shut-off or backflow protection. The 47439000 is the standard thermostatic cartridge shown for this mixer. The 47175000 is a reverse thermostatic cartridge intended for installations with reversed hot and cold supplies and should not be selected unless that supply arrangement has been confirmed.
