Grohe 23722003 Eurostyle Chrome Single-Lever Shower Mixer (1/​2 Inch) Spare Parts

SUMMARY

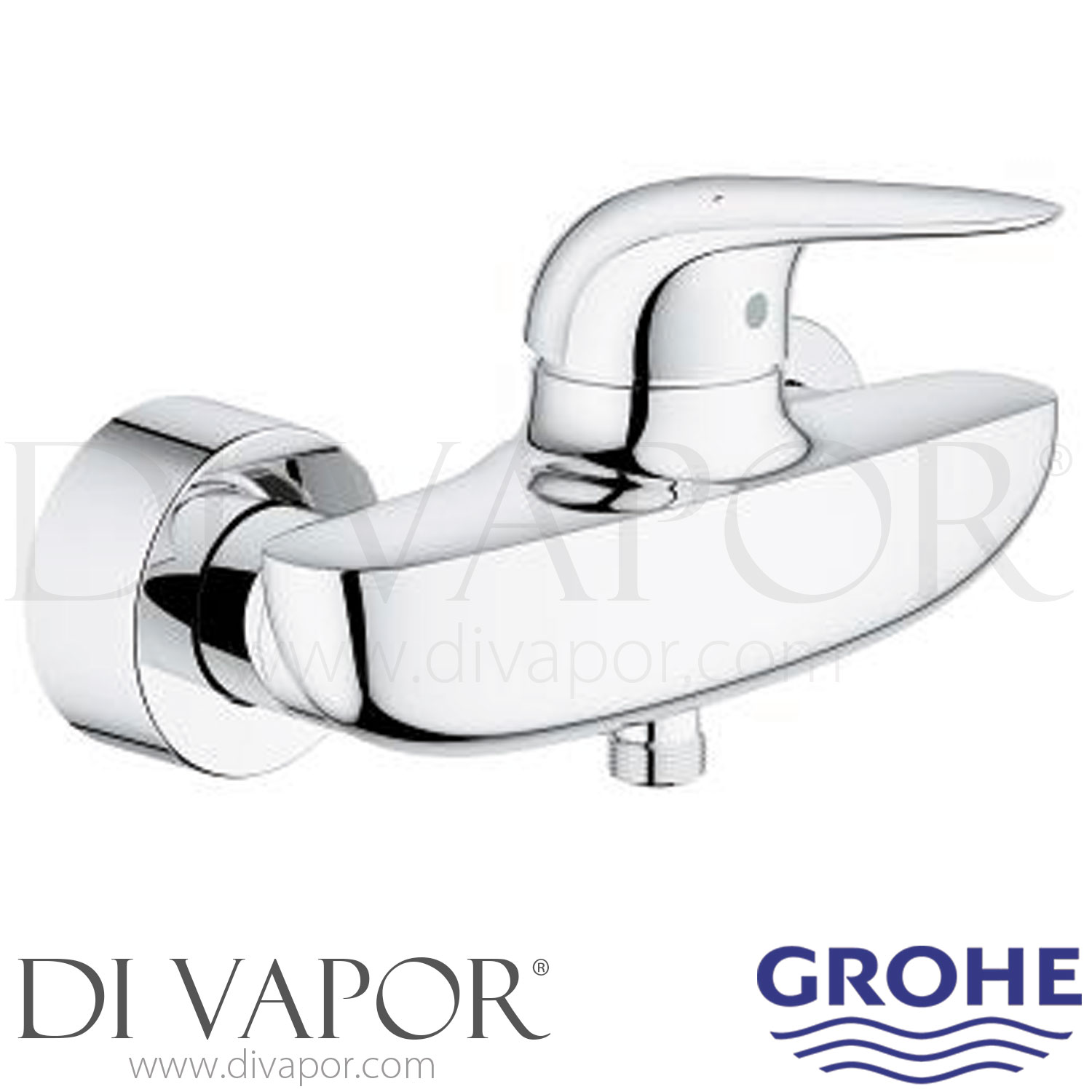

Spares for Grohe 23722003 Eurostyle Chrome Single-Lever Shower Mixer 1/2 Inch

Grohe 23722003 is an exposed, wall-mounted, single-lever shower mixer from the Eurostyle range, finished in chrome. The mixer controls both water flow and temperature through a 35mm GROHE SilkMove ceramic cartridge and provides a G 1/2 shower outlet.

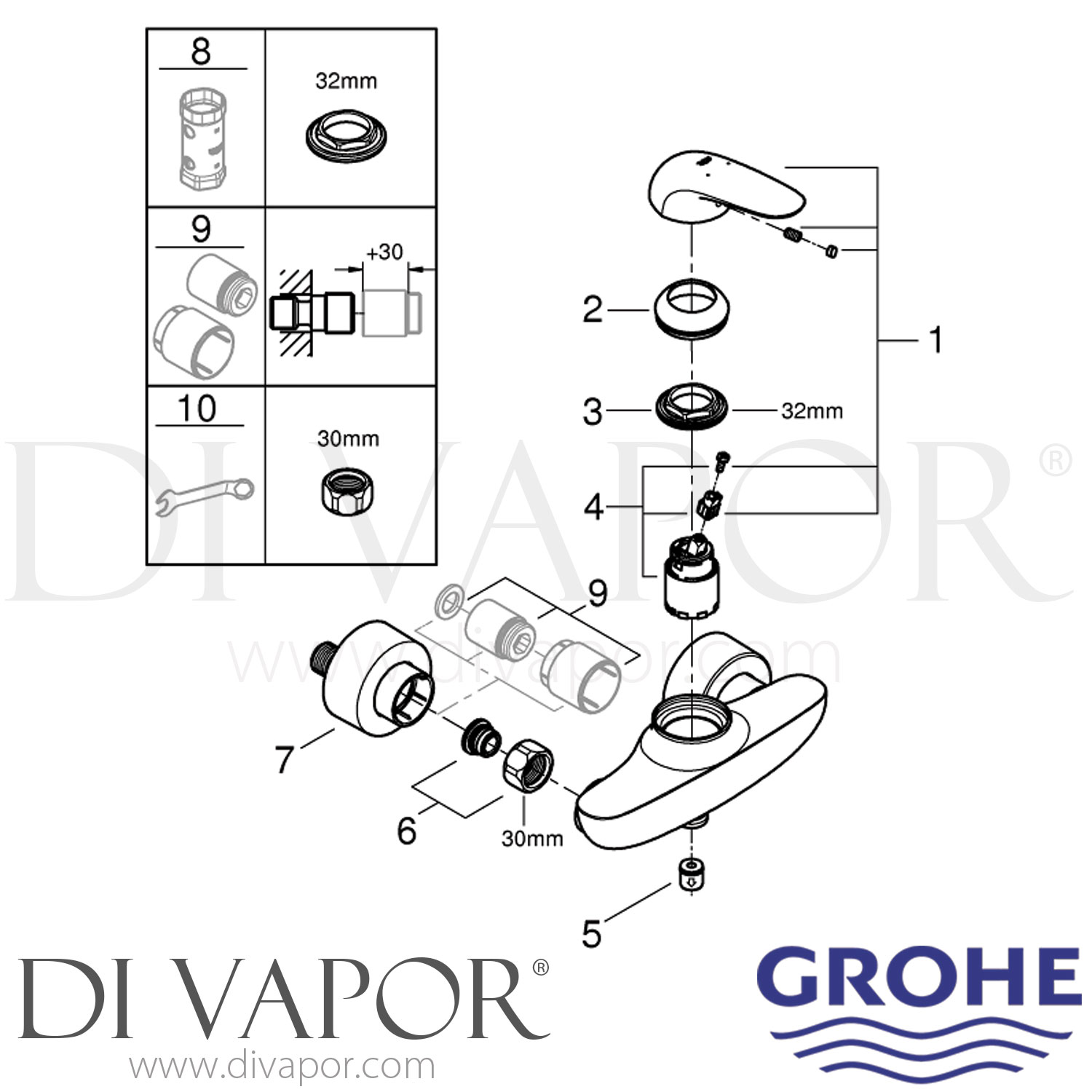

The valve incorporates a temperature limiter, an adjustable flow-rate limiter, an integrated non-return valve at the shower outlet, covered S-unions and backflow protection. For servicing, the Grohe shower spare parts listed below are the components currently shown for this mixer, together with the short shower hose listed as a related item.

Technical Details

- - Brand: Grohe

- - Range: Eurostyle

- - Category: Shower mixer

- - Product code: 23722003

- - Mixer type: Single-lever exposed shower mixer

- - Installation: Wall-mounted

- - Finish: Chrome

- - Cartridge: 35mm GROHE SilkMove ceramic cartridge

- - Temperature limiter: Yes

- - Flow-rate limiter: Adjustable

- - Shower outlet: G 1/2

- - Inlet connections: G 1/2

- - Pipe centres: 150 +/- 15mm

- - Escutcheon diameter: 70mm

- - Non-return protection: Integrated non-return valve and backflow protection

- - EAN: 4005176365188

Before You Order

Check that the shower mixer is Grohe Eurostyle 23722003 and identify the component required from the existing assembly before ordering. Do not select a replacement part solely by appearance or connection size.
