Grohe 19345001 Concetto Single-Lever Shower Mixer Spare Parts

SUMMARY

Spares for Grohe 19345001 Concetto Single-Lever Shower Mixer

Year: 12/15

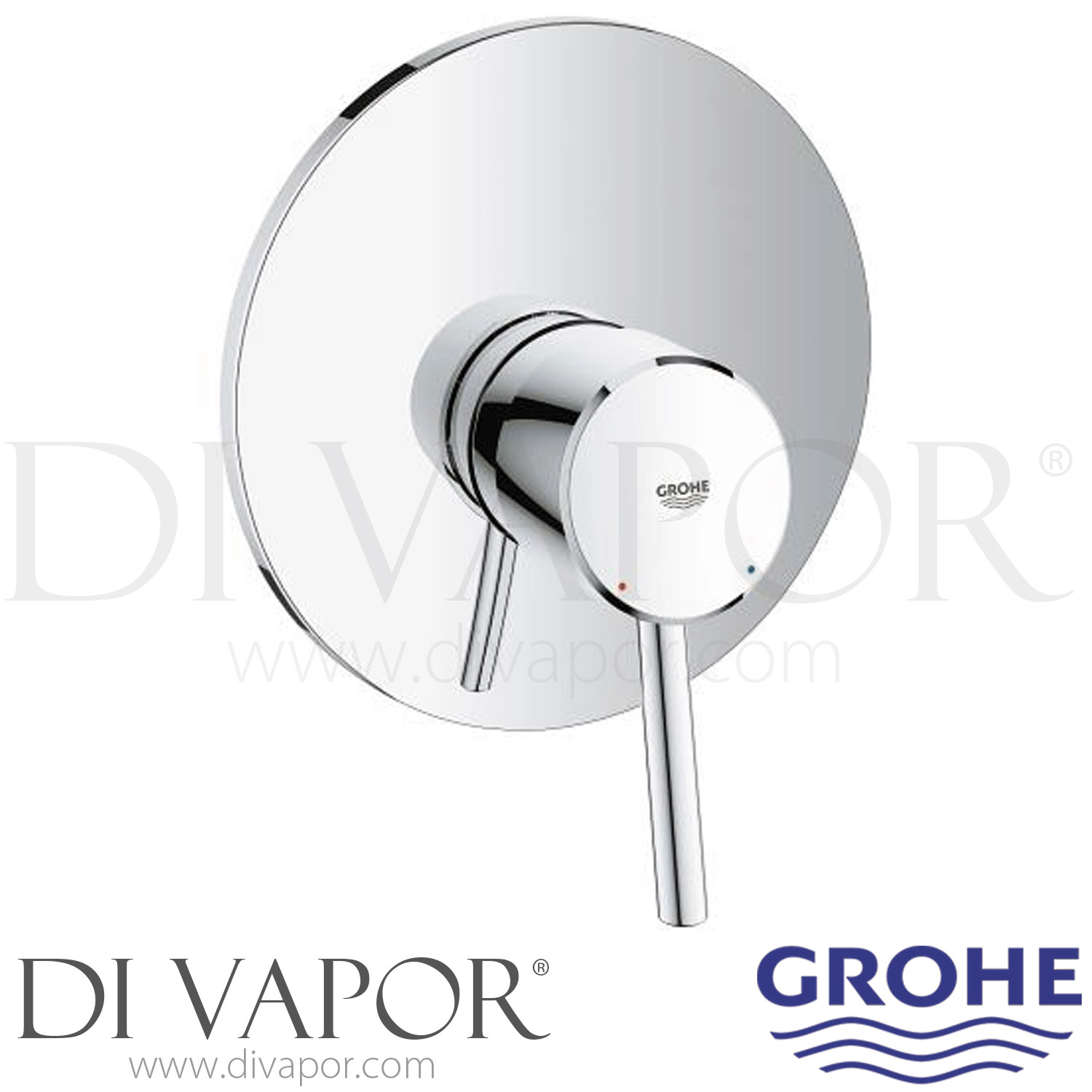

The GROHE 19345001 Concetto is a chrome final installation trim set for a concealed single-lever shower mixer. It provides the visible metal lever and round wall escutcheon used to control water flow and mixed-water temperature through the separate concealed mixer body.

The trim has escutcheon and shaft sealing, a wall escutcheon, and covered fixing for a neat concealed installation. The concealed body is not included. When selecting Grohe shower spare parts, check the trim code, concealed body code, and service date before ordering.

Technical Details

- - Brand: GROHE

- - Range: Concetto

- - Category: Shower mixer

- - Product code: 19345001

- - Product type: concealed single-lever shower mixer trim and final installation set

- - Installation: concealed wall-mounted

- - Finish: chrome

- - Lever: metal

- - Escutcheon: round wall escutcheon with escutcheon and shaft sealing

- - Fixing: covered fixing

- - Escutcheon diameter: 163 mm

- - Overall trim height: 185 mm

- - Lever movement: 50 degrees in each direction

- - Service date reference: 12/15

- - Spare parts schedule: December 2015 onwards

- - Concealed body: not included

- - EAN: 4005176888953

Before You Order Check

Confirm the exact product code, 19345001, and identify the concealed mixer body behind the wall before dismantling the valve. The spare parts schedule shown for this trim begins in December 2015, so compare the existing lever, escutcheon, cartridge, and extension arrangement rather than ordering from appearance alone. Isolate both water supplies before removing the trim or cartridge.

Confirmed Installation Bodies

This final installation set is listed for the following concealed mixer bodies:

- - GROHE 33961000 Single-Lever Mixer 1/2 Inch Concealed Body Spare Parts, manufacturer code 33 961 000

- - GROHE 33962000 Single-Lever Mixer 1/2 Inch Concealed Body Spare Parts, manufacturer code 33 962 000

- - GROHE 33963000 Single-Lever Mixer 1/2 Inch Concealed Body Spare Parts, manufacturer code 33 963 000

- - GROHE 33964000 Single-Lever Mixer 1/2 Inch Concealed Body Spare Parts, manufacturer code 33 964 000

- - GROHE 33965000 Single-Lever Mixer 1/2 Inch Concealed Body Spare Parts, manufacturer code 33 965 000

- - GROHE 33966000 Single-Lever Mixer 1/2 Inch Concealed Body Spare Parts, manufacturer code 33 966 000

- - GROHE 35501000 Rapido E Universal Single-Lever Manual Shower Mixer Valve Spare Parts, manufacturer code 35 501 000

Common Fault Symptoms

If water continues from the shower outlet after the lever is fully closed, or the lever becomes stiff or uneven, the concealed mixer cartridge may require inspection. Confirm the concealed body code and existing cartridge before ordering, because the visible trim and concealed mechanism are separate components.
