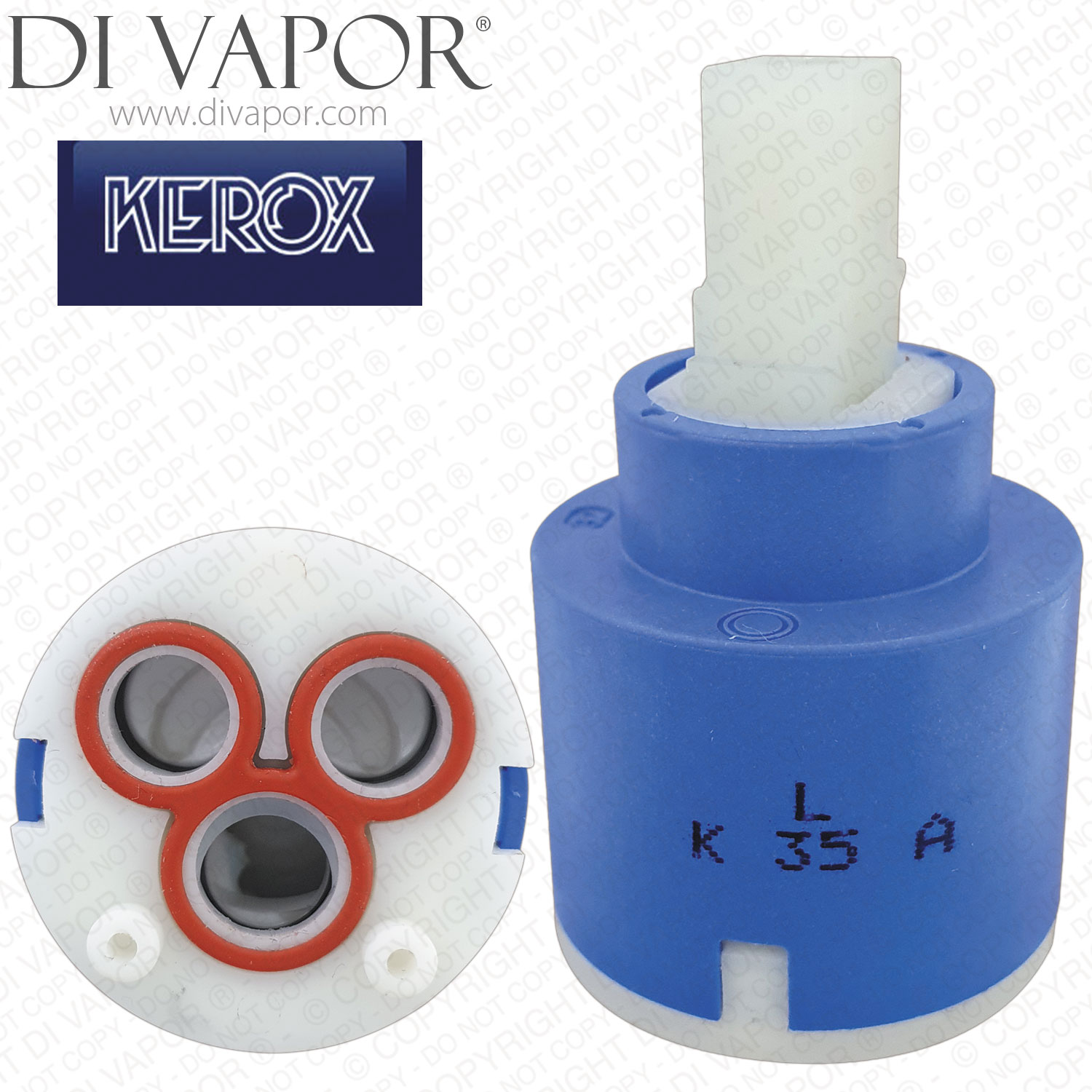

Kerox K35AL Cartridge
Send a photo of your item and we'll help confirm it.
Summary
Kerox K35AL Cartridge. You will now receive the version with the grey limit ring.
The Kerox K35AL is a 35mm single lever ceramic mixer cartridge used to control water flow and mixed temperature in suitable single lever mixer valves. The supplied K35AL cartridge is now provided with the grey limit ring.
This cartridge is operated by the mixer handle to open, close and blend the hot and cold water supplies through the ceramic cartridge body. It can help restore smooth lever movement, temperature control and shut-off where the original cartridge has worn, become stiff or no longer seals correctly.
Technical Details
| Brand | Kerox |
|---|---|
| Part Number | K35AL |
| Cartridge type | single lever ceramic mixer cartridge |
| Cartridge diameter | 35mm |
| Ceramic disc material | Al2O3 |
| Kerox K-35 family opening angle | 25 degrees |
| Kerox K-35 family mixing angle | 90 degrees |
| Kerox K-35 family maximum temperature | 90 degrees C |
| Kerox K-35 family recommended tightening torque | 12-13 Nm |
| Supplied version | grey limit ring |
Before You Order Check

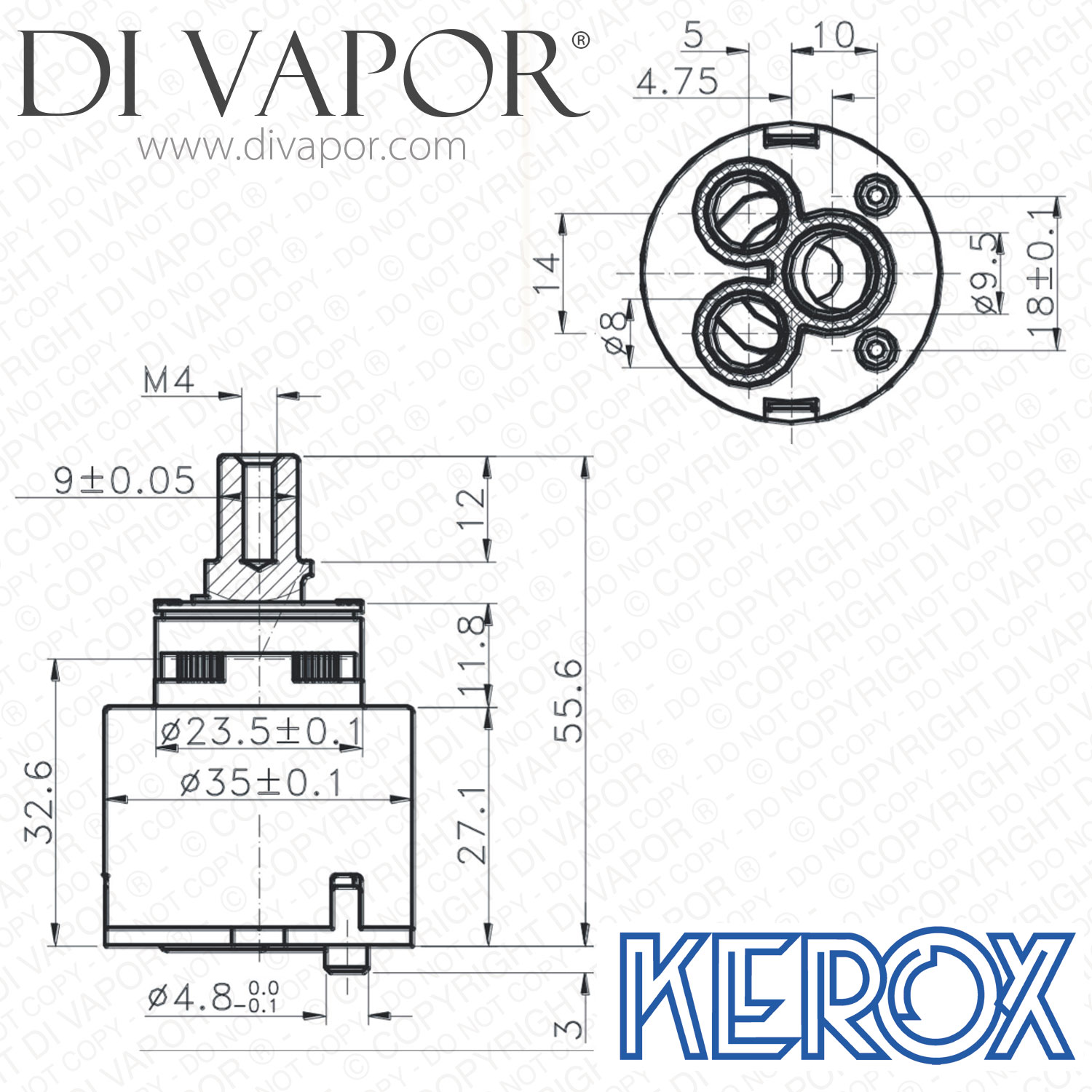

Check the original cartridge code, body diameter, overall height, base seal layout, locating pin arrangement and handle connection before ordering. Do not rely on the 35mm diameter alone, as cartridges with the same diameter can have different heights, bases and spindle arrangements.
Common Fault Symptoms
| Symptom | stiff or uneven lever movement |
|---|---|
| Likely Cause | worn cartridge body or internal ceramic control surfaces |
| Solution | replace the cartridge after confirming the original code and dimensions match K35AL |
| Symptom | water dripping from the tap spout or shower outlet when the mixer is turned off |
| Likely Cause | worn internal shut-off surfaces or damaged seals |
| Solution | inspect the cartridge and replace if the K35AL code and cartridge layout are confirmed |
Installation Note
Isolate the water supply before removing the old cartridge. Clean the valve body before fitting the new cartridge and apply suitable silicone grease to cartridge o-rings and seals where required, taking care not to damage the ceramic cartridge body during tightening.
