H960236NU Ideal Standard / Trevi Cartridge For Viala Basin/Bath Bath Fittings
Send a photo of your item and we'll help confirm it.
Summary

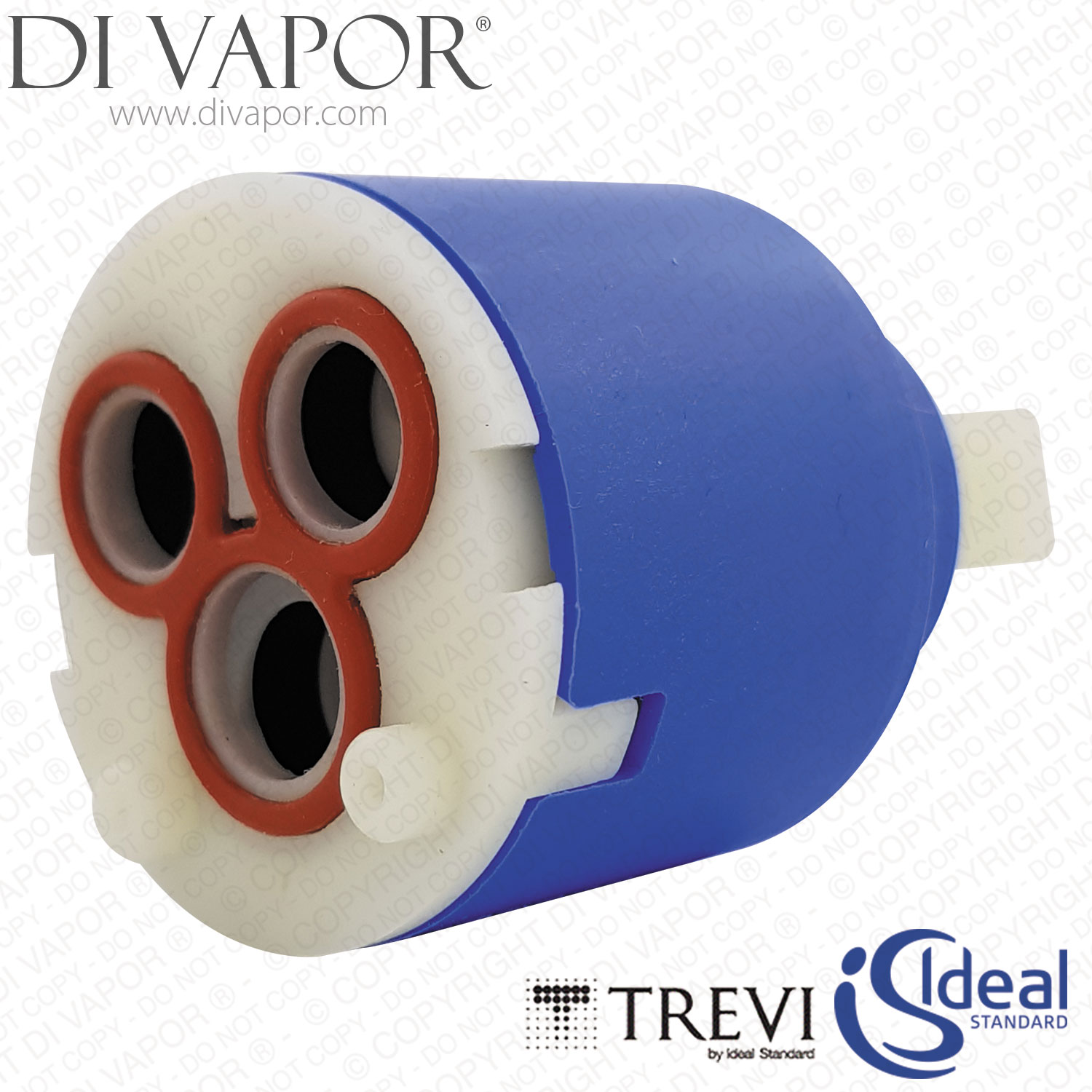

Ideal Standard Jado H960236NU 40mm Single Lever Basin/Bath and Shower Mixer Cartridge
The Ideal Standard Jado H960236NU is a 40mm closed-type single-lever mixer cartridge for the selected New Haven and Retro bath and shower fittings listed below. It fits inside the mixer body beneath the operating lever.
The cartridge controls water flow and mixes the hot and cold supplies as the lever is moved. It provides manual temperature adjustment and shut-off within one cartridge. H960236NU is the mixing cartridge, not the separate bath/shower diverter or a thermostatic temperature-control cartridge.
Technical Details
| Part Number | H960236NU |
|---|---|
| Cartridge diameter | 40mm |
| Cartridge construction | closed type |
| Control arrangement | single-lever operation |
| Function | water flow control, hot and cold mixing and shut-off |
Confirmed Fitment
- Jado New Haven H2457AA three-hole bath shower mixer with retractable hand shower
- Jado New Haven H2457AA GEN1 single-lever mixer with retractable hand shower
- Jado New Haven H2514AA exposed single-lever shower mixer
- Jado New Haven H2516AA exposed single-lever bath mixer
- Jado New Haven H2476AA Shower Mixer
- Jado Retro H2374.. three-hole bath-rim mixer
- Jado Retro H2375.. three-hole bath-rim mixer
Before Ordering
Check the exact mixer model and cartridge reference before ordering. Compare the stem, base connections, locating features and sealing arrangement with your existing cartridge. A matching 40mm diameter alone does not establish fitment, and not every mixer in the New Haven or Retro range uses H960236NU.
Check whether the fault concerns mixing and shut-off or switching between the bath and shower outlets. The diverter is a separate component, so replacing the mixing cartridge will not necessarily resolve an outlet-selection fault.
Installation Note
Isolate both water supplies before removing the existing cartridge. Follow the instructions for your exact mixer and check the condition of the cartridge seating, seals and retaining components during dismantling. Confirm the correct cartridge orientation before reassembly and check for leaks after restoring the supplies.
Related Spares You May Need
- Ideal Standard A962594NU Non Return Valves - set of four valves for servicing the non-return valve components used in the New Haven H2514AA and H2516AA mixer assemblies
Check the non-return valve arrangement for your exact mixer before ordering these separate service parts.
