Dornbracht 9015050200090 S/​L Cartridge

SUMMARY

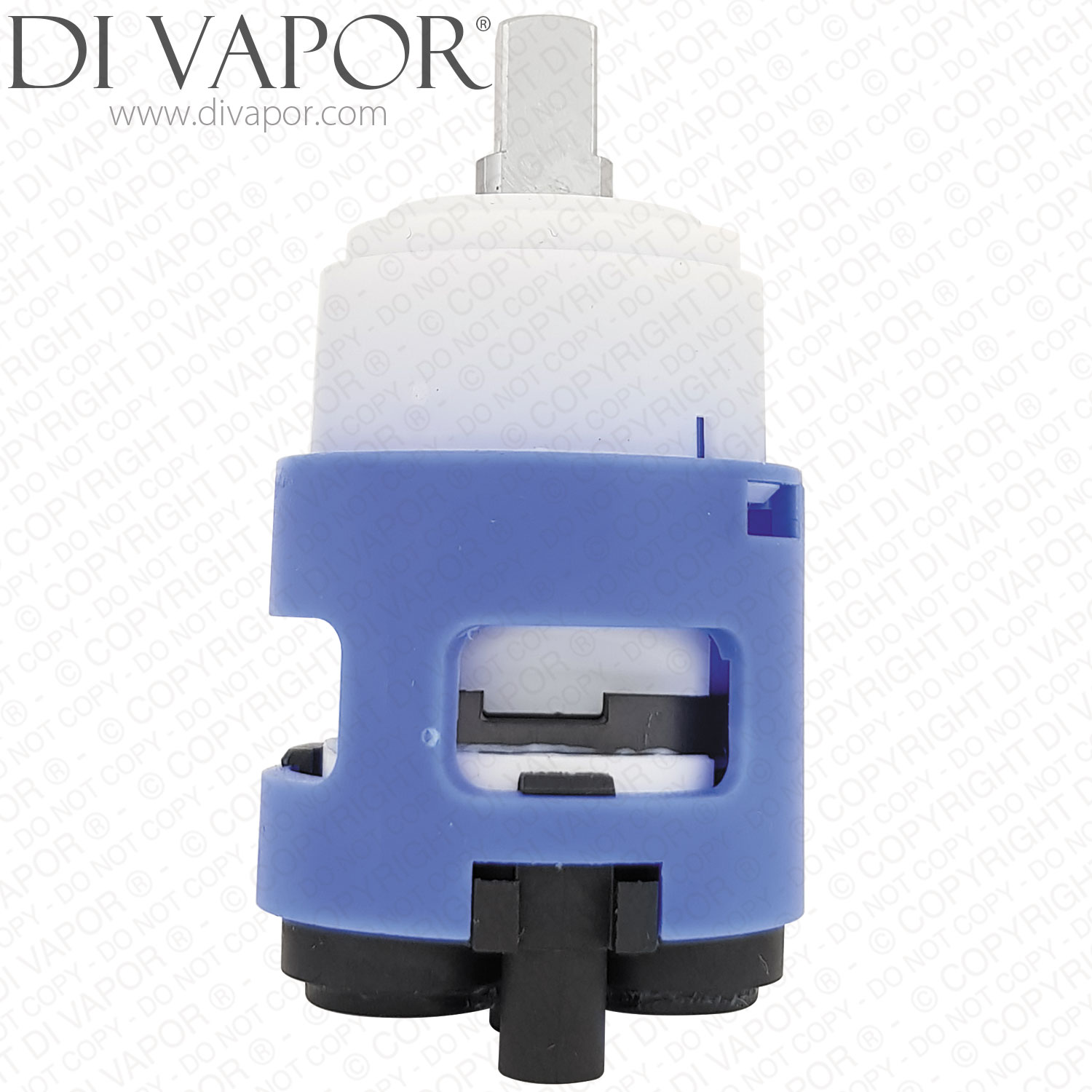

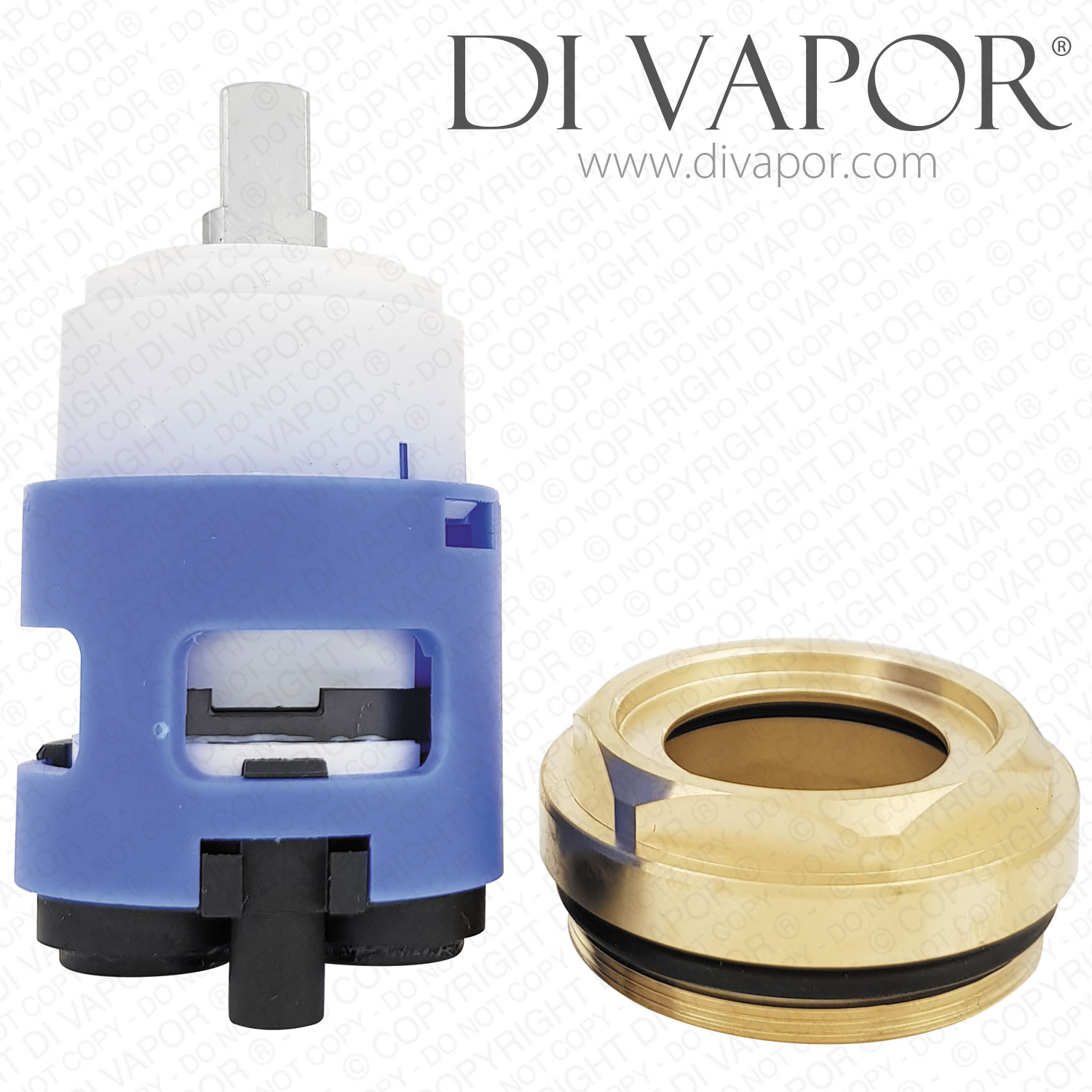

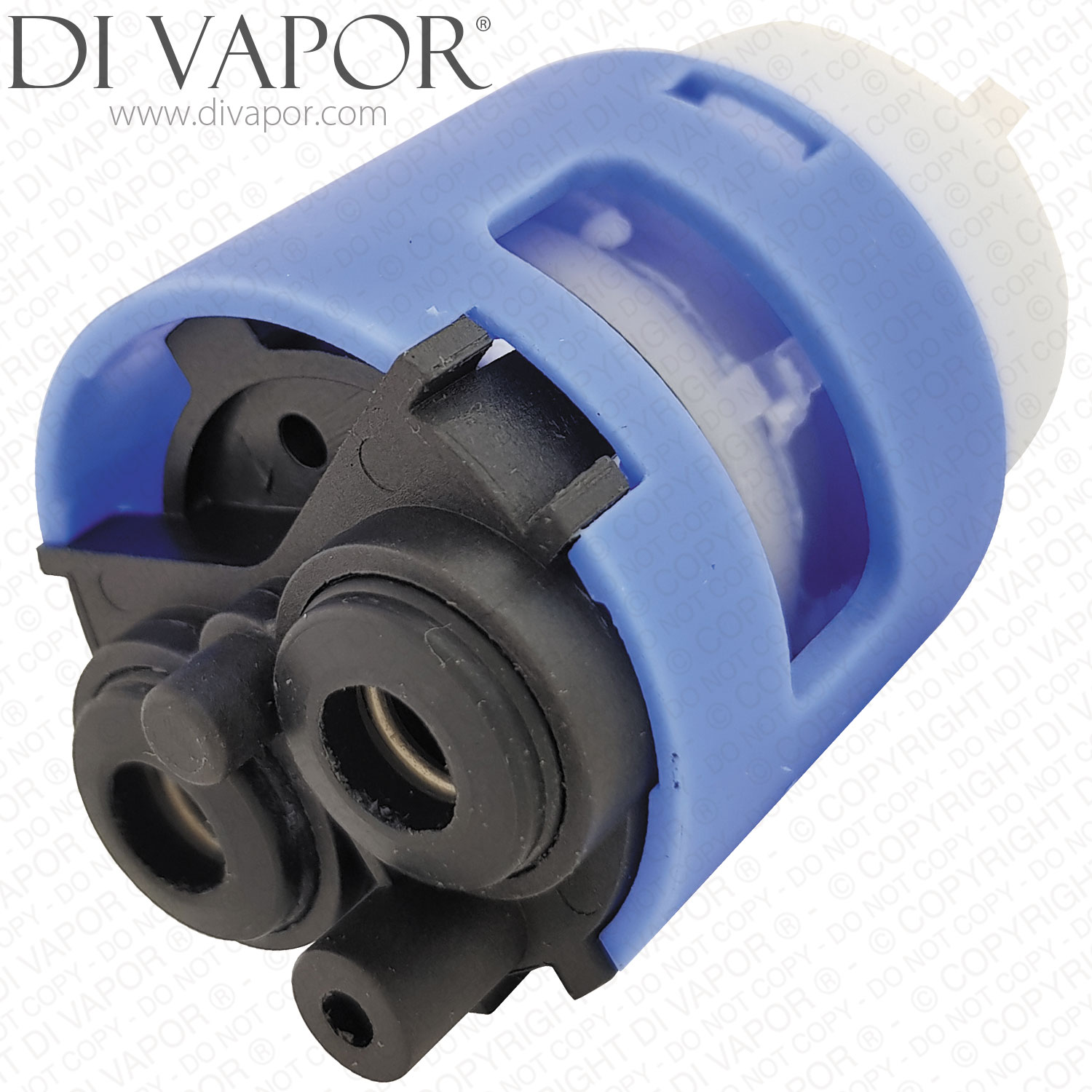

Dornbracht 9015050200090 is a blue/white single-lever mixer cartridge with head screws for older Dornbracht single-lever shower valves with screw fitting from October 1992 until 2003 and for selected Obina single-lever mixers.

This cartridge is the internal control unit of the mixer and helps restore smooth lever movement, correct flow and temperature control, and proper sealing inside the valve body. It is a single-lever mixer cartridge and not a thermostatic cartridge.

Technical Details

- - Part code: 9015050200090

- - Part Number: D-9015050200090

- - Cartridge type: single-lever mixer cartridge

- - Colour: blue/white

- - Fixing type: head screws / screw fitting

- - Nominal size: 1 1/2 inch

- - Used in specified fittings from October 1992 until 2003

Before you order check

- - Check the exact cartridge code on the removed part or technical diagram

- - Check that your fitting uses the screw-fitting version with head screws

- - Do not confuse this cartridge with the earlier white 9015050100090 used before October 1992

- - Do not confuse this cartridge with 9015050200190 which is a separate cartridge used only for Edition OBINA 540 WT EHM

Confirmed Compatible Models

- - 35 005 / 35 105 SSS-FF with screw fitting from October 1992 until 2003

- - Obina single-lever basin mixer 130 mm 33500540 and 33500540ff0010

- - Obina wall-mounted single-lever shower mixer 33300540

- - Imago wall-mounted single-lever shower mixer 33005570

- - UP single-lever mixer pre-assembled body 3500597090

- - UP bath single-lever mixer pre-assembled body 1/2 inch 3510597090

- - Meta Pur UP shower single-lever mixer 36000620

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
