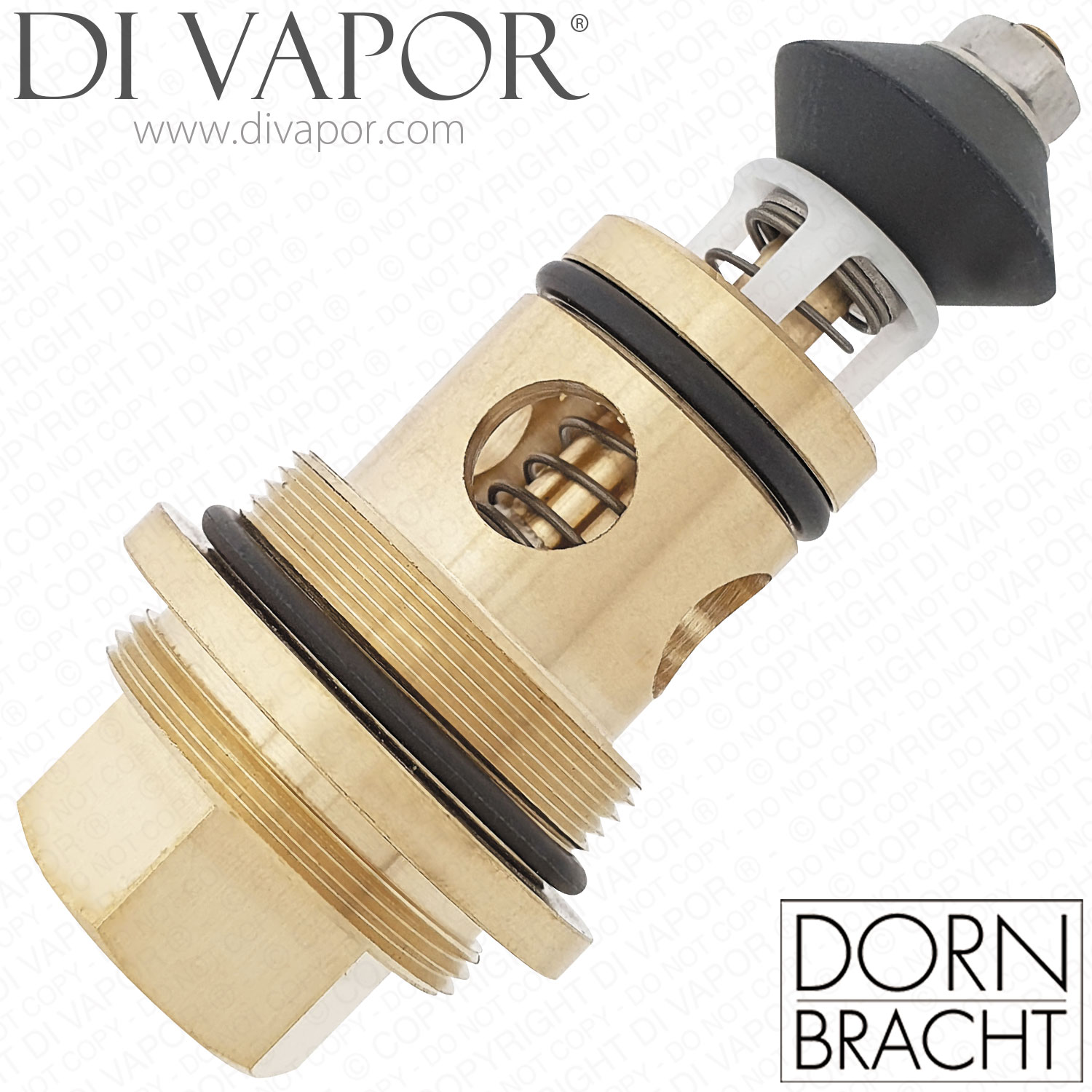

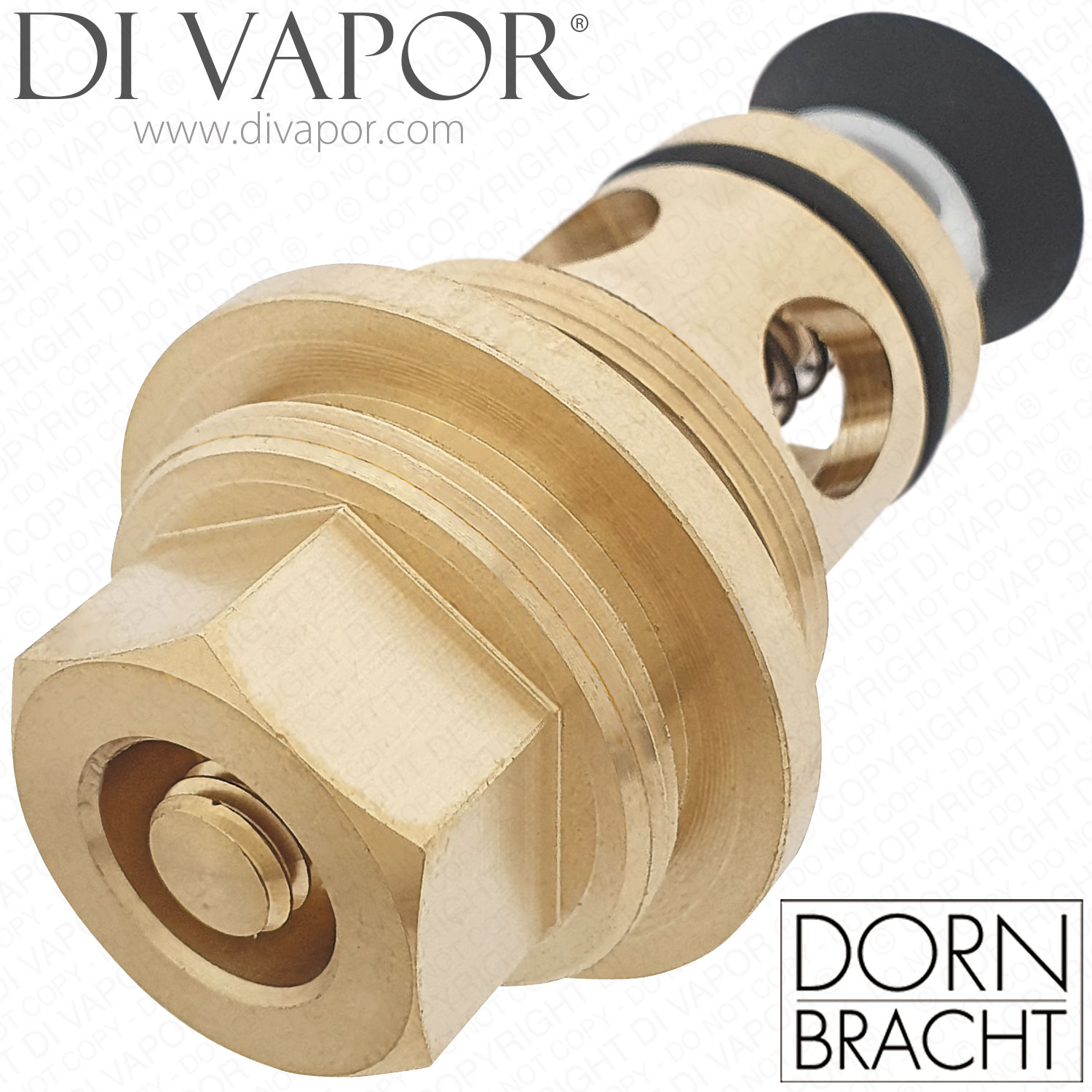

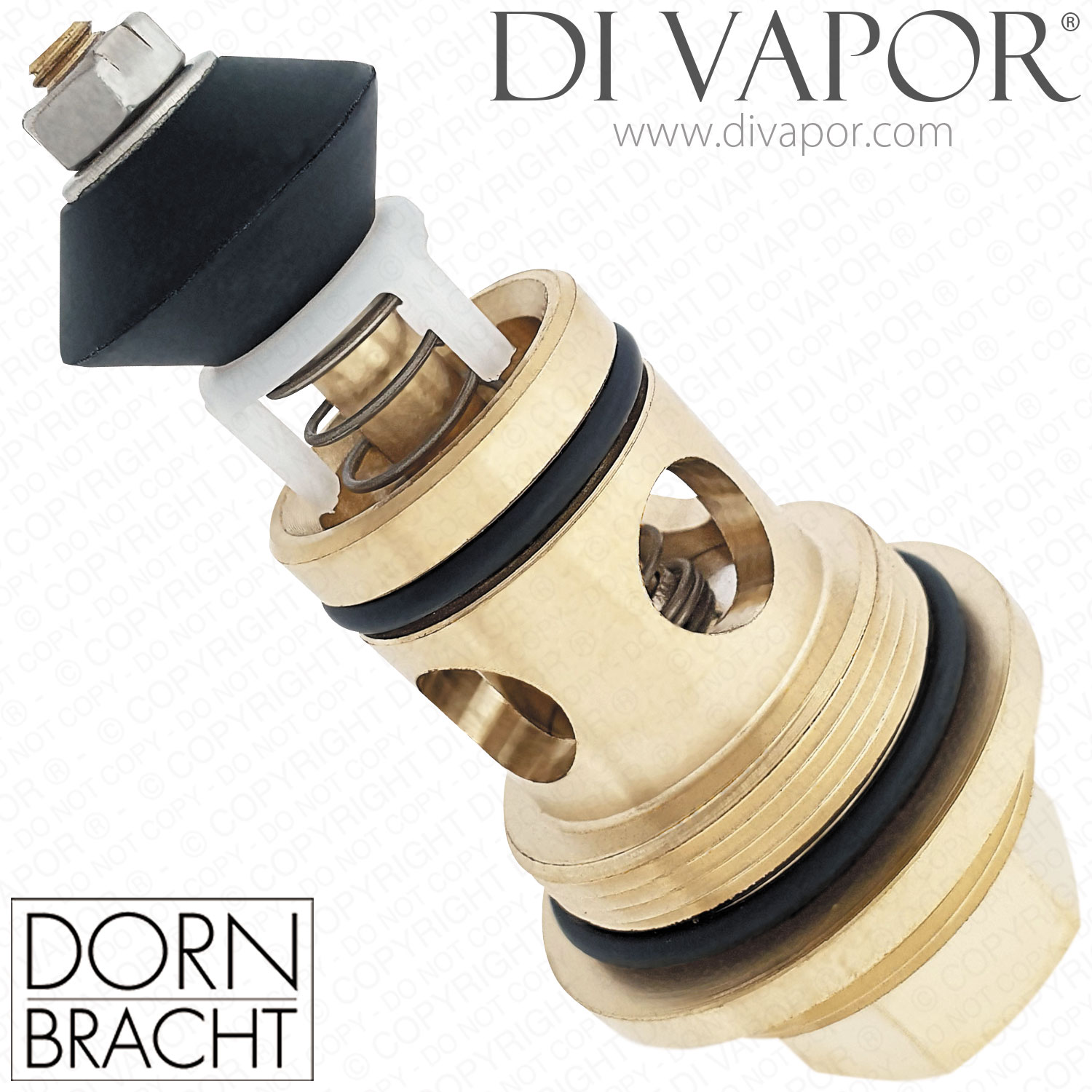

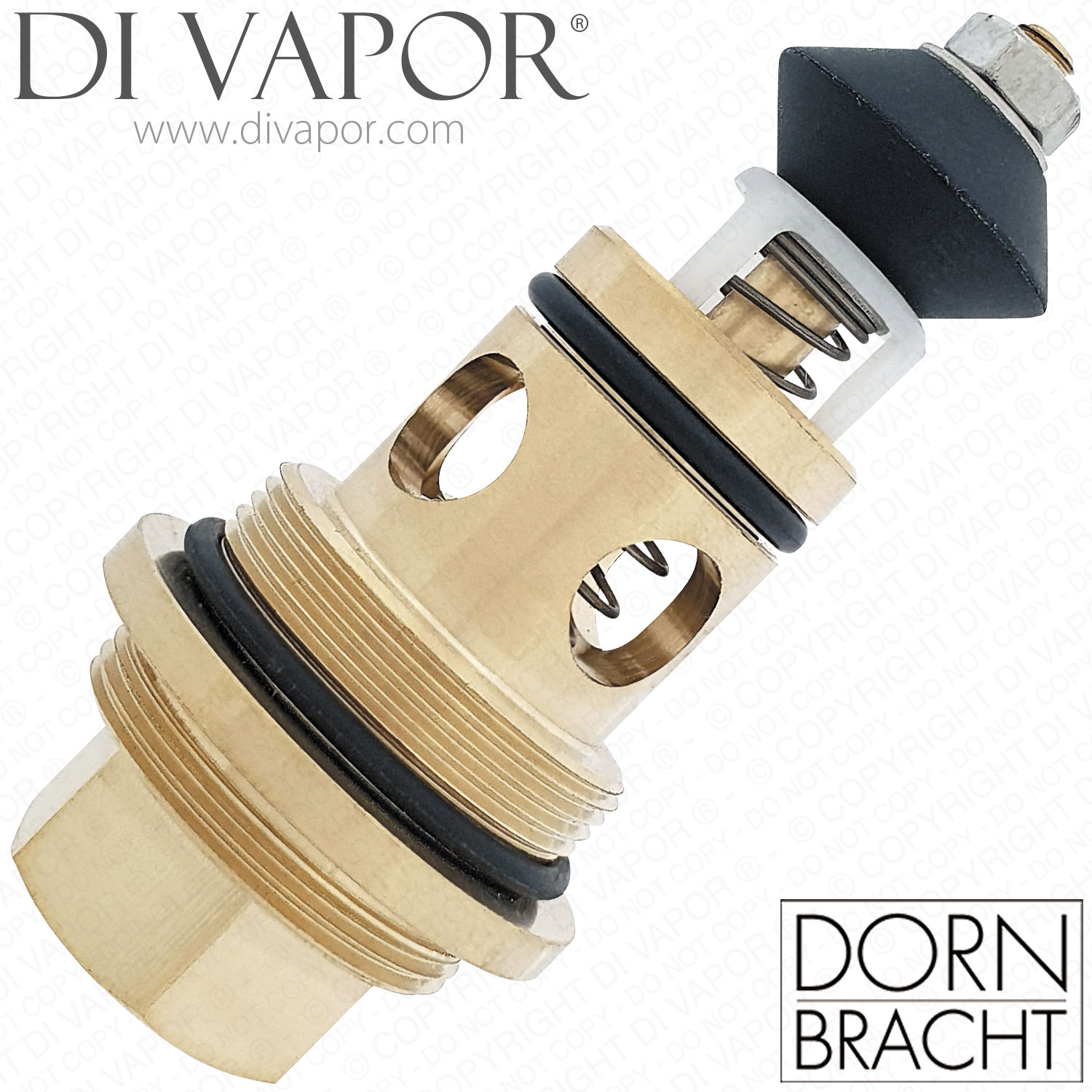

Dornbracht 0421340760090 Diverter

SUMMARY

Dornbracht 0421340760090 is a bath shower mixer diverter used in selected Dornbracht concealed bath and shower mixer assemblies. The diverter controls changeover between the bath outlet and shower outlet and is used where the mixer requires the Dornbracht 0421340760090 diverter mechanism.

This part is associated with Dornbracht concealed UP-Batterie fittings produced from 10/1992 to 09/2003 and with the 35 105 970 90 concealed mixer from early 1993. It is supplied as the diverter mechanism without a handle, so the existing handle and trim should be checked and retained if they are still serviceable.

Technical Details

- - Brand: Dornbracht

- - Part code: 0421340760090

- - Part type: bath shower mixer diverter / umsteller

- - Application: concealed bath and shower mixer diverter changeover mechanism

- - Main associated fitting: Dornbracht 35 105 970 90 / 3510597090 concealed bath single-lever mixer pre-assembled body

- - Production period identified for the associated concealed body: 10/1992 to 09/2003

- - Related later manufacturer article number found for the same diverter: 9021340760090

- - Handle included: no

Failure Symptoms

- - Poor or incomplete changeover between bath outlet and shower outlet

- - Water continuing from the unwanted outlet when the mixer is in use

- - Water dripping from the shower head or spout when the shower or tap is turned off

Before You Order

- - Check the removed diverter or spares diagram for code 0421340760090

- - Check whether your fitting is the 35 105 970 90 / 3510597090 concealed bath single-lever mixer body

- - Check that the existing handle and trim are reusable because this diverter is supplied without a handle

- - Do not order from appearance alone because adjacent Dornbracht concealed mixer assemblies can use different diverter codes

Confirmed Compatible Models

- - Dornbracht 35 105 970 90 concealed mixer from early 1993

- - Dornbracht 3510597090 UP bath single-lever mixer pre-assembled body 1/2 inch early 1993

Related Spares You May Need

- - Dornbracht 9015050200090 S/L Cartridge

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
