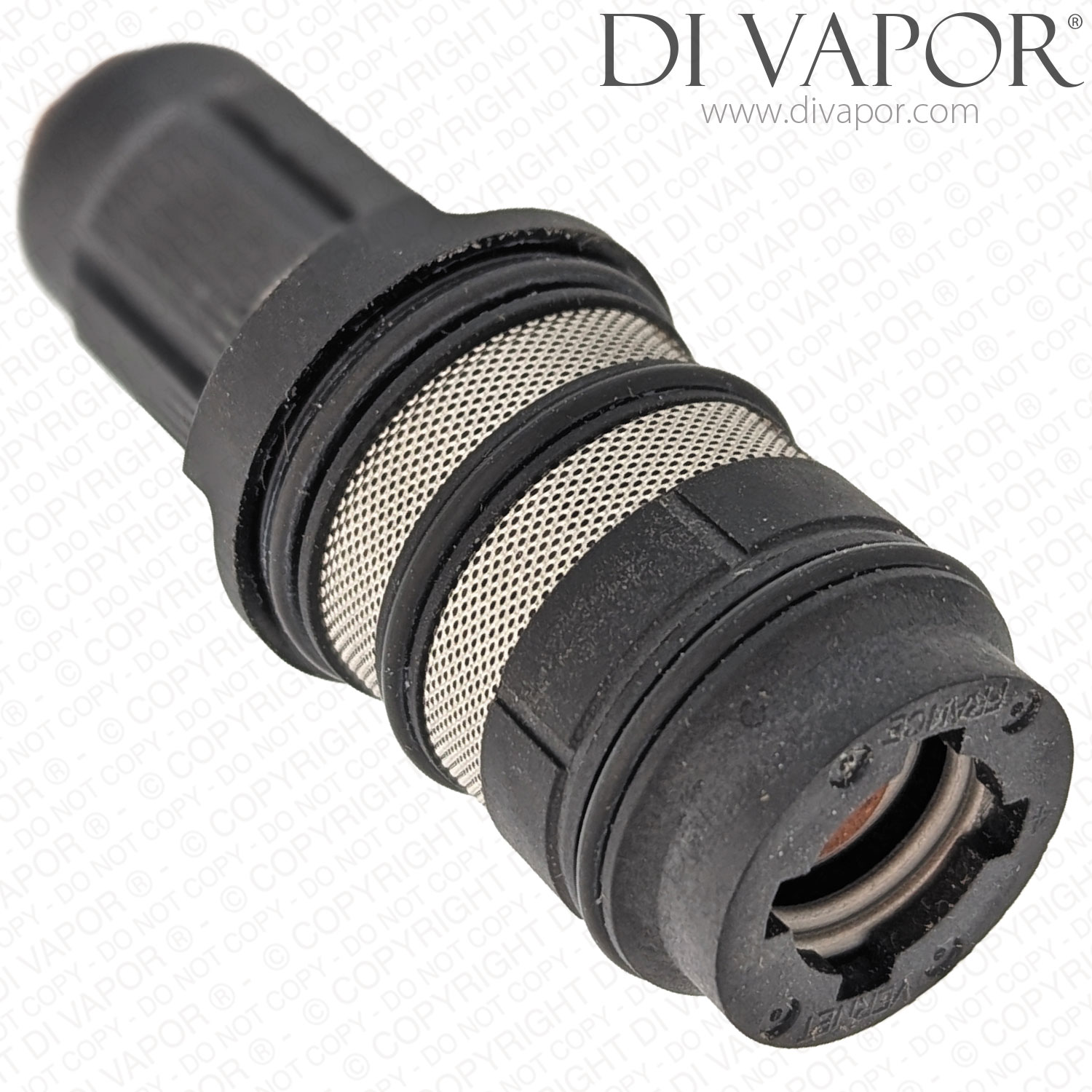

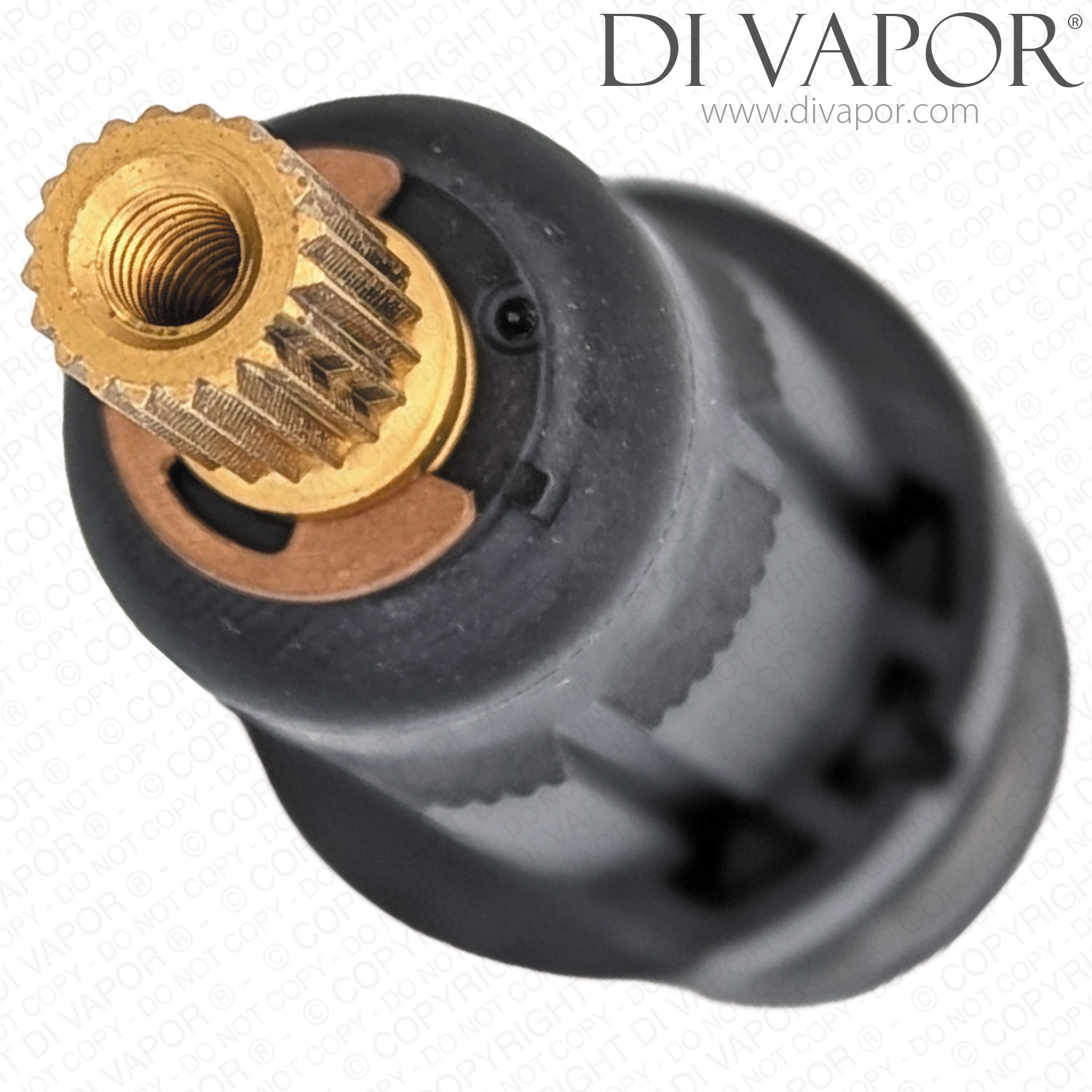

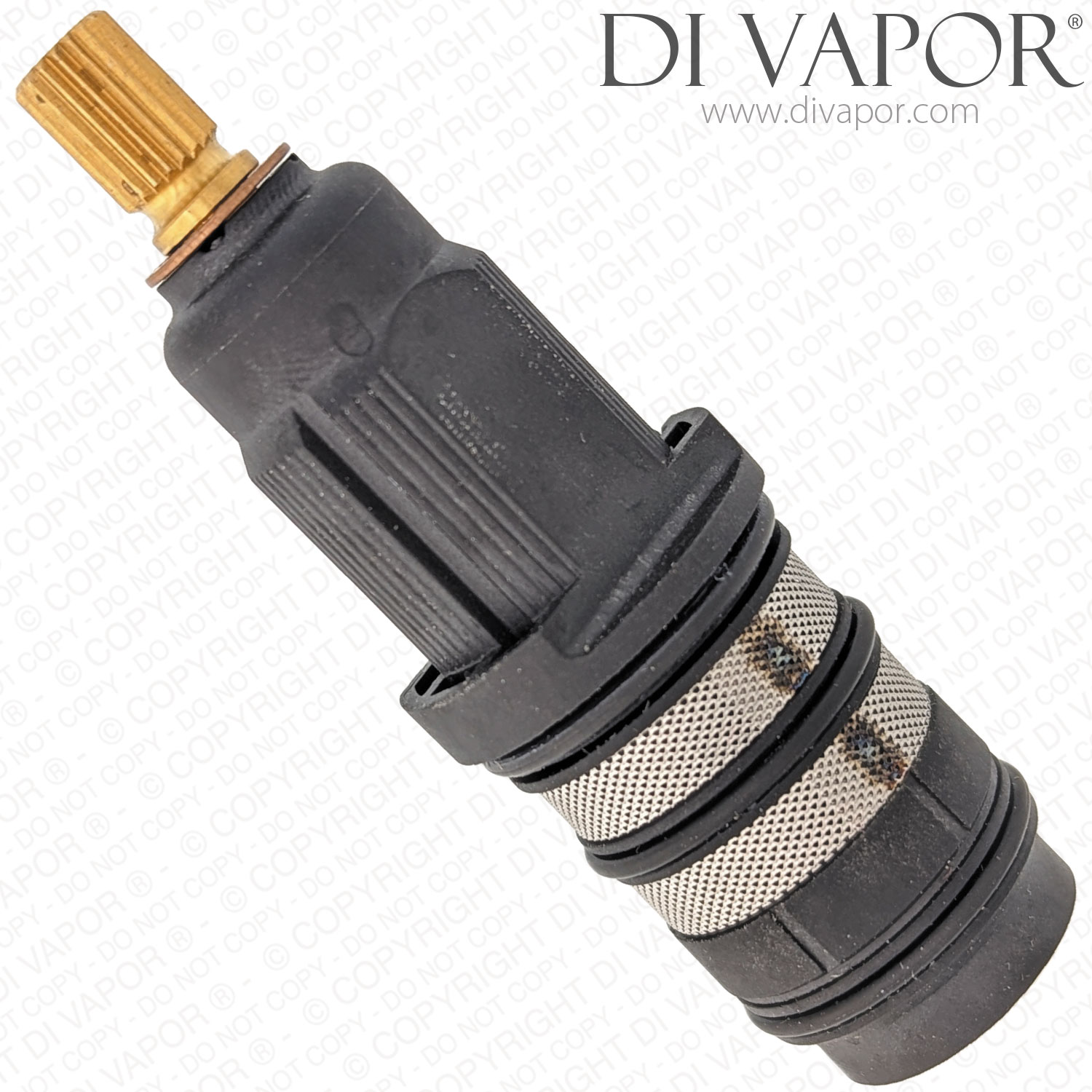

Thermostatic Cartridge for Inta Shower Unit CB10032CP

SUMMARY

Thermostatic cartridge for Inta shower unit CB10032CP. Shower unit may have code ED10046CP on the back of the mixing unit.

The Inta CB10032CP-THC is a thermostatic cartridge for the Inta CB10032CP Nulo shower unit. This is the temperature-control cartridge inside the thermostatic mixing valve, used to control and stabilise the mixed water temperature.

The shower unit may have code ED10046CP on the back of the mixing unit. The CB10032CP spare parts listing also references ED300006XX as the thermostatic cartridge component, and ED300006XX.1 may appear as a temperature cartridge reference in Inta spares information. No supersession claim is being made between these codes.

Technical Details

- - Brand: Inta / Intatec

- - Part Number: CB10032CP-THC

- - Part type: thermostatic temperature cartridge

- - Used in: Inta CB10032CP Nulo shower unit

- - Valve code note: ED10046CP may appear on the back of the mixing unit

- - Related thermostat cartridge reference: ED300006XX

- - Related spares diagram reference: ED300006XX.1

- - Function: controls and stabilises mixed water temperature in the shower valve

- - Valve guide details for the Nulo thermostatic shower valve include factory preset temperature of 38C, body inlet connections of G3/4 inch, bottom outlet connection of G1/2 inch and minimum dynamic operating pressure of 0.4 bar

Confirmed Compatible Models

- - Inta CB10032CP Nulo Safe Touch Thermostatic Bar Shower (Adjustable Riser) Spare Parts

- - Inta ED10046CP Nulo Thermostatic Bar Shower valve only

Installation and Checking Notes

- - Isolate the hot and cold water supplies before removing the old thermostatic cartridge.

- - Check the removed cartridge, valve code and retained handle parts before ordering, especially where ED10046CP is visible on the mixing unit.

- - After fitting a thermostatic cartridge, the valve temperature should be checked and recalibrated to suit site conditions.

- - This is the temperature-control cartridge, not the flow-control cartridge. Water passing or dripping from the outlet when the shower is turned off is more commonly associated with the flow cartridge.

Related Spares You May Need

- - Inta ED300017XX 25mm Flow Diverter Cartridge

- - Inta ED300008XX Cartridge Spline Adaptor Bush - 20 Spline to 30 Spline

- - INTA ED300007XX / ED300007XX Flow Handle Bush Spline Adaptor - 20 Spline to 30 Spline

- - Inta ED300005XX Temperature Stop Ring used on ED300006XX

- - INTA 30003CPX Metal Shower Hose Complete CP 1500mm

- - 150mm Universal Shower Hose - NXT734

- - Inta ED00007XX Spline Adapter

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
