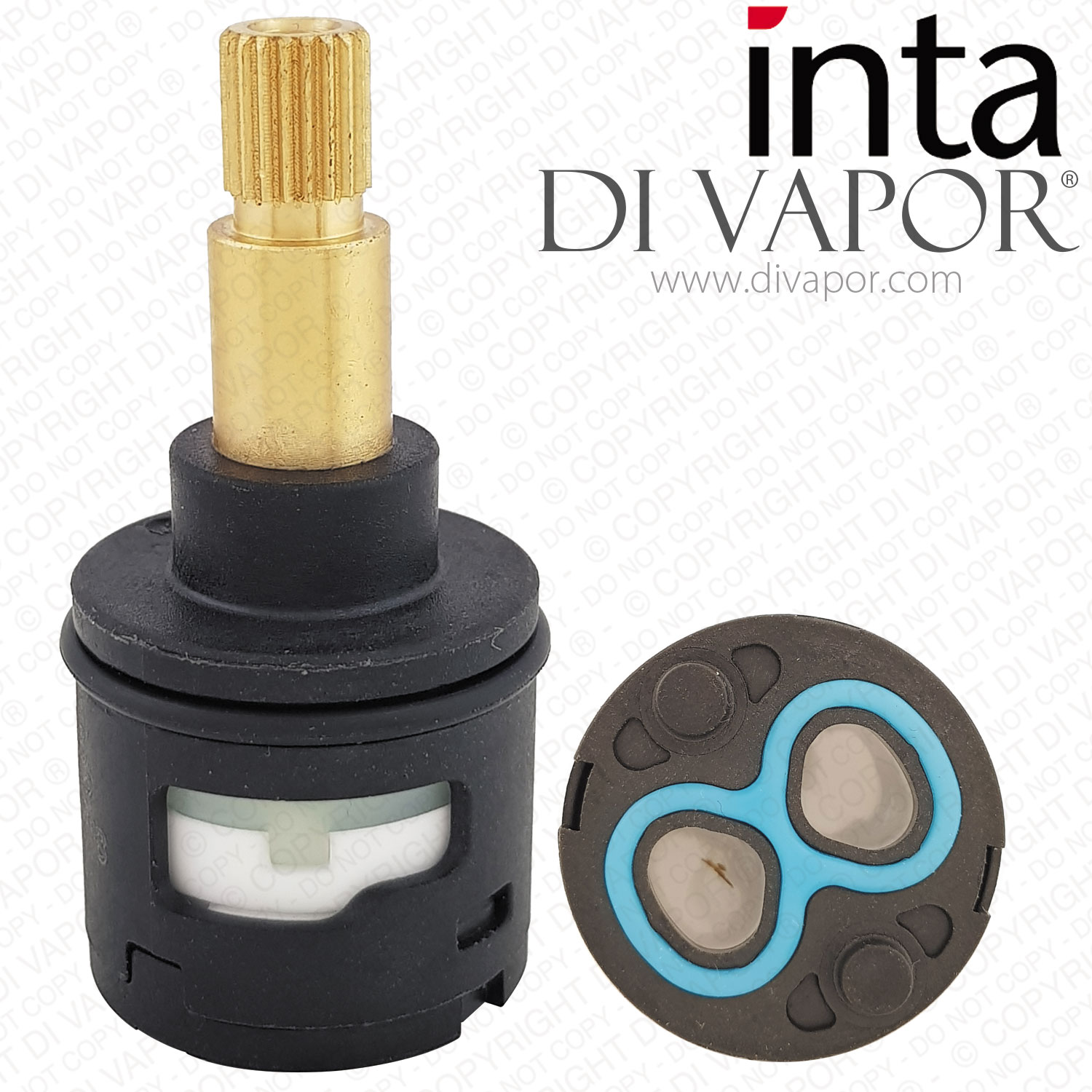

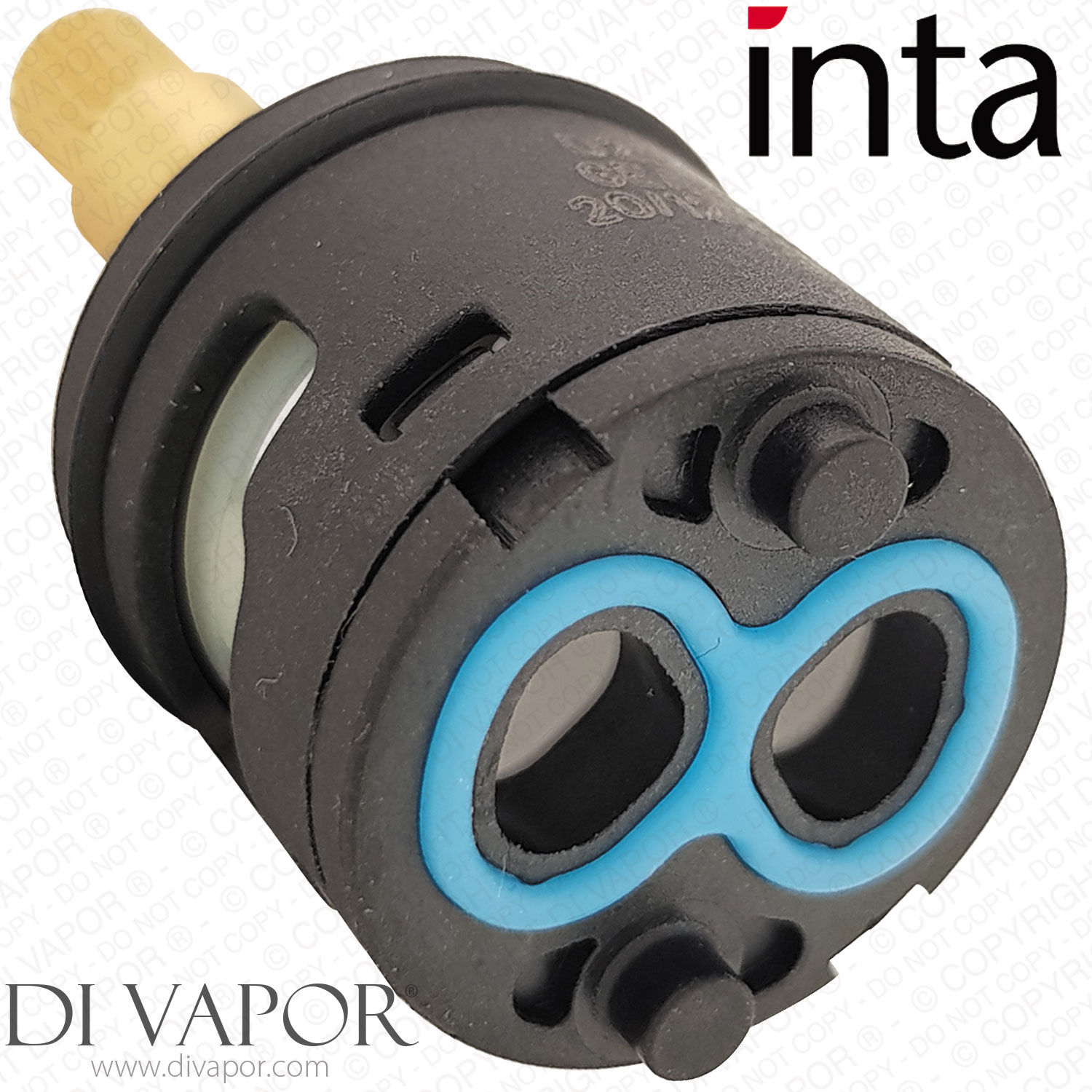

Inta ED300017XX 25mm Flow Diverter Cartridge
Send a photo of your item and we'll help confirm it.
Summary
Inta ED300017XX Flow Cartridge for CB10032CP Nulo Safe Touch Thermostatic Bar Shower (Dual Outlet), CB10031CP Nulo Safe Touch Thermostatic Bar Shower, Mio Deluxe Safe Touch Thermostatic Bar Shower (Dual Outlet)- MM10036CP
The Inta ED300017XX is a 25mm flow cartridge used in selected Inta Nulo Safe Touch and Mio Deluxe Safe Touch thermostatic bar shower assemblies. It is the flow or diverter-side cartridge for controlling water delivery through the shower valve, helping restore correct on/off or outlet-control operation where the existing cartridge has worn, seized or no longer seals correctly.
A common sign of flow cartridge wear is water continuing to drip from the shower head or outlet when the shower is turned off. Always compare the part code, spline, cartridge length and existing valve layout before ordering, as a 25mm diameter alone must not be used to confirm fitment.
Technical Details
| Part Number | ED300017XX |
|---|---|
| Cartridge type | 25mm flow cartridge / flow-diverter-side cartridge |
| Total length including bottom seal | 52.8mm excluding locating pins |
| Cartridge diameter | 25mm |
| Top spline diameter | 7.6mm |
| Top spline | 20 teeth / notches |
Confirmed Compatible Models
- Inta CB10032CP Nulo Safe Touch Thermostatic Bar Shower Adjustable Riser Spare Parts
- Inta CB10031CP Nulo Safe Touch Thermostatic Shower Spare Parts
- Inta MM10036CP Mio Deluxe Safe Touch Thermostatic Bar Shower Dual Outlet Spare Parts
Installation and Checking Notes
- Isolate the hot and cold water supplies before removing the old cartridge.
- Flush the valve body carefully before refitting to prevent debris from damaging the new cartridge seals.
- Check that the existing spline and cartridge body match ED300017XX before installation.
- If the control handle is loose, damaged or not locating correctly, check the related spline adaptor parts before ordering.
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Inta ED300008XX Cartridge Spline Adaptor Bush - 20 Spline to 30 Spline
- Inta ED300006XX Thermosatic Cartridge
- INTA ED300007XX / ED300007XX Flow Handle Bush Spline Adaptor - 20 Spline to 30 Spline
- Inta ED00007XX Spline Adapter
- Inta ED300005XX Temperature Stop Ring used on ED300006XX
- INTA 30003CPX Metal Shower Hose Complete CP 1500mm
- 150mm Universal Shower Hose - NXT734
