90 Degree Shower Hinge Wall to Glass Door Bracket | Light Satin Nickel Finish | Double Sided

Summary

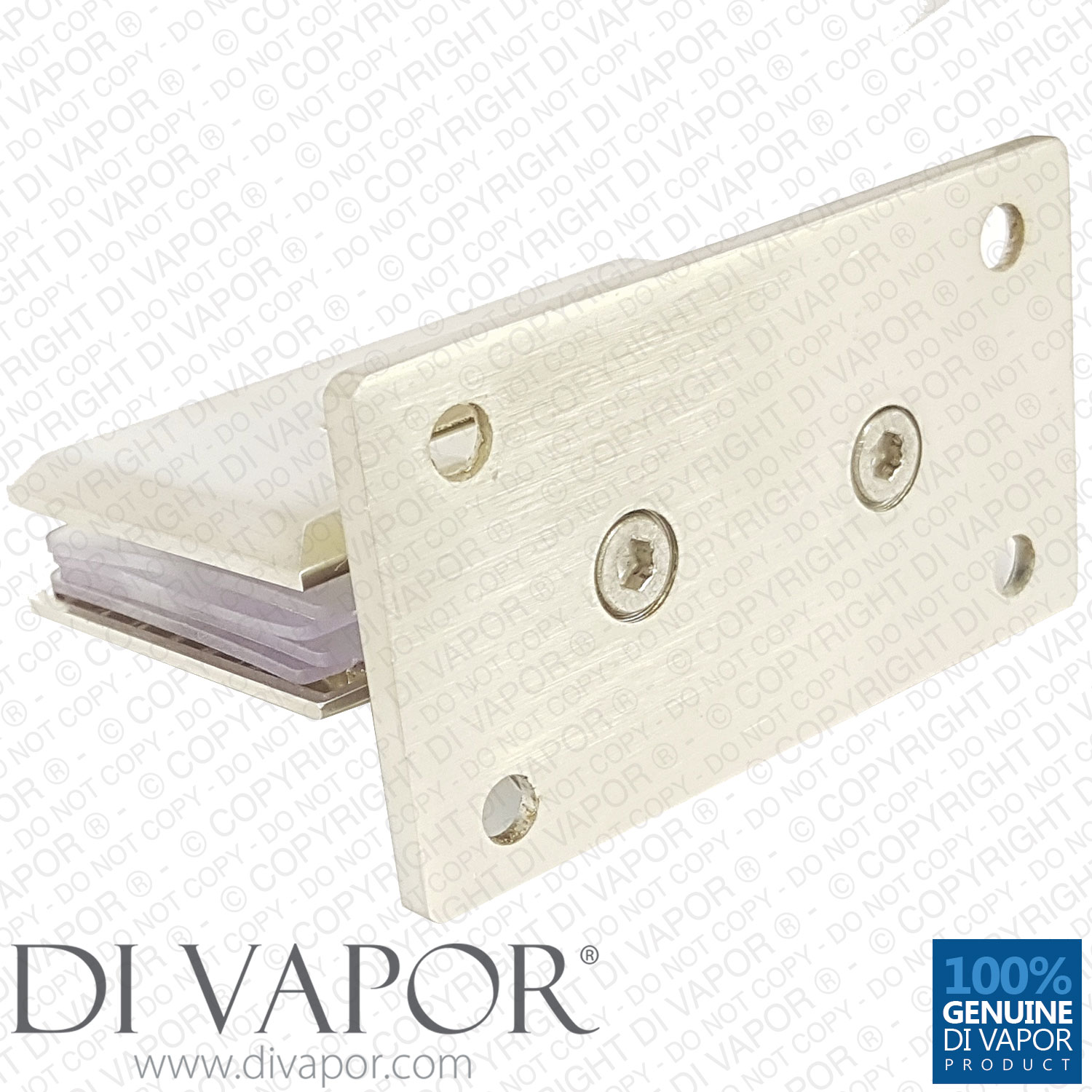

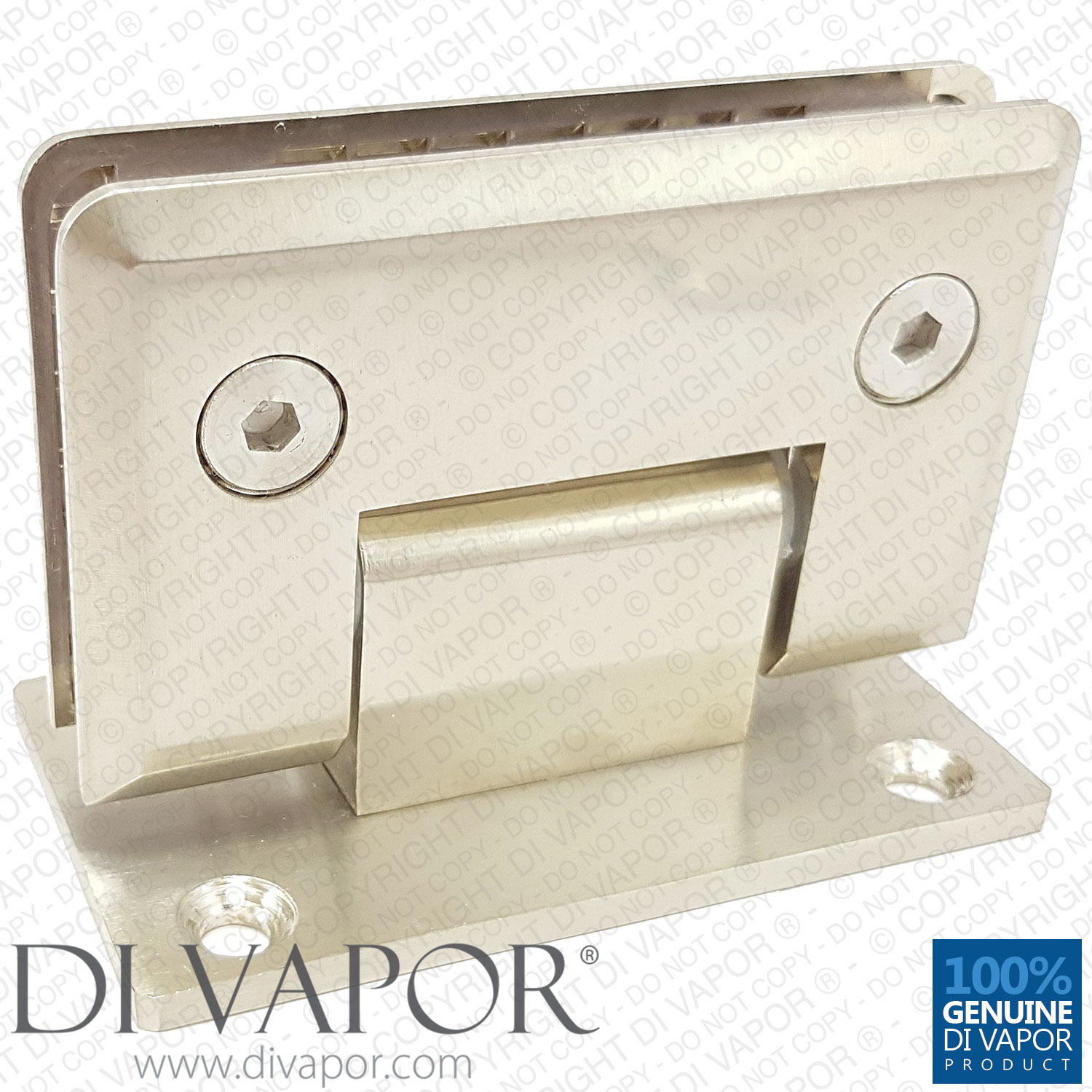

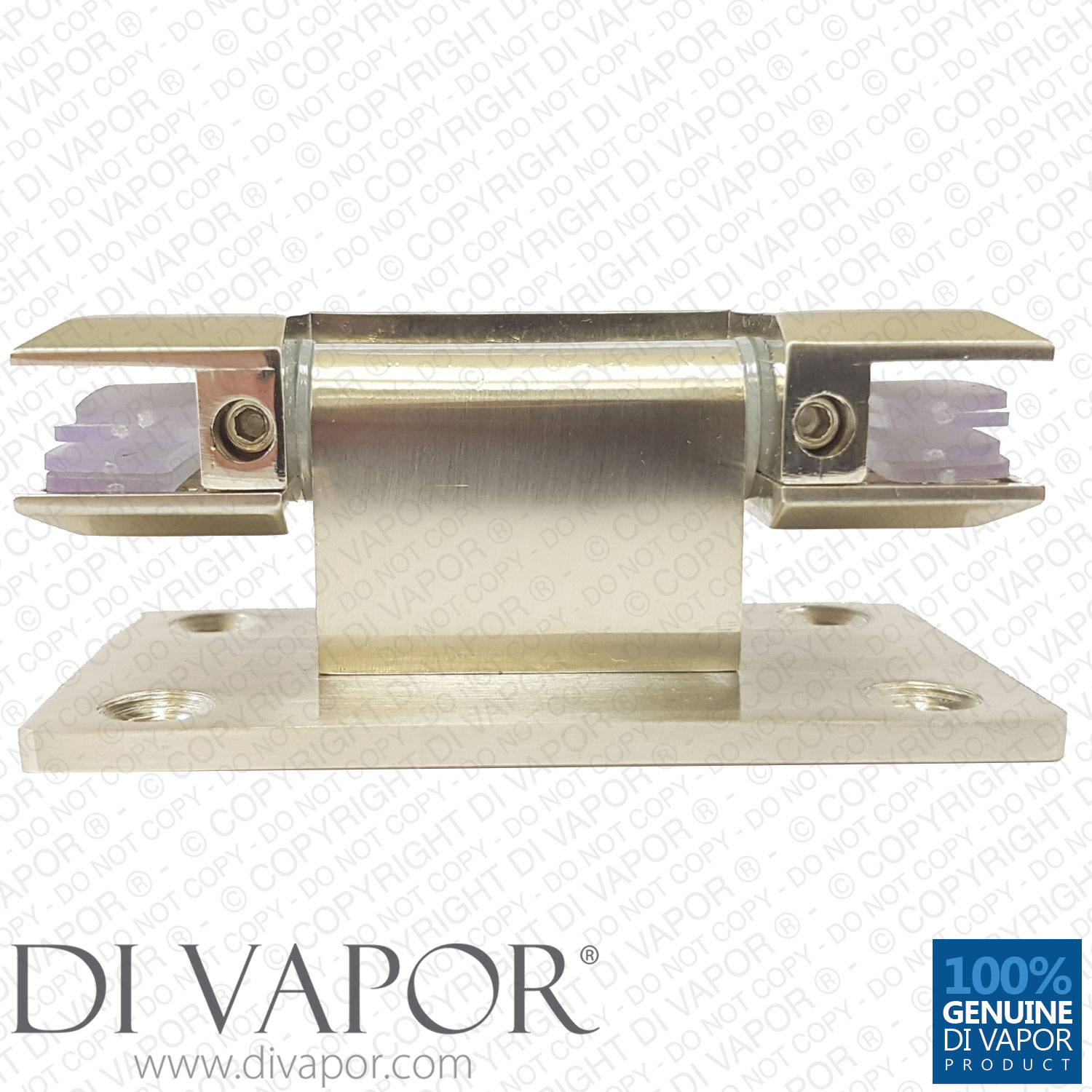

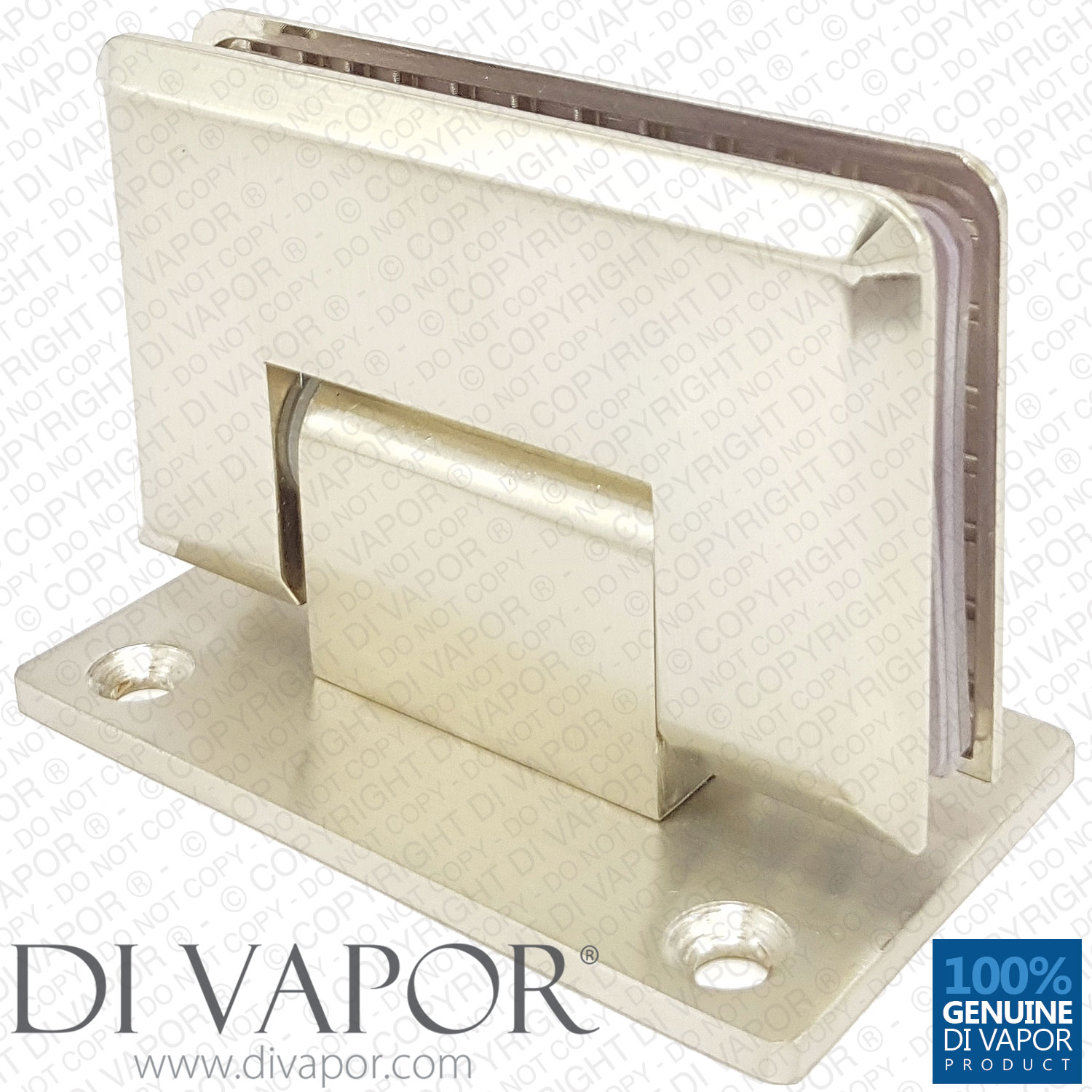

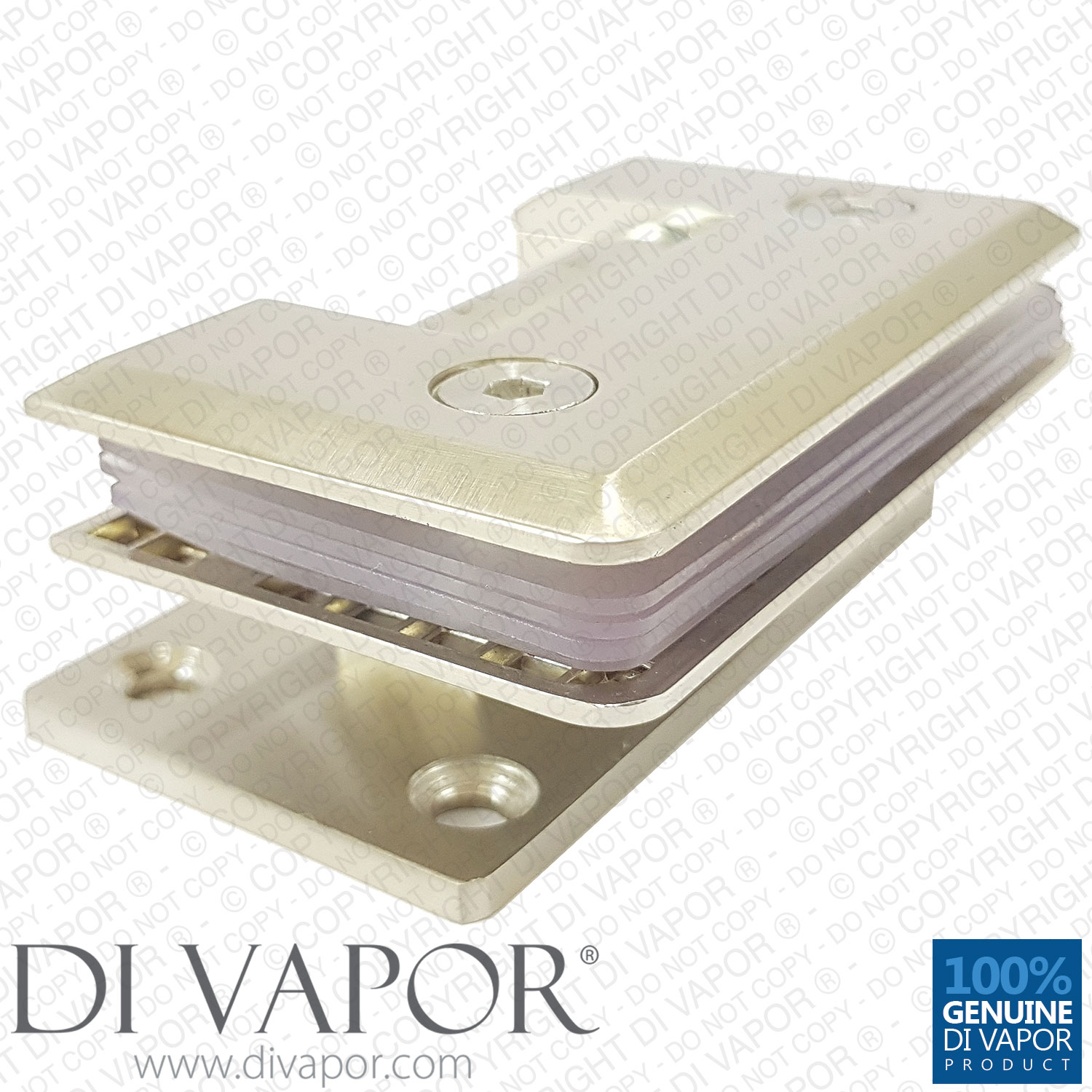

This is a genuine Di Vapor 90 Degree double sided wall to shower glass door, light satin nickel finished zinc alloy glass to glass shower hinge.

The hinge sits at the centre of the fixing bracket.

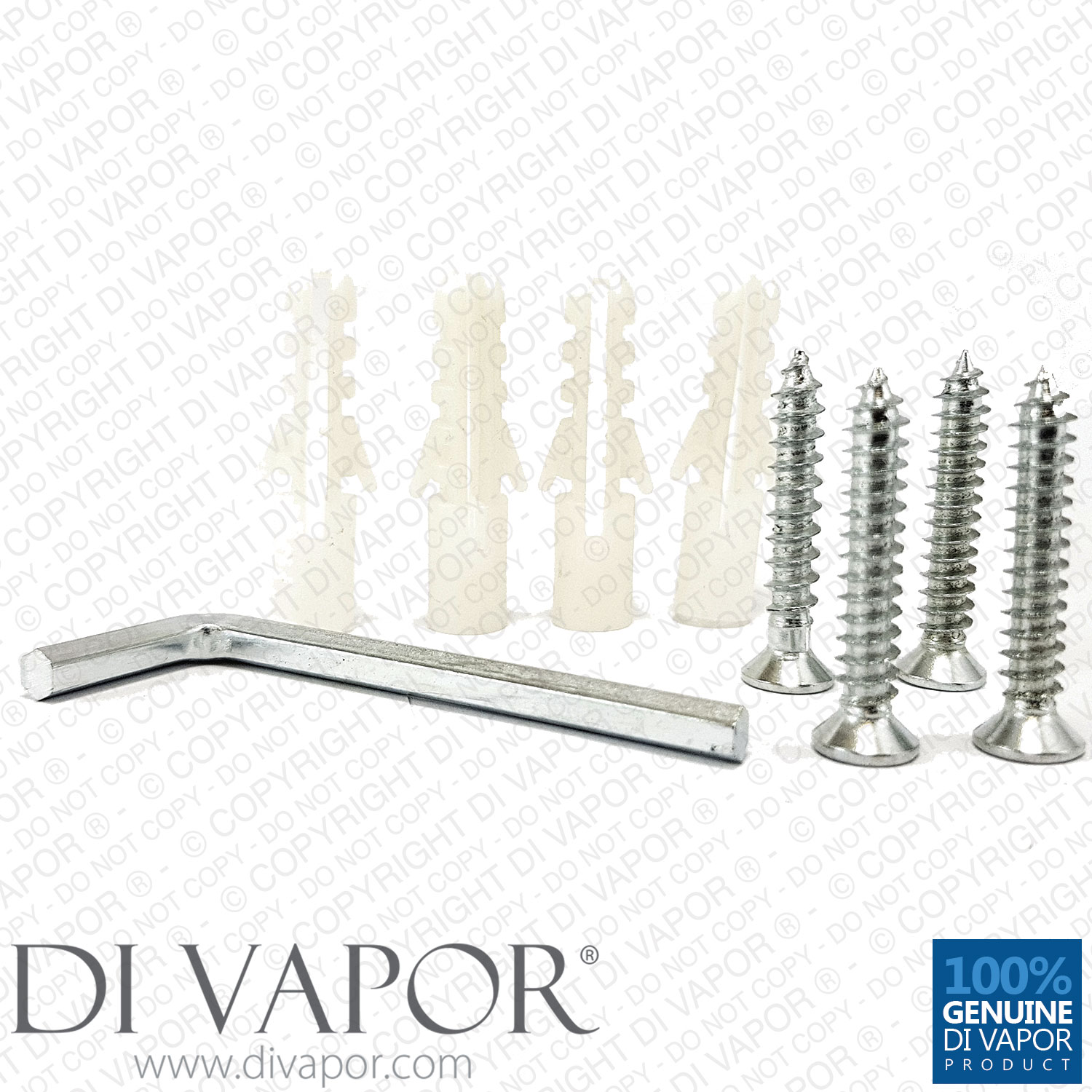

-- The hinge comes with 4 x screws and 4 x wall plugs and an allen key.

--------------

IMPORTANT Before ordering any custom glass, please ensure that your glazier is able to inspect the hinge in person. Any slight difference in the cutout before the glass is tempered will result in the glass needing to be re-cut. Di Vapor will not be responsible for any costs incurred with re-temper or re-cutting of glass. DO NOT order your glass before you have ordered the hinge(s) and have them to hand.

--------------

Features and Useful Information about this Hinge

-- A Di Vapor 90 Degree Glass to Glass Shower Door Hinge Clamp

-- Glass cut out is required. Take a look at the size of the glass cut out required in the product photos.

-- 70mm fixing hole to fixing hole for the wall mounted plate, 35mm hole to hole going the other way.

-- 90mm - Total length of the fixing plate which fixes onto the wall

-- 70mm fixing hole to fixing hole for the wall mounted plate

-- 58mm glass fixing hole to glass fixing hole for the wall mounted plate

-- Light satin nickel finished zinc alloy.

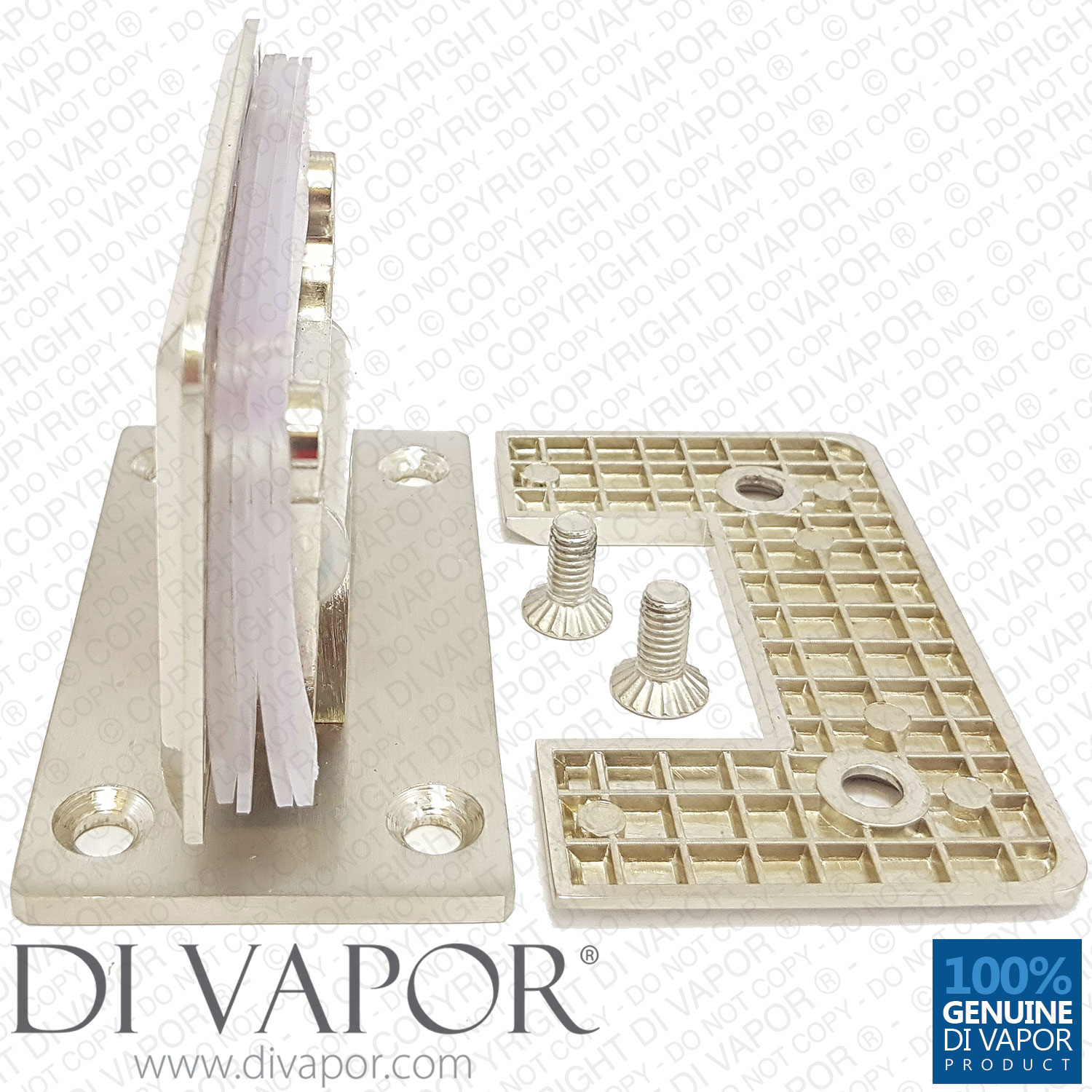

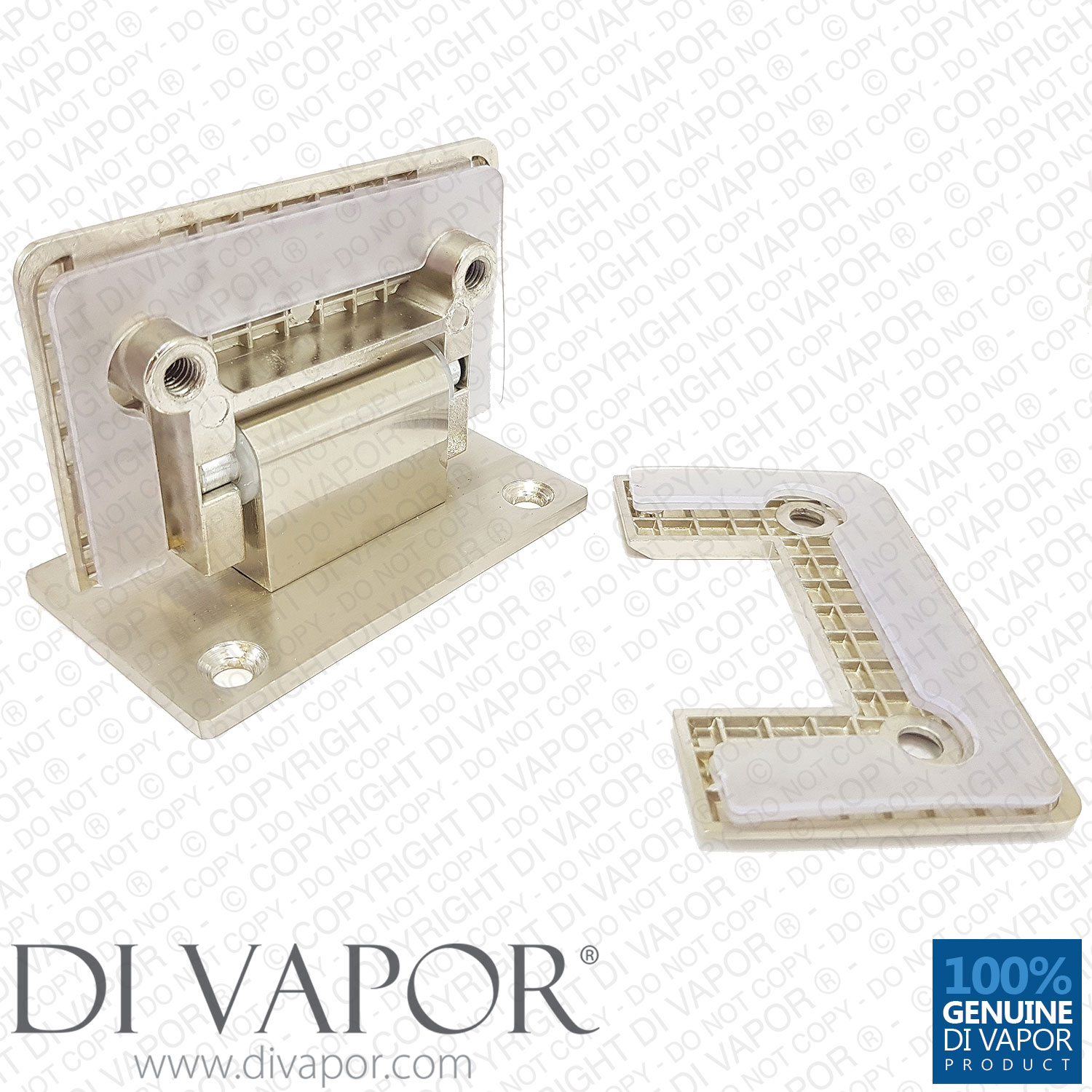

-- Fits glass which is 10mm in thickness. This will also fit glass that is 8mm in thickness if the plastic / rubber pads which come with the hinge are used to pad the hinge out.

-- The maximum weight limit per hinge is 25kg. We recommend that this weight limit is adhered to and considered when deciding how many hinges are being used per panel. Typical usage for most panels and doors is 2 -3 hinges per side. The maximum width of the glass door should be no more than 700mm.

-- Self closing. The hinge will self close the door when the door is open 30 degrees or less.

-- Square edge hinge

-- The hinge has been tested to open and close a shower door up to 100,000 times.

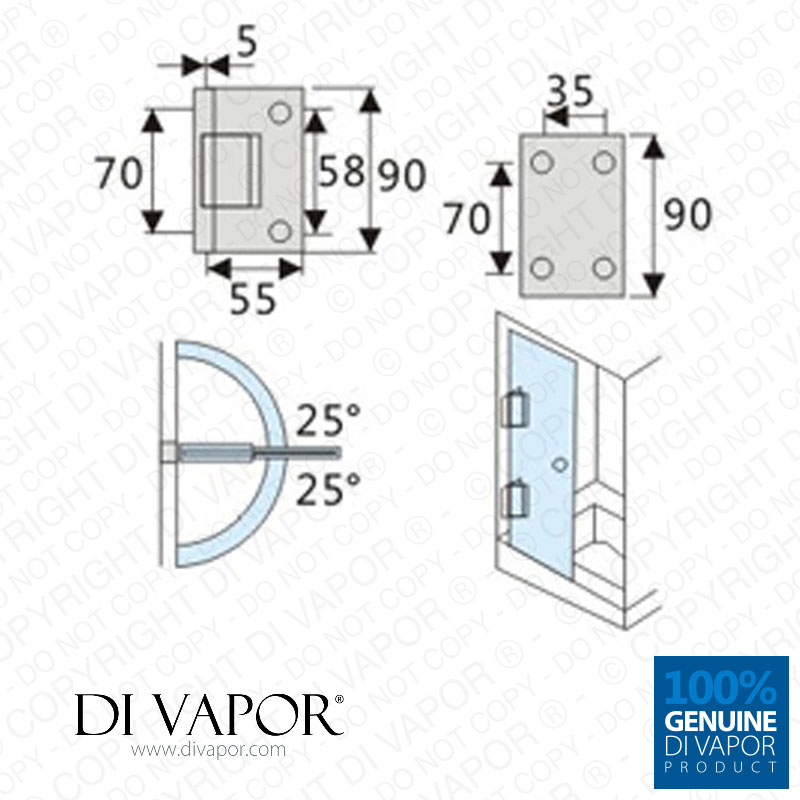

-- Designed to fit onto a glass panel as per the technical diagram.
