90 Degree Wall Mounted Shower Door Glass Hinge | Double Sided | Chrome Plated Copper | Square Edges | 59mm Hole to Hole

Summary

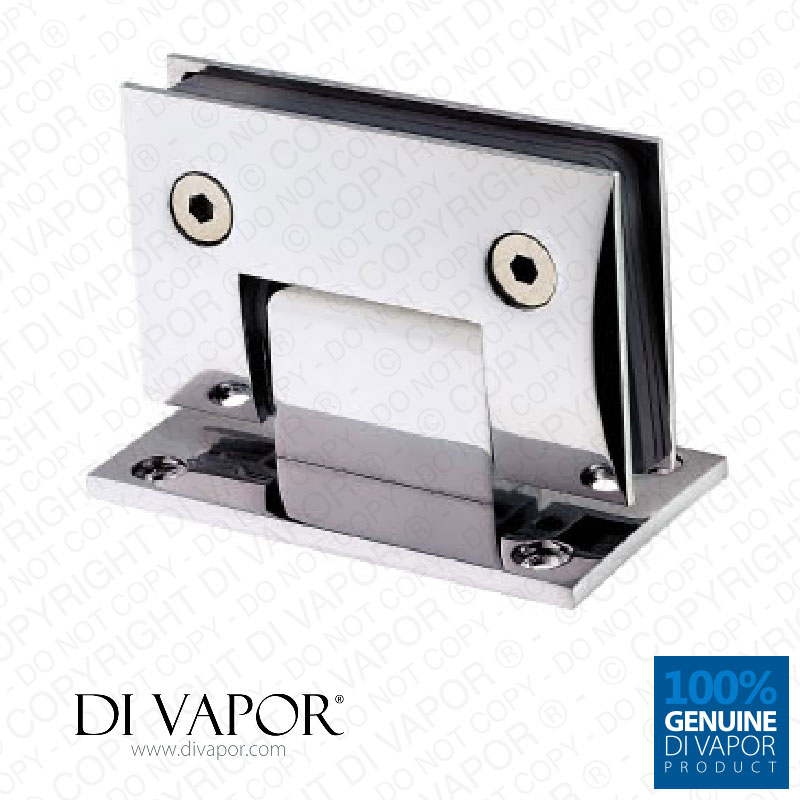

This is a genuine Di Vapor 90 degree double sided wall to shower glass door, polished chrome finished zinc alloy glass to glass shower hinge.

The hinge sits at the centre of the fixing bracket.

-- The hinge comes with 4 x screws and 4 x wall plugs and an allen key.

Features and Useful Information about this Hinge

-- A Di Vapor 90 degree Glass to Glass Shower Door Hinge Clamp

-- Glass cut out is required. Take a look at the size of the glass cut out required in the product photos.

-- 70mm fixing hole to fixing hole for the wall mounted plate, 35mm hole to hole going the other way.

-- 90mm - Total length of the fixing plate which fixes onto the wall

-- 70mm fixing hole to fixing hole for the wall mounted plate

-- 59mm glass fixing hole to glass fixing hole for the wall mounted plate

-- Polished chrome mirror finish.

-- Fits glass which is 10mm in thickness. This will also fit glass that is 6mm and 8mm in thickness if the plastic / rubber pads which come with the hinge are used to pad the hinge out.

-- The load weight on the hinge can be up to 45kg. This weight applies to glass doors which are up to 1 metre in width. The wider the door the more tension and stress is placed on the hinge. Even if the overall weight of the glass remains under 45KG's if the width of the glass door is 1.5 metres it will place too much strain on the hinges.

-- Self closing. The hinge will self close the door when the door is open 30 degrees or less.

-- Square edge hinge

-- The hinge has been tested to open and close a shower door up to 100,000 times.

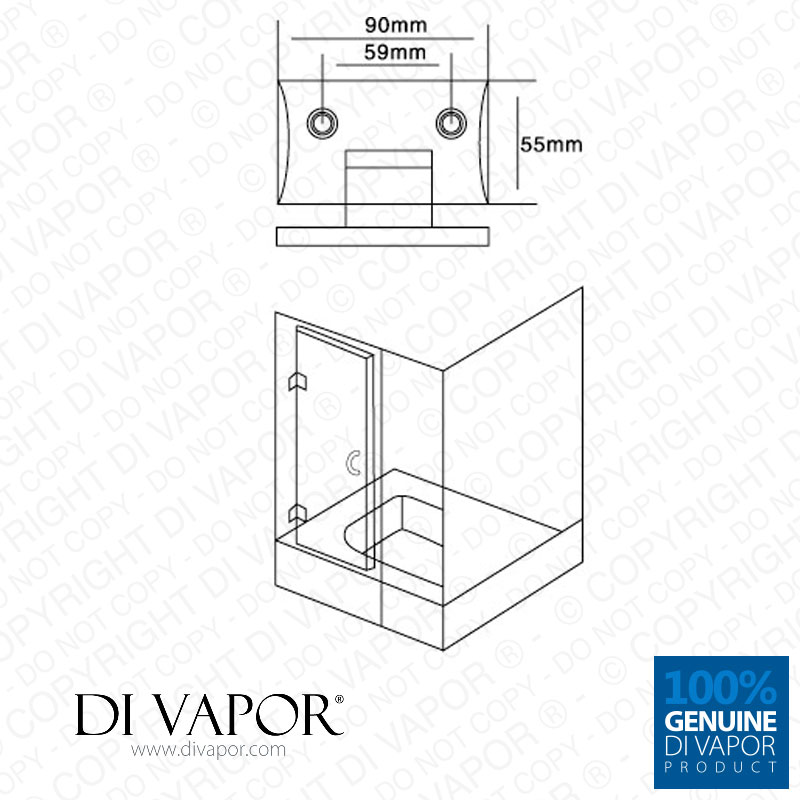

-- Designed to fit onto a glass panel as per the technical diagram.
