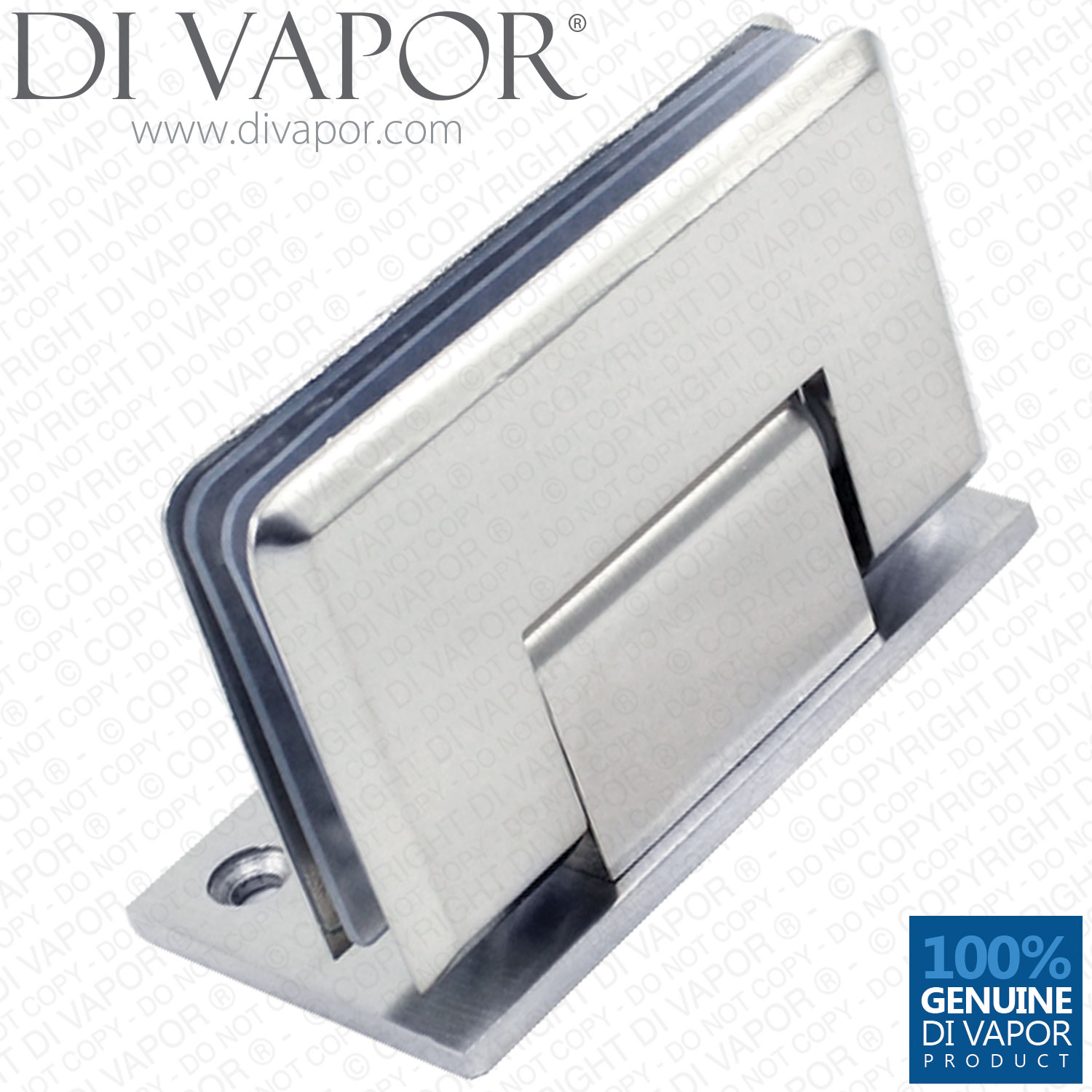

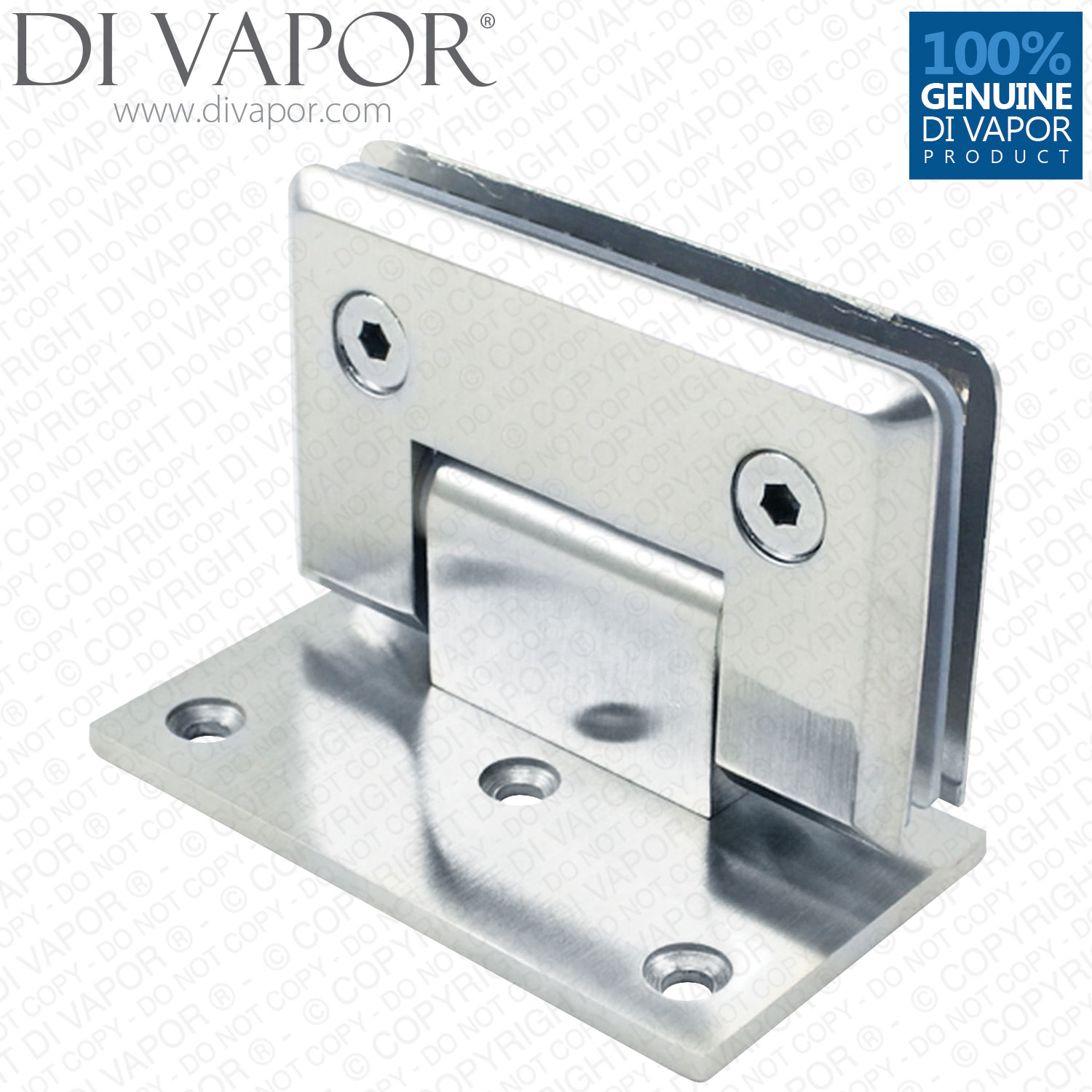

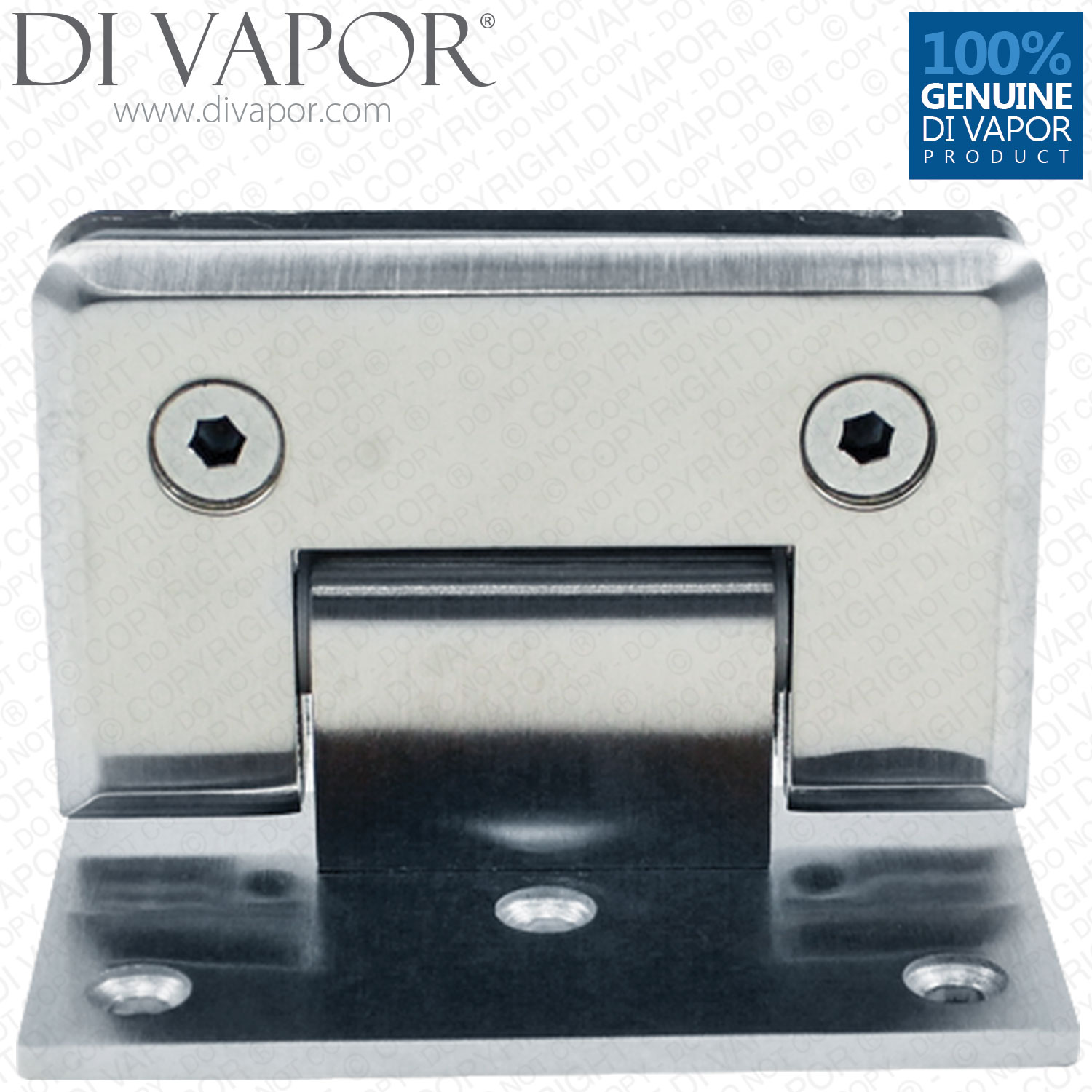

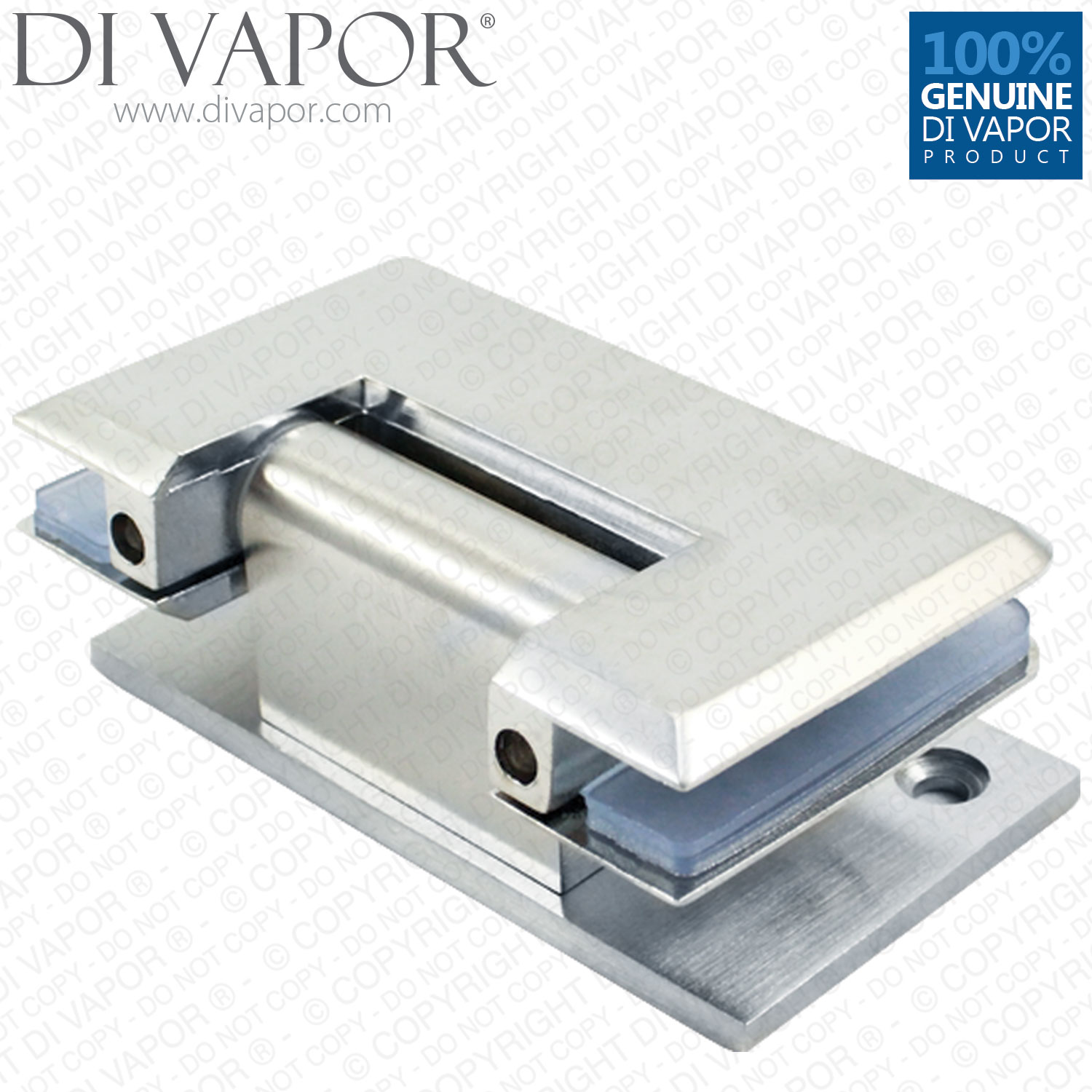

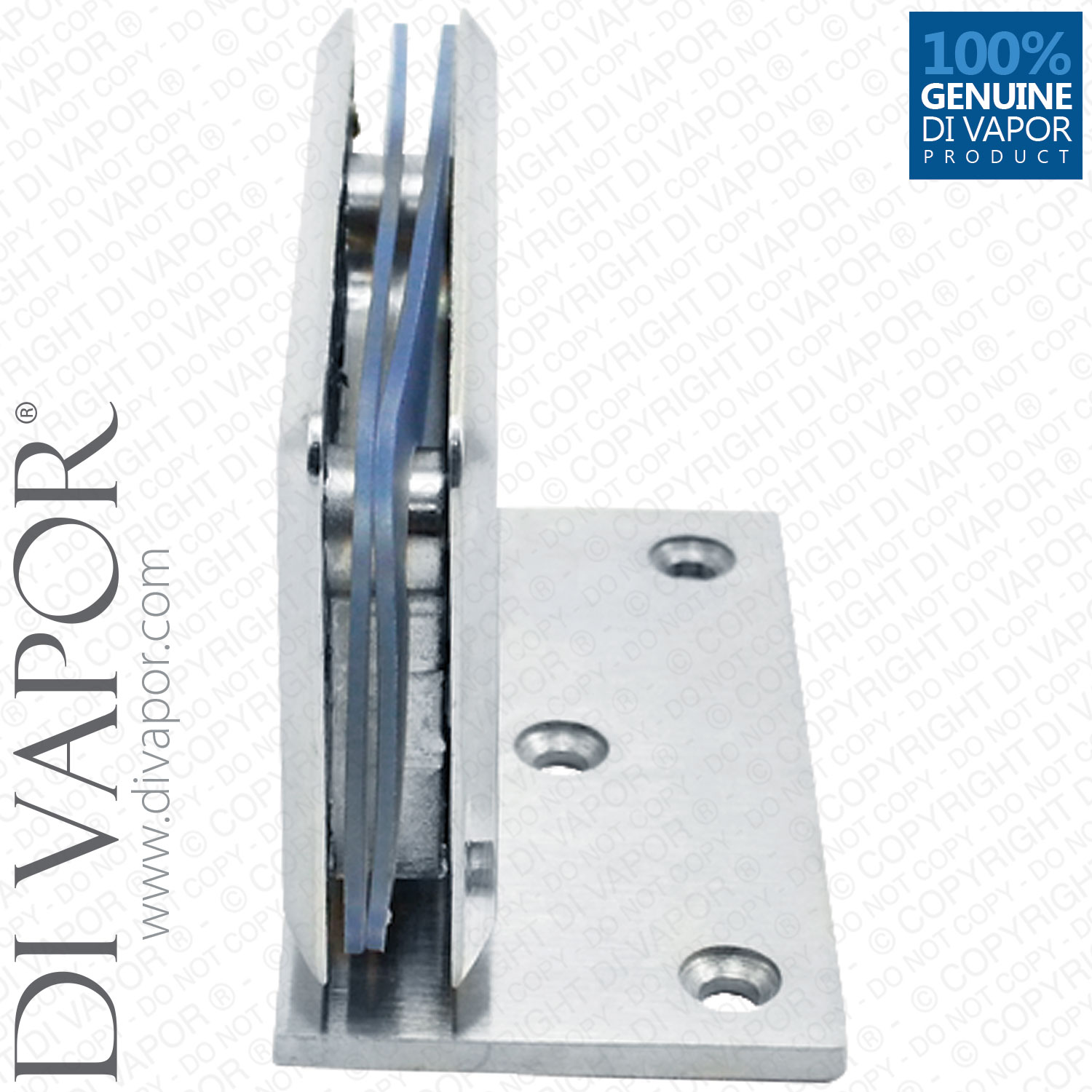

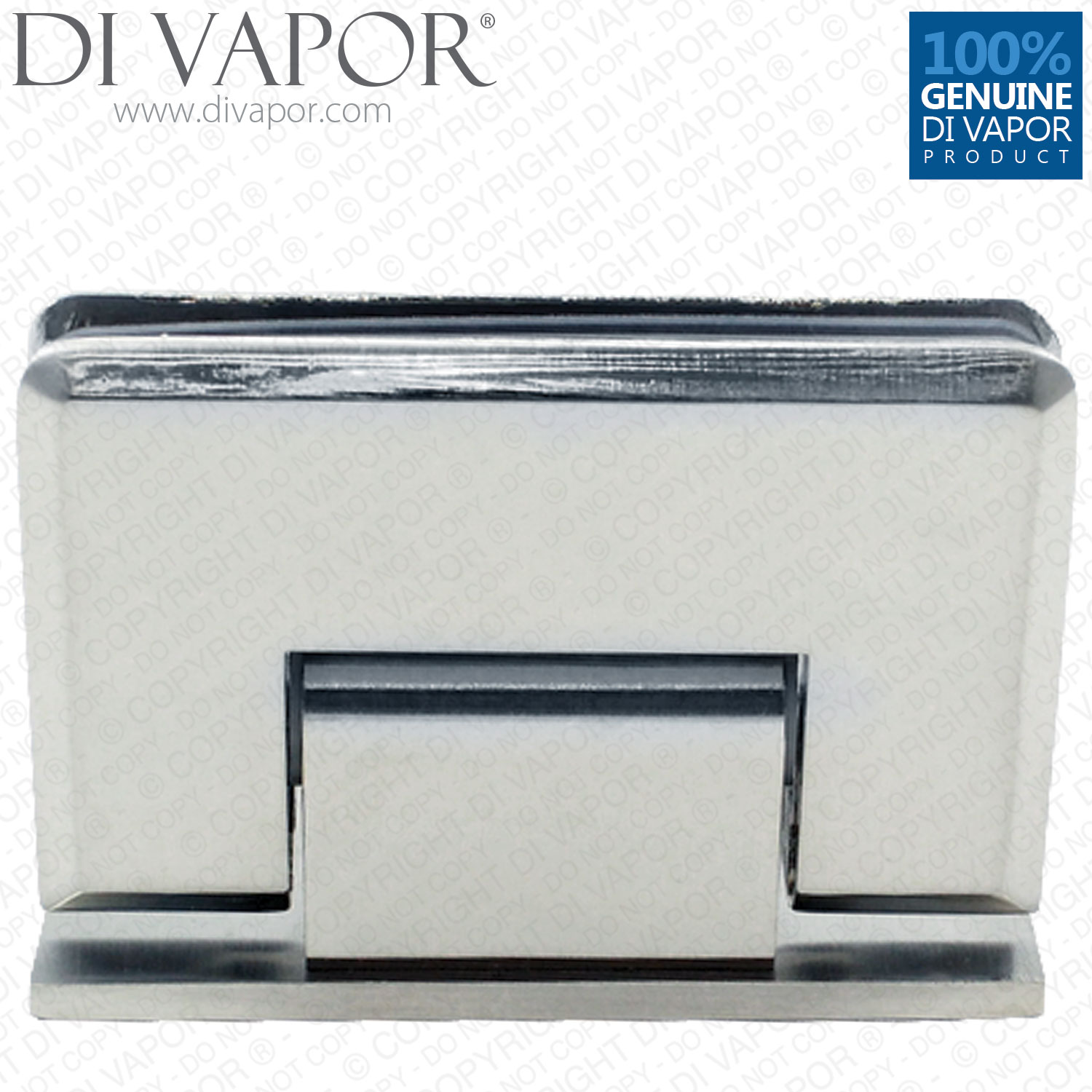

90 Degree Glass Door Hinge Bracket | Light Satin Nickel Finish | Zinc Alloy

Summary

90 degree hinge door bracket designed to support large doors and panels. Complete folding angle that can be used to open outward or inward.

Self closing when door is open approximately 30 degrees

-- The hinge comes with 4 x screws and 4 x wall plugs and an allen key.

--------------

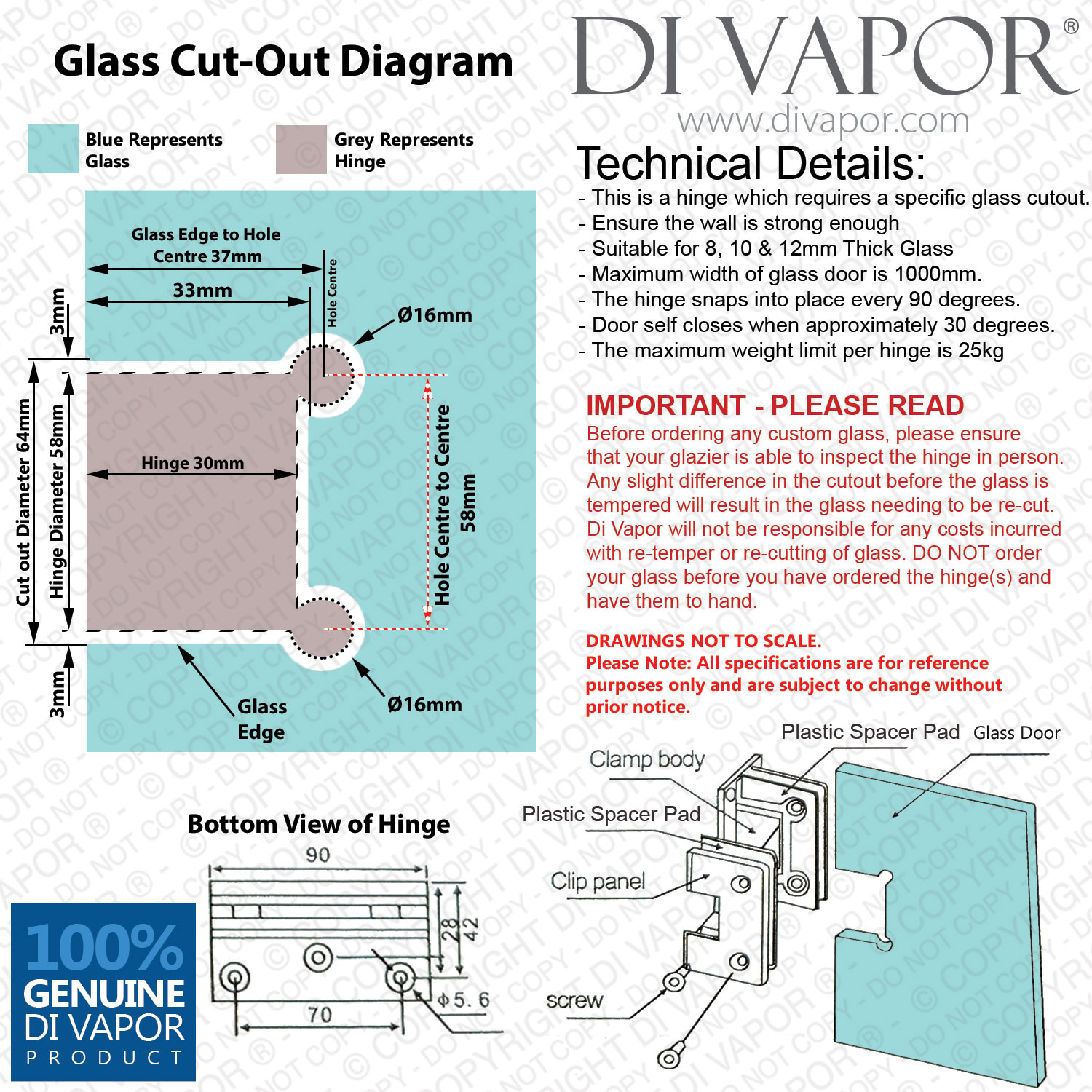

IMPORTANT Before ordering any custom glass, please ensure that your glazier is able to inspect the hinge in person. Any slight difference in the cutout before the glass is tempered will result in the glass needing to be re-cut. Di Vapor will not be responsible for any costs incurred with re-temper or re-cutting of glass. DO NOT order your glass before you have ordered the hinge(s) and have them to hand.

--------------

Manufactured from a light satin nickel coated zinc alloy, this heavyweight quality fixture is suitable for most environments including the bathroom and kitchen.

Supports materials up to 10mm thick, accommodating 8mm - 10mm using appropriating padding.

The maximum weight limit per hinge is 25kg. We recommend that this weight limit is adhered to and considered when deciding how many hinges are being used per panel. Typical usage for most panels and doors is 2 -3 hinges per side. The maximum width of the glass door should be no more than 700mm.

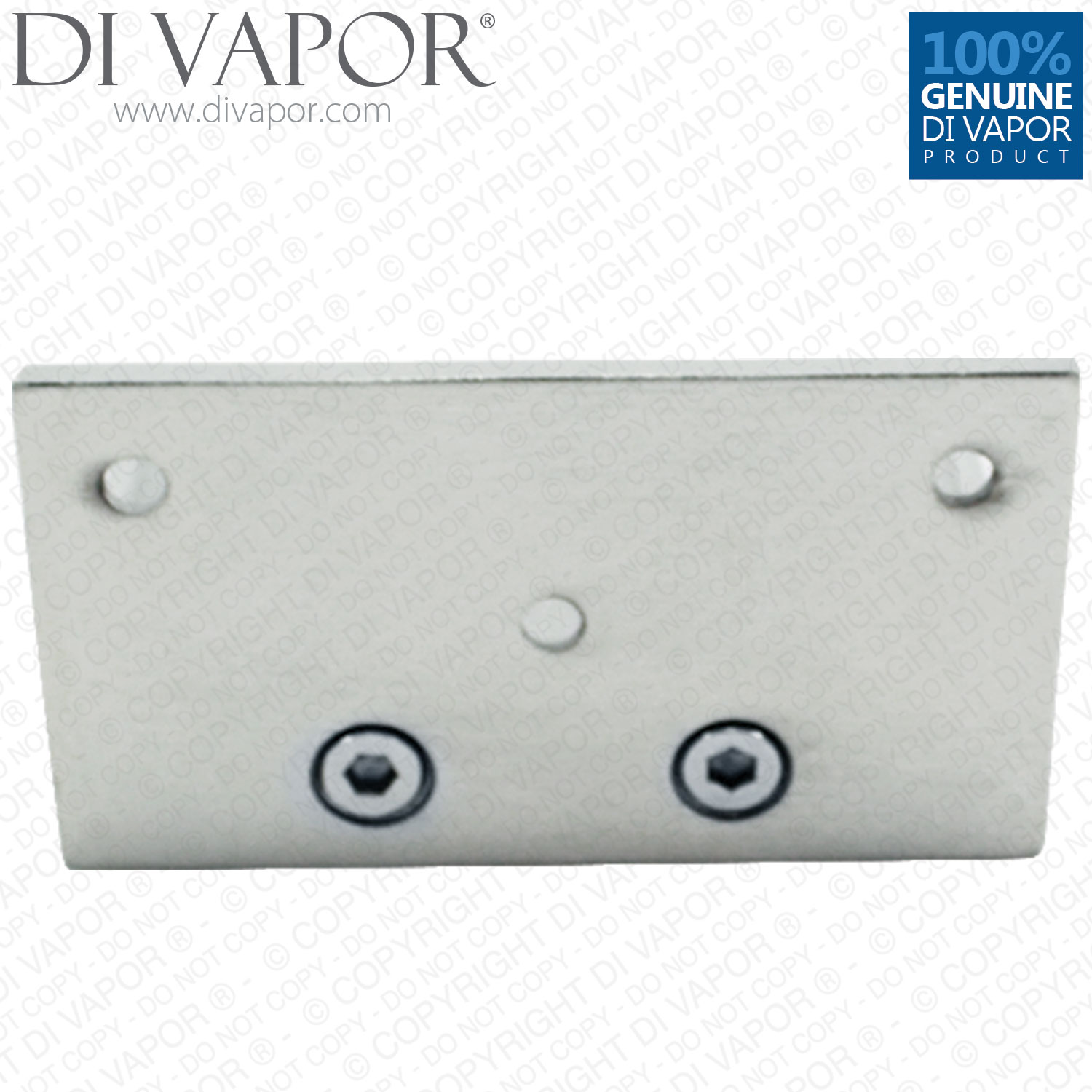

Supporting bracket must be fixed to a solid surface - Typically used in pairs.

Sold individually.
