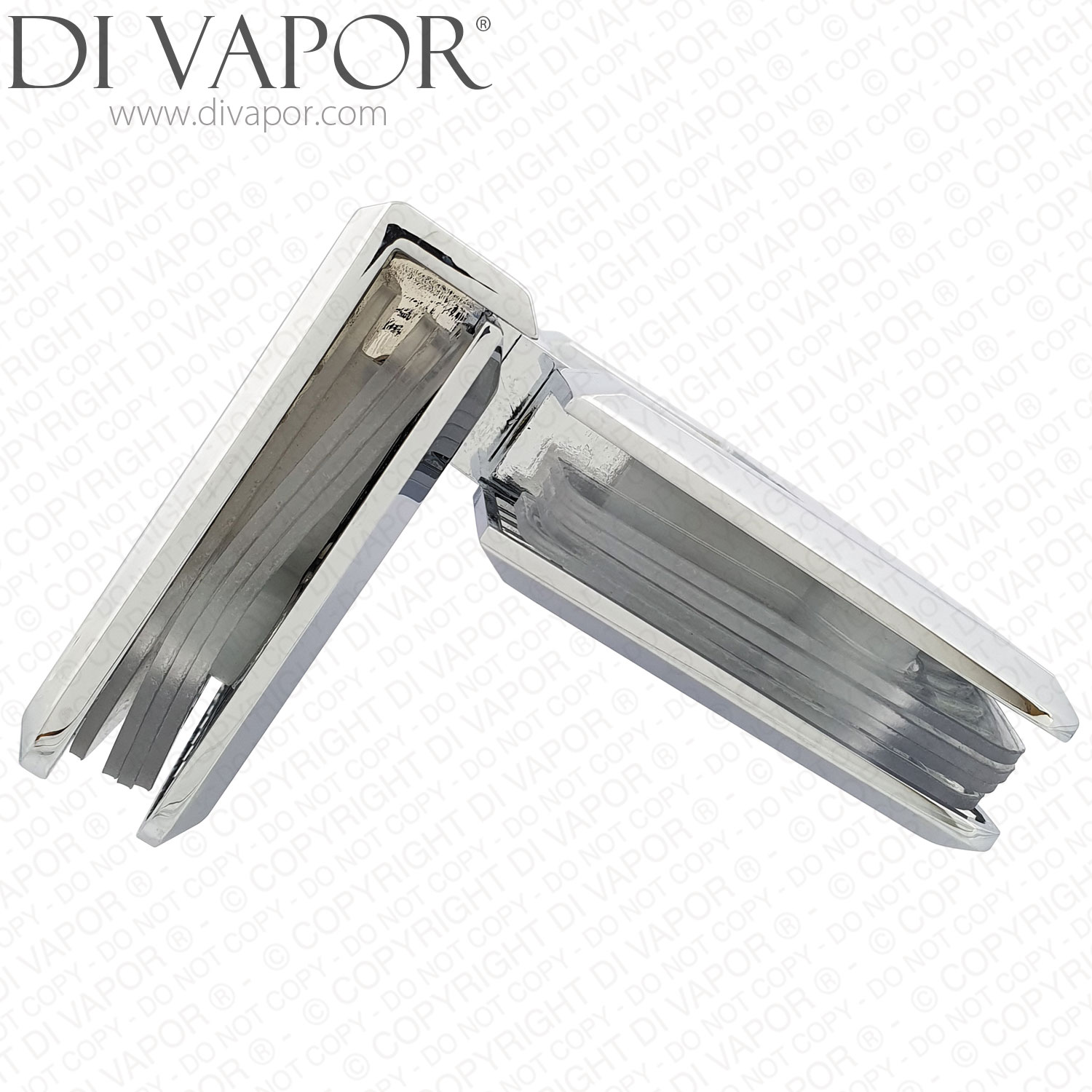

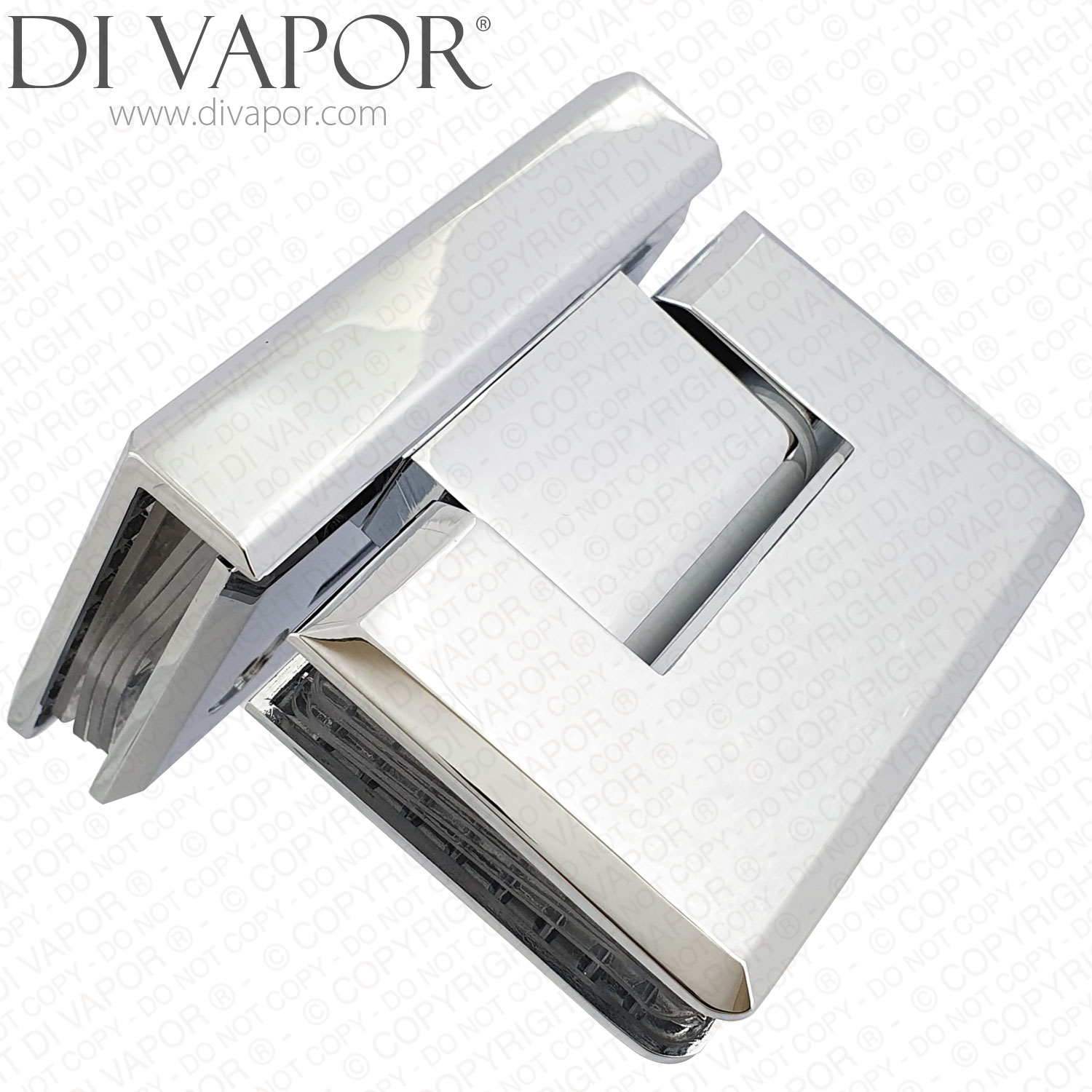

90 Degree Glass to Glass Shower Door Hinge | Chrome Plated Solid Copper | Tapered Edges
Send a photo of your item and we'll help confirm it.
Summary
Copper right angled 90 degree door hinge designed to support a variety of large door materials and panels via 2 fixed mounting bolts per side. Can be opened inward or outward depending on fitting requirements.
What's included

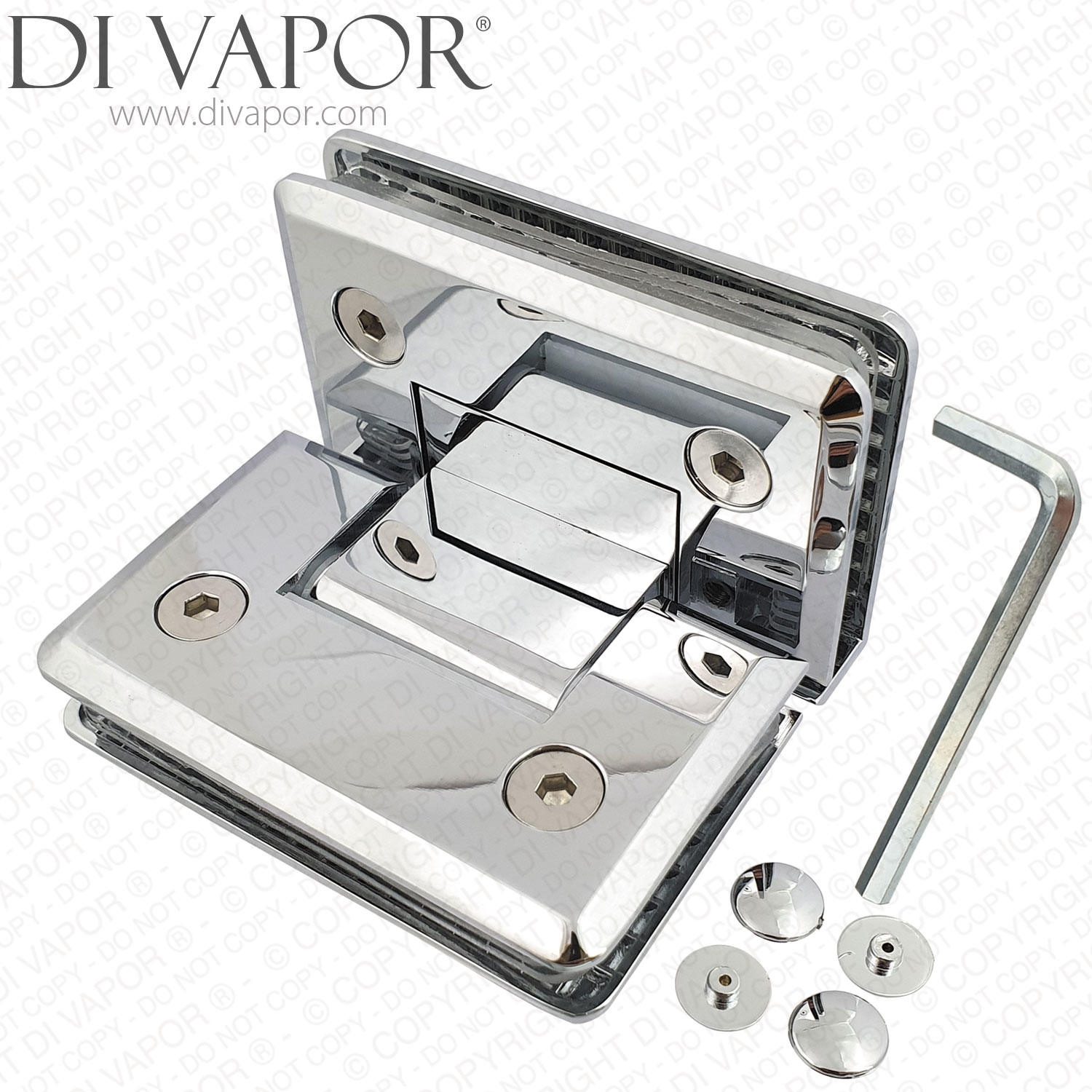

- The copper right angled 90 degree glass hinge
- Allen key

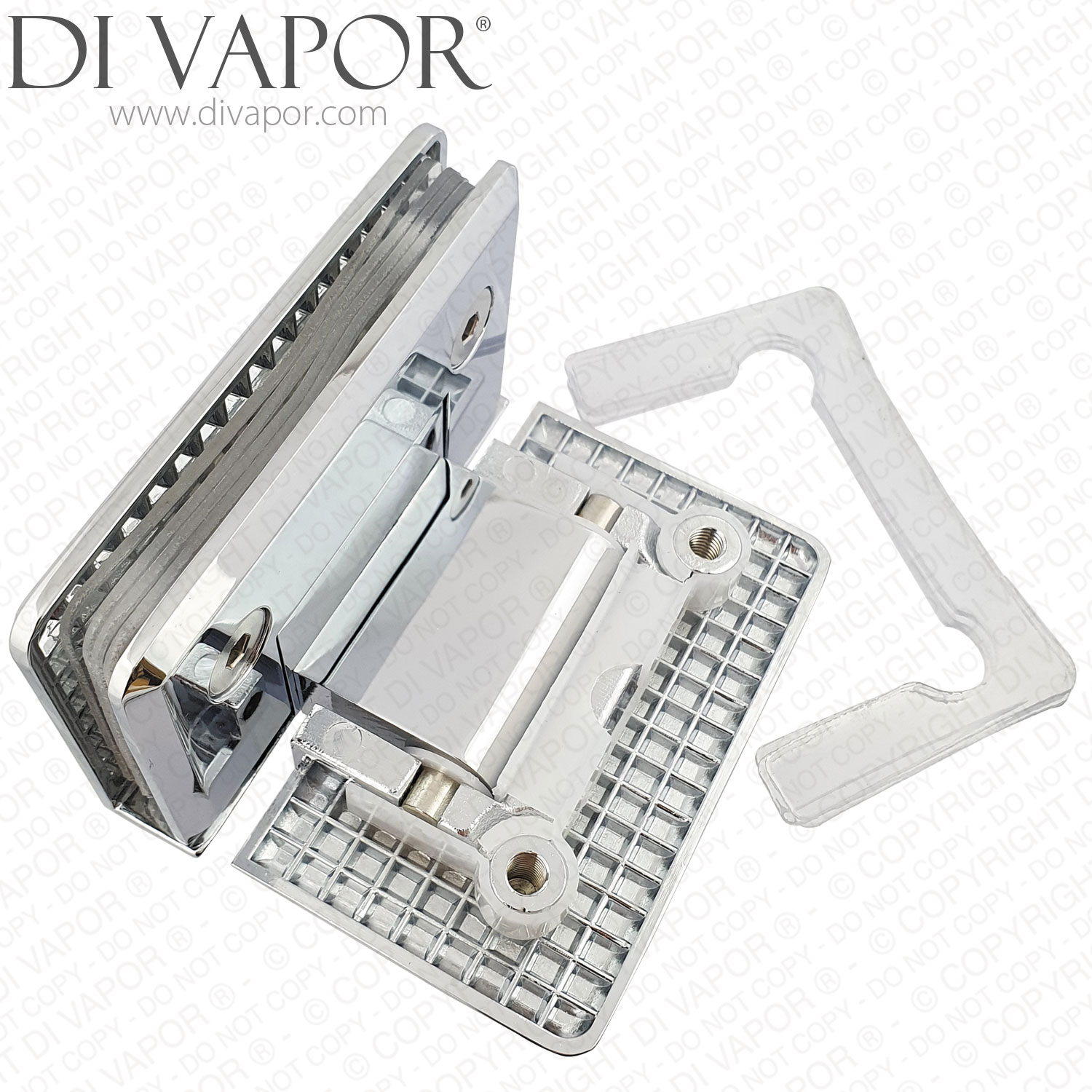

- Gasket padding (which will come already inside the hinge)

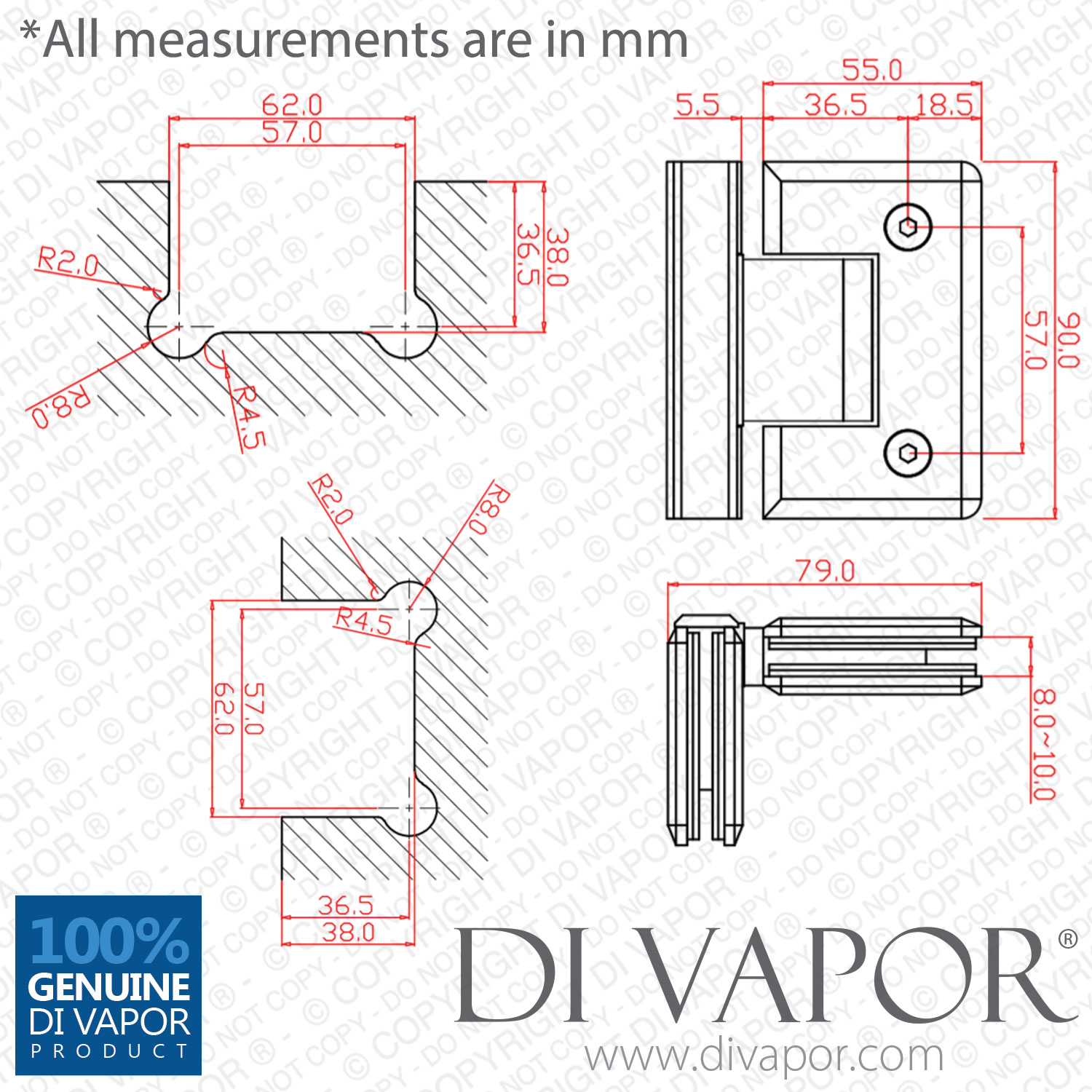

- Glass cut out measurements tech sheet (please see the glass cut out in the image section)
- Self closing when door is open approximately 30 degrees
--------------
IMPORTANT Before ordering any custom glass, please ensure that your glazier is able to inspect the hinge in person. Any slight difference in the cutout before the glass is tempered will result in the glass needing to be re-cut. Di Vapor will not be responsible for any costs incurred with re-temper or re-cutting of glass. DO NOT order your glass before you have ordered the hinge(s) and have them to hand.
--------------
Useful Information Regarding this Glass Hinge
| Weight of Hinge | 827g (0.83kg) |
|---|---|
| Glass Thickness | 6 - 10mm |
| Glass Requirements | Glass cut-out required |
| Material | Copper |
| Finish | Polished Chrome (mirror finish) |
| Weight Limit and Maximum Glass Panel Size | The maximum weight limit per hinge is 25kg. We recommend that this weight limit is adhered to and considered when deciding how many hinges are being used per panel. Typical usage for most panels and doors is 2 -3 hinges per side. The maximum width of the glass door should be no more than 700mm. |
| Door Opening Function | This hinge has dual action springs which means that the door will open 90 degrees outwards and 90 degrees inwards., opening both inwards and outwards (90 degree in and 90 degree out). |
| Door Closing Function | Self-closing from approximately 15-20 degrees |
| Design Style | Smoothed tapered edges |
Manufactured from copper coated in polished chrome, this heavyweight high quality fixture can be fitted in most environments including the bathroom and kitchen.

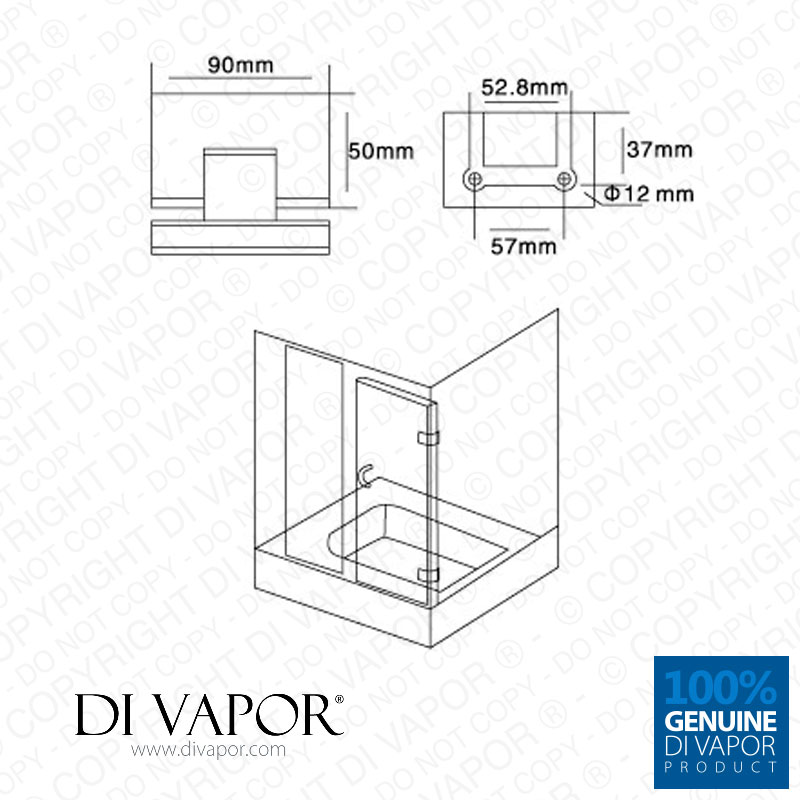

Typically fitted directly to a glass door via two mounting bolts included on both sides of the bracket. Please ensure that you have two mounting holes per side - Refer to the technical diagram for more information.
Typically used in pairs.
Sold individually.
