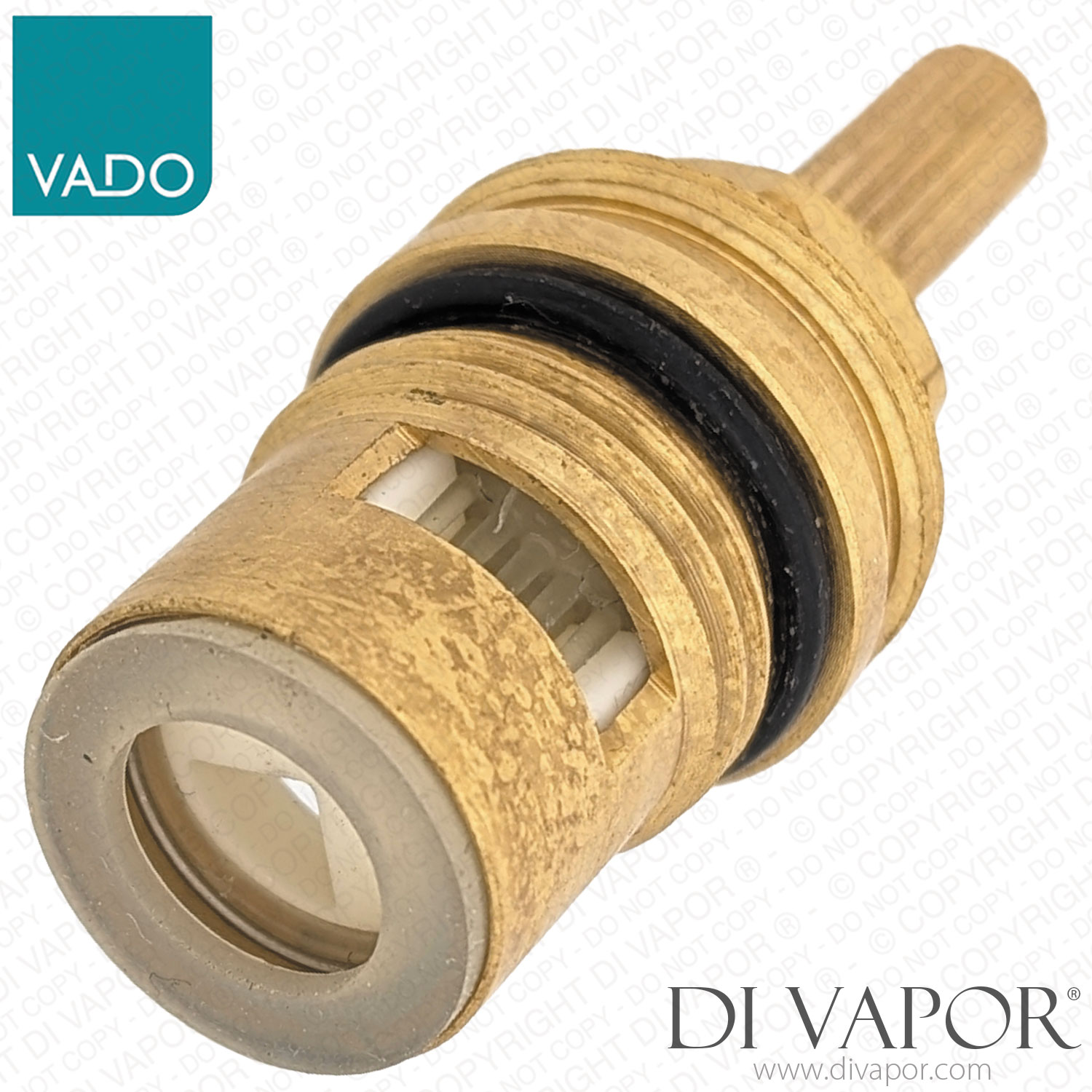

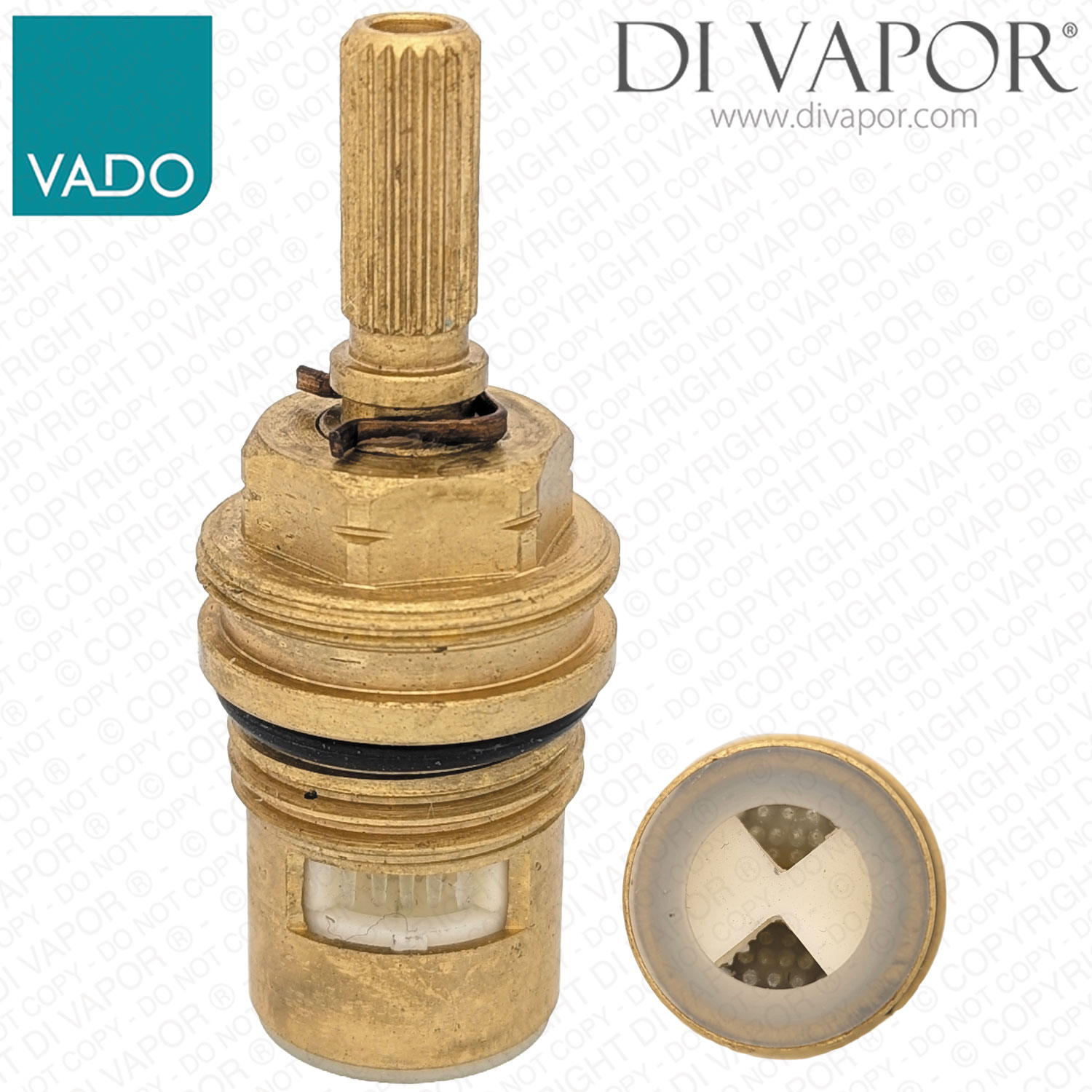

Vado ZOO-106/VALVE/HT-1/2 Hot Ceramic Cartridge
SUMMARY
The Vado ZOO-106/VALVE/HT-1/2 is a hot-side quarter-turn ceramic tap cartridge used to control water flow and shut-off through the hot tap body. It is used in verified Vado and Vellamo tap applications where this exact hot ceramic cartridge is specified.
This cartridge opens clockwise and closes anti-clockwise, making it the hot-side cartridge in the matched ZOO-106/VALVE ceramic cartridge pair. It is used to restore correct handle operation and shut-off where the original cartridge is worn, stiff, leaking or allowing water to drip from the tap spout when turned off.
Technical Details
- - Part Number: ZOO-106/VALVE/HT-1/2
- - Cartridge type: hot ceramic quarter-turn tap cartridge
- - Total length including bottom seal: 59mm
- - Diameter at widest point: 23.8mm

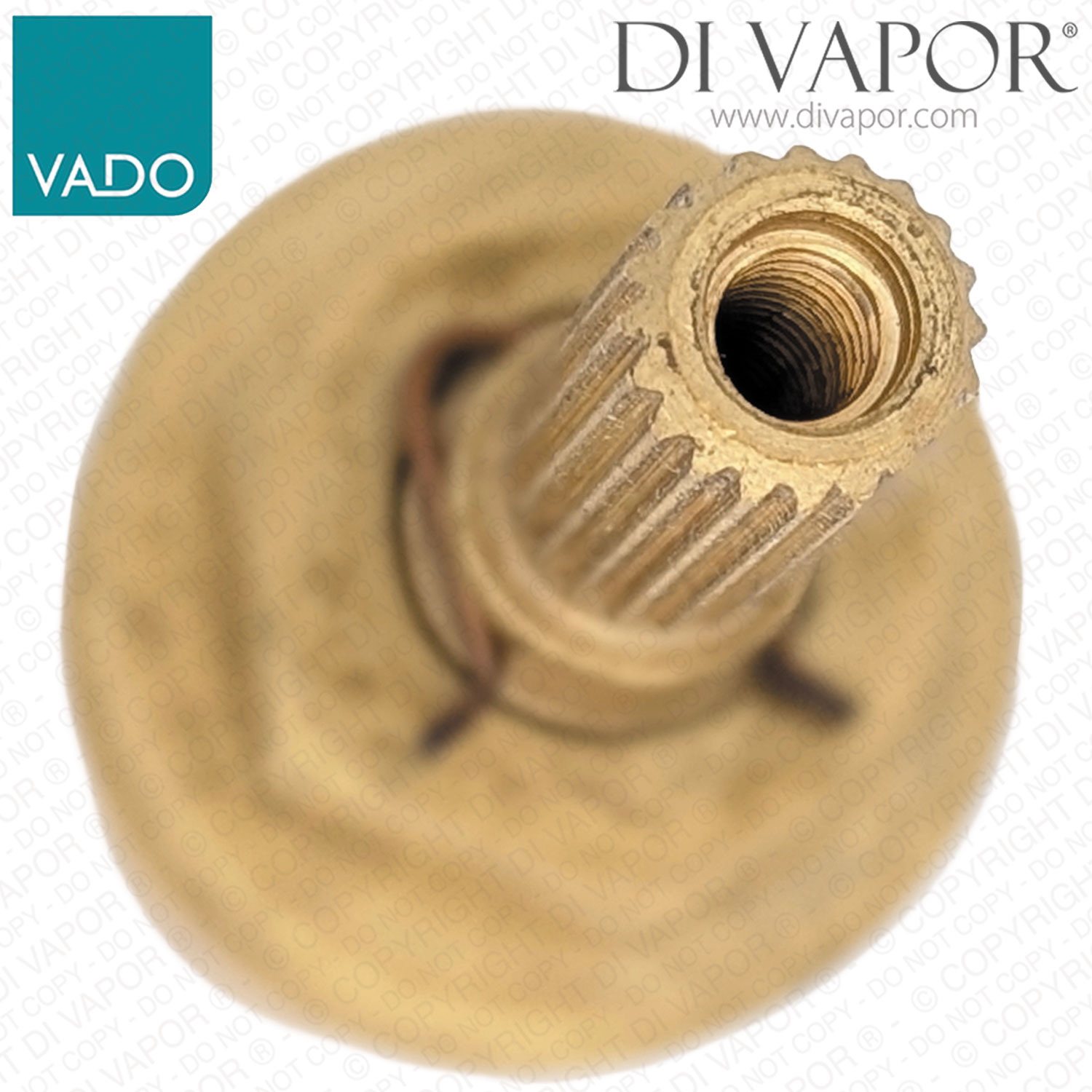

- - Top spline diameter: 7.6mm
- - Top spline teeth / notches: 20
- - Lower fitting thread diameter: 20.6mm / 1/2 inch BSP
- - Barrel diameter below lower thread: 18.5mm
- - Bottom seal colour: white
- - Close direction: anti-clockwise close / clockwise open
- - Turn: quarter turn / 90 degree
- - Upper thread closer to spline: 23.7mm
Confirmed Compatible Models
- - VADO Zoo-106-C/P Zoo Basin pillar taps Deck Mounted
Pre-Order Check
Check the removed cartridge against the measurements, spline count, thread size and hot-side close direction before ordering. Do not order from dimensions alone if the tap model or cartridge code is uncertain, as similar-looking 1/2 inch ceramic tap cartridges can use different handed operation or fitting details.
