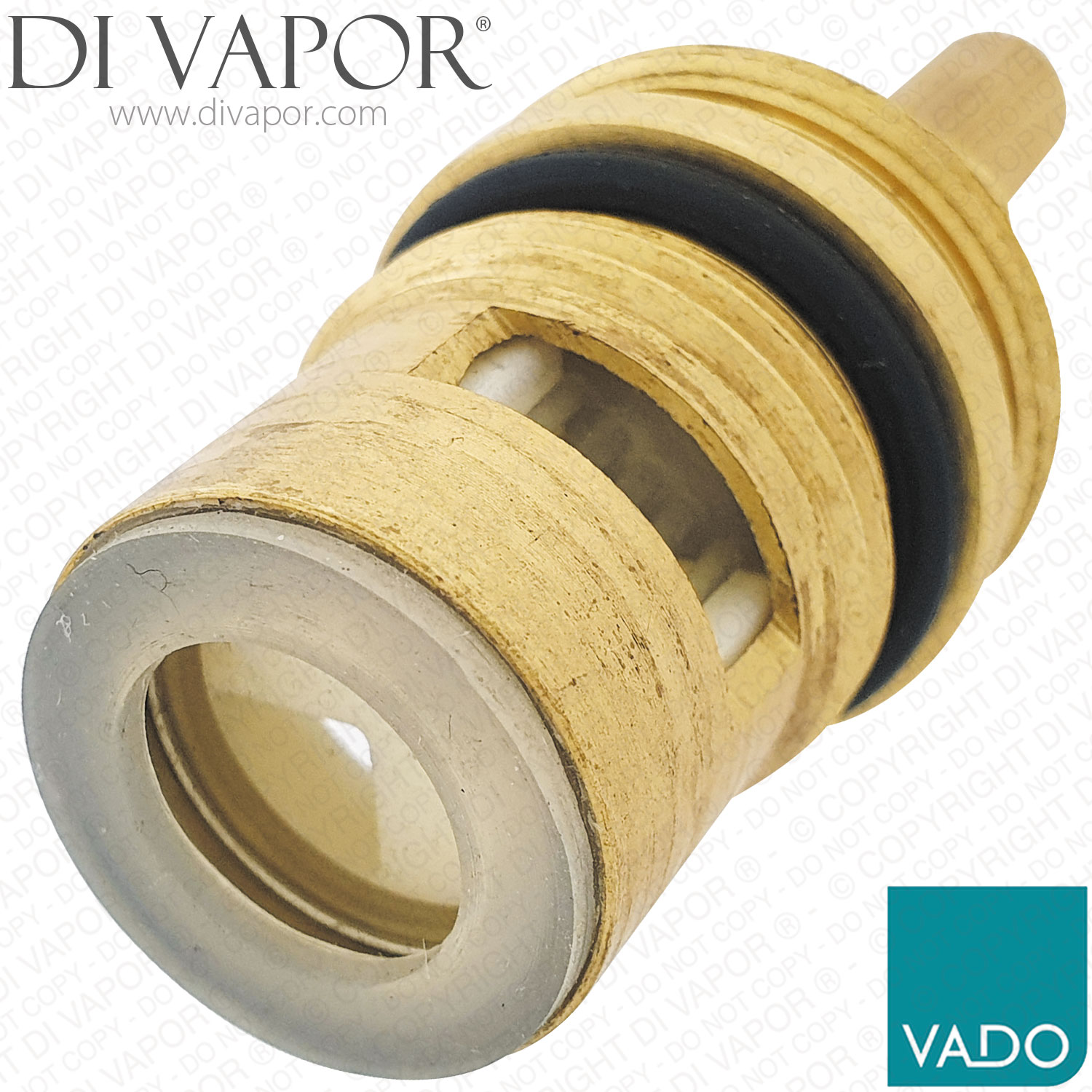

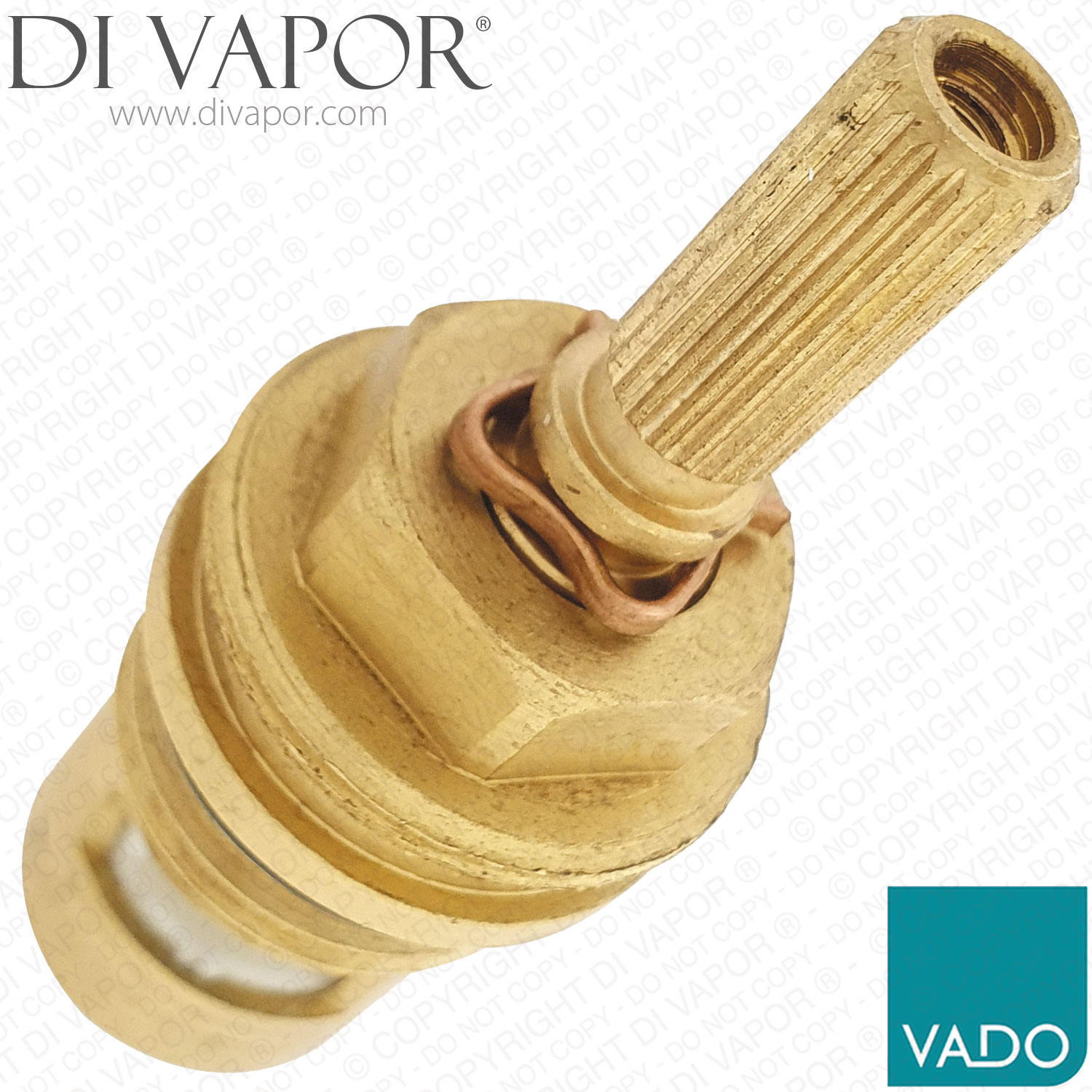

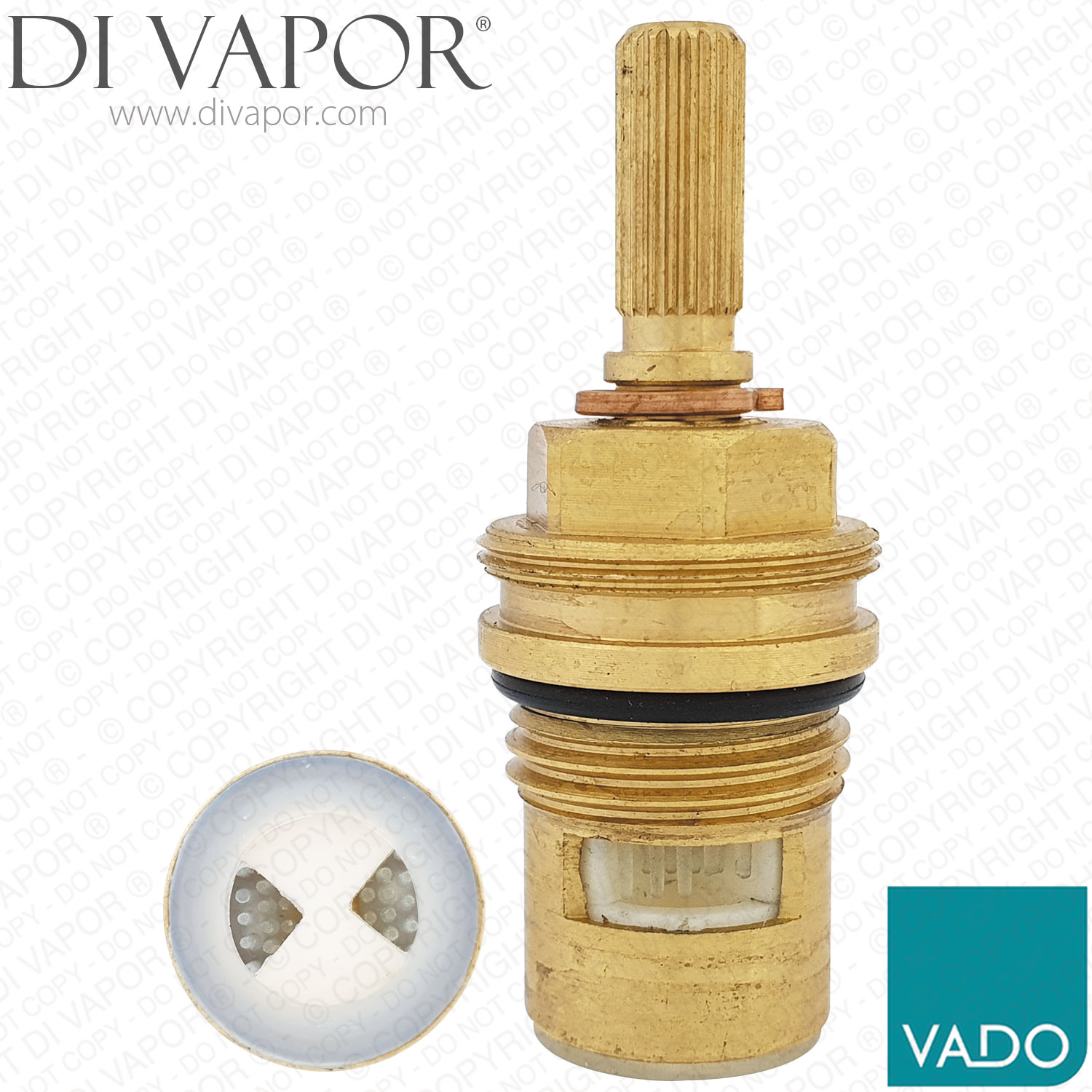

Vado ZOO-106/VALVE/CL-1/2 Cold Ceramic Cartridge
Send a photo of your item and we'll help confirm it.
Summary
Vado ZOO-106/VALVE/CL-1/2 is a cold ceramic flow cartridge for controlling the cold-side water flow and shut-off in selected Vado and Vellamo tap assemblies.
This quarter-turn cartridge is used where the original cold cartridge closes clockwise and opens anti-clockwise. A common sign of a worn ceramic flow cartridge is poor shut-off, a stiff handle action or water continuing to drip from the tap spout after the tap has been turned off.
Technical Details
| Part number | ZOO-106/VALVE/CL-1/2 |
|---|---|
| Brand | Vado |
| Total length including bottom seal | 59mm |
| Diameter at widest point | 23.8mm |
| Top spline diameter | 7.6mm |
| Top spline teeth / notches | 20 |
| Lower fitting thread diameter | 20.6mm / 1/2" BSP |
| Barrel diameter below lower thread | 18.5mm |
| Bottom seal colour | White |
| Close direction | Clockwise close and anti-clockwise open |
| Turn | Quarter turn / 1/4 turn / 90 degrees |
| Upper thread closer to spline | 23.7mm |
Confirmed Compatible Models
- VADO Zoo-106-C/P Zoo Basin pillar taps Deck Mounted
- Vellamo CAHTSET-CHROME Kaffe Plus WRAS Approved 3-in-1 Instant Boiling Water Tap with Boiler Unit and Filter
Before You Order Check
Check the original cartridge before ordering and compare the part code, total length, 20-tooth spline, white bottom seal, 1/2" BSP lower thread and clockwise-close cold operation. Do not select this cartridge from diameter alone if the original cartridge markings or close direction differ.
