Vado C-305-RTC Cartridge
SUMMARY

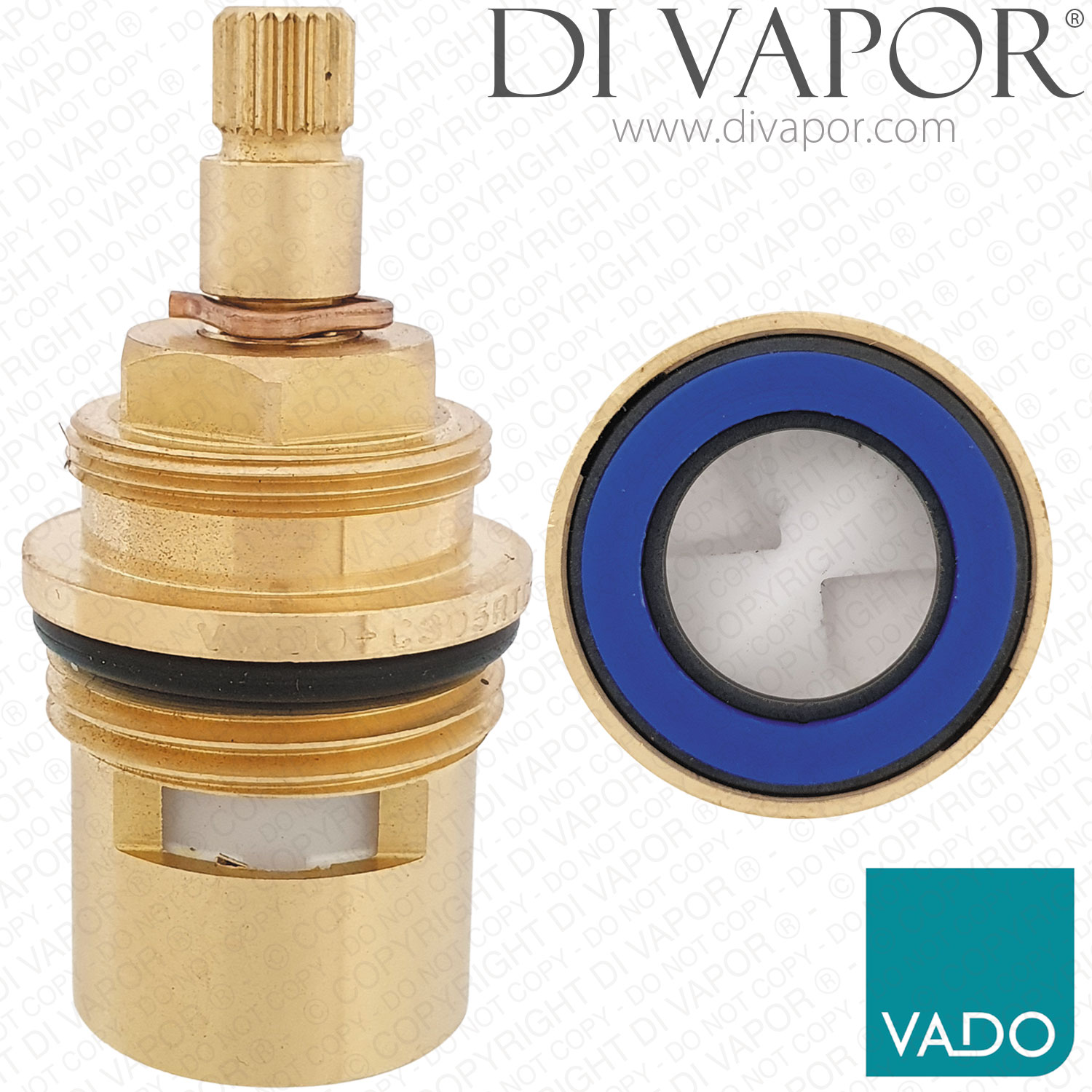

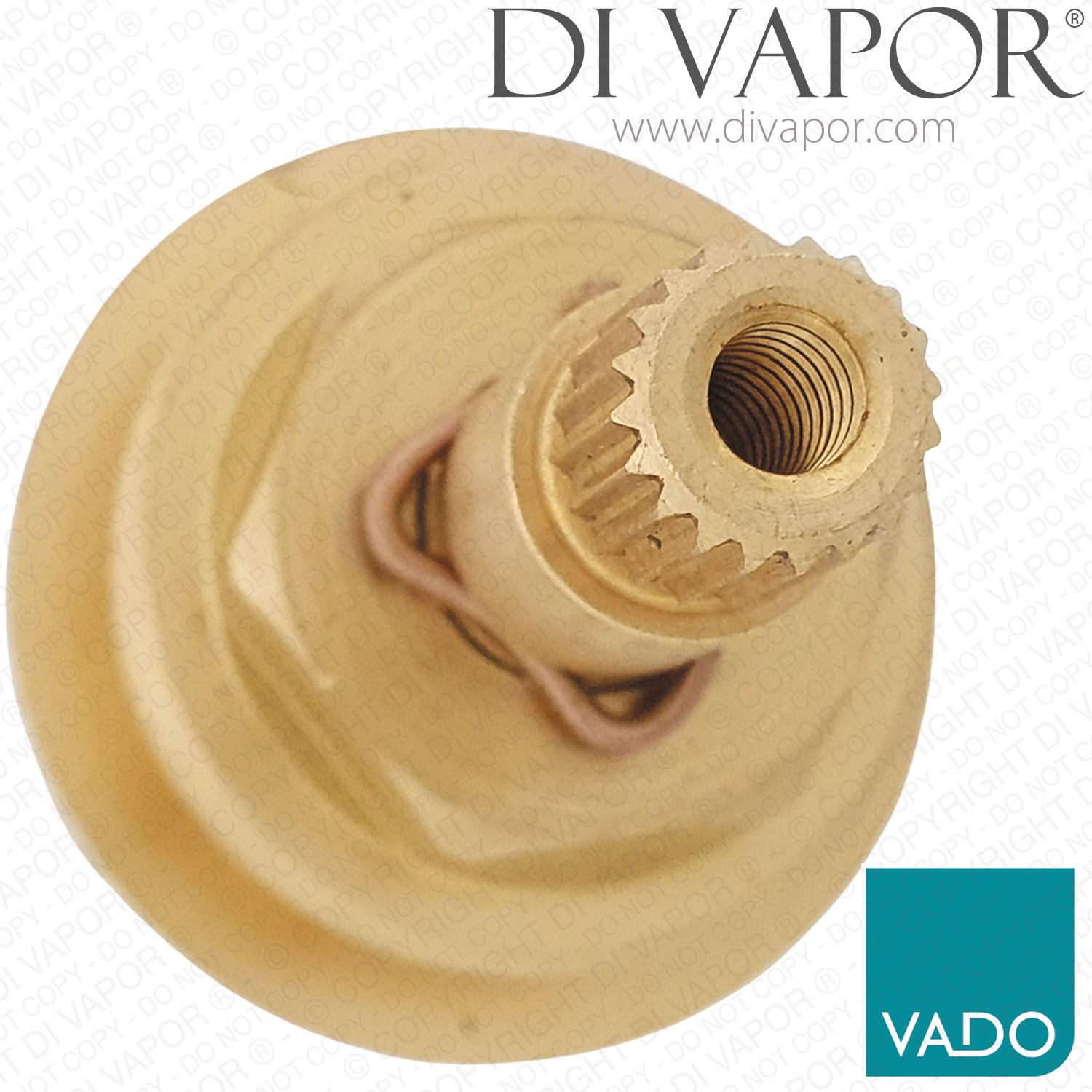

The Vado C-305-RTC is a ceramic disc flow cartridge used for on-off water flow control in a VADO 3/4 inch stop valve application. It is fitted inside the valve body to open and close the waterway and restore correct shut-off when the original cartridge has become worn or difficult to operate.
A common sign of flow cartridge wear is water continuing to drip from the shower head or outlet after the valve has been turned off. Other symptoms can include stiff handle movement poor shut-off or inconsistent flow control.
Technical Details
- - Brand: VADO
- - Part Number: C-305-RTC
- - Part type: ceramic disc flow cartridge
- - Application: 3/4 inch VADO stop valve flow control
- - Associated valve connection size: 3/4 inch female inlet and 3/4 inch female outlet
- - Associated valve pressure range: 0.2 bar minimum to 5.0 bar maximum
- - Associated valve flow rate: 29 litres per minute at 3.0 bar
Check the part code on the existing cartridge or valve spares diagram before ordering. Use a small amount of suitable silicone grease on the O-rings and seals during installation and make sure the valve body is clean before fitting the replacement cartridge.
Confirmed Compatible Models
- - VADO Zoo-143-3/4-C/P Zoo 3/4 Concealed Stop Valve Spare Parts
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
