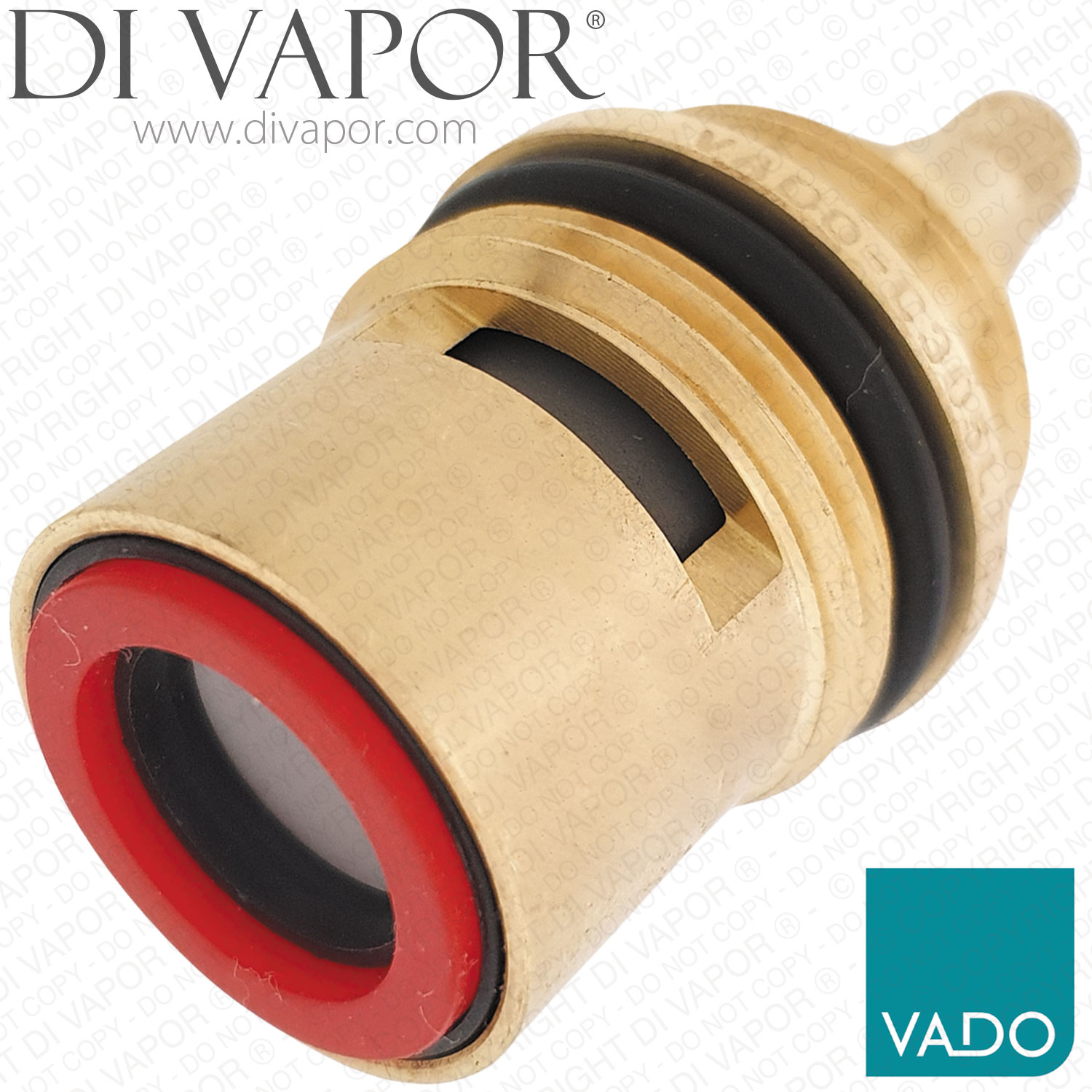

Vado C-305-LTC Hot Cartridge

SUMMARY

Vado C-305-LTC is a hot-side 3/4 Inch ceramic disc flow cartridge used to control on and off water flow in selected older Vado bath shower mixers, bath fillers, valve pairs and concealed stop valves.

This cartridge is for the hot control side and is used where the valve requires a 20 tooth splined 3/4 Inch ceramic valve with anti-clockwise close and clockwise open operation. A common symptom of failure is poor shut-off or water continuing to drip from the bath spout or shower outlet when the control is turned off.

Technical Details

- - Brand: Vado

- - Part Number: C-305-LTC

- - Part type: hot ceramic disc flow cartridge

- - Valve size: 3/4 Inch

- - Operation: anti-clockwise close and clockwise open

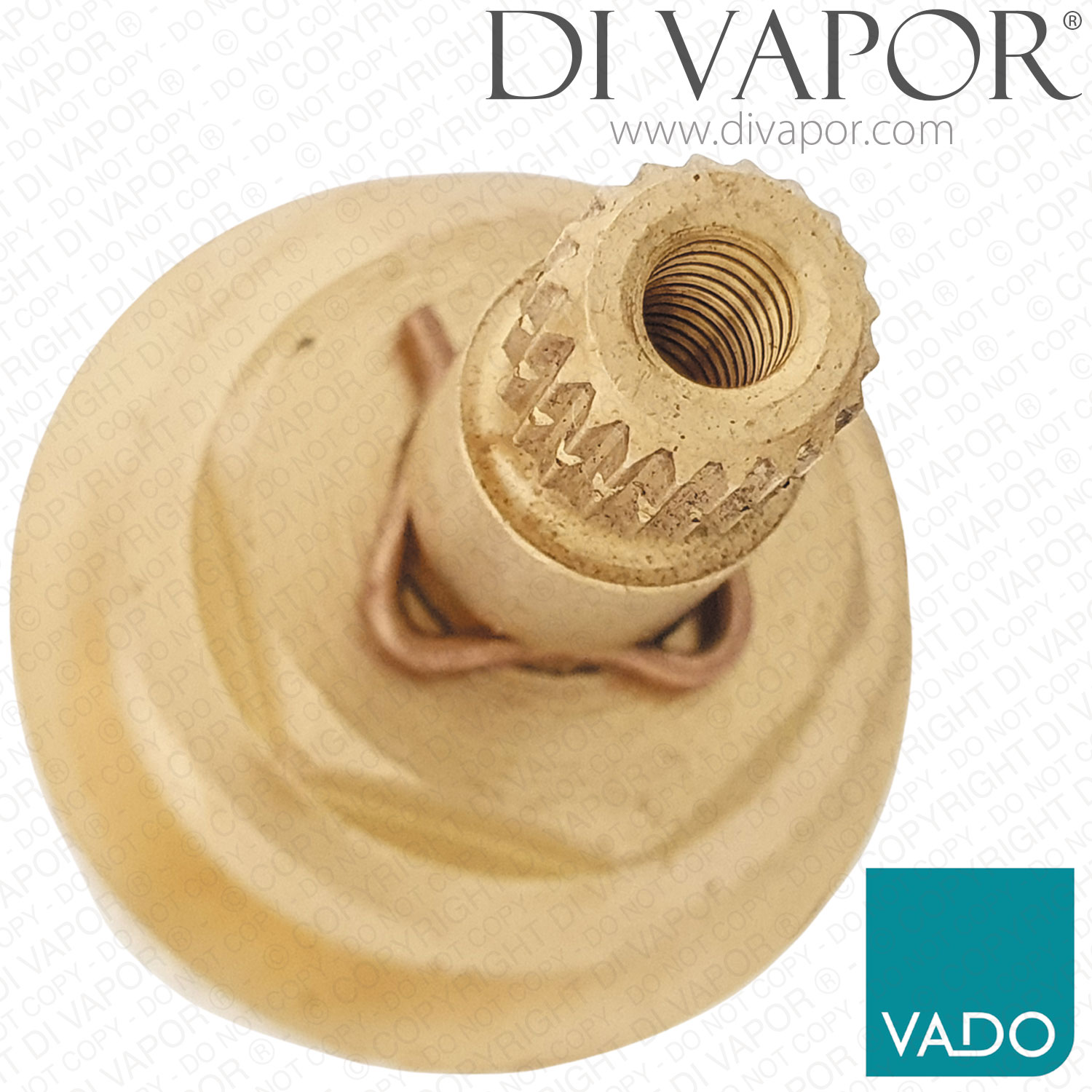

- - Spline: 20 tooth

- - Approximate overall cartridge height: 57mm from the top of the splined spindle to the base

- - Approximate top spline diameter: 7.6mm across the splined handle stem

- - Approximate upper body height reference B: 31mm from the top of the spline to the body shoulder reference point

- - Approximate lower body height reference C: 26mm from the body shoulder reference point to the cartridge base

- - Approximate exposed spline height reference D: 8mm

Important Pre-Order Check

- - Some valves in these Vado model families use C-303-LTC or ELE-VALVE/CD/HT-3/4 instead of C-305-LTC depending on the valve version, production age or parts update.

- - Use C-305-LTC only when the removed hot-side cartridge, original valve paperwork or older valve version confirms C-305-LTC.

- - Do not choose C-305-LTC from the model family code alone. Check the removed cartridge length, spline diameter, 20 tooth spline, 3/4 Inch fitting, hot-side orientation and anti-clockwise close operation before ordering.

- - The Di Vapor model links below are for model identification and cross-checking. A linked model page is not by itself a guarantee that every version of that model uses C-305-LTC.

Confirmed Compatible Models

- - C-305-LTC older version only: ELW/ELA-125-3/4

- - C-305-LTC older version only: ELW/ELA-139-3/4

- - C-305-LTC older version only: ELW-135-3/4

- - C-305-LTC older version only: VADO ELA-135-3/4-C/P Elements Air 5 Hole Bath Shower Mixer Deck Mounted Spare Parts

- - C-305-LTC older version only: VADO ELW-135/NS-3/4-C/P Elements Water 4 Hole Bath Shower Mixer Deck Mounted Spare Parts

- - C-305-LTC older version only: VADO ELA-135/NS-3/4-C/P Elements Air 4 Hole Bath Shower Mixer Spare Parts

- - C-305-LTC older version only: ELW/ELA-126S

- - C-305-LTC older version only: VADO ELW-126L-3/4-C/P Elements Water 3 Hole Bath Filler with 200mm Spout Wall Mounted Spare Parts

- - C-305-LTC older version only: VADO ELA-126L-3/4-C/P Elements Air 3 Hole Bath Filler Spare Parts

- - C-305-LTC older version only: VADO ELW-142/PR-3/4-C/P Elements Pair of Valves Deck Mounted Spare Parts

- - C-305-LTC older version only: VADO ELA-142/PR-3/4-C/P Elements Air Pair Of Valves 3/4 Deck Mounted Spare Parts

- - C-305-LTC older version only: VADO ELW-143-3/4-C/P Elements Water Wall Mounted Single Stop Valve 3/4 Inch Spare Parts

- - C-305-LTC older version only: VADO ELA-143-3/4-C/P Elements Air 3/4 Concealed Stop Valve Wall Mounted Spare Parts

- - C-305-LTC older version only: VADO NUA-135-3/4-C/P Nuance 5 Hole Bath Shower Mixer Spare Parts

- - C-305-LTC older version only: NUA-139

- - C-305-LTC older version only: NUA-135/NS-3/4

- - C-305-LTC older version only: NUA-126S

- - C-305-LTC older version only: NUA-126L

- - C-305-LTC older version only: NUA-125-3/4

- - C-305-LTC older version only: NUA-143-3/4

- - C-305-LTC older version only: NUA-142-3/4

- - C-305-LTC older version only: SEN-135-3/4

- - C-305-LTC older version only: VADO SEN-135/NS-C/P Sense 4 Hole Bath Shower Mixer Deck Mounted Spare Parts

- - C-305-LTC older version only: VADO SEN-142/PR-3/4-C/P Sense Pair Of Valves Spare Parts

- - C-305-LTC older version only: SEN-143-3/4

- - C-305-LTC older version only: TON-126S

- - C-305-LTC older version only: VADO TON-126L-3/4-C/P Tonic 3 Hole Bath Filler with 200mm Spout Wall Mounted Spare Parts

- - C-305-LTC older version only: VADO TON-135-3/4-C/P Tonic 5 Hole Bath Shower Mixer Spare Parts

- - C-305-LTC older version only: TON-139

- - C-305-LTC older version only: TON-131S

- - C-305-LTC older version only: TON-125-3/4

- - C-305-LTC older version only: VADO TON-142/PR-3/4-C/P Tonic Pair Of Valves Deck Mounted Spare Parts

- - C-305-LTC older version only: Vado TON-143-3/4 Tonic Wall Mounted Stop Valve Spare Parts

- - C-305-LTC older version only: VIC-143/CL-3/4

- - C-305-LTC older version only: ZOO-139

- - C-305-LTC older version only: VADO Zoo-135-3/4-C/P Zoo 5 Hole Bath Shower Mixer Deck Mounted Spare Parts

- - C-305-LTC older version only: VADO Zoo-135/NS-3/4-C/P Zoo 4 Hole Bath Shower Mixer Spare Parts

- - C-305-LTC older version only: ZOO-125-3/4

- - C-305-LTC older version only: VADO Zoo-142/PR-3/4-C/P Zoo Pair of Valves Deck Mounted Spare Parts

- - C-305-LTC older version only: VADO Zoo-143-3/4-C/P Zoo 3/4 Concealed Stop Valve Spare Parts

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

- - Vado C-305-RTC Cartridge
