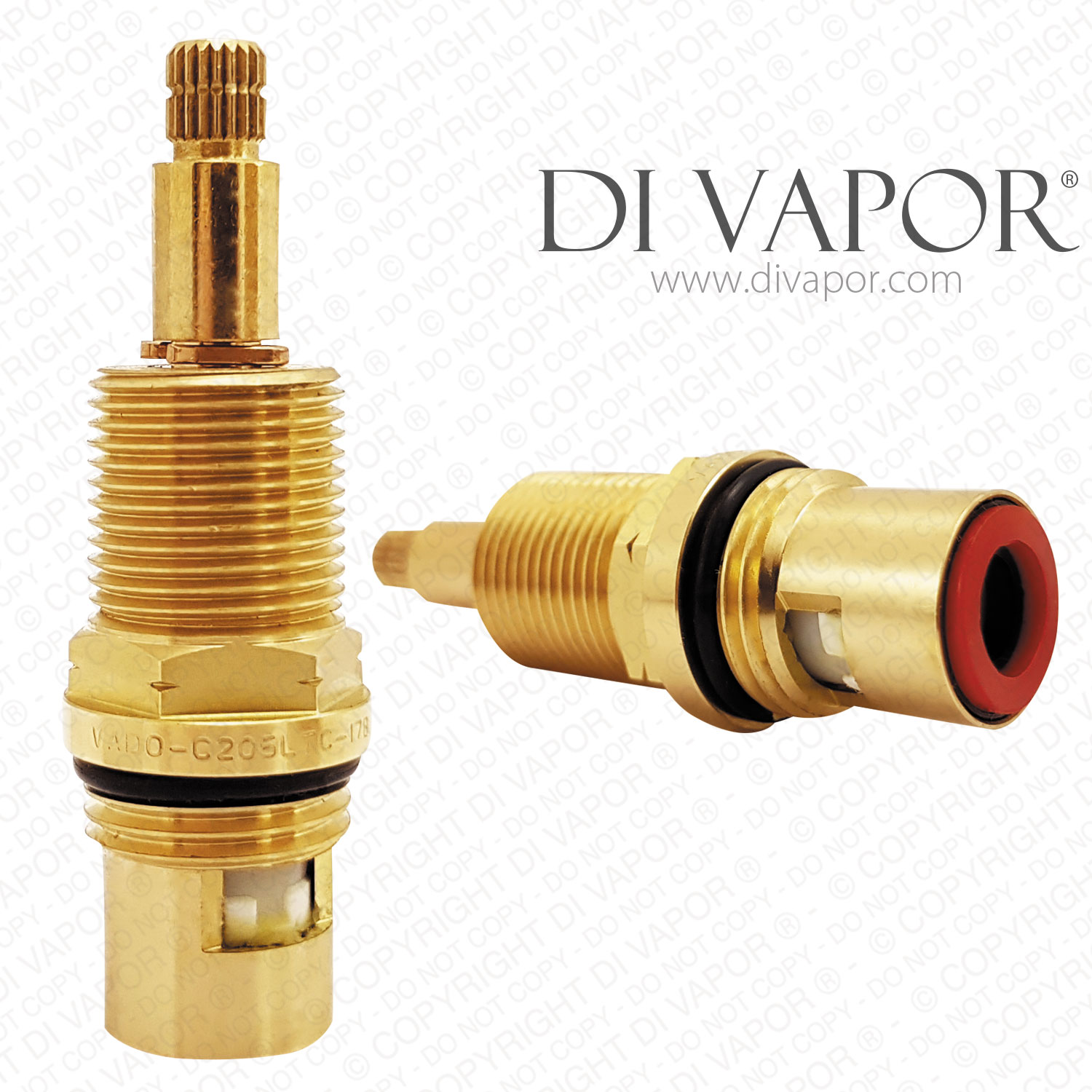

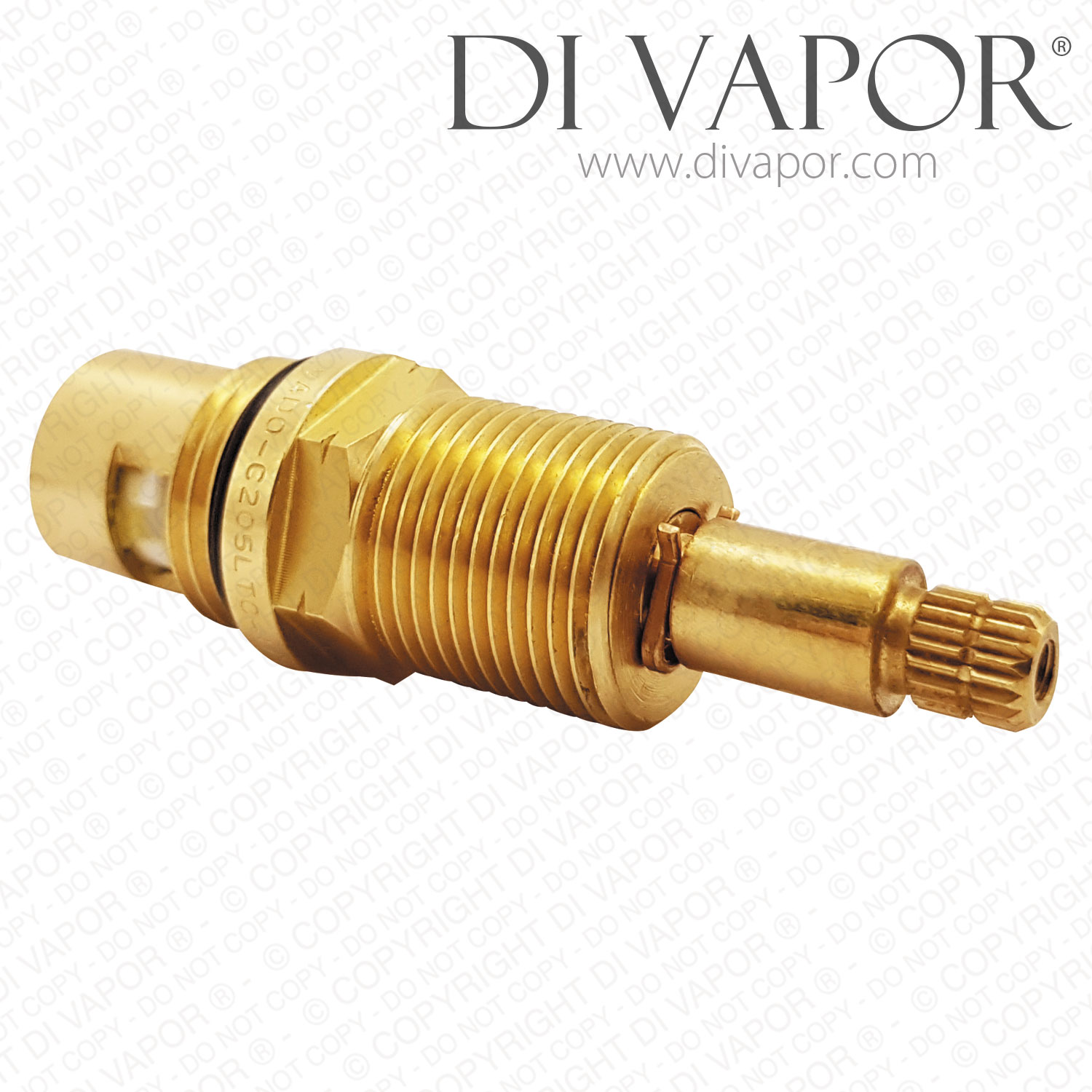

Vado C-205-LTC Hot Ceramic Disc Cartridge
SUMMARY
Spare part: 1/2 Inch ceramic disc valve hot suits: KEN-109/CD, VIC-109/CD
The Vado C-205-LTC is a hot-side 1/2 inch ceramic disc valve used to control on and off water flow in selected VADO wall-mounted 3 hole basin mixer taps.
This quarter-turn hot cartridge is used on the hot control side and has a red bottom seal for side identification. A common symptom of a worn flow cartridge is water dripping from the tap spout when the tap is turned off or a handle that no longer gives clean shut-off.
Technical Details
- - Part code: C-205-LTC
- - Cartridge type: 1/2 inch ceramic disc valve hot
- - Total length including bottom seal: 76.4mm
- - Diameter at widest point: 24mm
- - Top spline diameter: 7.5mm
- - Top spline teeth / notches: 20
- - Lower thread diameter: 1/2" BSP (20.6mm)
- - Barrel diameter below lower thread: 17.7mm
- - Bottom seal colour: red
- - Close direction: anti-clockwise close and clockwise open
- - Turn: quarter turn 90 degrees
- - Upper thread closer to spline: 19.8mm
Before ordering, compare the removed cartridge with the measurements, spline count, red seal, 1/2" BSP lower thread and hot-side closing direction. Do not order from thread size or spline count alone if the tap model is unknown.
Confirmed Compatible Models
- - VADO KEN-109/CD-C/P Kensington 3 Hole Basin Tap Mixer Wall Mounted Spare Parts
- - VADO VIC-109/CD-C/P Victoriana 3 Hole Basin Tap Mixer Wall Mounted Spare Parts
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
