Shower Flow Cartridge for Frontline Twin & Triple Thermostatic Shower Valve - Clockwise Open
Send a photo of your item and we'll help confirm it.
Summary

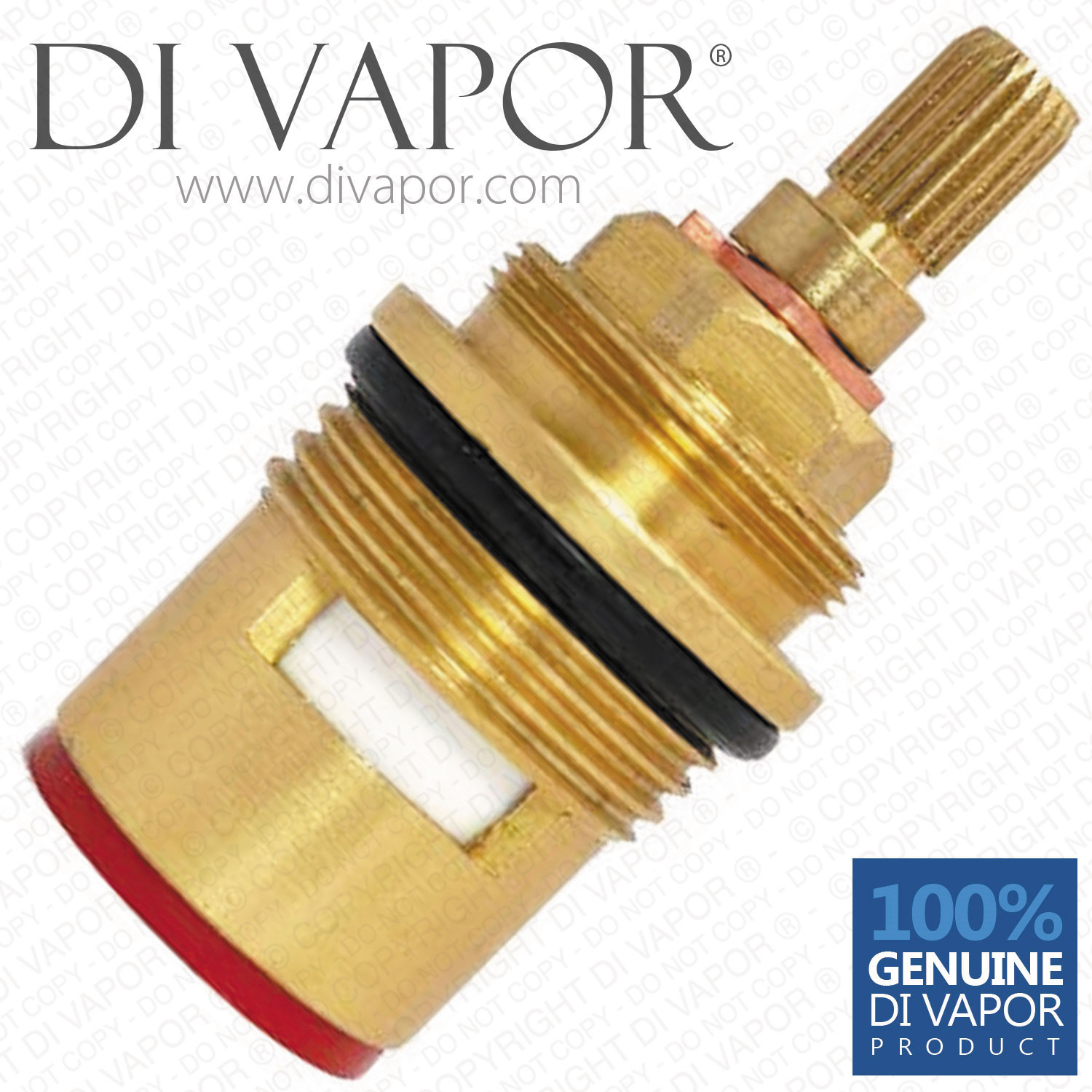

Shower Flow Cartridge for Frontline Twin & Triple Thermostatic Shower Valve - Clockwise Open
Cartridge Measurements:
| Total Length (including bottom seal) | 57mm |
|---|---|
| Diameter at Widest Point | 30mm |
| Top Spline Diameter | 7.6mm |
| Top Spline Teeth / Notches | 20 |
| Barrel Diameter | 24mm |
| Lower Thread | 3/4" |
| Bottom Seal Colour | Hot (for hot Side) |
| Close Direction | Anti-Clockwise Close (Clockwise Open) |
| Upper Thread (closer to spline) | 24mm |
The Frontline shower flow cartridge will be dispatched on the same business day (M-F) for purchases made before 3 PM.
Frontline Shower Flow Cartridge: Basic Plumbing Common Questions
Got more questions about the Frontline Twin and Triple valve shower flow cartridge?
Please get in touch with Di Vapor’s friendly spares experts.
+ Find a Shower Part Service Page
+ WhatsApp contact 07754 173340
We are here to help with your spares needs.
Question: I see this flow cartridge is for a Frontline shower. Will this also work for a tap?
Answer: Yes, this Frontline shower flow cartridge can be used as a tap replacement cartridge. Be aware of the measurements of the cartridge you need to change and compare it with the given measurements above. You can also contact us if you require further help or information.
Question: What is the blue bottom seal flow cartridge for Frontline Twin and Triple Shower Valves?
Answer: F88882-L is the Frontline shower flow cartridge you are looking for.
FYI: The temperature cartridge for Frontline Twin and Triple valve is F88881-L.
Question: Will this flow cartridge cure a dripping Frontline shower?
Answer: Yes, it can, provided the dripping is the result of a faulty Frontline shower flow cartridge. Leaks can be caused by a broken O-ring or seal which can wear out after prolonged use. Or a buildup has formed in the brass barrel of the ceramic disc cartridge.
Applying a small bead of silicone grease on the O-ring/seal of the replacement part before installing it in the valve will help it squeeze and seal in the valve properly. For the plumbers grease we offer, please refer to the “Other Items” section below.
Please also check the non-return valve as this can be a possible reason for showers leaking from the shower head.
Question: It sounds like the flow cartridge is clicking when I turn on the Frontline shower. Why is this?
Answer: Showers should not click when turning the control handle. It could be the Frontline flow cartridge has a problem and a replacement could stop the clicking sound.
