Shower Flow Cartridge for Frontline Twin & Triple Thermostatic Shower Valve - Anti-Clockwise Open
Send a photo of your item and we'll help confirm it.
Summary

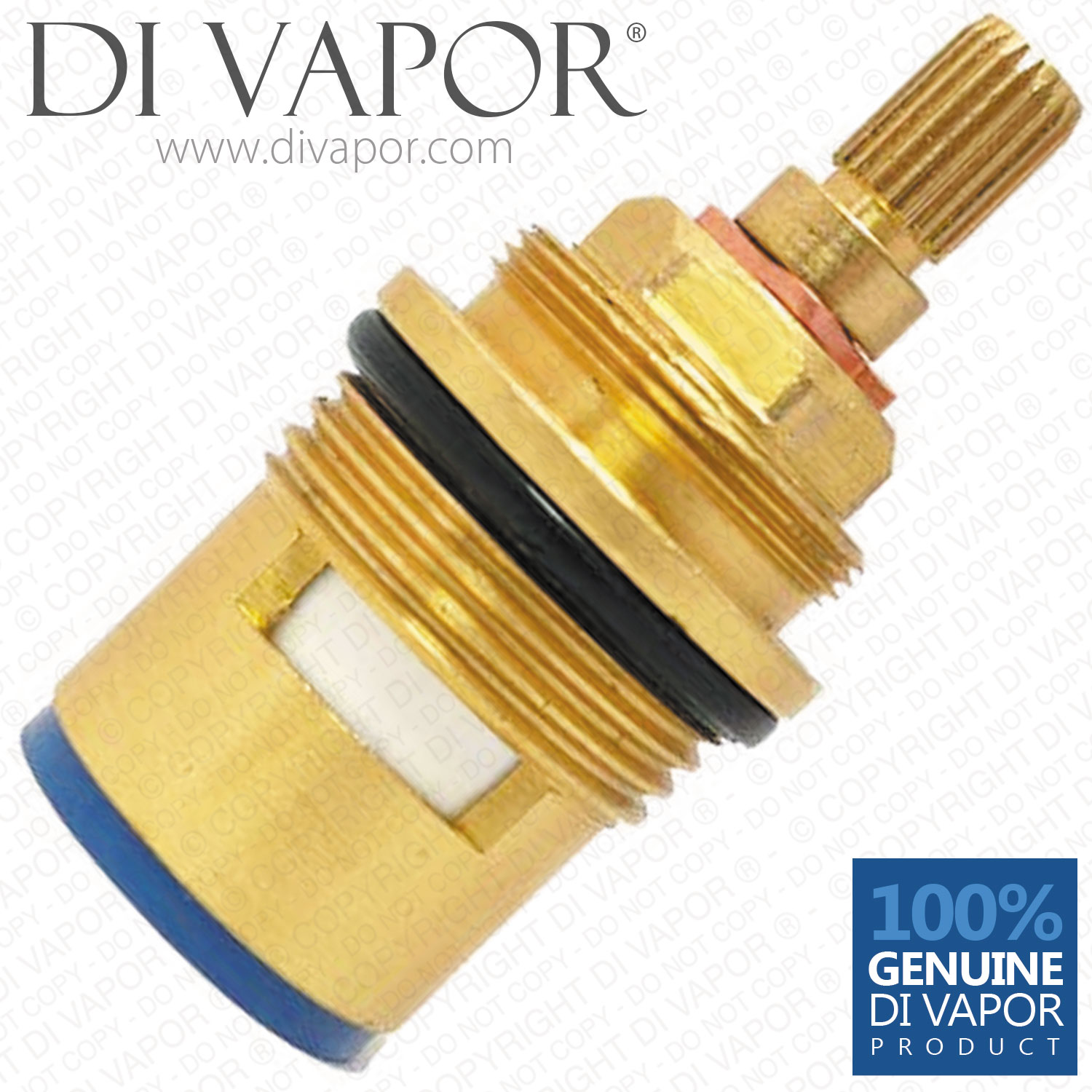

Shower Flow (on/off) Cartridge for Frontline Twin & Triple Thermostatic Shower Valve - Anti-Clockwise Open
Help Guide: Frontline Shower Flow Cartridge
The flow cartridge for Frontline Twin and Triple shower valves is a clockwise close cartridge with a blue bottom seal. This guide can help you know when is the time to replace the shower part and how to identify it through measurements.
When to Replace a Frontline Shower Flow Cartridge
Frontline shower flow cartridge is a ceramic disc cartridge that has a 90-degree rotation to turn the twin or triple shower valve on or off. Problems tend to arise after years of using the shower.
Among the common indicators the shower flow cartridge of a Frontline twin or triple valve could be dying are:
- perpetual leaking;
- stiff flow control knob;
- sluggish water flow rate.
Ascertaining Frontline Flow Cartridge Compatibility
Flow cartridges, such as this part employed in Frontline twin and triple shower valves, come in different measurements though they can look the same.
The spline teeth count is one of the most distinguishing features that dictate if the spare part will fit in the shower valve. If the number of teeth (20) on the spline of this cartridge matches with the part you have, then you are one step closer to determining that this is the cartridge needed.
If the number of teeth does not match, you might need a different flow cartridge.
Let’s have a look at the measurements of the flow cartridge for the Frontline thermostatic shower.
Cartridge Measurements:
| Total Length (including bottom seal) | 57mm |
|---|---|
| Diameter at Widest Point | 30mm |
| Barrel Diameter | 24mm |
| Top Spline Diameter | 7.6mm |
| Top Spline Teeth / Notches | 20 |
| Upper Thread (closer to spline) | 24mm |
| Lower Thread | 3/4" |
| Bottom Seal Colour | Blue (for Cold Side) |
| Close Direction | Clockwise Close (Anti-Clockwise Open) |

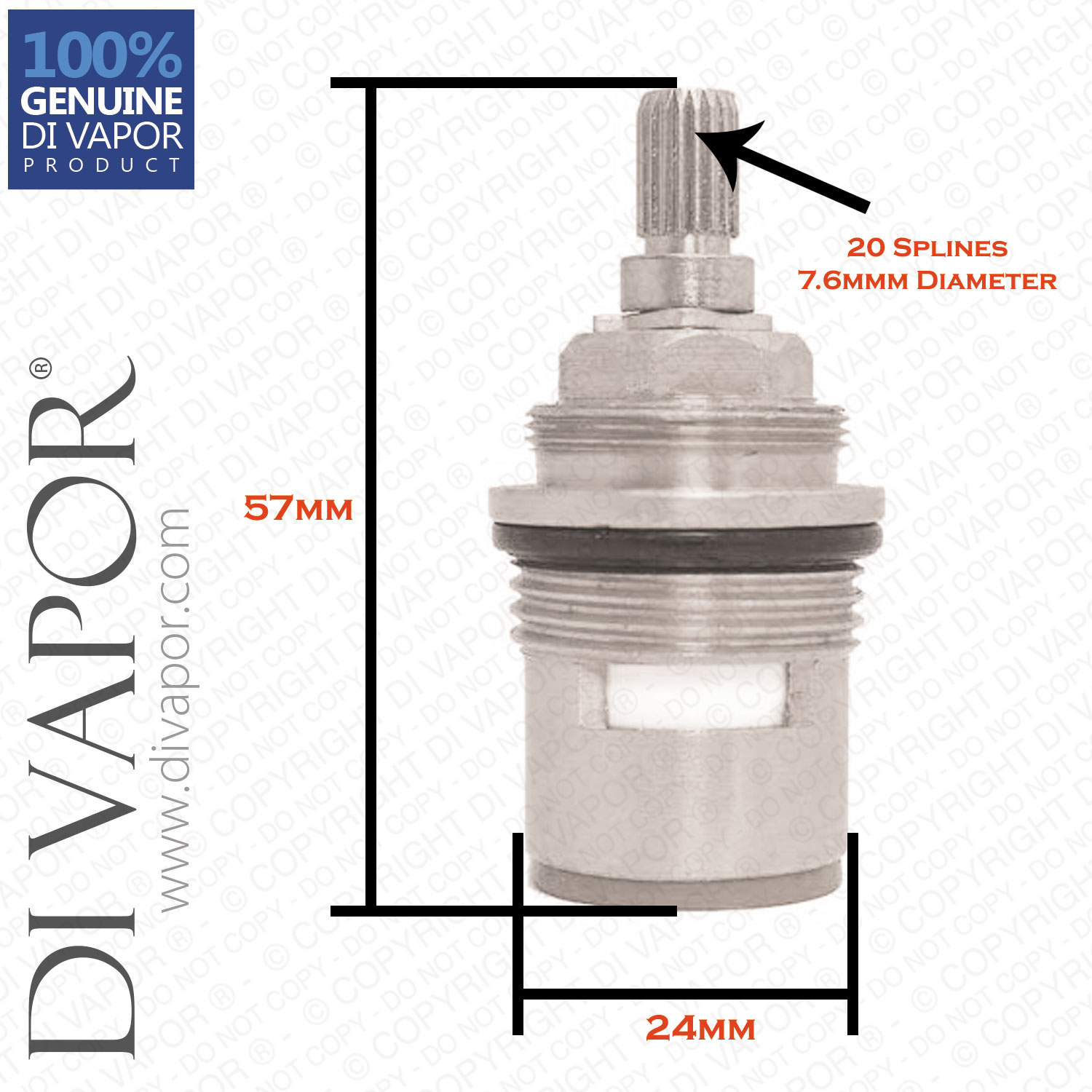

Compare and estimate the measurements with your cartridge. Please refer to the second image in the gallery for a visual guide regarding the measurements.
Di Vapor is your friendly UK spares experts! If you need further assistance in flow cartridge identification, please feel free to
+ or chat with us on WhatsApp (contact number: 07754 173340).
We will gladly and personally respond to your queries.

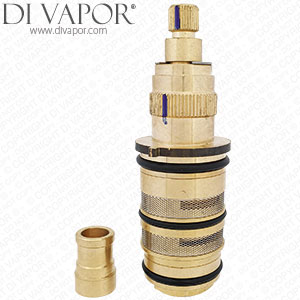

Other Frontline Twin and Triple Thermostatic Shower Valve Parts
