Samuel Heath VS56043 Geo 3/4 H/WK LH STD Spline Compatible Spare (Clockwise Close)
Send a photo of your item and we'll help confirm it.
Summary

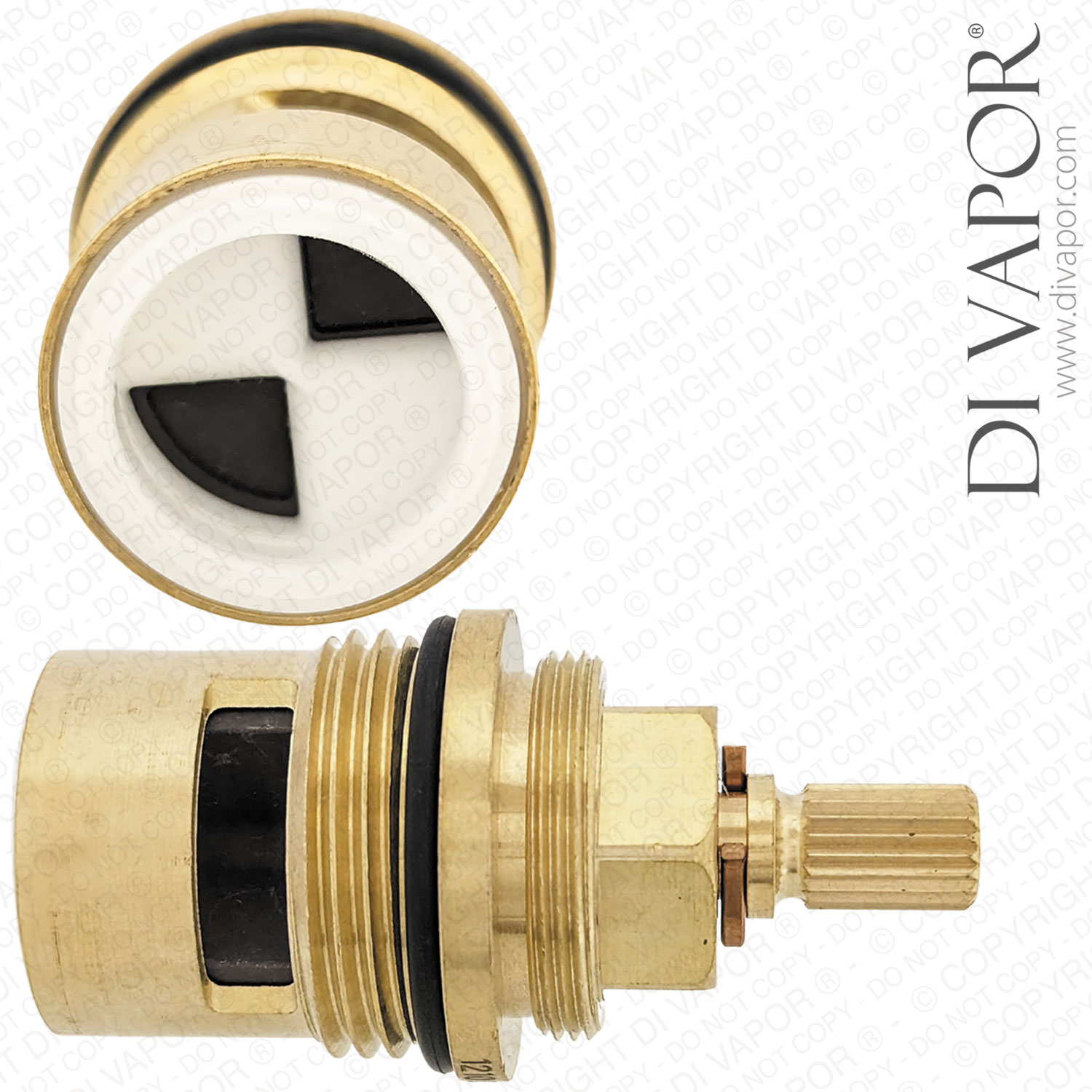

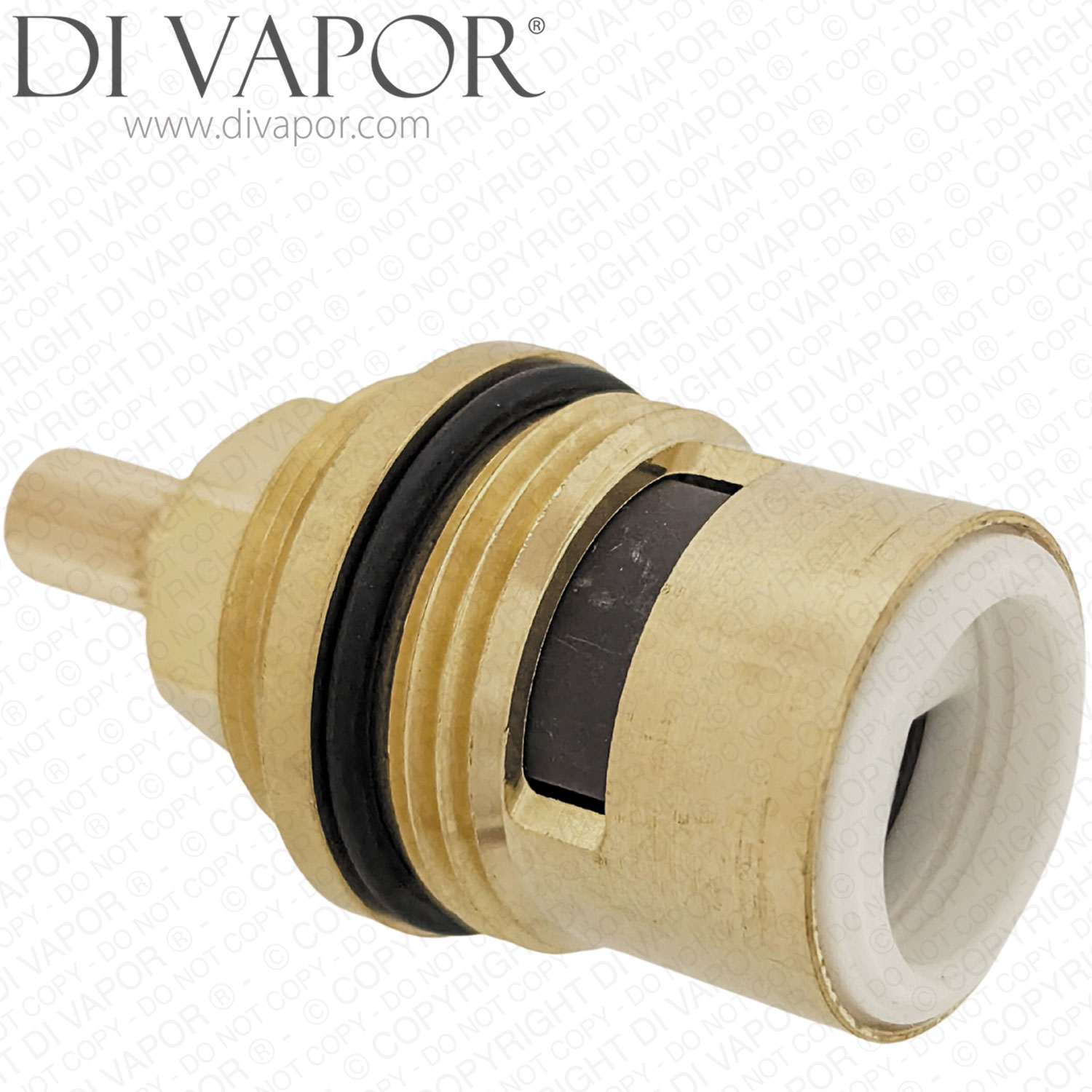

Samuel Heath VS56043 is a 3/4 ceramic disc flow cartridge used as a clockwise closing CD valve in selected Samuel Heath bath / shower mixer and wall-mounted bath filler assemblies.

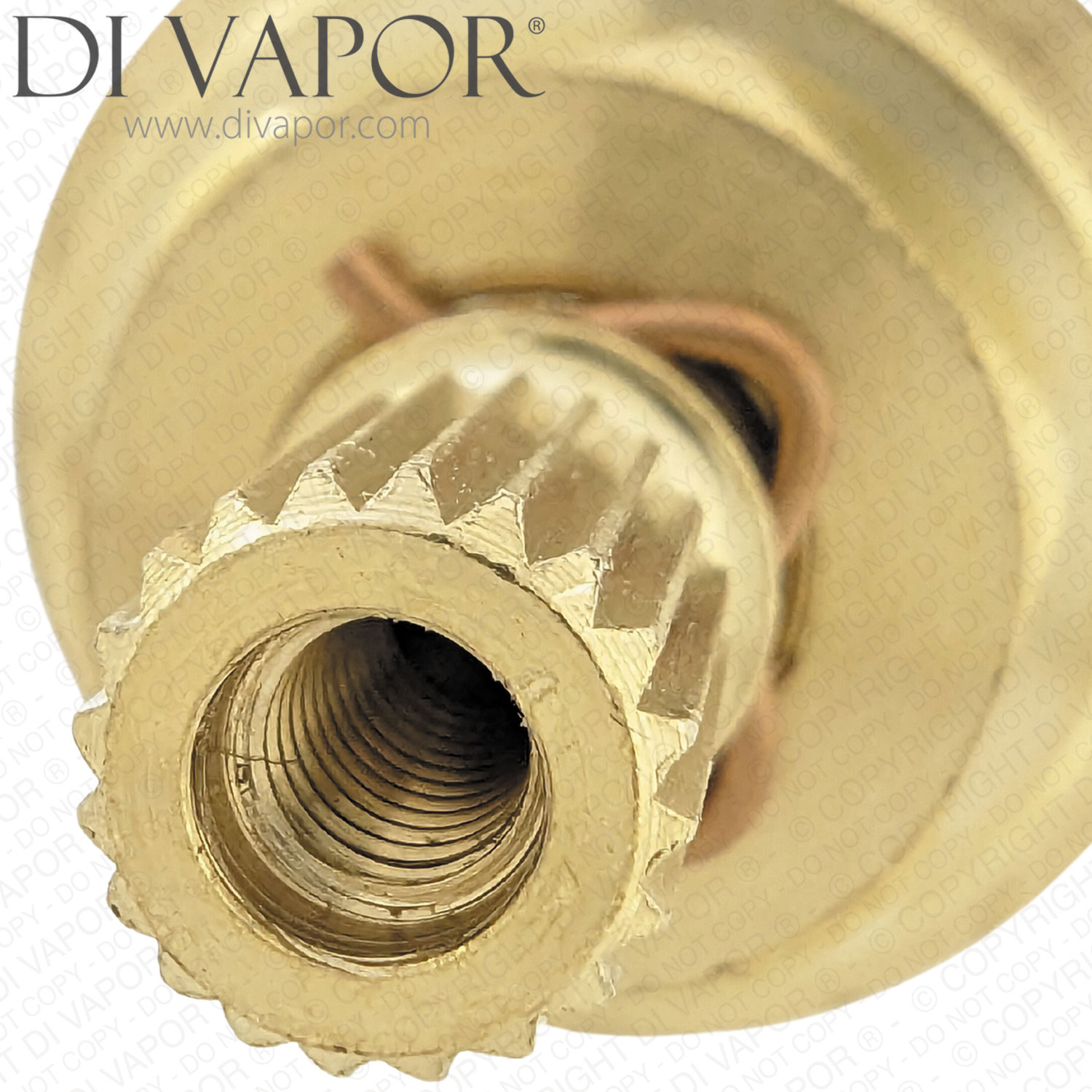

This spare has Geo 3/4 H/WK LH STD spline, so it is the left-hand standard spline version supplied for clockwise close applications.
When the cartridge is worn or scaled, common symptoms can include dripping from the bath spout or shower handset when the tap is turned off, difficulty shutting off fully, stiff operation, or poor flow control.
Technical Details
| Part Number | VS56043 |
|---|---|
| Type | 3/4 ceramic disc flow cartridge / CD valve |
| Identification | Geo 3/4 H/WK LH STD spline |
| Closing direction for this spare | Clockwise close |
| Matching opposite-direction spare | Samuel Heath VS56044 |
Before you order check
- Check the original cartridge is marked VS56043 or that your Samuel Heath spares sheet shows VS56043 as the clockwise closing valve for your exact model
- Check the spline and handed orientation match your original part
- Do not order by appearance alone, because Samuel Heath uses similar 3/4 ceramic disc valves across different product families
Confirmed Compatible Models
- Samuel Heath Style Moderne Bath Shower Mixer Deck Mounted V6K30MB-CP Spare Parts
- Samuel Heath V6K30X-CP Bath / Shower Filler Spare Parts
- Samuel Heath V6K30CCQ-CP Bath / Shower Filler Spare Parts
- Samuel Heath V2K47C-CP 3 Hole Wall Mounted Bath Filler Spare Parts
Related Spares You May Need
- Samuel Heath VS56044 Geo 3/4 H/WK RH STD Spline Compatible Spare (Anti-Clockwise Close)
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
TACSIL silicone grease is suitable for cartridge O-rings during installation and can help the new seals seat correctly.
