Mira 1744.107 Flow Cartridge for Mira & Atom Shower Bar Valves (1.1744.107.2)
Send a photo of your item and we'll help confirm it.
Summary
Mira 1744.107 Flow Cartridge for Mira & Atom Shower Bar Valves

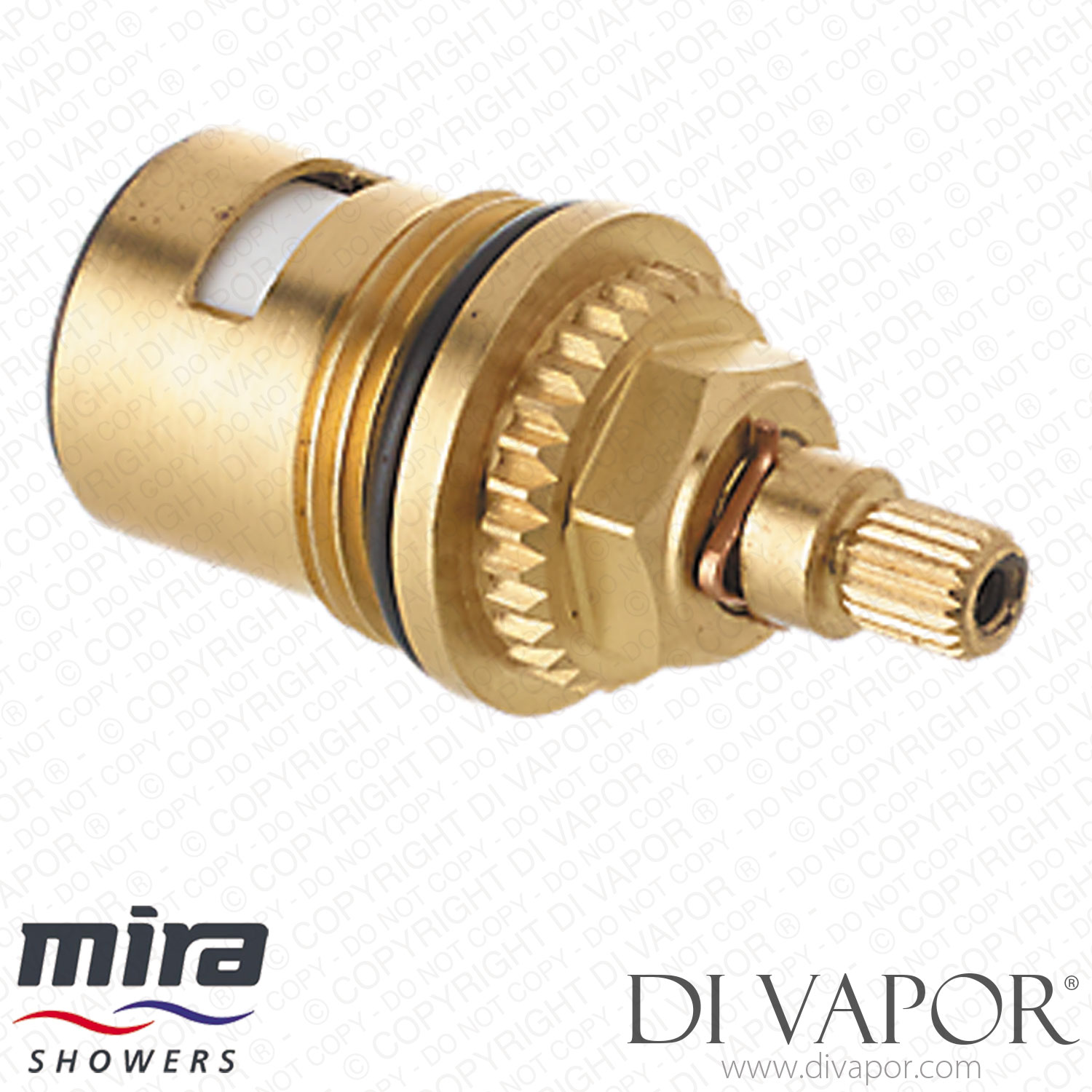

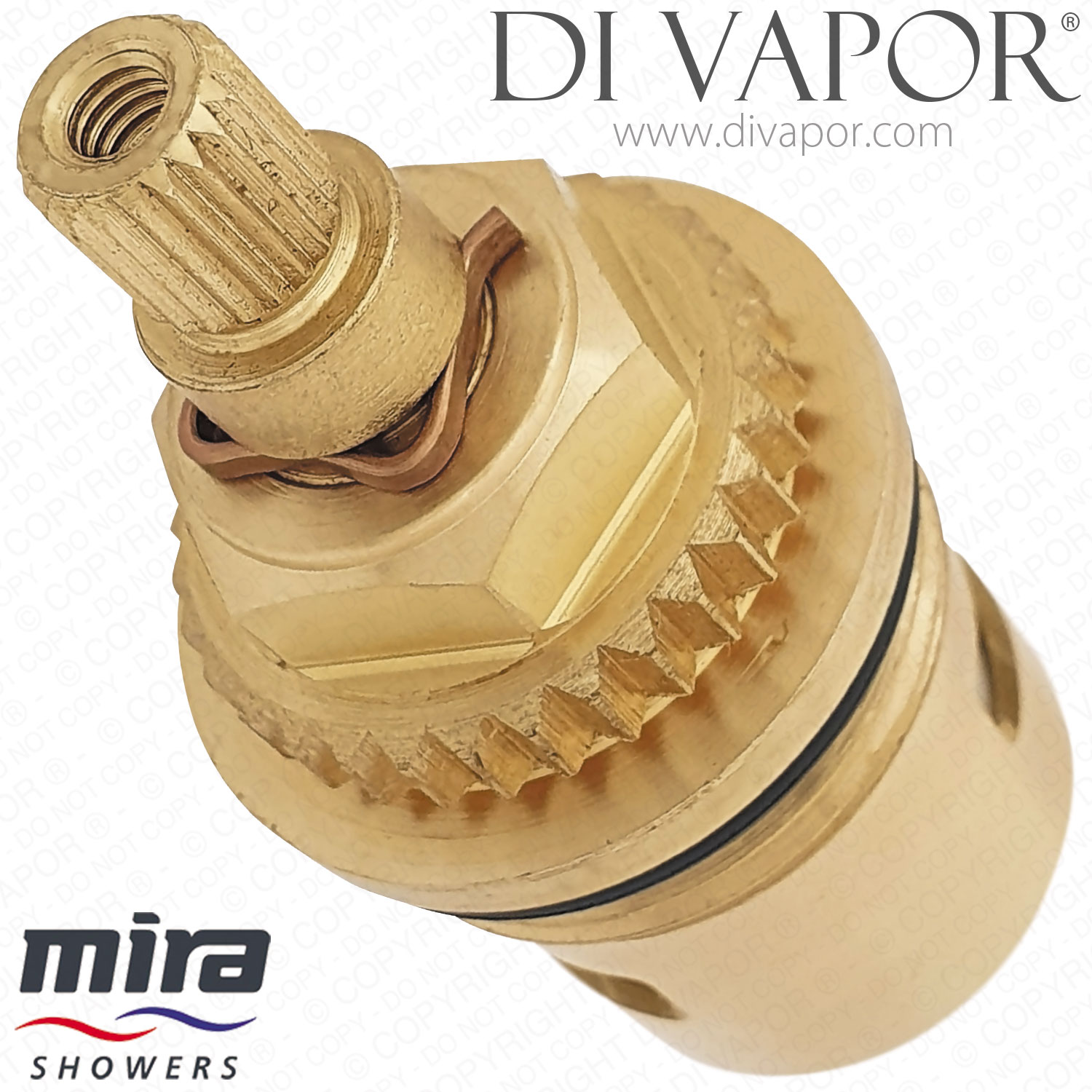

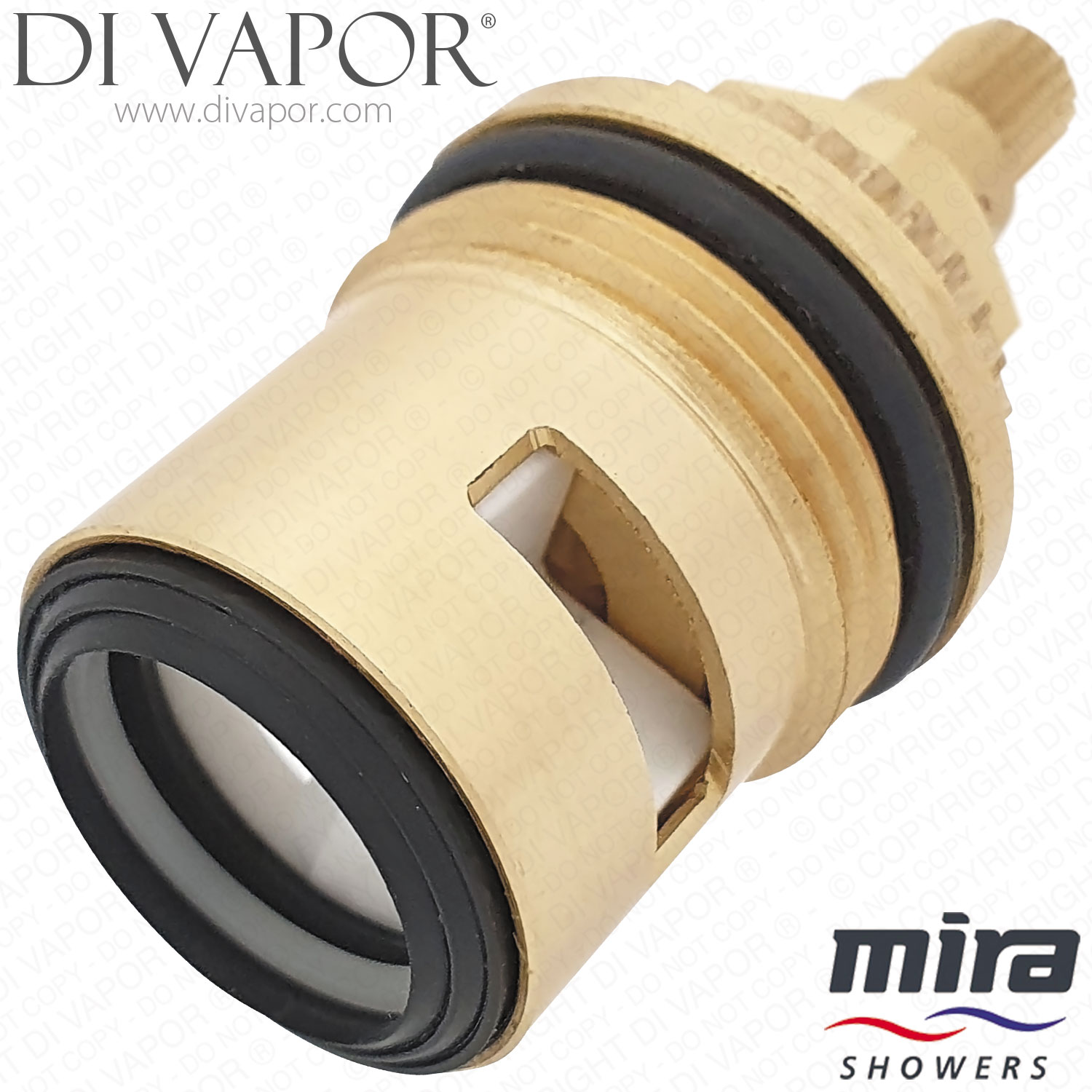

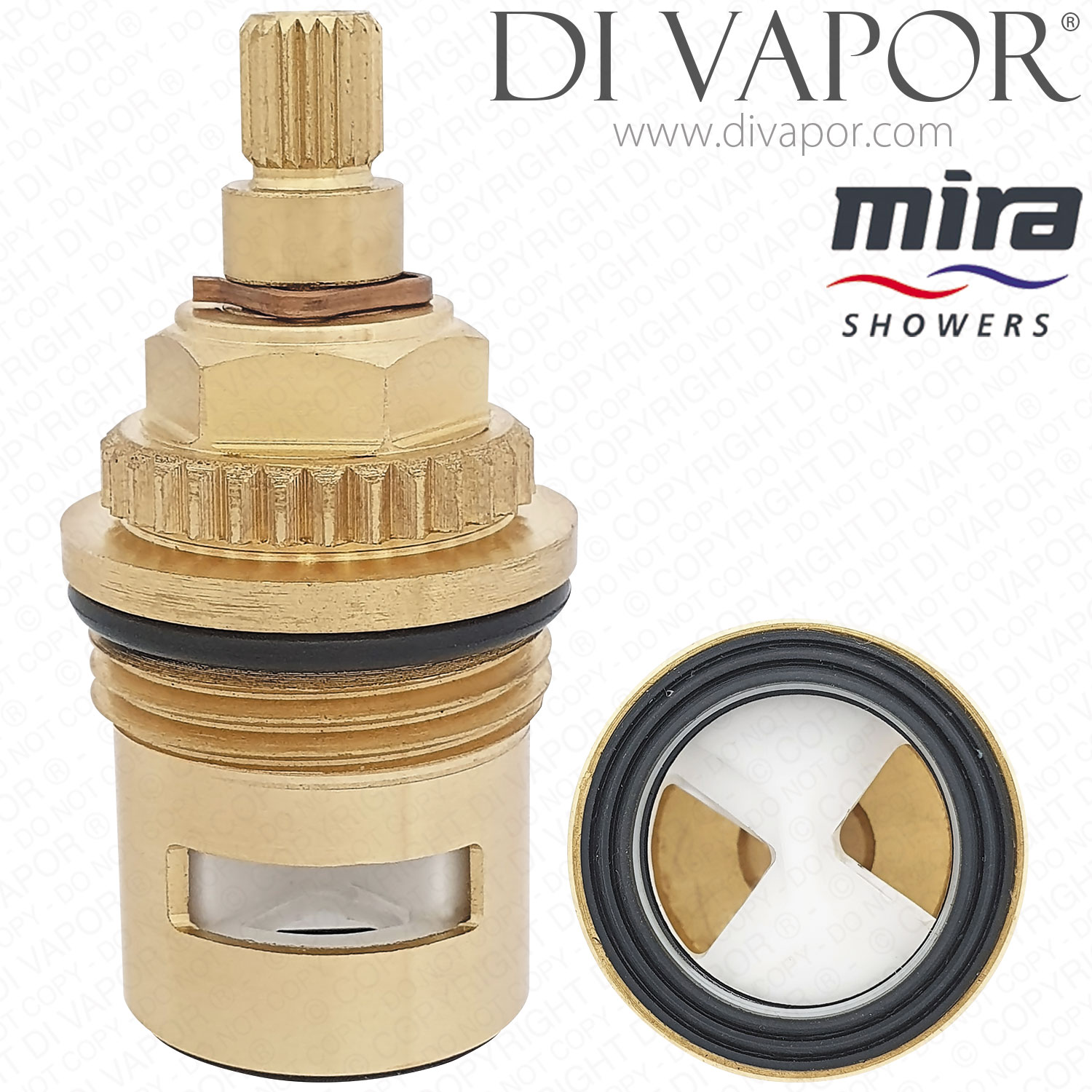

Mira 1744.107 is a ceramic flow cartridge for Mira Atom shower bar valve assemblies. The full code shown for this part is 1.1744.107.2 and the Di Vapor Part Number is M-1744.107.
This cartridge controls the on and off water flow through the valve. A worn flow cartridge can cause stiff operation, poor shut-off or water continuing to pass from the shower outlet when the shower is turned off.
Technical Details
| Total length including bottom seal | 57mm |
|---|---|
| Diameter at widest point | 28.9mm |
| Top spline diameter | 7.6mm |
| Top spline teeth / notches | 20 |
| Lower fitting thread diameter | 26.1mm (3/4 inch BSP) |
| Barrel diameter below lower thread | 23.8mm |
| Bottom seal colour | black |
| Close direction | clockwise close and anti-clockwise open |
| Turn | quarter turn 90 degrees |
| Stop ring spline diameter | 24.1mm |
Confirmed Compatible Models
- Mira Atom ERD (1.1836.011) Spare Parts
- Mira Atom ERD2
- Mira Coda Pro Thermostatic Bar Valve where the existing spare-parts diagram lists 1744.107
- Mira Coda Pro ERD Thermostatic Bar Valve where the existing spare-parts diagram lists 1744.107
Before Ordering
Check the part code on the existing cartridge or the spare-parts diagram for your exact Mira valve version before ordering. Do not select this cartridge by diameter or spline count alone, as other Mira Atom and Coda versions use different flow cartridges.
Installation Note
Apply silicone grease to the O-rings and bottom seal during installation. Do not use oil-based grease on rubber seals.
Related Spares You May Need
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- Thermostatic Cartridge for Mira Atom 1663.114 / 1744.108 Exposed Shower Bar Valves
- Mira 1836.170 Flow Diverter Cartridge for Atom Coda ERD H05b MK3 Valves
- Mira 1736.733 Diverter Wall Fixing
- Mira L14D 19mm Shower Hose Retaining ring - Chrome Compatible Spare
