Hansgrohe 92651000 3/4" Flow Cartridge and Flow Extension
Send a photo of your item and we'll help confirm it.
Summary

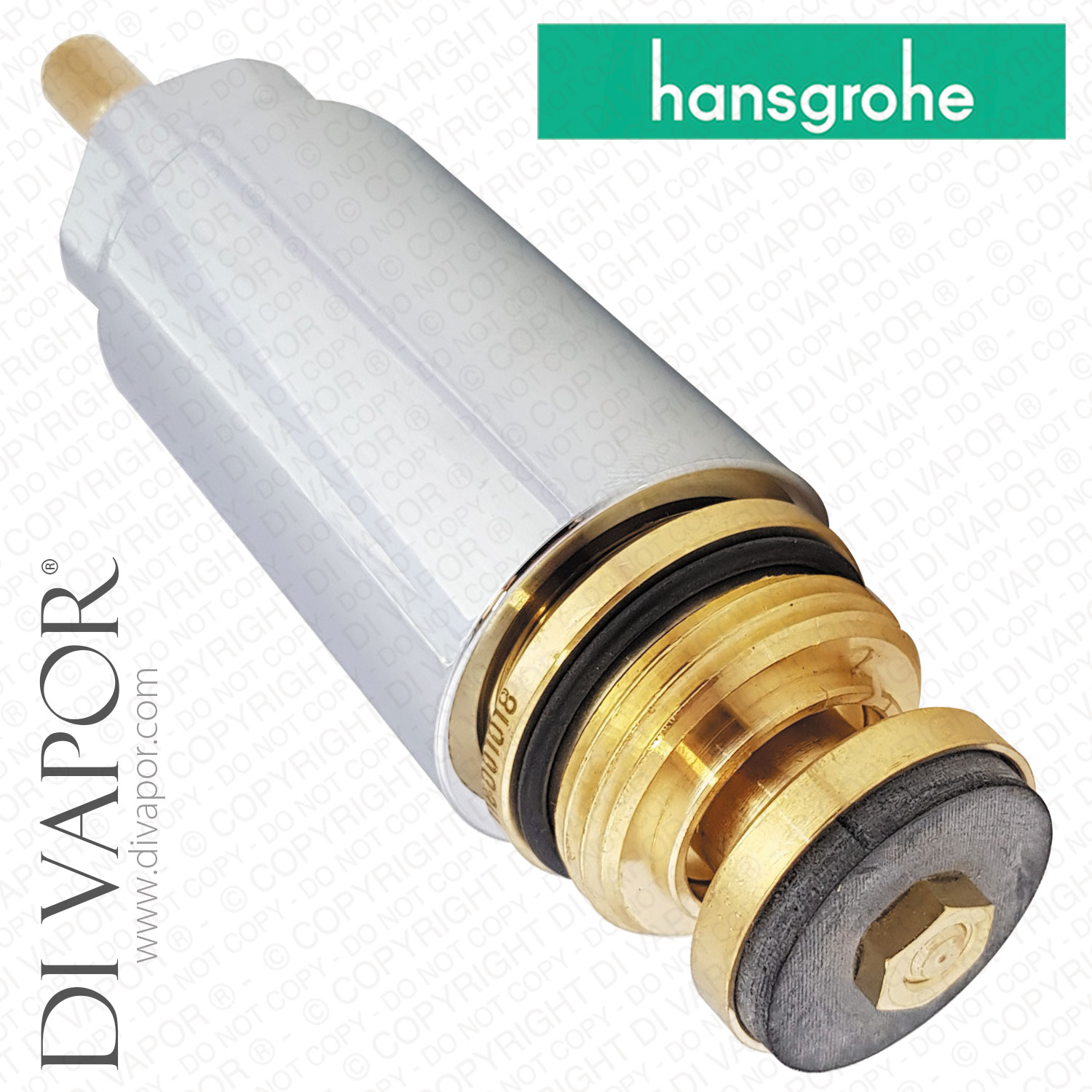

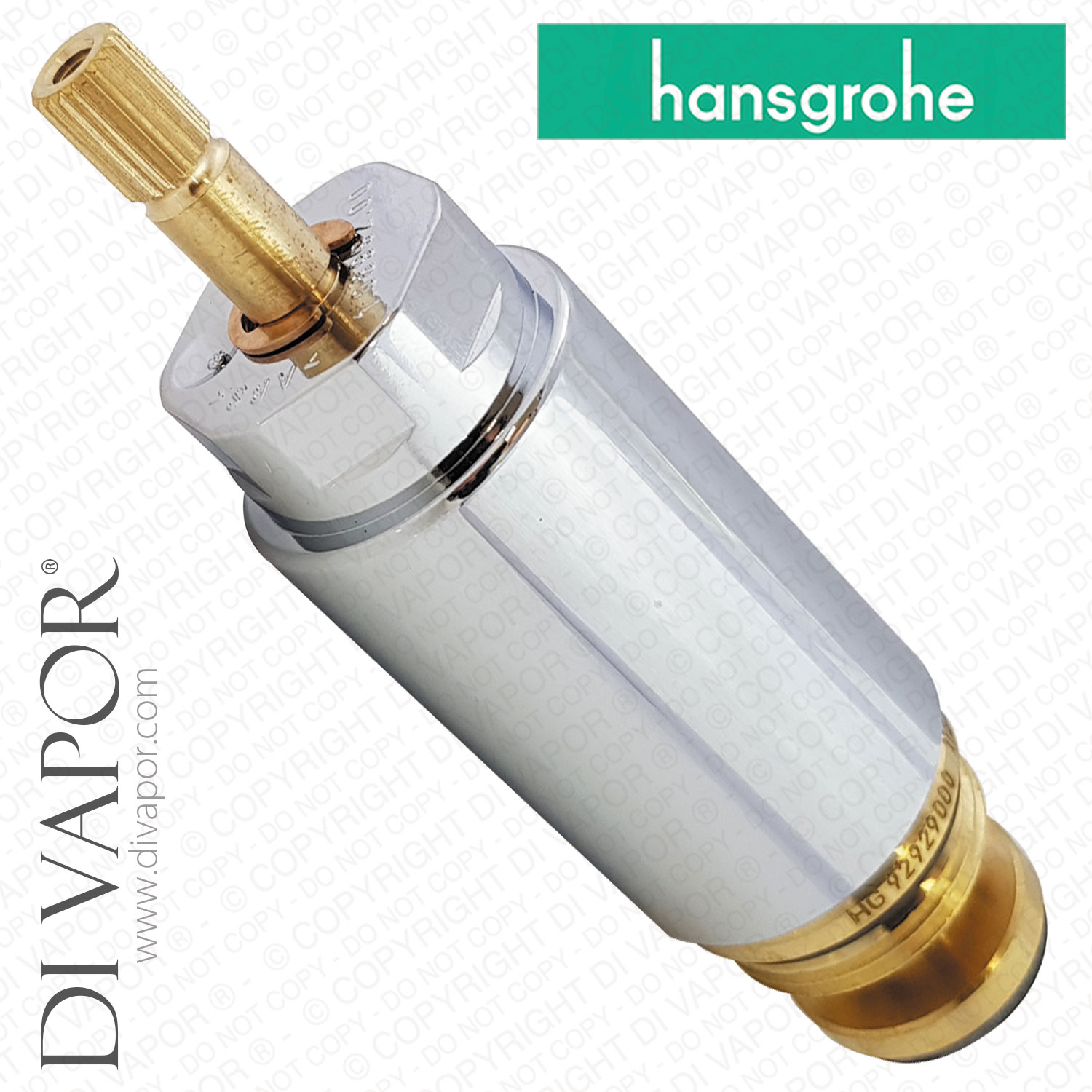

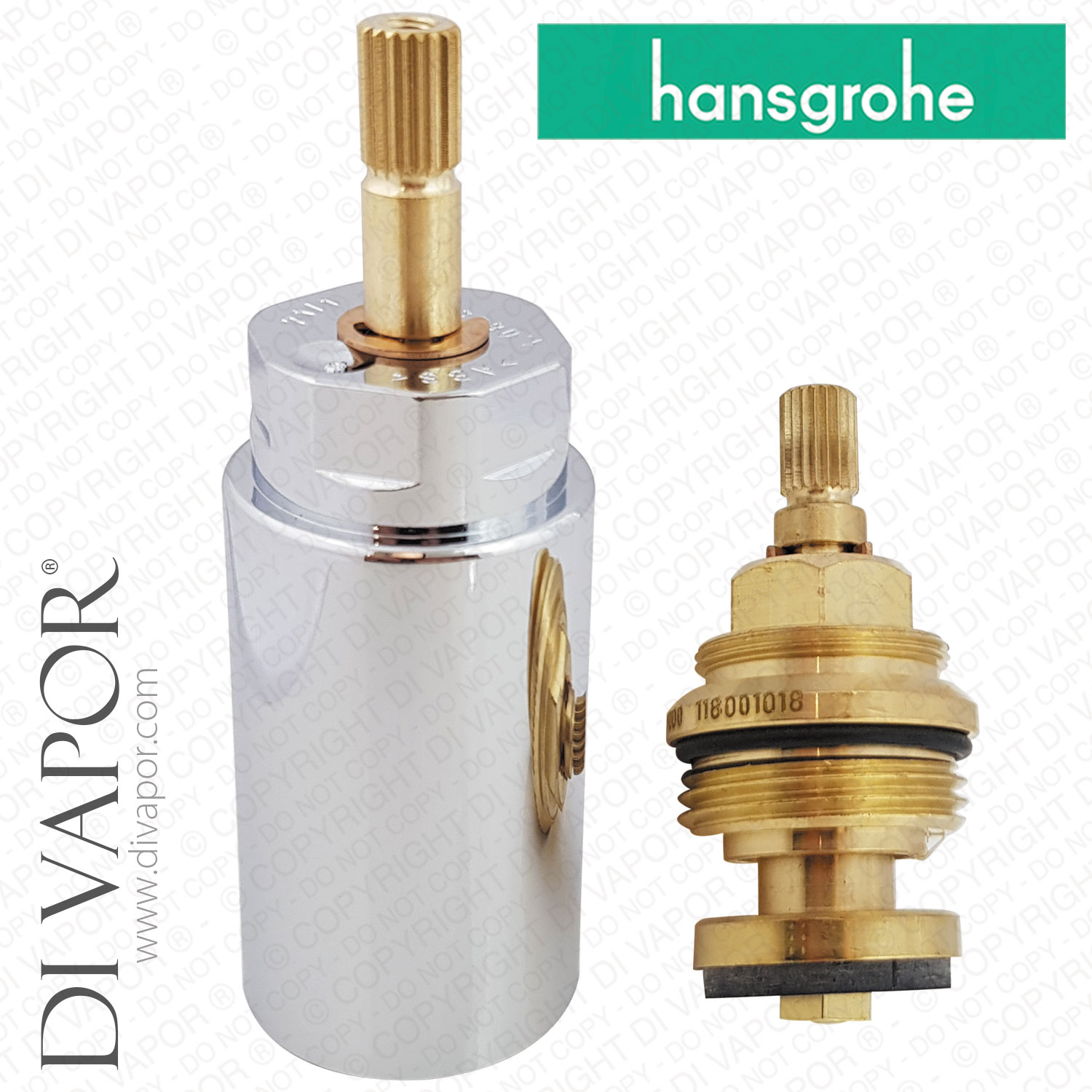

Hansgrohe 92651000 Chrome Sleeve and 3/4 Inch Shut-Off Unit Assembly for Concealed Valves
The Hansgrohe 92651000 is a chrome sleeve and 3/4 inch shut-off-unit assembly for selected concealed shut-off valves. It combines a DN15 sleeve with the Hansgrohe 92929000 DN20 shut-off unit.
The internal shut-off unit provides on and off water-flow control by opening and closing the concealed valve waterway. Wear or limescale can cause stiff operation, incomplete shut-off, leakage past the valve and water continuing to drip from the shower head or spout after the control has been closed.
Technical Details
| Hansgrohe part code | 92651000 |
|---|---|
| Part type | chrome sleeve and shut-off-unit assembly |
| Sleeve designation | DN15 15x21 |
| Included shut-off unit | 92929000 |
| Shut-off-unit size | DN20 20x27 3/4 inch |
| Function | on and off water-flow control |
| Finish | chrome |
| EAN | 4011097133812 |
Confirmed Compatible Models
- AXOR Arco / AXOR Allegroh concealed stop valve 16976000 - production 03/1989 to 03/2001
- AXOR Arco / AXOR Allegroh concealed stop valve 16977000 - production 03/1989 to 03/2001
- Hansgrohe concealed shut-off-valve basic set 13975180 DN20 - production from 07/1992 when used with the 92651000 sleeve and shut-off-unit assembly
Before Ordering
Check the original part code and the exact concealed valve or basic-set number before ordering. Do not identify this assembly from the 3/4 inch connection size alone because visually similar Hansgrohe shut-off components can use different codes.

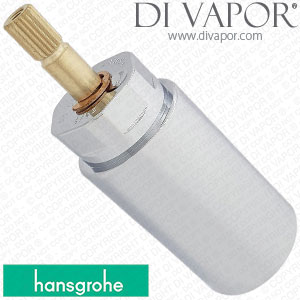

The 92651001 chrome adapter and 92929000 shut-off cartridge are individual components associated with this assembly and are not the complete 92651000 part.
