Grohe 45883000 1/​2" Headworks Flow Cartridge - Clockwise Open

Summary

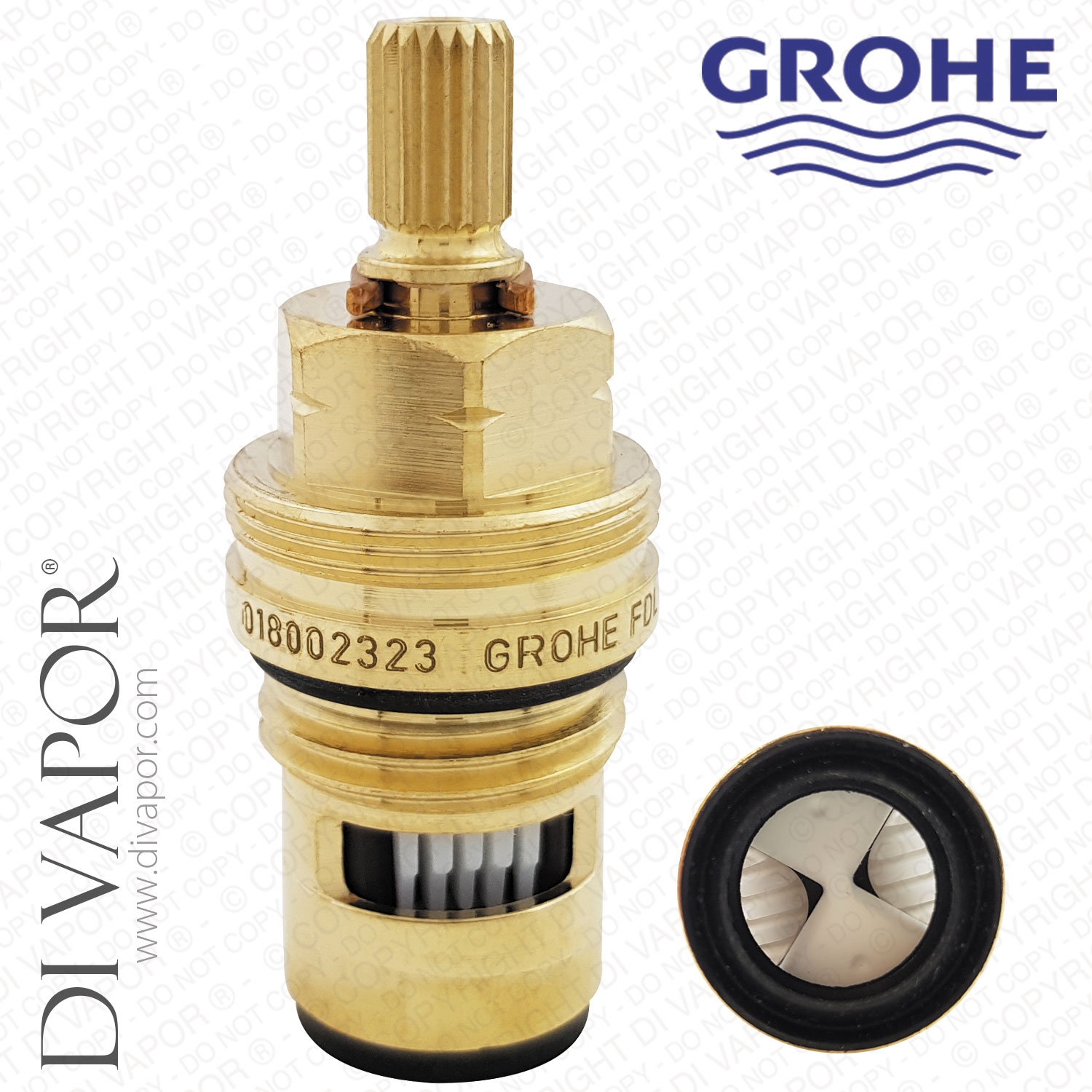

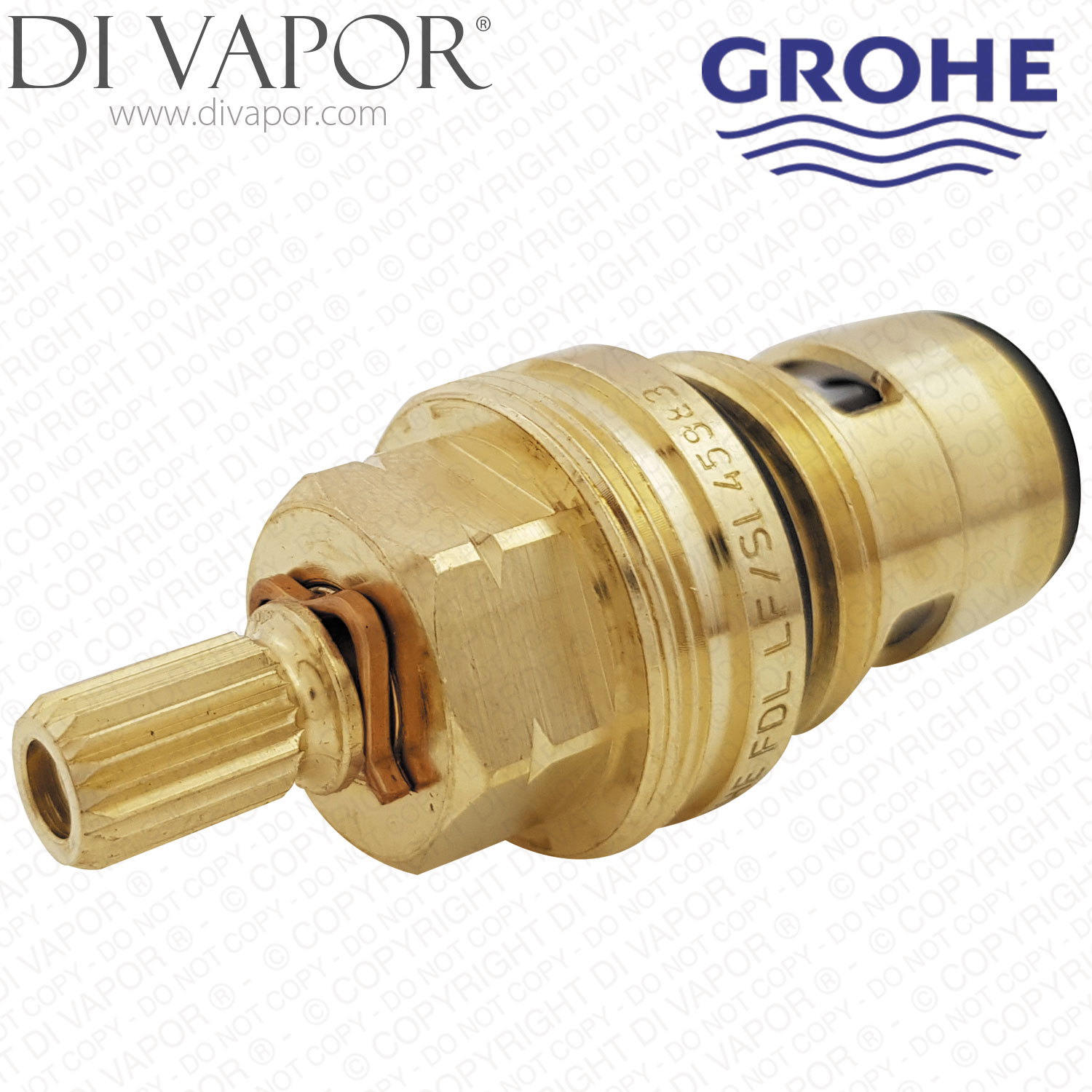

GROHE 45883000 1/2" Ceramic Headpart Flow Cartridge - Clockwise Open

GROHE 45883000 is a 1/2" ceramic headpart flow cartridge used for on/off water-flow control in selected GROHE two-handle basin taps, bath mixers, shower mixers, kitchen sink mixers and concealed basin mixer bodies. It operates clockwise to open and anti-clockwise to close.

The headpart uses ceramic sealing discs and a 90-degree quarter-turn movement with a left-hand stop. A worn ceramic headpart can cause water to continue dripping from the tap spout or shower outlet after the control is turned off, prevent complete shut-off or make the control stiff to operate.

Technical Details

Before Ordering

Check the exact GROHE product code and the handedness and operating direction of the existing headpart before ordering. The 1/2" connection size alone is not sufficient to confirm fitment. GROHE 45882000 is the opposite-hand headpart and should not be assumed to be interchangeable with 45883000 in the same control position.

Installation Note

Isolate the water supply before removing the existing headpart. A light application of suitable silicone grease to the cartridge O-ring can assist installation and protect the seal. Avoid excessive force when tightening the replacement headpart.

Confirmed Compatible Models Using 45883000

• GROHE 20801ENA Geneva Three-Hole Basin Mixer
• GROHE 20342000 Allure Brilliant Three Hole Basin Mixer 1/2 S-Size
• GROHE 20344000 Allure Brilliant Three Hole Basin Mixer 1/2 M-Size
• GROHE 18693000 Petita Basin Pillar Tap
• GROHE 30337000 Ambi Cosmopolitan Two Handle Sink Mixer 1/2 Inch
• GROHE 30190000 Ambi Cosmopolitan Two Handle Sink Mixer
• GROHE 30189000 Ambi Two Handle Sink Mixer 1/2 Inch
• GROHE 30192000 Atrio Two-Handle Sink Mixer
• GROHE 30362AL0 Atrio Two Handle Sink Mixer
• GROHE 30362000 Atrio Two Handle Sink Mixer
• GROHE 30362DC0 Atrio Two Handle Sink Mixer
• GROHE 25010003 Atrio Bath Mixer
• GROHE 26003003 Atrio Shower Mixer
• GROHE 25044DC3 Atrio Floor Mounted Bath Shower Mixer Tap
• GROHE 25044003 Atrio Floor Mounted Bath Shower Mixer Tap
• GROHE 2042100M BauEdge Basin Pillar Taps
• GROHE 2012400A Kensington Three-Hole Basin Mixer Tap
• GROHE 21022AL3 Atrio Lever Handles Basin Mixer Tap
• GROHE 21044DC3 Atrio Supersteel One-Hole Basin Mixer XL-Size Tap
• GROHE 21022DC3 Atrio Lever Handles Basin Mixer Tap
• GROHE 30978000 Hospita Sink Pillar Tap
• GROHE 29025002 Two-Handle Basin Mixer Concealed Body 1/2 Inch
• GROHE 29025000 Two-Handle Basin Mixer Concealed Body 1/2 Inch
• GROHE 21019AL3 Atrio Cross Handle Basin Mixer L-Size Tap
• GROHE 20180000 Veris Three-Hole Basin Mixer M-Size Tap
• GROHE 20208002 Eurostyle Cosmopolitan Three-Hole Basin Mixer S-Size
• GROHE 25011000 Atrio Bath / Shower Mixer
• GROHE 25046000 Atrio Bath / Shower Mixer
• GROHE 21034000 Atrio One-Hole Basin Mixer 1/2 Inch
• GROHE 26004000 Atrio Shower Mixer
• GROHE 20173003 Atrio Three-Hole Basin Mixer M-Size
• GROHE 21019003 Atrio Cross Handle Basin Mixer L-Size Tap
• GROHE 30493000 Via Two Handle Sink Mixer Kitchen Tap
• GROHE 30468000 Eurosmart Two Handle Sink Mixer
• GROHE 32706000 Two-Handle Basin Mixer Concealed Body 1/2 Inch
• GROHE 30489000 Ambi Cosmopolitan
• GROHE 30189EN0 Ambi Two Handle Sink Mixer Brushed Nickel
• GROHE 25268GL0 Atrio Bath / Shower Mixer
• GROHE 26895AL0 Atrio Shower Mixer
• GROHE 25268DC0 Atrio Bath Mixer
• GROHE 30609AL0 Atrio Two Handle Sink Mixer 1/2" L-Size
• GROHE 21145AL0 Atrio Single-Hole Basin Mixer 1/2" L-Size

Related Spares You May Need

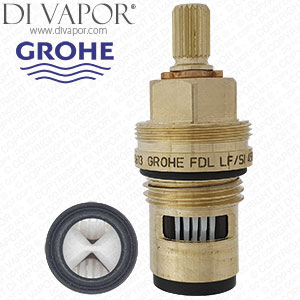

• GROHE 45882000 Ceramic Headpart Cartridge 1/2" 1/4 Turn Anti-Clockwise Open - opposite-hand headpart used alongside 45883000 in a number of two-handle GROHE fittings
• GROHE 0392400M Pack of 10 O-Rings - service O-rings measuring 18.2 mm outside diameter x 1.7 mm cross-section
• TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
• GROHE Premium Plumbers Silicone Grease 2g SYNTHESO LM 220 18007031
• Molykote 111 Silicone Grease 3g
