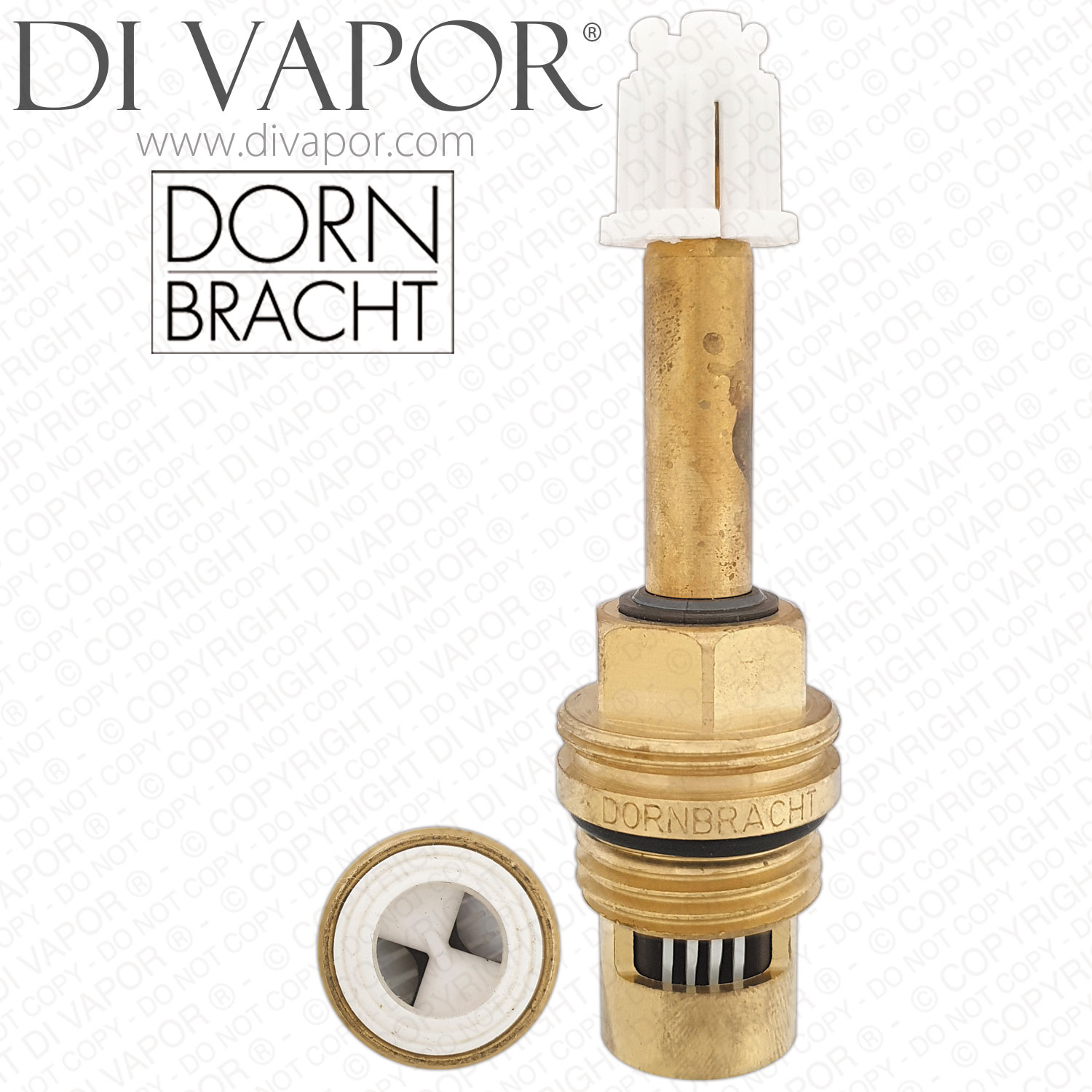

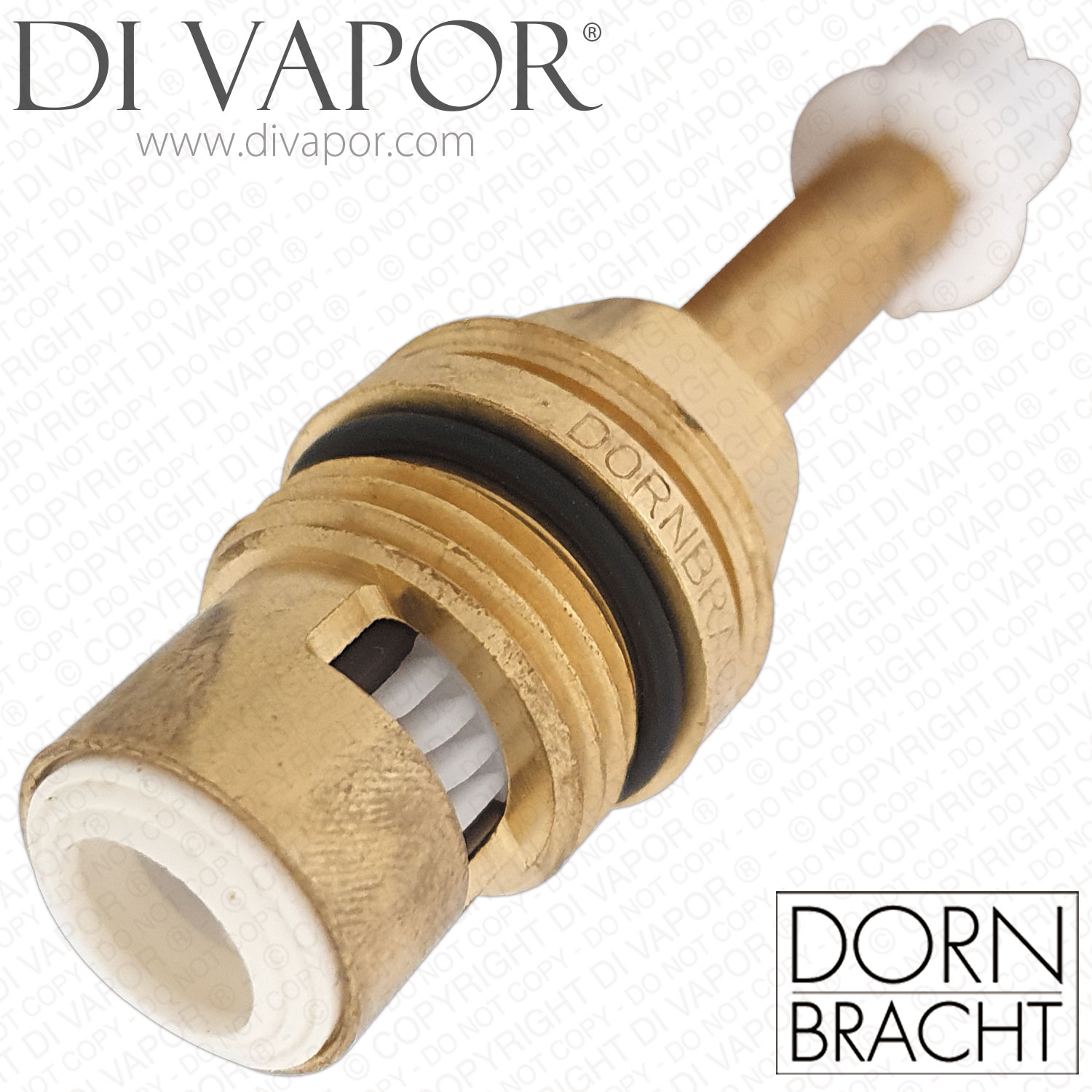

Dornbracht 9090031410090 Clockwise Close Ceramic Cart

SUMMARY

Dornbracht 9090031410090 is a 1/2 inch quarter-turn ceramic flow cartridge used in Belle de Bain 325 edition final assembly kit 36 710 325-FF and in the xTool SOLITUDE xTool Hoesch xTool Koralle and xTool UCOSAN systems.

It controls on off flow and shut off inside the valve or tap assembly. This cartridge closes clockwise and opens anti-clockwise. A worn flow cartridge can cause dripping from the spout or outlet when the tap or valve is turned off, stiffness in operation or difficulty shutting the water off fully.

Technical Details

- - Di Vapor Part Number: D-9090031410090

- - Part type: ceramic flow cartridge / headpart

- - Operation: clockwise close / anti-clockwise open

- - Turn: quarter turn 90 degrees

- - Lower fitting thread: 20.6 mm 1/2 inch BSP

- - Total length including bottom seal: 80 mm

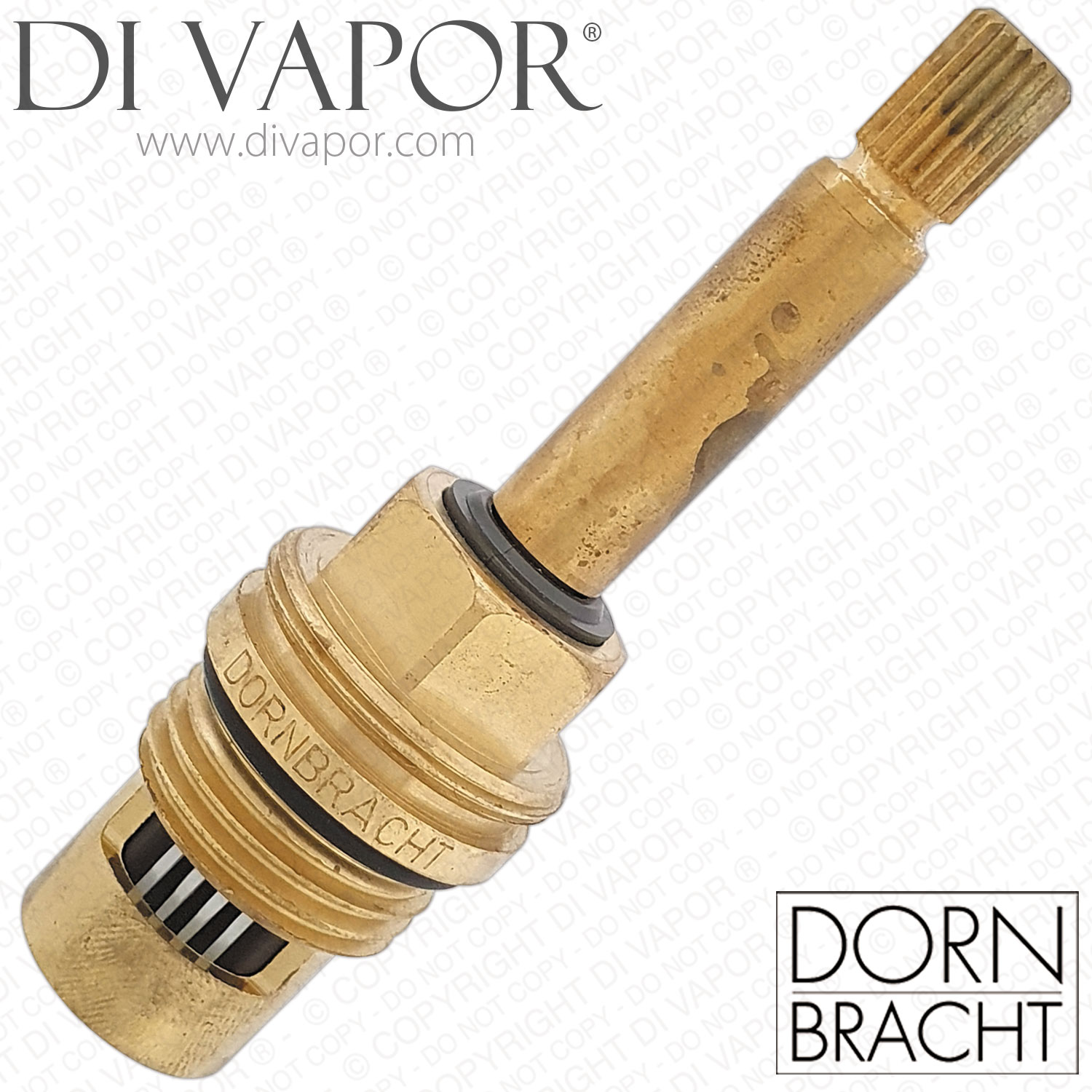

- - Top spline diameter: 7.6 mm

- - Top spline teeth / notches: 20

- - Diameter at widest point: 23.8 mm

- - Upper thread diameter: 23.8 mm

- - Barrel diameter below lower thread: 16.8 mm

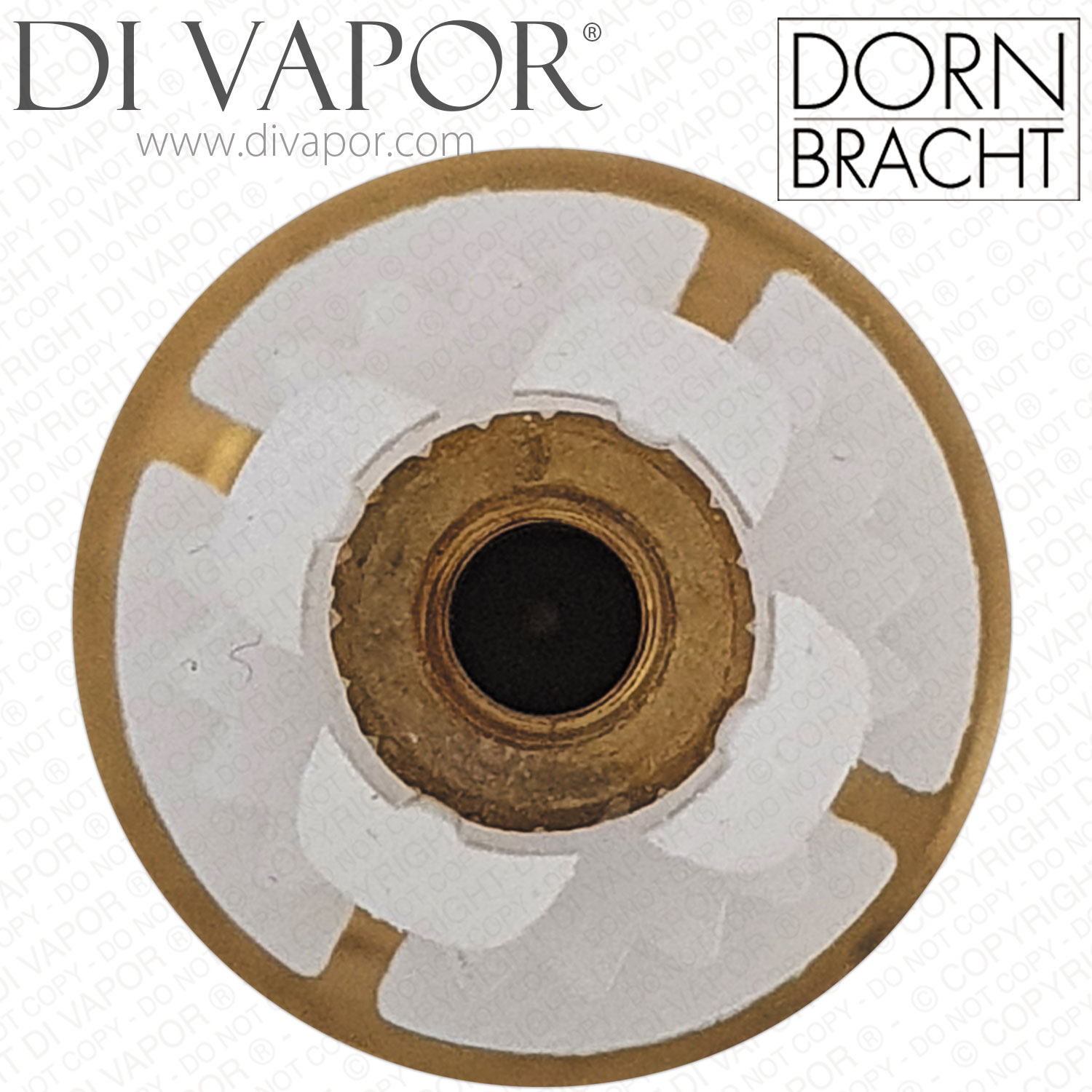

- - Bottom seal colour: white

- - Important: the source page shows a spindle length label but does not provide a spindle length value

Confirmed Compatible Models

- - Dornbracht Belle de Bain 325 edition final assembly kit 36 710 325-FF

- - Dornbracht Belle de Bain wall-mounted three-hole basin mixer 36710325-00

- - Dornbracht xTool SOLITUDE

- - Dornbracht xTool Hoesch

- - Dornbracht xTool Koralle

- - Dornbracht xTool UCOSAN

Related Spares You May Need

- - Dornbracht 9090031400090 Ceramic Cartridge - Clockwise Open - Part Number D-9090031400090

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved - Part Number TAC86

Check the close direction, spline count, spline diameter, thread size and overall length against your original cartridge before ordering.
