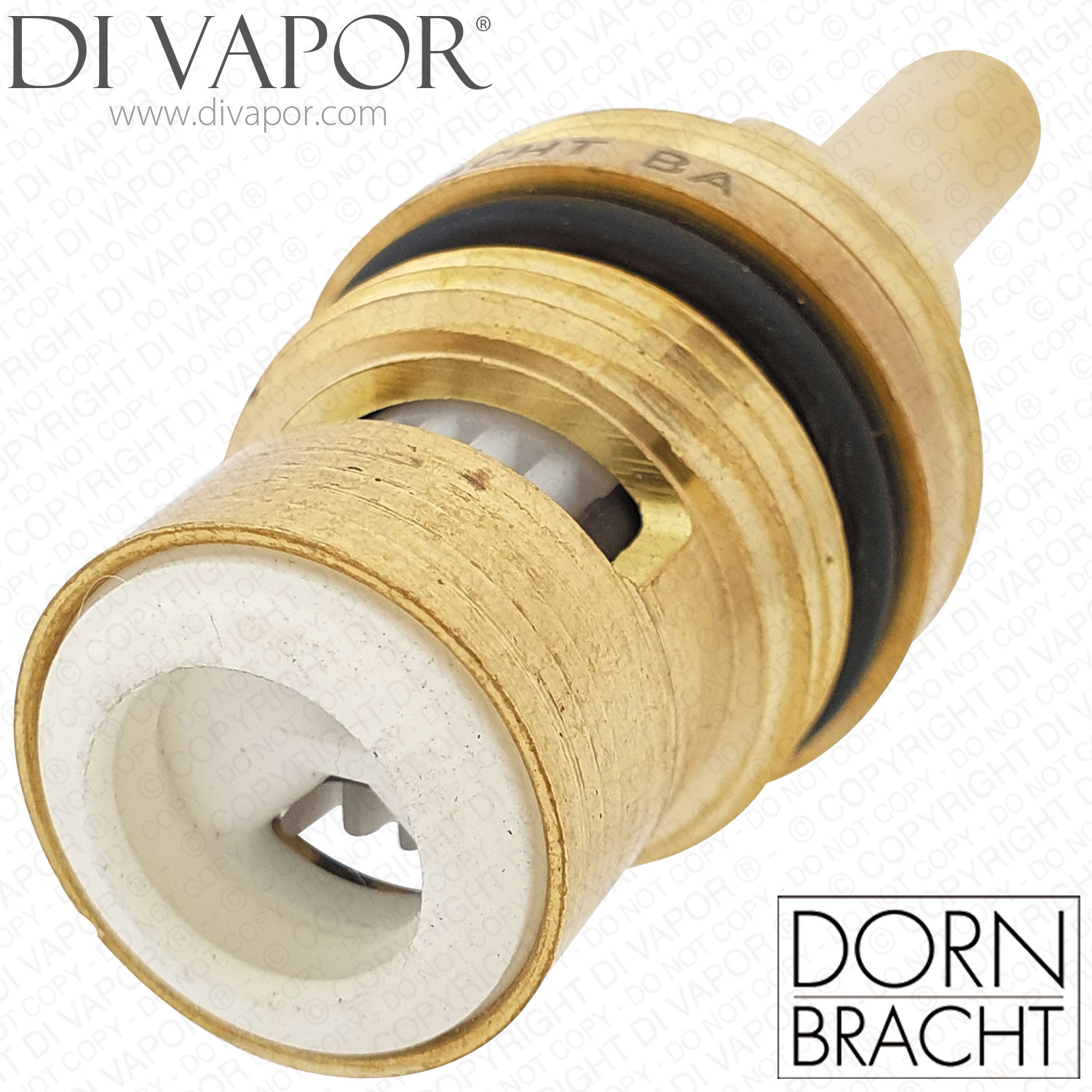

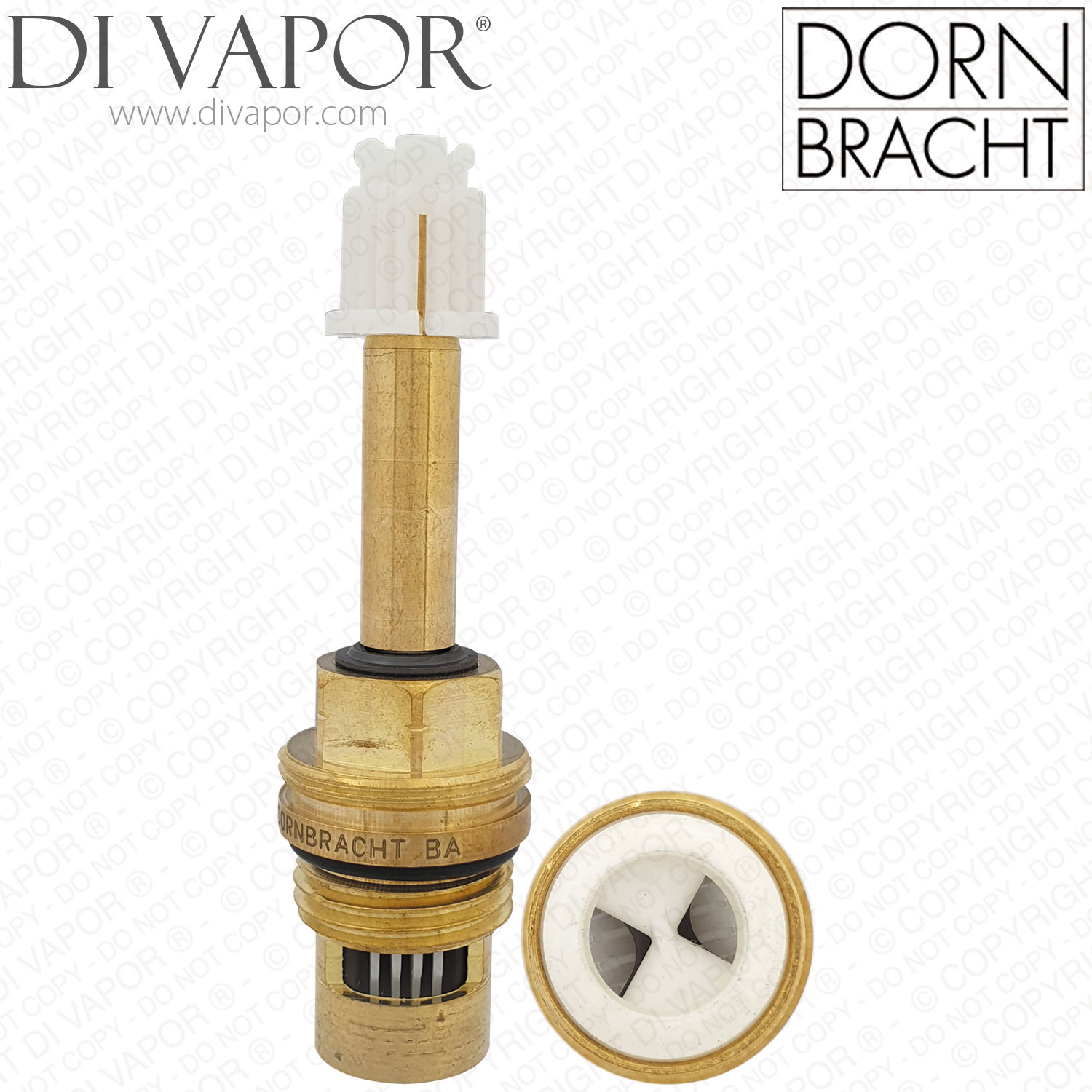

Dornbracht 9090031400090 Ceramic Cartridge - Clockwise Open
Send a photo of your item and we'll help confirm it.
Summary
Dornbracht 9090031400090 is a 1/2 inch ceramic cartridge used as the on off flow control headpart in the Belle de Bain wall mounted three hole basin mixer final assembly kit 36 710 325-FF.
This cartridge opens clockwise and is used to control water flow to the outlet. When worn it can cause stiff operation poor shut off or water dripping from the spout after the tap is turned off.
Technical Details
| Part code | 9090031400090 |
|---|---|
| Part Number | D-9090031400090 |
| Part type | ceramic cartridge / headpart |
| Operation | clockwise open |
| Connection | 1/2" BSP |
| Length | 80mm excluding the white spline adapter |
| Application | final assembly kit 36 710 325-FF for Belle de Bain 325 edition |
Confirmed Compatible Models
- Dornbracht Belle de Bain wall mounted three hole basin mixer 36710325-00
Related Spares You May Need
- Dornbracht 9090031410090 Clockwise Close Ceramic Cart
- TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
If you are replacing both sides of the Belle de Bain assembly check the opening and closing direction before ordering because the paired cartridge uses the opposite operating direction.
