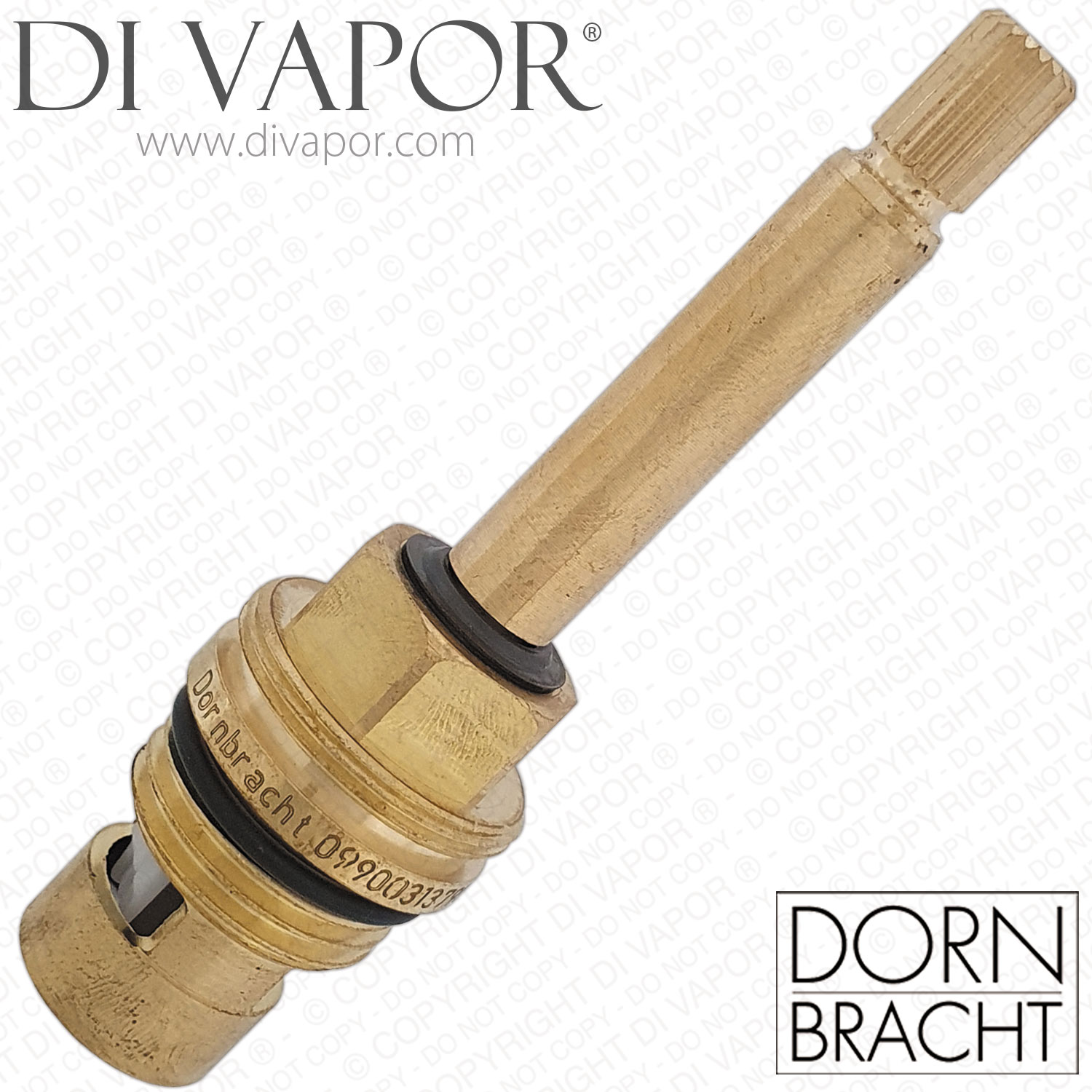

Dornbracht 9090031370090 1/​2 Inch Clockwise Close Ceramic Cart (90900313700)

SUMMARY

Dornbracht 9090031370090 is a 1/2 inch ceramic flow cartridge for selected Dornbracht concealed quarter-turn UP valve assemblies and FMI installations up to 10/2002. It is the clockwise close anti-clockwise open version used to control on and off water flow.

A worn cartridge can cause stiff operation poor shut-off or water dripping from the shower head or spout when the valve is turned off. Replacing it restores smoother 1/4 turn operation and a proper seal when closed.

Technical Details

- - Part code: 9090031370090

- - Cartridge type: ceramic disc flow cartridge

- - Application: concealed UP valves and FMI up to 10/2002

- - Connection: 1/2 inch BSP

- - Close direction: clockwise close / anti-clockwise open

- - Turn: quarter turn 90 degree operation

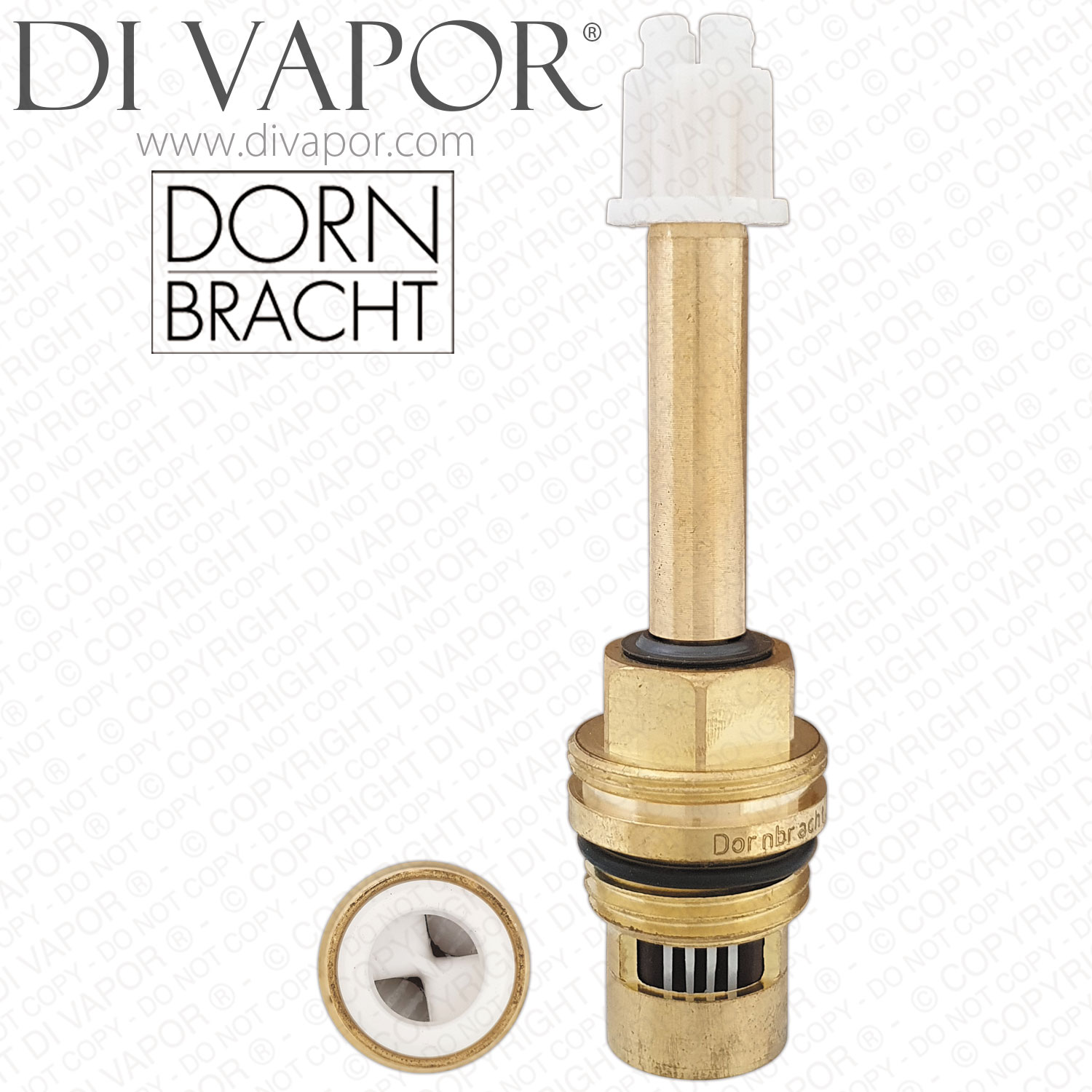

- - Total length with white adapter: 92.6mm

- - Total length without white adapter: 87mm

- - Top spline diameter: 7.6mm

- - Top spline count: 20

- - Upper thread diameter: 23.8mm

- - Lower fitting thread diameter: 20.6mm

- - Barrel diameter below lower thread: 16.8mm

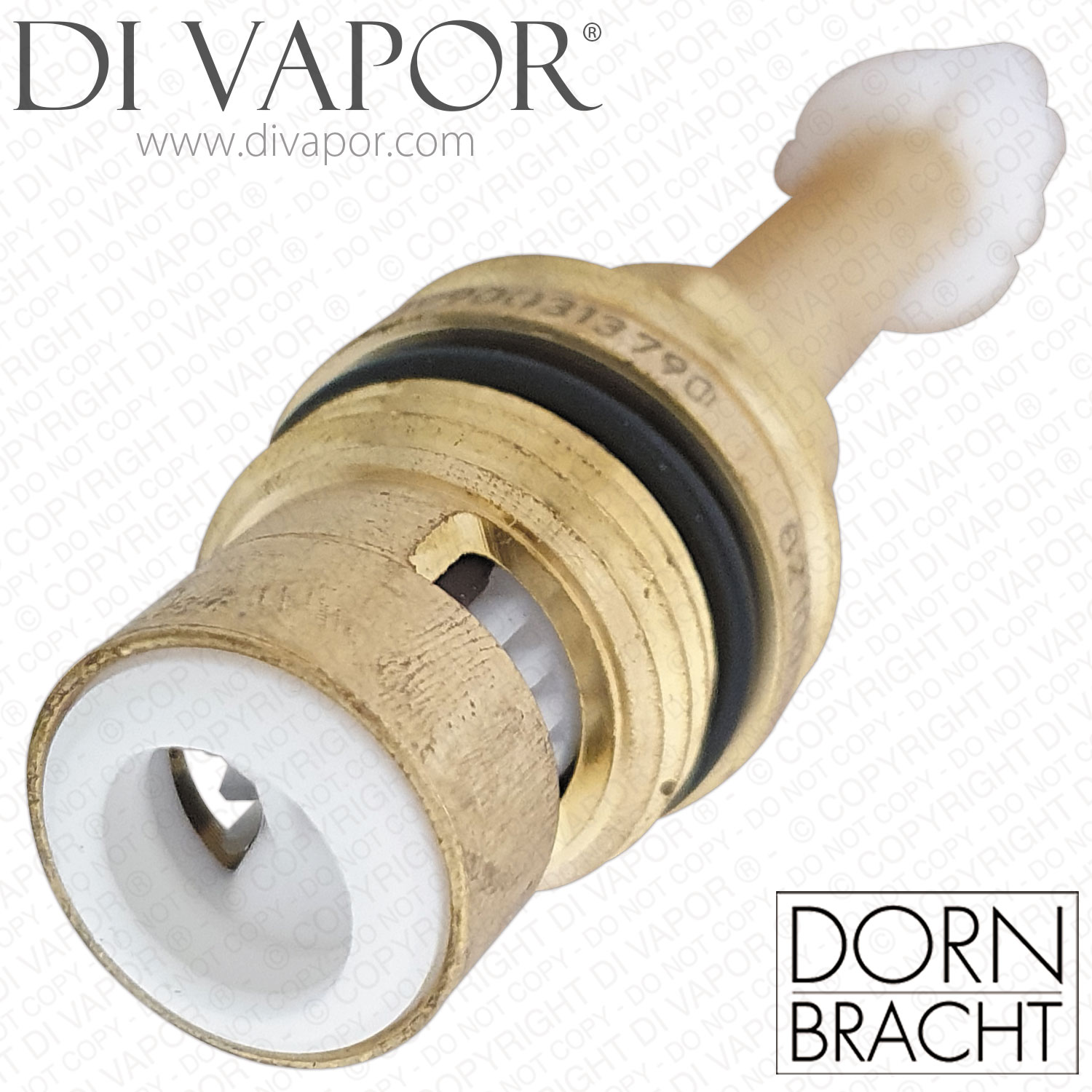

- - Bottom seal colour: white

Before You Order

- - Match the exact part code 9090031370090 where possible

- - Check the opening and closing direction on your original cartridge

- - Check the spline count and spline diameter

- - Check the installed length with and without the white adapter

- - Do not identify fit from the 1/2 inch BSP thread size alone

Confirmed Models

- - Dornbracht 29 335 730-FF concealed valve up to 10/2002

- - Dornbracht 29 335 980-FF concealed valve up to 10/2002

- - Dornbracht 29 335 985-FF concealed valve up to 10/2002

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

- - Dornbracht 9090031360090 1/2 Inch Ceramic Disc Cartridge
