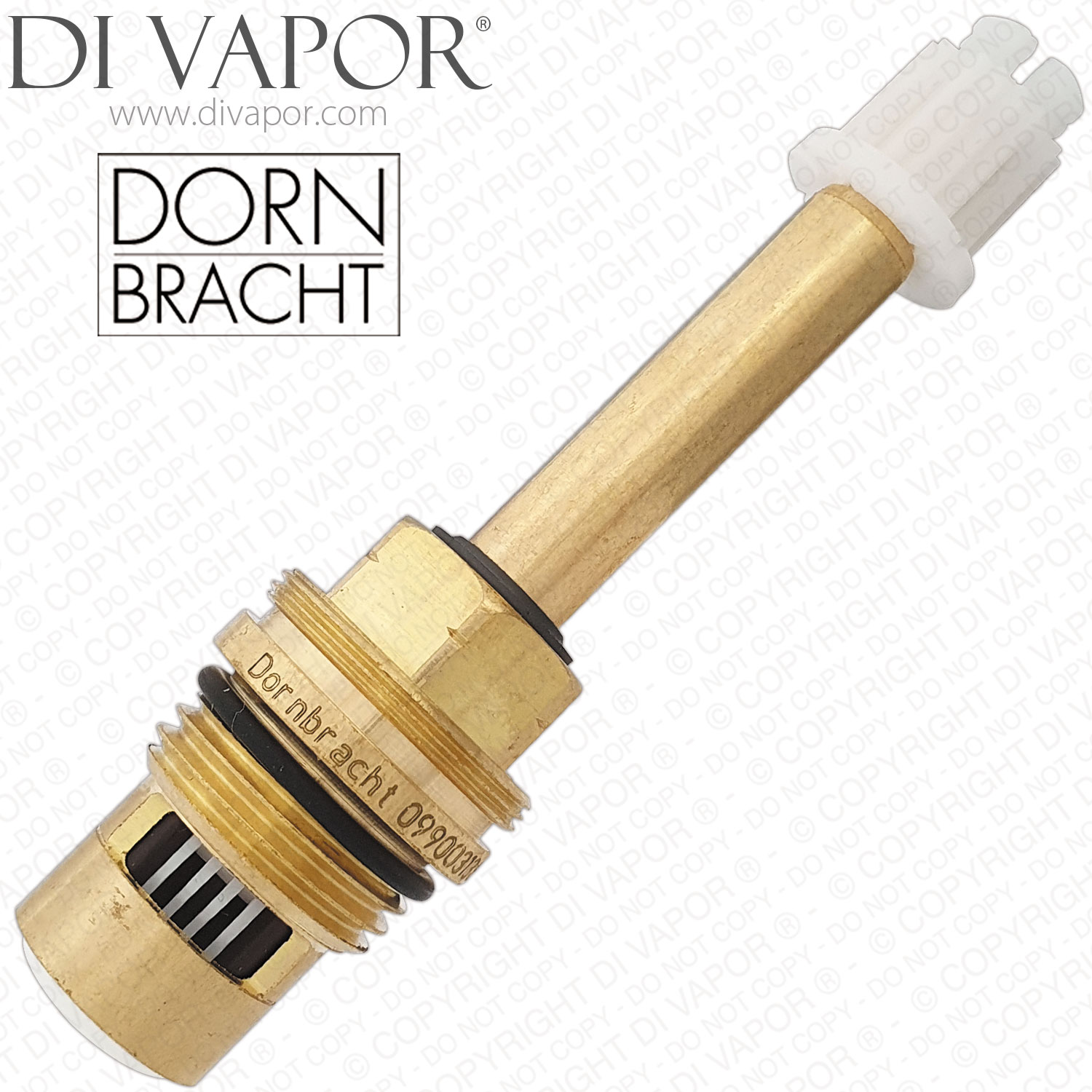

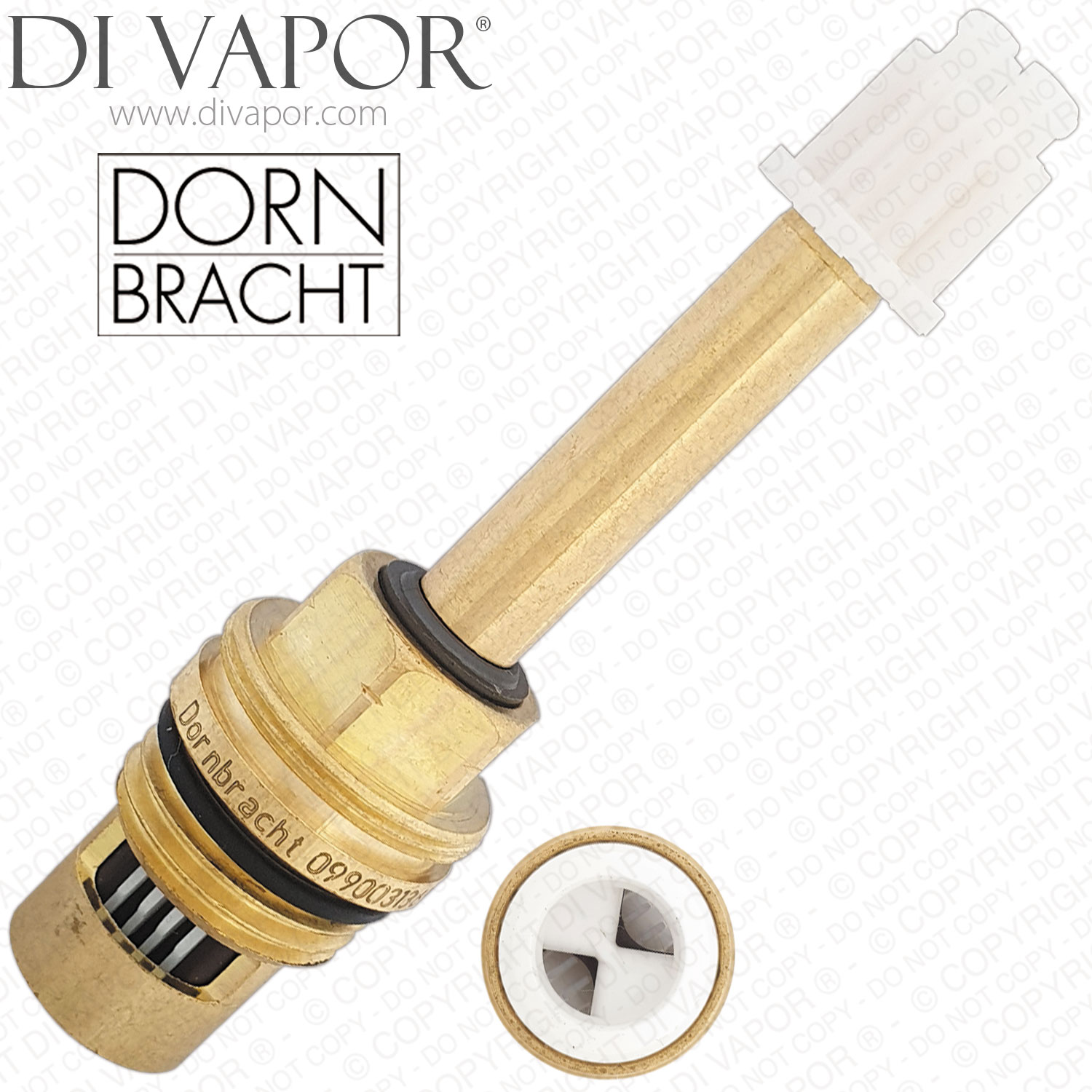

Dornbracht 9090031360090 1/​2 Inch Ceramic Disc Cartridge

SUMMARY

Dornbracht 9090031360090 is a 1/2 inch ceramic disc flow cartridge for selected Dornbracht quarter-turn valve assemblies. This is the anti-clockwise close / clockwise open version and it controls on and off water flow.

A worn flow cartridge can cause stiff operation poor shut-off or water dripping from the shower head or spout when the valve is turned off. Replacing the cartridge restores smoother quarter-turn operation and proper sealing when closed.

Technical Details

- - Part code: 9090031360090

- - Cartridge type: ceramic disc flow cartridge

- - Connection: 1/2 inch BSP

- - Close direction: anti-clockwise close, clockwise open

- - Turn: quarter turn 90 degree operation

- - Total length with white adapter: 92.6mm

- - Total length without white adapter: 87mm

- - Top spline diameter: 7.6mm

- - Top spline count: 20

- - Upper thread diameter: 23.8mm

- - Lower fitting thread diameter: 20.6mm

- - Barrel diameter below lower thread: 16.8mm

- - Bottom seal colour: white

Before you order check

- - Match the exact part code 9090031360090 where possible

- - Check the opening and closing direction on your original cartridge

- - Check the spline count and spline diameter

- - Check the installed length with and without the white adapter

- - Do not identify fit from the 1/2 inch BSP thread size alone

Confirmed Compatible Models

- - Dornbracht 29 335 730-FF concealed valve up to 10/2002

- - Dornbracht 29 335 980-FF concealed valve up to 10/2002

- - Dornbracht 29 335 985-FF concealed valve up to 10/2002

Related Spares You May Need

- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved

- - Dornbracht 9090031370090 1/2 Inch Clockwise Close Ceramic Cart (90900313700)
