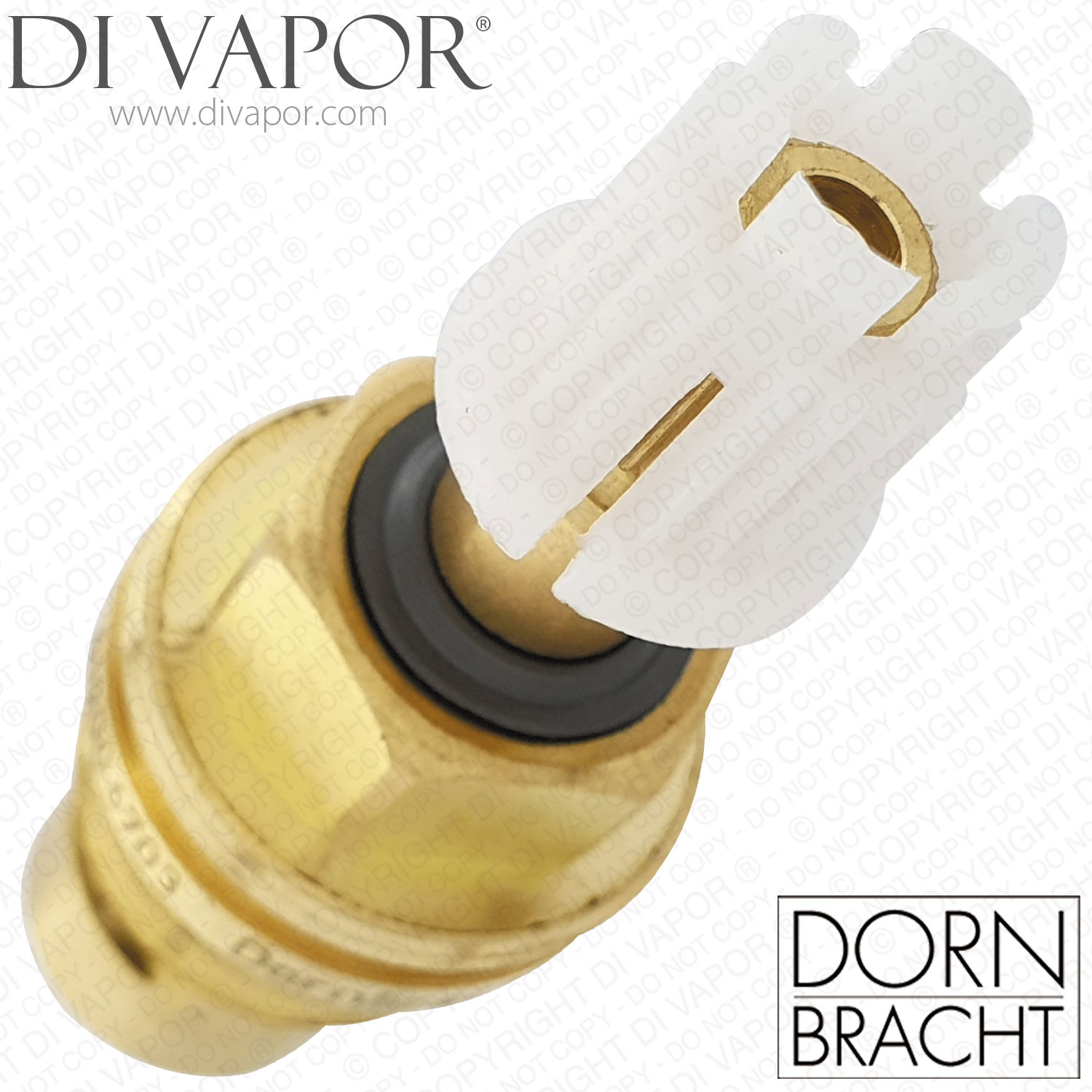

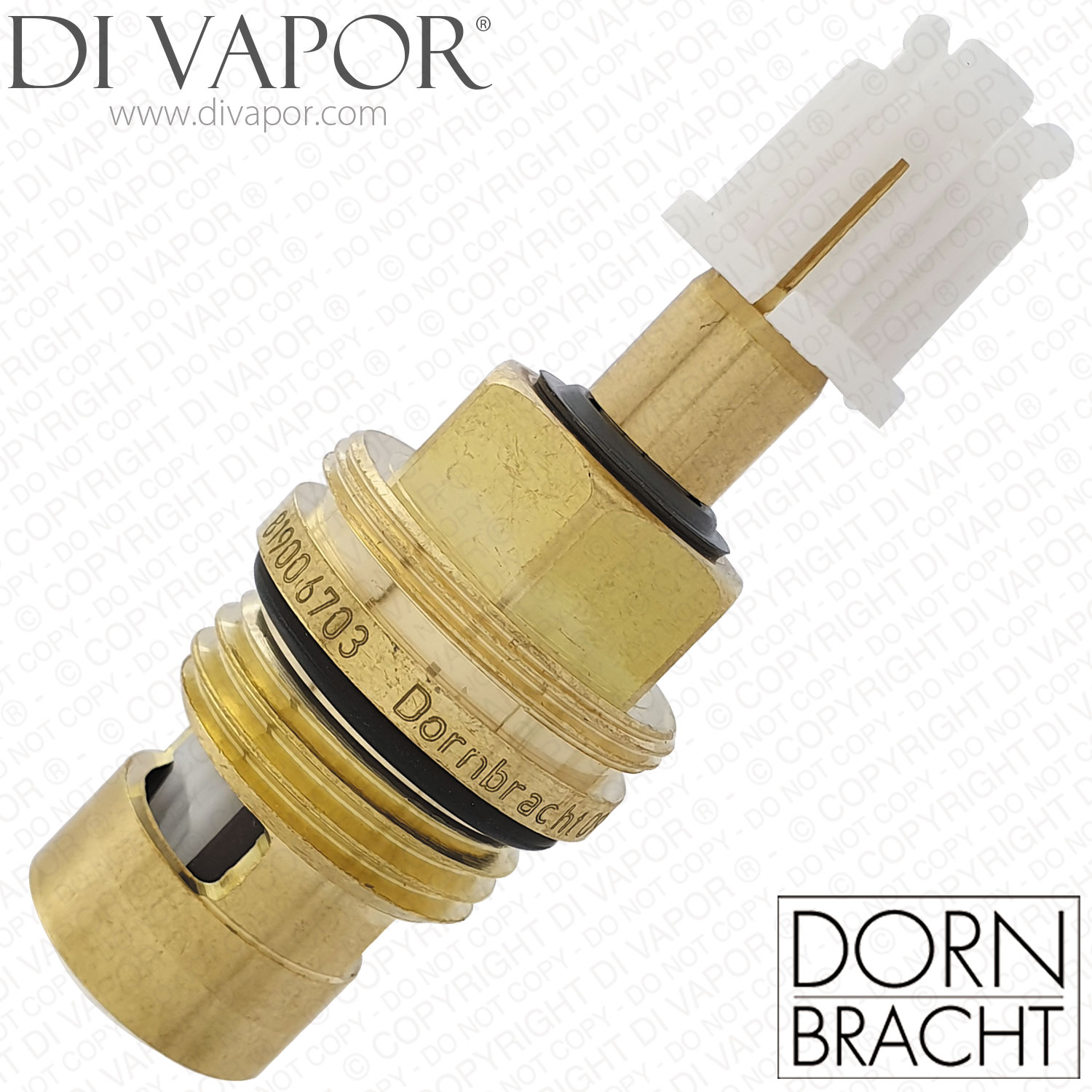

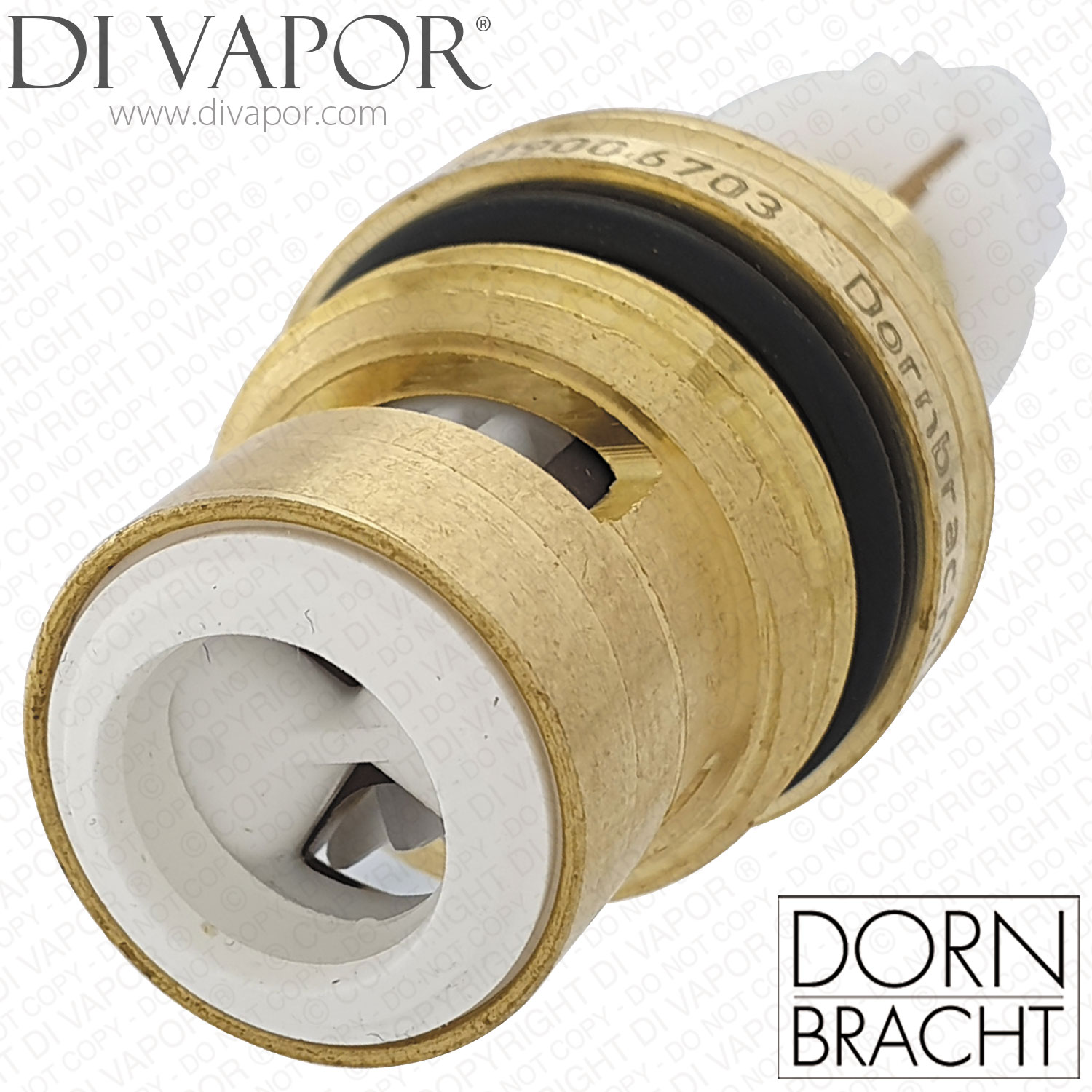

Dornbracht 9090031330090 1/2" Cartridge with Spline Adapter - Anti-Clockwise Open
SUMMARY
This Dornbracht 9090031330090 is a 1/2 inch quarter-turn ceramic flow cartridge with spline adapter used in selected Dornbracht deck valves, side valves and 3-hole basin mixer assemblies.
It controls on and off water flow and is the anti-clockwise opening version with clockwise close operation. A worn cartridge can cause stiffness, poor shut-off or dripping from the outlet when the tap is turned off.
Technical Details
- - Turn: quarter turn
- - Close direction: clockwise close anti-clockwise open
- - Total length including white spline adapter: 65.6mm
- - Total length excluding white spline adapter: 61mm
- - Diameter at widest point: 23.8mm
- - Top spline diameter including adapter: 12.9mm
- - Top spline diameter excluding adapter: 7.8mm
- - Top spline teeth / notches including adapter: 20
- - Top spline teeth / notches excluding adapter: 20
- - Barrel diameter: 16.8mm
- - Lower thread: 1/2"
- - Upper thread near spline: 23.8mm
- - Bottom seal colour: white
- - Check the exact part number 9090031330090 and the opening direction before ordering. Do not match by diameter or measurements alone.
Confirmed Fitted Products and Documented Uses
- - Dornbracht Mem Deck Valve Clockwise Closing Cold - Brushed Platinum 20 004 782-06
- - Dornbracht Mem Deck Valve Clockwise Closing Cold - Platinum 20 004 782-08
- - Dornbracht Mem Deck Valve Clockwise Closing Cold - Brushed Dark Platinum 20 004 782-99
- - Dornbracht CL.1 Deck Valve Clockwise Closing Cold - Brushed Dark Platinum 20 002 705-99
- - Dornbracht Meta Three-Hole Basin Mixer with Pop-Up Waste - Brushed Platinum 20 713 661-06
- - Dornbracht Meta Three-Hole Basin Mixer with Pop-Up Waste - Matte Black 20 713 661-33
- - Dornbracht Series Specific Deck Valve Clockwise Closing Hot - Brushed Dark Platinum 20 000 715-99
- - Dornbracht DEQUE Deck Valve Cold - 20000740
- - Dornbracht Deck Valve Clockwise Closing Cold - 20000782
- - Dornbracht SUPERNOVA Deck Valve Clockwise Closing Cold 1/2 - 20000730
- - Dornbracht CL.1 Side Valve Right-Closing Cold - 20001705
Installation Note
- - Apply a suitable silicone grease to the O-rings and sealing surfaces during installation.
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
- - GROHE Premium Plumbers Silicone Grease - 2g - SYNTHESO LM 220 (18007031)
- - Dornbracht 9090031320090 1/2" Cartridge with Spline Adapter - Clockwise Open
