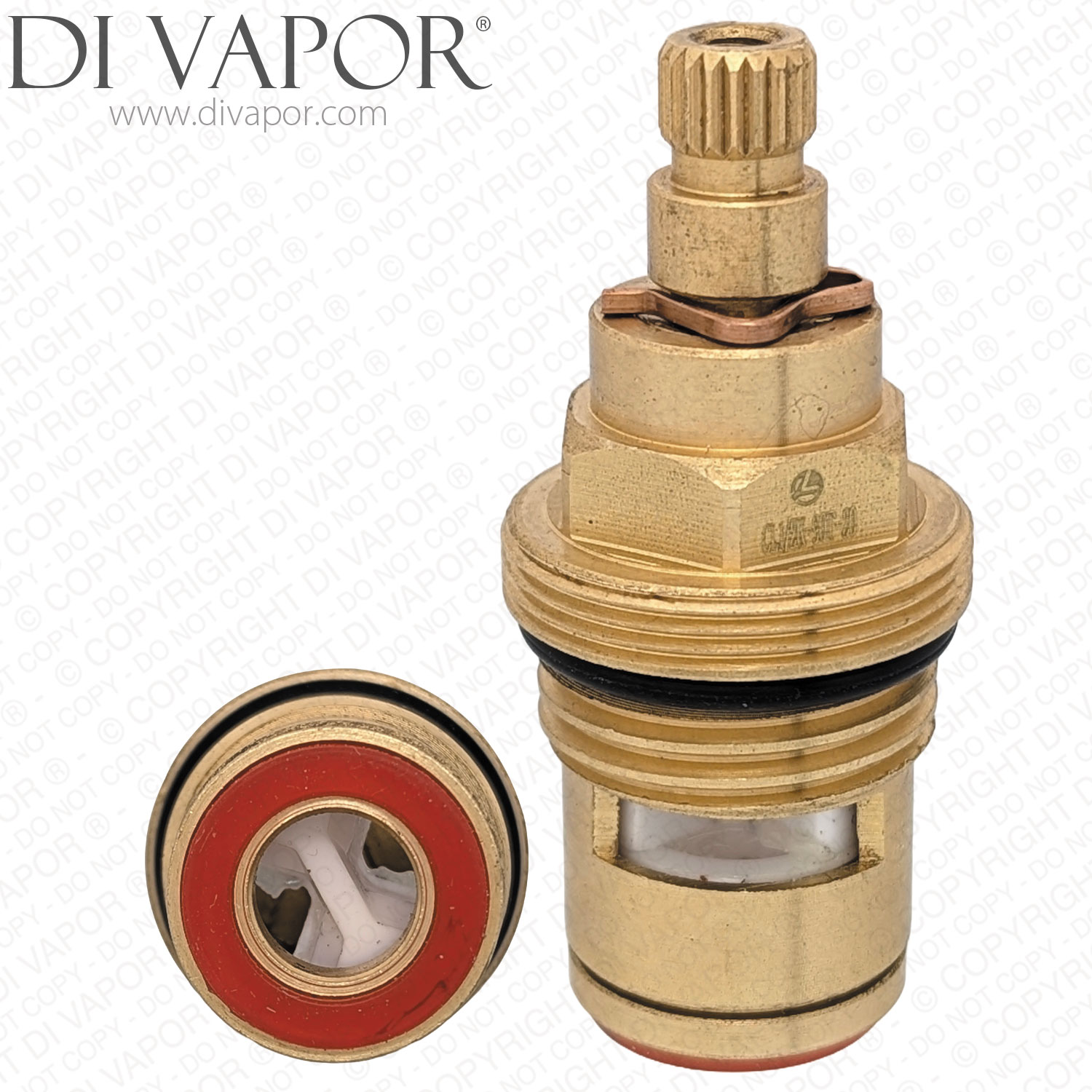

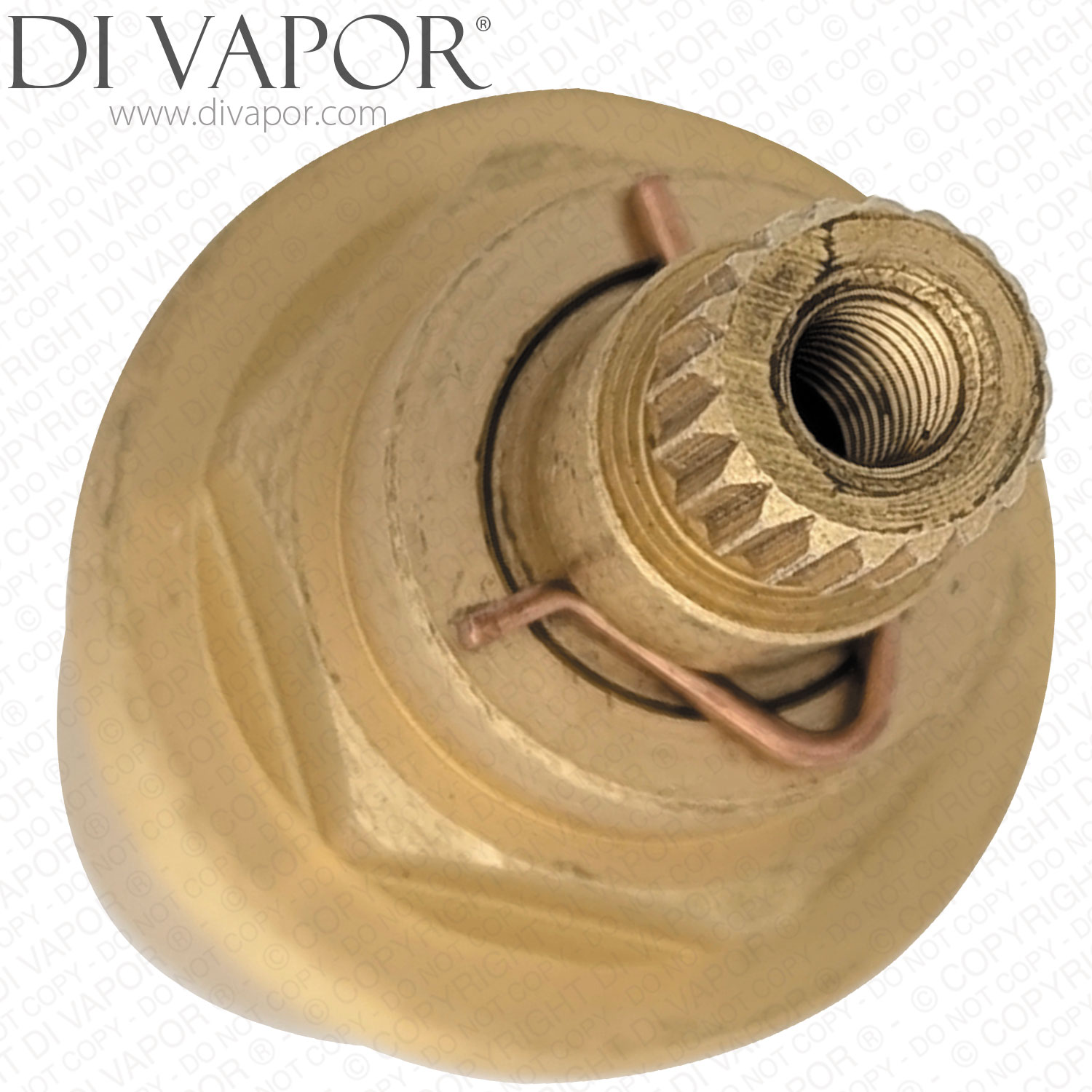

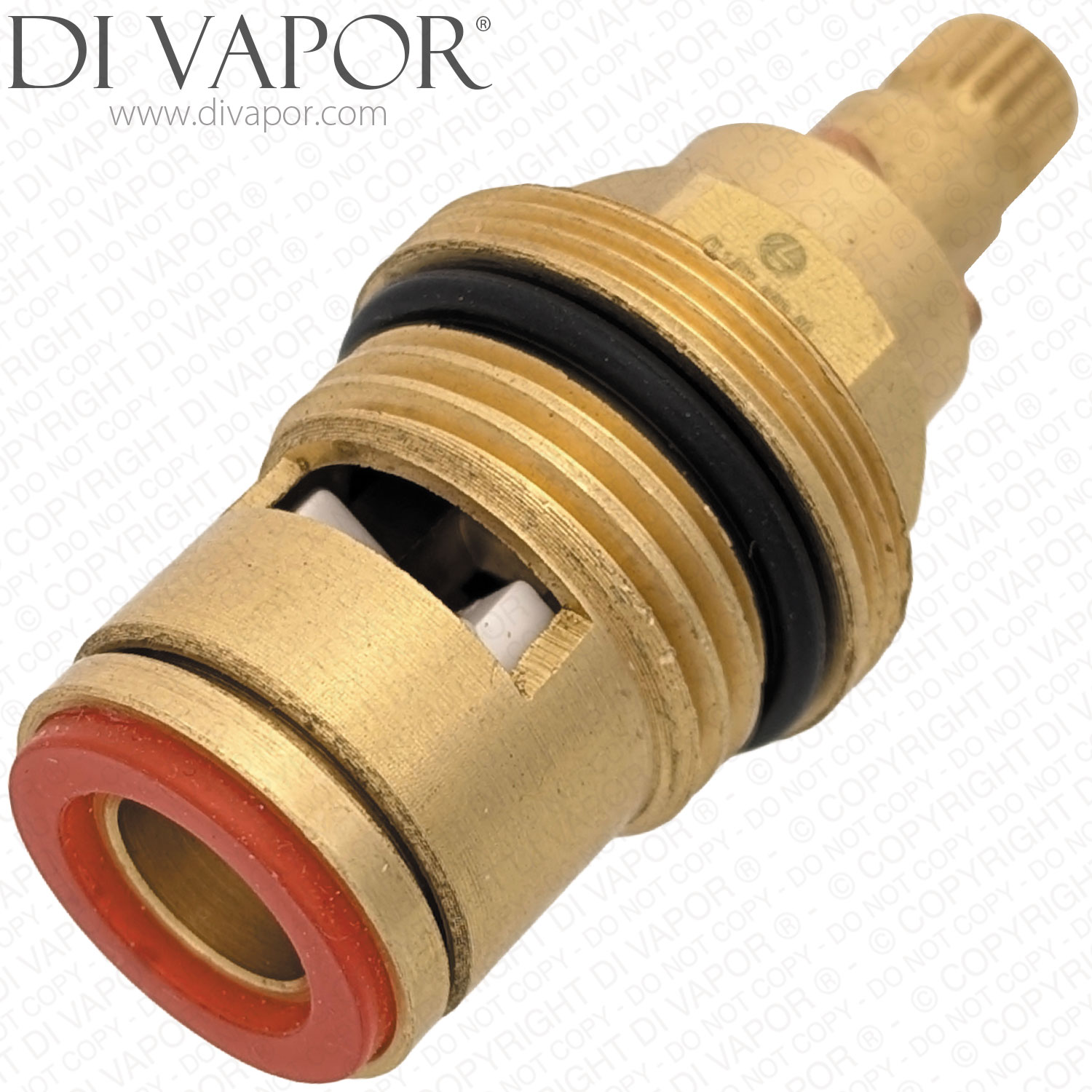

CL1/2K-90T-20 Clockwise Open Cartridge
SUMMARY
CL1/2K-90T-20-C is a clockwise open flow cartridge for controlling water flow in a shower valve or tap body that uses this 1/2 inch BSP ceramic disc headwork format.
This cartridge opens in the clockwise direction and should be checked against the removed cartridge before ordering, especially the thread size, spline/stem arrangement, overall shape and opening direction. A common symptom of flow cartridge failure is water passing or dripping from the shower head or spout when the valve or tap is turned off.
Technical Details
- - Part number: CL1/2K-90T-20-C
- - Base model: CL1/2K-90T-20
- - Operation: clockwise open
- - Cartridge type: quarter-turn ceramic disc headwork assembly
- - Thread size: 1/2 inch BSP male
- - Body material: brass
- - Seals: NBR O-rings and silicone gaskets
- - Maximum working pressure: 10 Bar
- - Maximum operating temperature: 85°C
- - WRAS approval for base model CL1/2K-90T-20: 251012001
Installation Note
- - Isolate the water supply before removing the old cartridge.
- - Match the new cartridge to the removed part before fitting.
- - Apply suitable silicone grease to the O-ring and bottom seal during installation.
- - Do not force the cartridge into the valve body if the thread, seal position or opening direction does not match.
Related Spares You May Need
- - TACSIL 3g Premium Cartridge Silicone Grease - WRAS Approved
